IO-PROG ECU Programmer With GM/OPEL ECU Activation Modules & Functions IO-PROG ECU Programmer With GM/OPEL ECU Activation Modules & Functions

ET256
0.8kg
ECU Chip Tuning
$388.00 $289.00 26%
-
+
Buy it now
IO-PROG ECU Programmer With GM/OPEL ECU Activation Modules & Functions
$388.00 $289.00 26%
-
+
Buy it now

IO Prog is the same as I/O Terminal Multi Tool and is a software and hardware solution designed for work with ECUs, transmissions, and BSI.

IO Prog reading & writing ECUs using the OBD-II data link connector.

MB Star C4/C5

I/O Prog ECU Programmer Advantages:

Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.

A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

Checksums testing and correction. Safe reading and flashing

Work with ECUs installed in VAG, Mitsubishi, Mazda, Ford, Nissa*n, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maserati, Hyundai, Kia, Daewoo, etc

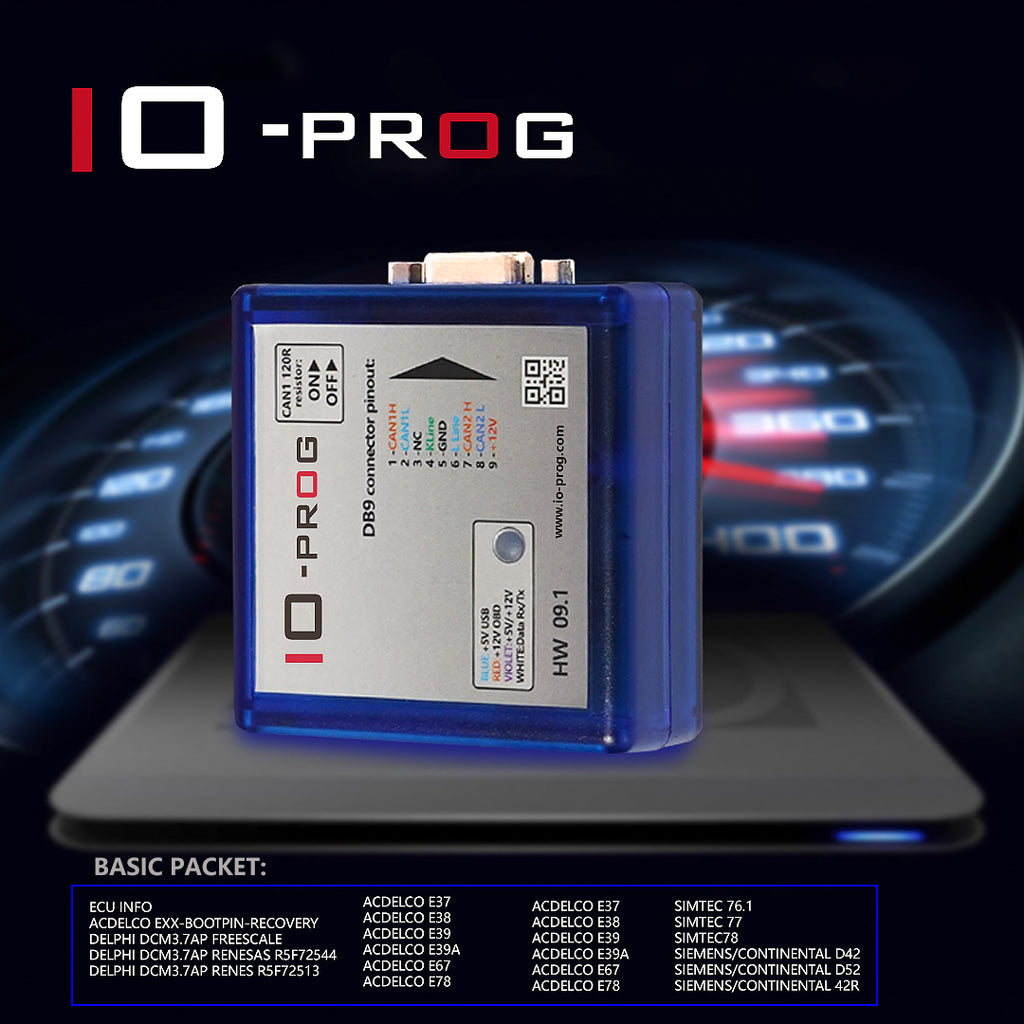

NOTE : BASIC PACKET:MULTITOOL +OPEL/GM ECU LICENSE

1、software cannot be upgraded online
2、this product only has GM/OPEL  license now, not full cars



Software for IO Prog hardware owners.  Software reads write memories of OPEL/GM ECUs by CAN (OBD or wired on the bench). Also, the software has bootpin recovery mode.  There is also ECU EEPROM EDITOR included which lets you extract PINCODES and do other functions with EEPROM DUMP.   Software and wiring diagrams can be downloaded as well.

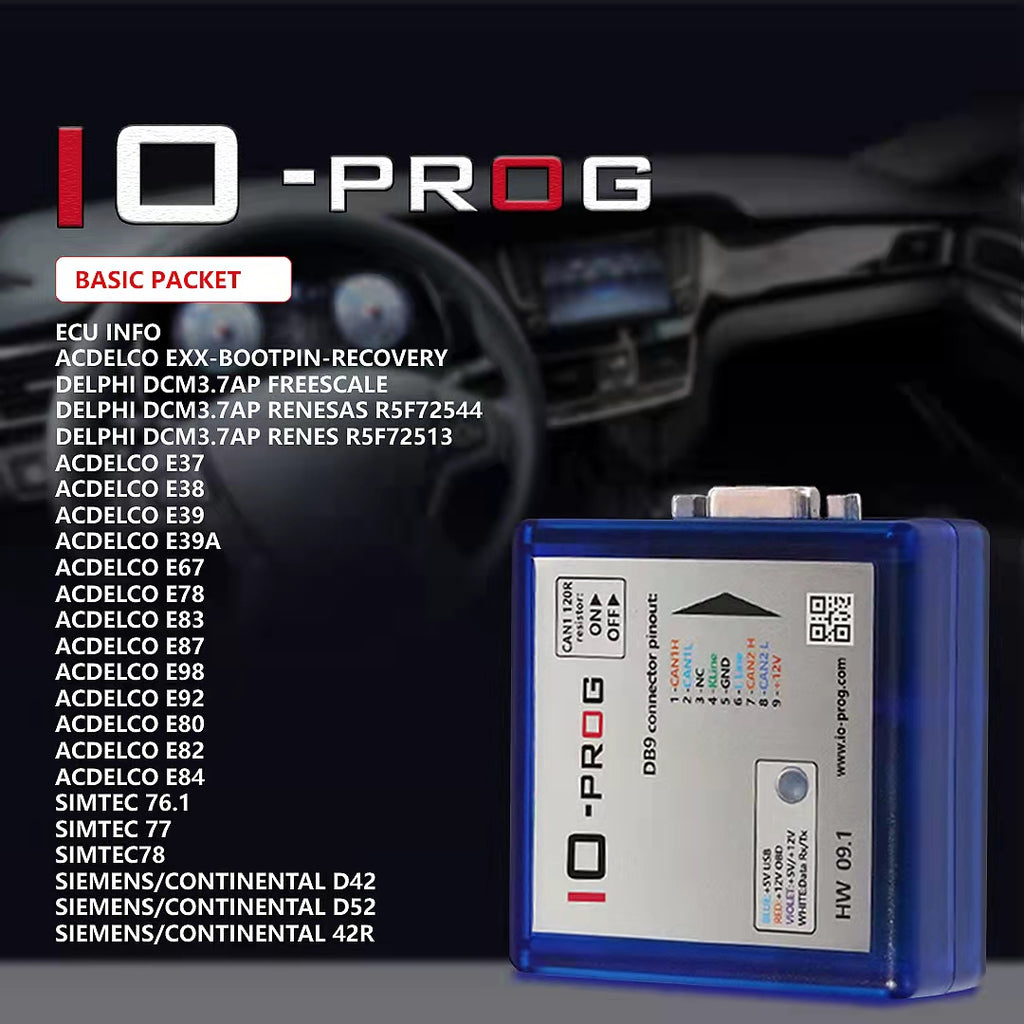

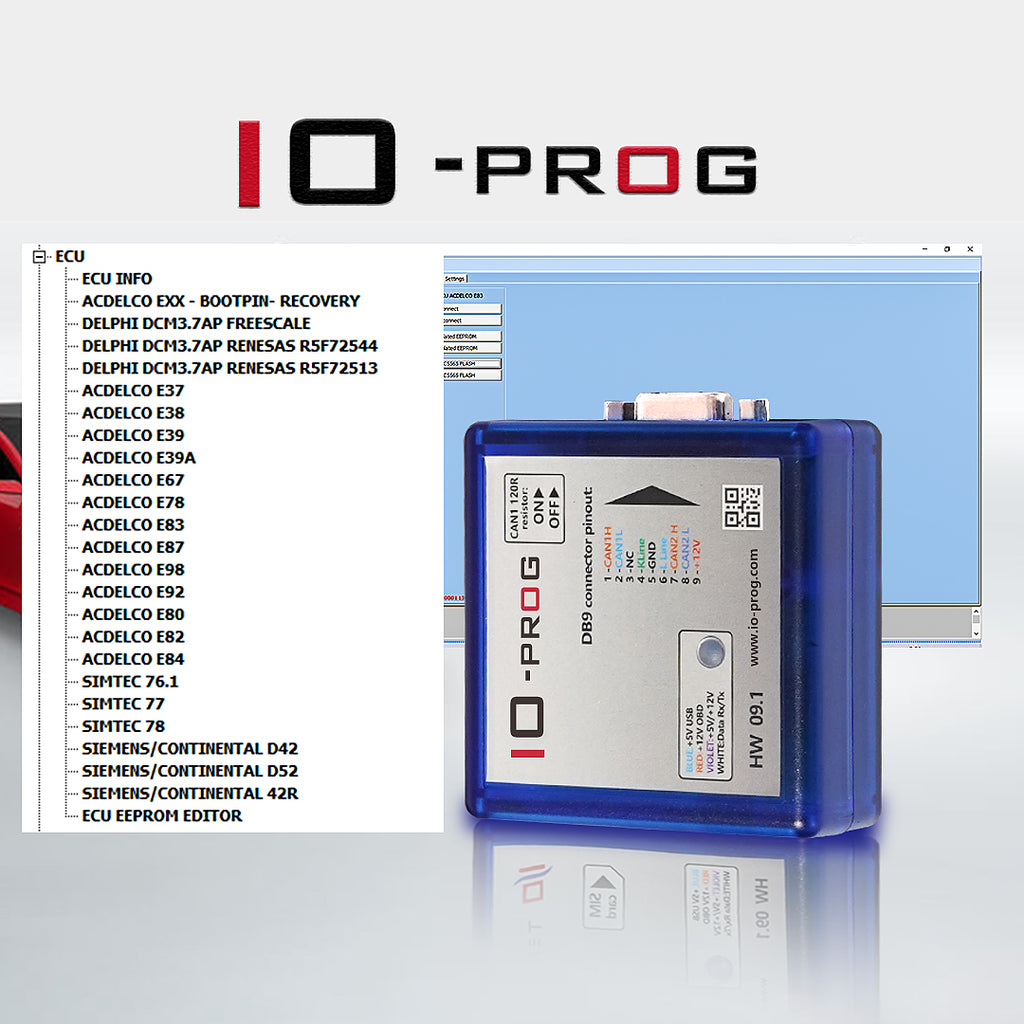

IO PROG Supported OPEL/GM ECU types

  1. ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  2. ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  3. ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  4. ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  5. ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  6. ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  7. DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
  8. DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD).
  9. DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD).
  10. ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
  11. ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
  12. ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  13. ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  14. ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  15. ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
  16. ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
  17. EEPROM DUMP VIEWER,EDITOR.

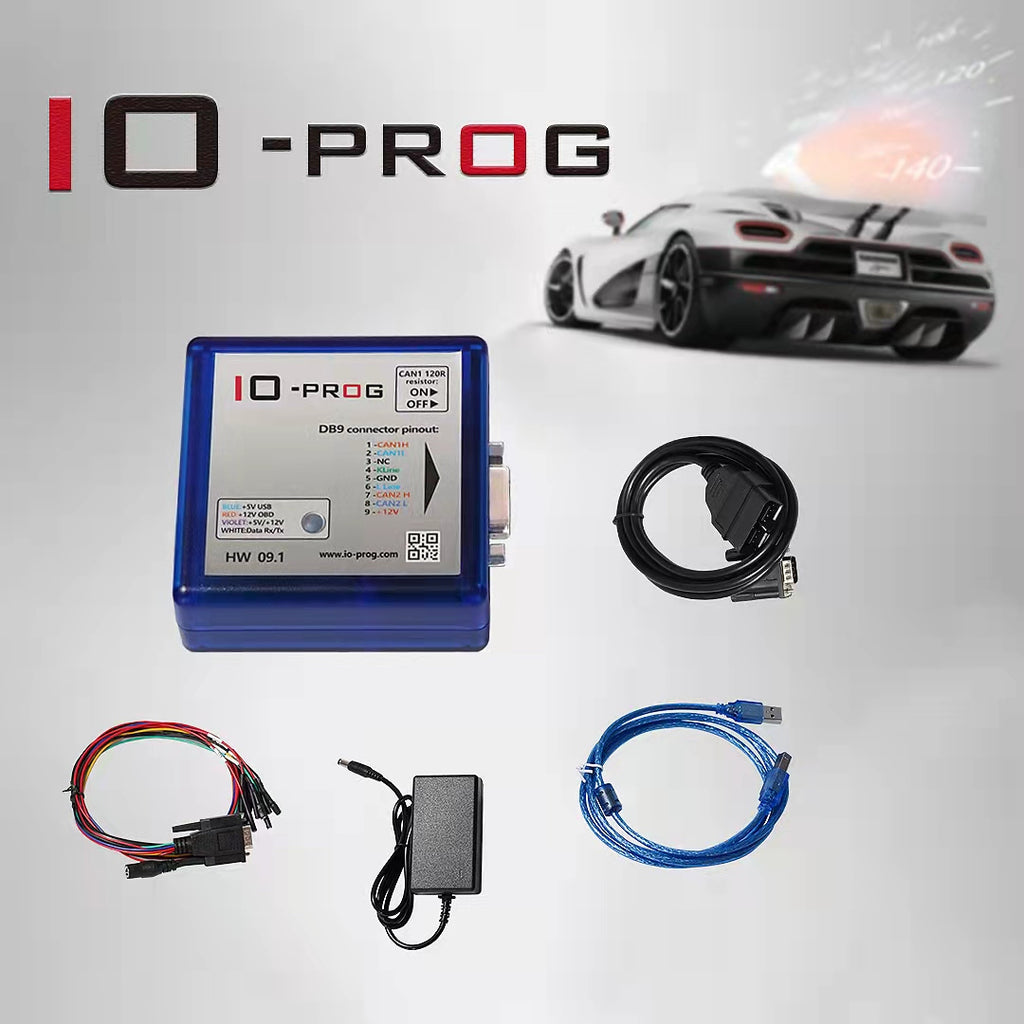

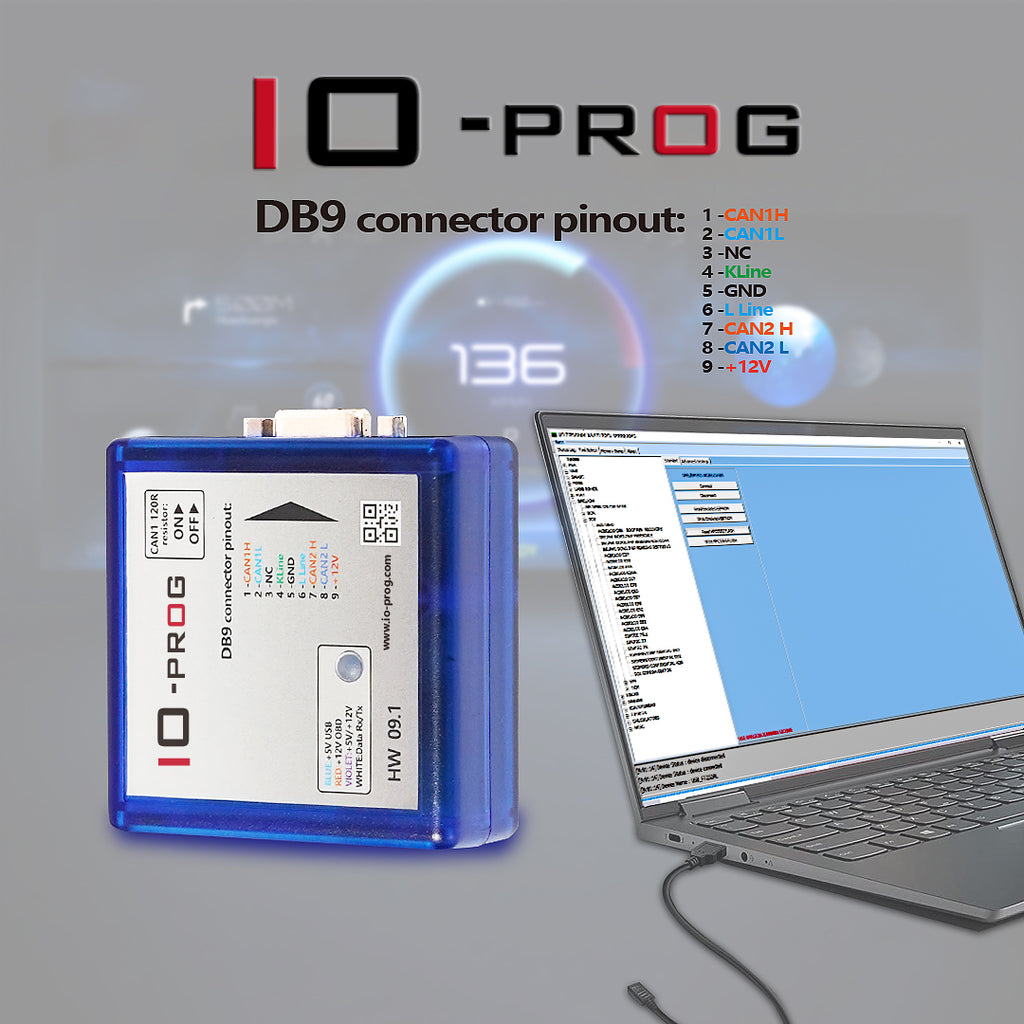

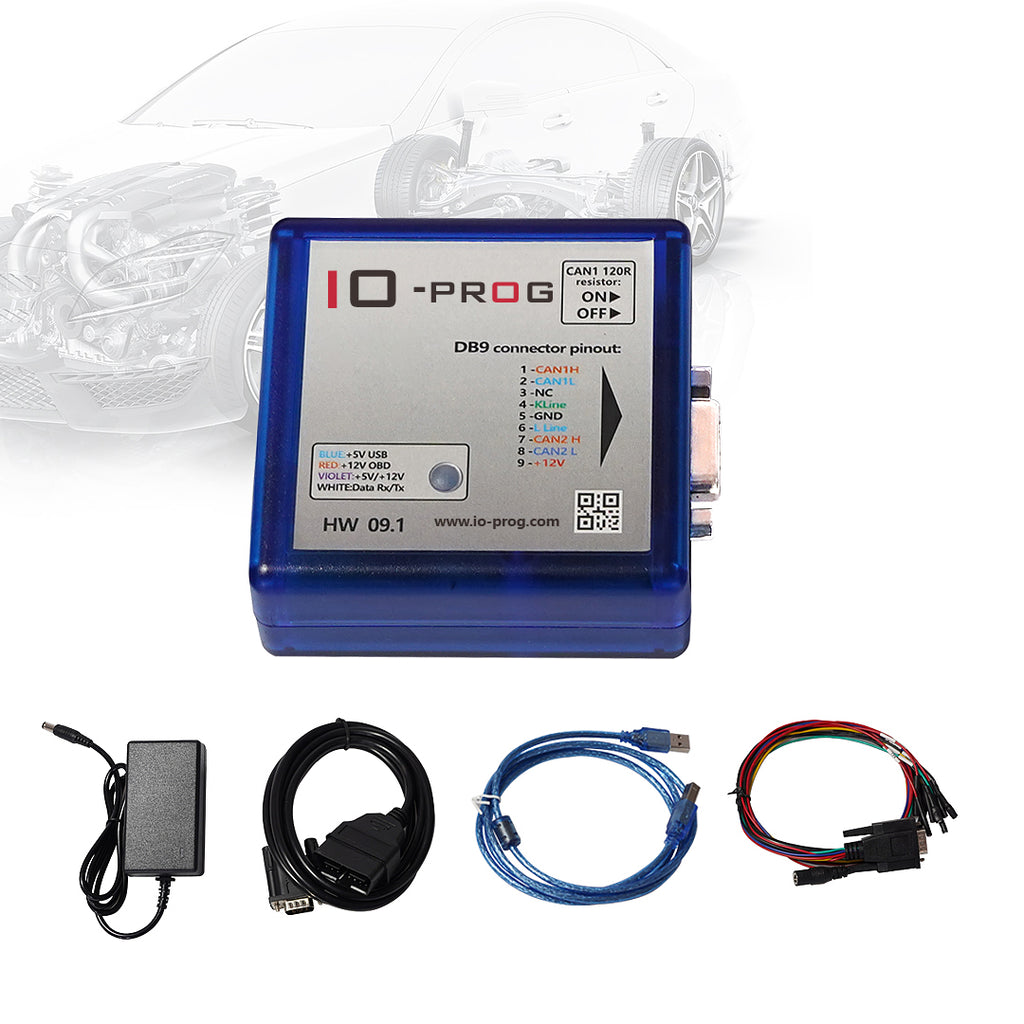

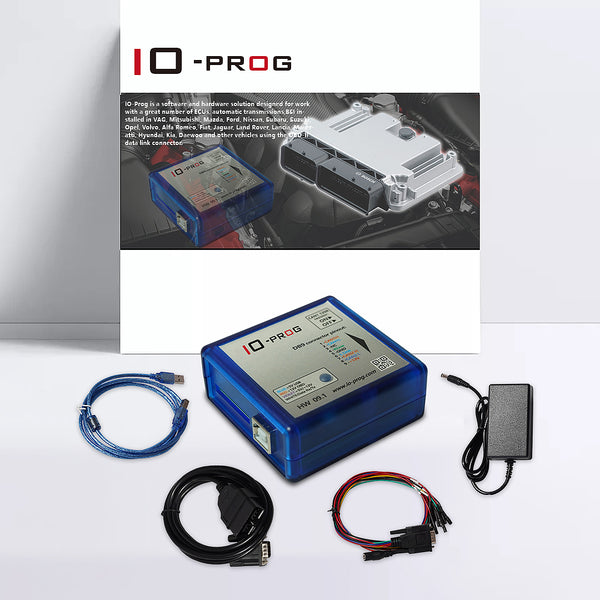

IO-PROG Programmer BD9 Connector Pinout IO Prog



The software is marketed on a module basis. Each module is a separate program that functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some licenses can be recorded on one card, others require separate recording.



PAY UP Licenses: You can add new licenses by device ID, and activate them on the internet.



SIEMENS

PEUGEOT, CITROEN, VOLVO, FORD, VAG, JAGUAR, DAEWOO, OPEL. EEPROM reading /writing; pincode reading; ECU virginizing; service history (DATE/MILEAGE/DIADEVID) reading/modifying. All operations are done through Kline or CAN bus without opening the ECU.

Supported ECUs:

BMW Mini/Rover Siemens EMS

BMW Mini/Rover Siemens EMS2

BMW Mini Siemens EMS5150

DAEWOO SIEMENS/KEMSCO D3

KIA/HYUNDAY Siemens SIMK31

KIA/HYUNDAY Siemens SIM2K-34VR

OPEL SIMTEC 70

OPEL SIMTEC 71

OPEL SIMTEC 71.1

OPEL SIMTEC 71.5

OPEL SIMTEC 71.6

OPEL SIMTEC 75.5

OPEL SIMTEC 81

OPEL SIMTEC 81.1

OPEL/GM SIMTEC 76.1 – included in MULTITOOL SOFTWARE

OPEL/GM SIMTEC 78 – included in MULTITOOL SOFTWARE

OPEL/GM SIMTEC 77 – included in MULTITOOL SOFTWARE

GM SIEMENS/CONTINENTAL D42 – included in MULTITOOL SOFT WARE

GM SIEMENS/CONTINENTAL D52 – included in MULTITOOL SOFT WARE

GM SIEMENS/CONTINENTAL 42R – included in MULTITOOL SOFT WARE

ALFA ROMEO SIMTEC 75.3

Land Rover Siemens SID201

Jaguar Siemens SID201

Jaguar Siemens SID204

VAG Siemens SIMOS 6.2

VAG Siemens SIMOS 7.1

VAG Siemens SIMOS 7.1A

Ford Siemens SIM210 ECU Tool

Ford Siemens SIM22 ECU Tool

Ford Siemens SIM24 ECU Tool

Ford Siemens SIM28 ECU Tool

Ford Siemens SIM29 ECU Tool

Ford Siemens SID802 ECU Tool

Ford Siemens SID803 ECU Tool

Ford Siemens SID803A ECU Tool

Ford Siemens SID804 ECU Tool

Ford SIEMENS/CONTINENTAL EMS2101 – included in MULTITOOL

SOFTWARE

Ford SIEMENS/CONTINENTAL EMS2102 – included in MULTITOOL

SOFTWARE

Ford SIEMENS/CONTINENTAL EMS2103 – included in MULTITOOL

SOFTWARE

Volvo Siemens EMS2000

Volvo Siemens SID803 ECU Tool

Volvo Siemens SID803A ECU Tool

PSA ECU Detect

PSA Siemens SID 201

PSA Siemens SID 801 ECU Tool

PSA Siemens SID 801A ECU Tool

PSA Siemens SID 802 ECU Tool

PSA Siemens SID 803 ECU Tool

PSA Siemens SID 803A ECU Tool

PSA Siemens SID 804 ECU Tool

PSA Siemens SID 805 ECU Tool

PSA Siemens SID 806 ECU Tool



MARELLI+MARELLI2

Reading/writing, pincode reading, mileage changing of Opel ECUs ( Z13DT, Z13DTJ, Z13DTH)  by OBD or on bench (6JO,6O2,6O3 ECUs). Fiat ECUs 8F2,8F3,8DF,8GMF HW502, 8GMF HW503,8GMW,8GSF,8GSW,6JF,6F3, IAW 5SF8, IAW 5SF3, IAW 5SF9 , IAW5NF , IAW5SF.XX, IAW5SF4, IAW 4AF.

Supported ECUs and functions:

SUZUKI – 8DS CAN – MPC5565 R/W – 95640 R/W

SUZUKI – MJD 6O2 KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

OPEL – MJD 6JO KLINE – MPC555 R/W – 95320 R/W

OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W

OPEL – MJD 6O3 CAN – MPC563 R/W – M58BW016DB R/W – 95320 R/W

FIAT – MJD 9DF CAN – SPC5644 R/W – 95128 R/W

FIAT – 8GMK CAN – SPC564A80B4 R/W – 95640 R/W

FIAT – IAW 9GF CAN – SPC564A70L7 R/W – 95640 R/W

FIAT – 8GSF CAN – MPC5565 R/W – 95640 R/W

FIAT – 8GSW CAN – MPC5565 R/W – 95640 R/W

FIAT – 8FMW CAN – MPC5565 R/W – 95128 R/W

FIAT – 8GMF HW03 CAN – MPC5565 R/W – 95640 R/W

FIAT – 8GMF HW02 CAN – MPC5553 R/W – 95640 R/W

FIAT – MJD 8DF KLINE – MPC5553 R/W – 95640 R/W

FIAT – MJD 8F2 CAN/KLINE – MPC5565 R/W – 95640 R/W

FIAT – MJD 8F3 CAN/KLINE – MPC5565 R/W – 95640 R/W

FIAT – IAW 7GF CAN/KLINE – MPC5565 R/W – 95640 R/W – included in

MULTITOOL software

FIAT – IAW 5SF.XX KLINE – ST10F280 R/W

FIAT – IAW 5SF3 CAN/KLINE – ST10F280 R/W

FIAT – IAW 5SF4 KLINE – ST10F296 R/W

FIAT – IAW 5SF8 CAN/KLINE – ST10F296 R/W

FIAT – IAW 5SF9 CAN/KLINE – ST10F296 R/W

FIAT – IAW 4AF HW204 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 4AF HW407 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 59F <HW100 KLINE – 29F200BB R/W – 95080 R/W

FIAT – IAW 59F HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 59F HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 5AF HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 5AF HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 5NF.T1/5NF.T9 KLINE – MC68F375 R – 95160 R/W

FIAT – MJD 6JF KLINE – MPC555 R/W – 95320 R/W

FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W

FIAT IAW 10GF MPC5642 FLASH+95640 EEPROM R/W

VAG IAW 9GV MPC5634 FLASH+95320 EEPROM R/W



DENSO

Reading/writing (64F7055, 64F7058, 64F7059 microcontrollers). FULL FLASH reading/writing; EEPROM reading/writing (usually). All operations are done via K-LINE or CAN by OBD or wired on the bench without opening the ECU. On some ECUs there are some extra functions like odometer calibration, pincode extraction and reset (virgin). Also software has FLASH memory CRC calculator.

ECUs supported:

  • OPEL MERIVA, CORSA C 1.7 CDTI HYBRID ECU. Full R/W 64F7055, R/W 93C66 eeprom, show pincode , reset(virgin). (CAN & K-LINE)

  • OPEL VECTRA C/SIGNUM 3.0 CDTI. Full R/W 64F7058, R/W 93C86 x2 eeprom , show pincode , odometer calibration, reset(virgin). (CAN)

  • OPEL 1.7CDTI 110CV/125CV Z17DTJ/Z17DTR/Z17DTH/A17DTH/A17DTR ASTRA H/ASTRA J/ ZAFIRA B/CORSA D/MERIVA B/TIGRA B. Full R/W 64F7058, R/W 93C86 x3 eeprom , odometer calibration, show pincode , reset(virgin). Full R/W 64F7059, R/W 93C86 x4 eeprom , odometer calibration, show pincode , reset(virgin).  (CAN)

  • MAZDA 3/5/6 RF7 ECU. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MAZDA 2 1.5 from year 2010. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)

  • MAZDA 6 2.2TD R2AC. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MAZDA RX8 . Full R/W 64F7055, R/W 93C56  eeprom. (CAN)

  • NISSAN NAVARA/PATHFINDER 2.5DCI 2005-2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • NISSAN NAVARA/PATHFINDER D40 2.5DCI from 2010. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID till year 2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI DELICA D5/OUTLANDER 2.2DID 4N14 from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • SUBARU FORESTER 2.0D KH. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • SUBARU OUTBACK 2.0DNG. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • SUZUKI 1.3/1.5/1.6. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)

  • SUZUKI <2007 1.3/1.5/1.6. Full R/W 64F7055, R/W 93A56  eeprom. (CAN)

  • SUZUKI JIMNY <2007 1.3  Full R/W 64F7055, R/W 93A56  eeprom. (CAN)

  • for Vo-lv-o V50/S40/V40 2006-2010 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)

  • for v-olv-o V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)

  • V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7055 , full R/W external flash 29LV200BC ,R/W 93C56 eeprom. (CAN)

  • for V-ol-vo S80/XC90 4.4L V8 2007-2010   full R/W 64F7058,R/W 93A86 eeprom. (CAN)

  • JAGUAR/LANDROVER P3.0NA / JAGUAR XF 4.2SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)

  • JAGUAR S-TYPE 4.2 V8 V8SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)



FIAT BSI

EEPROM reading/writing, showing the pincode stored in BSI. Tool works by OBD or ont he bench.

BSIs supported:

Magneti Marelli with Freescale MCU 3K91D,1k79X (R/W EEPROM SHOW

Magneti Marelli with NEC MCU 70F3237,70F3378 (R/W EEPROM SHOW PIN);

Siemens Continental Freescale MCU 9S12DG128 (R/W EEPROM SHOW PIN).

Vehicles with Freescale 3K91D,1k79X MCUs:

  • Alfa Romeo: 147, GT

  • Fiat: Stilo(1999-2007), Palio(1999-),Idea

  • Lancia: Thesis, Ypsilon

  • Maserati: Quattroporte, Granturismo

Vehicles with Freescale 70F3237,70F3378 MCUs:

  • Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-)

  • Lancia: Ypsilon(2007-)

Vehicles with Freescale 9S12DG128 MCUs:

Fiat: Panda(2003-)



MOTORCYCLE

FULL FLASH reading/writing, DUCATI BIKES ECUS made by CONTINENTAL. All operations done by CAN.

ECUs supported:

CONTINENTAL M3C with freescale 9S12XDP256 mask 1L15Y;

CONTINENTAL M3C with freescale 9S12XET256 mask 2M53J.



VAGDSG+EASYTRONIC

TEMIC DQ250 MPC555+95160 KLINE

EEPROM 95160 R/W, MPC555 FLASH R/W



BOSCH

Reading/writing.

Supported ECUS and functions:

BMW EDC15C4 KLINE -29F400BT R/W – 95P08 R/W

LAND ROVER EDC15C4 KLINE -29F400BT R/W – 95P08 R/W

SMART ME7.7.0 KLINE – ST10F275 R/W – 95080 R/W

SMART EDG15C-5.X KLINE – 29F400BT R/W – 95P08 R/W

OPEL EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W

OPEL ME7.6.1/ME7.6.2 KLINE – ST10F275 R/W – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME7.6.1/ME7.6.2 KLINE -29F800BB – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME1.5.5 KLINE -29F400BB – 95080 R/W – Reset(Virgin)VOLVO EDC16C31 CAN (29bit) – M58BW016DB R/W – 95320 (until year 2008)

(XC90 until year 2012)

VOLVO EDC16C34 CAN (29bit) – M58BW016DB R/W – 95160 (V50,S40,C30 until year 2008)  (1.6L)

VOLVO ME9.0 CAN (29bit) – M58BW016DB R/W – 95080 (V50 until year 2008)

VOLVO ME7.0/ME7.0.1 CAN( 500 kbps) – 29F800BB R/W – 95080 R/W – CKS

VOLVO ME7.0/ME7.0.1 CAN(250 kbps) – 29F800BB R/W – 95P08 R/W – CKS

VOLVO EDC15C11 CAN(250kbps/500kbps)/KLINE – 29F400BT R/W – 95P08 R/W

VOLVO EDC15C3 KLINE – 29F400BT R/W – 95P08 R/W

JEEP/CHRYSLER EDC15C5 KLINE – 29F400BT R/W – 95P08 R/W

MB EDC15C6 KLINE – 29F800BT R/W – 95P08 R/W

HONDA ME7.9.3 KLINE – 29F800BB R/W – 95040 R/W

HONDA EDC15C7 KLINE -29F400BT R/W – 95P08 R/W

TOYOTA EDC15C9 KLINE -29F400BT R/W – 95P08 R/W

TOYOTA ME7.9.5 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA ME7.9.51 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA M7.9.5 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA M7.9.52 KLINE – ST10F275 R/W – 95160 R/W

FIAT ME7.3.1 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin)

FIAT ME7.3.H4 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin) – Change ODO – Change Flash Counter

FIAT ME7.9.10 KLINE – ST10F275 R/W – 95160 R/W – Reset(Virgin)

FIAT ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgi

FIAT EDC15C7 KLINE -29F400BT R/W – 95P08 R/W

VAG ME7.5 KLINE – 29F400BB R/W – 95040 R/W

VAG ME7.5-1M KLINE – 29F800BB R/W – 95040 R/W

VAG ME7.5.10 KLINE – 29F400BB R/W – 95040 R/W

VAG ME7.5.20 KLINE – ST10F275 R/W – 95040 R/W

VAG MED7.5.11 KLINE – 29F800BB R/W – 95040 R/W

VAG EDC15P+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W

VAG EDC15VM+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W

PSA M7.4.4 KLINE – 29F400BB R/W – 95080 R/WPSA ME7.4.4 KLINE – 29F400BB R/W – 95160 R/W – Reset(Virgin)

PSA ME7.4.5 KLINE – ST10F275 R/W – 95320 R/W – Reset(Virgin)

PSA EDC15C2 1XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W

PSA EDC15C2 3XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W

KIA EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W

KIA/HYUNDAY KEFICO/BOSCH M(G)7.9.8 KLINE – ST10F275 R/W – 95160 R/W

HYUNDAY BOSCH/KEFICO ME7.9.0 KLINE – 29F400BB R/W – 95040 R/W



VOLVO

Reading/writing of various modules used in Volvo cars.

Supported Modules and functions:

Dashboard cpu mask 1M80F flash+eeprom R/W – 11bit/500kbit CAN

Dashboard cpu mask 1M80F flash+eeprom R/W – 11bit/125kbit CAN

Dashboard cpu mask 1K78X flash+eeprom R/W – 11bit/ 125kbit CAN

Dashboard cpu mask 1H56A eeprom R/W – 29bit/125kbit CAN

Dashboard cpu mask 4F73K flash+eeprom R/W – 29bit/ 125kbit CAN

Dashboard cpu mask 3K91D flash+eeprom R/W – 29bit/125kbit CAN

Dashboard cpu mask 0L85D flash+eeprom R/W – 29bit/ 125kbit CAN

Dashboard cpu mask 3L16Y flash+eeprom R/W – 29bit/ 125kbit CAN

ICM 64F7055 flash R/W – 29bit/ 125kbit CAN

ICM MAC7116 flash+dataflash R/W – 29bit/125kbit CAN

ICM MAC7116 flash+dataflash R/W – 11bit/125kbit CAN

Read view mirror cpu mask 0K75F flash+eeprom R/W – 29bit/125kbit CAN

Read view mirror cpu mask 3L40K flash+eeprom R/W – 29bit/125kbit CAN

Read view mirror cpu mask 0L85D flash+eeprom R/W -29bit/ 125kbit CAN

EPS XC164CS flash+eeprom(25L160) R/W – 11bit/500kbit CAN

Airbag Bosch CR16MCS9 eeprom R/W -29bit/ 125kbit CAN

Airbag TEMIC/CONTINENTAL cpu mask 1L40K flash+eeprom R/W – 29bit/ 125kbit CAN

Airbag TEMIC/CONTINENTAL cpu mask 1L15Y flash+eeprom R/W – 11bit/ 125kbit CAN

PHM ( Phone module) Autoliv 29F800BB flash R/W – 29bit/ 125kbit CAN

PHM (Phone module) Autoliv AM29DL162DT flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 28F200 flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 29F200BB flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 1K79X flash+eeprom R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps MAC7111 flash+dataflash R/W – 11bit/ 125kbit CAN

CCM (Climate control module) Alps MPC5516 flash R/W -11bit/ 125kbit CAN



MULTITOOL PSA BSI

Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;

Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W;

Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;

Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;

Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;

Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;

Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W;

Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W;

Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W



MULTITOOL SMART SAM

3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W;

0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W;

2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W.



MULTITOOL FIAT BSI2

Reading/writing of FIAT, FORD, PSA BSI modules made by DELPHI. Also software extracts PIN CODE and shows KEY PREPARATION DATA from the EEPROM dump or data flash dump.

Supported DELPHI BSI types:

FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3237 FLASH R/W;

FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3379 FLASH R/W;

FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM

FLASH R/W ,show PIN, show KEY preparartion data;

FIAT DELPHI BSI 70F3556 CAN . 70F356 DATA & PROGRAM FLASH R/W;

FIAT DELPHI BSI 70F3557 CAN . 70F357 DATA & PROGRAM FLASH R/W;

FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3379 FLASH R/W.

FIAT CONTINENTAL BSI MPC5606 CAN . MPC5606 DATA & PROGRAM FLASH R/W.



MULTITOOL OPEL BCM

Reading/writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL.

Also software extracts PIN CODE rom the EEPROM dump or data flash dump.

Supported BCM/BSI types

OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset

PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset

PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show

PIN, reset PIN;

OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W

show PIN, reset, change odometer, change VIN;OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16

R/W show PIN ,reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32

R/W show PIN, reset,change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W.

EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W.

EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.



MULTITOOL OPEL/GM ECU

Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) . Also

software has bootpin recovery mode.

Supported OPEL/GM ECU types

ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);

ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);

EEPROM DUMP VIEWER, EDITOR.



MULTITOOL OPEL/GM TCM

Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL/GM TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);

TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).



MULTITOOL OPEL/GM EPS

Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).

Supported OPEL/GM EPS types:

EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).



FCARFHUBLIC00001

FCA (Fiat Chrysler Automobiles) RFHUB/RFHM Keyless modules

CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 11-bit system)

CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 29-bit system)



MULTITOOL FORD/BCM

Reading/writing of FORD BCM modules made by DELPHI, CONTINENTAL/SIEMENS

Supported BCM types:

FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN. 9S12DT256 EEPROM R/W, 9S12DT256 FLASH R/W;

FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN. 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W;

FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN. 70F3384/70F3637 DATA & PROGRAM FLASH R/W;

FORD CONTINENTAL BCM MPC5607 CAN. MPC5607 DATA & PROGRAM FLASH R/W;

FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W;

FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PRO GRAM FLASH R/W.

FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.

FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASH R/W.

FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH & PROGRAM FLASH R/W.

FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.

FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.



MULTITOOL VOLVO CEM P3

VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

VOLVO DELPHI CEM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.

VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.

VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.



MULTITOOL VOLVO CEM P2

VOLVO DELPHI CEM L M30835F+93C86. M30835F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

VOLVO DELPHI CEM L M30855F+93C86. M30855F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.



WEBASTOLIC000001

FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINEN

TAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

FOMOCOKVMLIC000001

VOLVO P3/FORD/JAGUAR KVM (Keyless Vehicle Module) SIEMENS/CONTI

NENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

OPELPIMLIC000001

OPEL/GM Drive motor power inverted module

ACDELCO S95 with 1xMPC5566 and 3xMPC5565 microcontrollers (FLASH+EMULATED EEPROM ZONEs, reading and writing of PIM/TPIM (Drive motorpower inverter module)

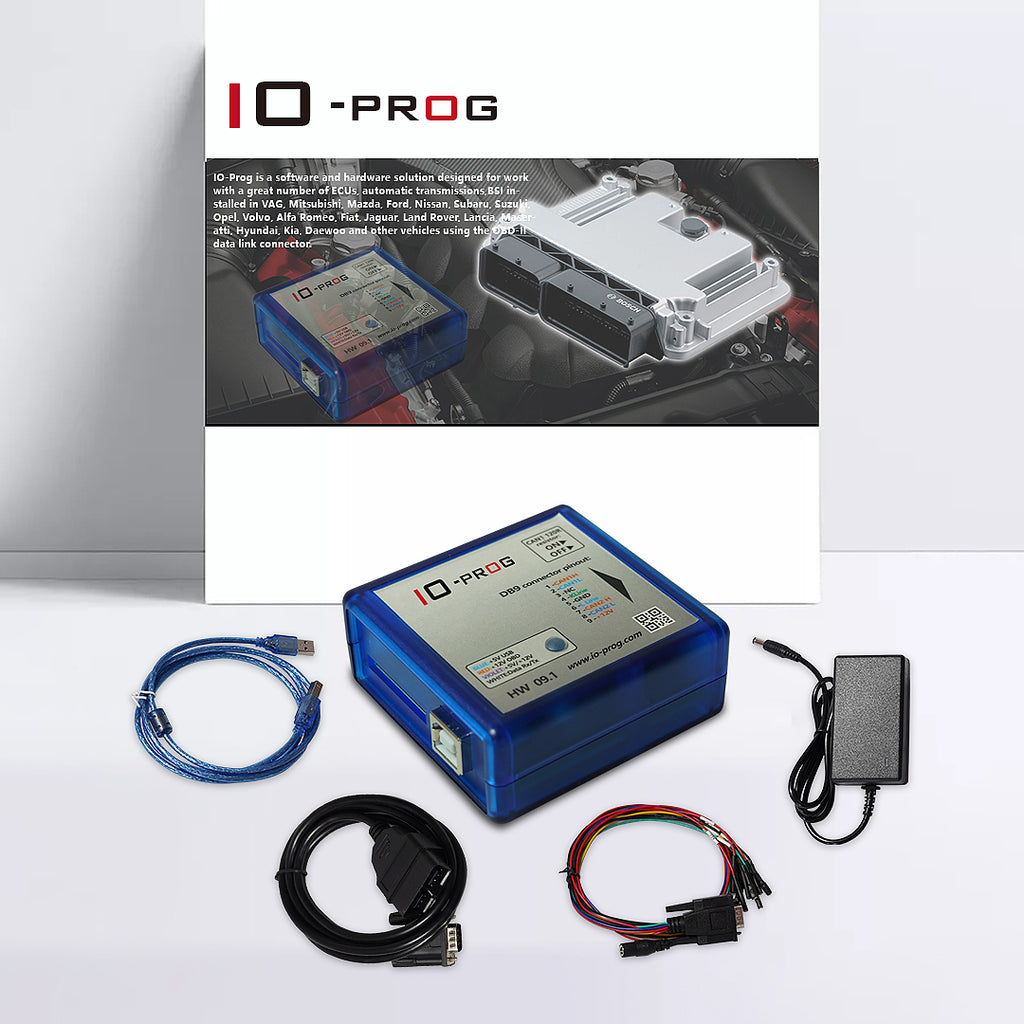

 IO-PROG Programmer BD9 Connector Pinout IO Prog Same With I/O Terminal Multi Tool

IO Prog is the same as I/O Terminal Multi Tool and is a software and hardware solution designed for work with ECUs, transmissions, and BSI.

IO Prog reading & writing ECUs using the OBD-II data link connector.

MB Star C4/C5

I/O Prog ECU Programmer Advantages:

Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.

A combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

Checksums testing and correction. Safe reading and flashing

Work with ECUs installed in VAG, Mitsubishi, Mazda, Ford, Nissa*n, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maserati, Hyundai, Kia, Daewoo, etc



NOTE : BASIC PACKET:MULTITOOL +OPEL/GM ECU LICENSE

1、software cannot be upgraded online
2、this product only has GM/OPEL  license now, not full cars



Software for IO Prog hardware owners.  Software reads write memories of OPEL/GM ECUs by CAN (OBD or wired on the bench). Also, the software has bootpin recovery mode.  There is also ECU EEPROM EDITOR included which lets you extract PINCODES and do other functions with EEPROM DUMP.   Software and wiring diagrams can be downloaded as well.

IO PROG Supported OPEL/GM ECU types

  1. ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  2. ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  3. ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  4. ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  5. ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  6. ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  7. DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
  8. DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD).
  9. DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD).
  10. ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
  11. ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
  12. ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  13. ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  14. ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  15. ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
  16. ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
  17. EEPROM DUMP VIEWER,EDITOR.

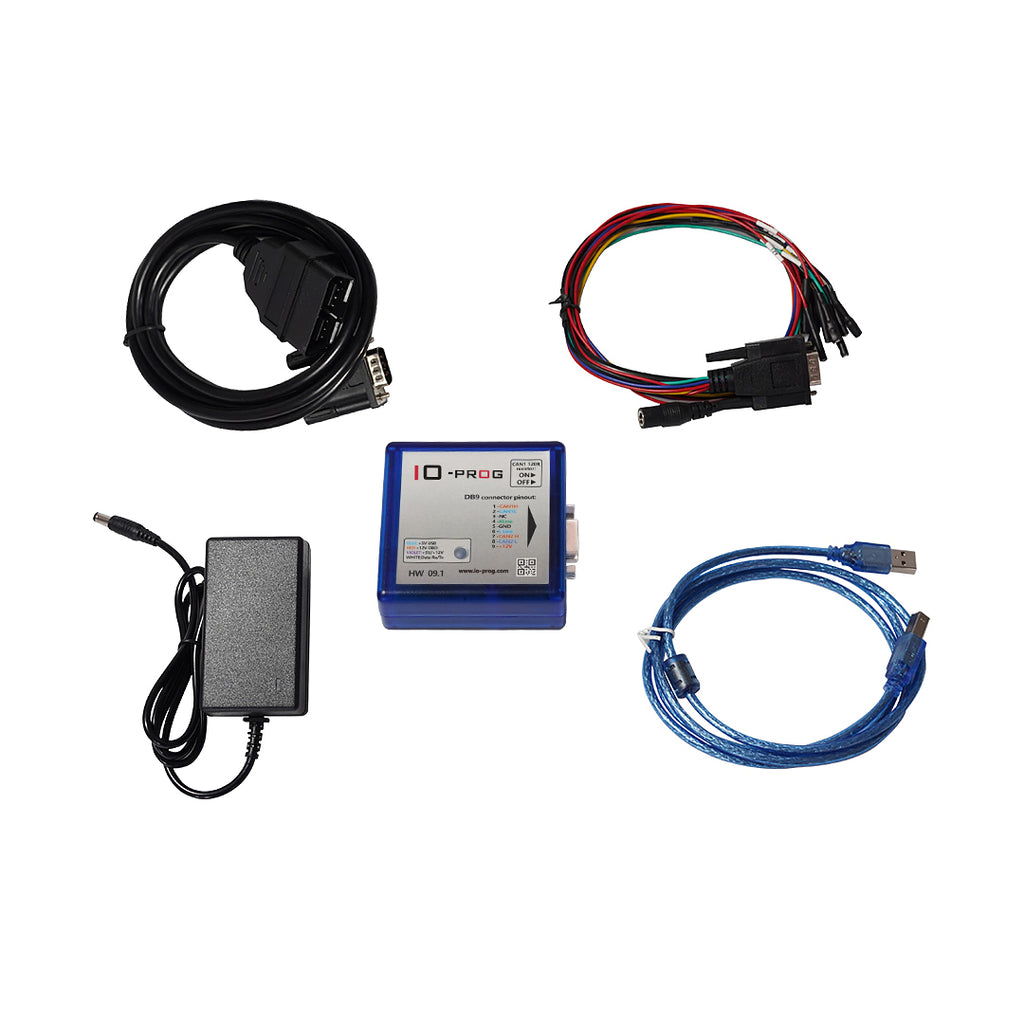

IO-PROG Programmer BD9 Connector Pinout IO Prog



The software is marketed on a module basis. Each module is a separate program that functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some licenses can be recorded on one card, others require separate recording.



PAY UP Licenses: You can add new licenses by device ID, and activate them on the internet.



SIEMENS

PEUGEOT, CITROEN, VOLVO, FORD, VAG, JAGUAR, DAEWOO, OPEL. EEPROM reading /writing; pincode reading; ECU virginizing; service history (DATE/MILEAGE/DIADEVID) reading/modifying. All operations are done through Kline or CAN bus without opening the ECU.

Supported ECUs:

BMW Mini/Rover Siemens EMS

BMW Mini/Rover Siemens EMS2

BMW Mini Siemens EMS5150

DAEWOO SIEMENS/KEMSCO D3

KIA/HYUNDAY Siemens SIMK31

KIA/HYUNDAY Siemens SIM2K-34VR

OPEL SIMTEC 70

OPEL SIMTEC 71

OPEL SIMTEC 71.1

OPEL SIMTEC 71.5

OPEL SIMTEC 71.6

OPEL SIMTEC 75.5

OPEL SIMTEC 81

OPEL SIMTEC 81.1

OPEL/GM SIMTEC 76.1 – included in MULTITOOL SOFTWARE

OPEL/GM SIMTEC 78 – included in MULTITOOL SOFTWARE

OPEL/GM SIMTEC 77 – included in MULTITOOL SOFTWARE

GM SIEMENS/CONTINENTAL D42 – included in MULTITOOL SOFT WARE

GM SIEMENS/CONTINENTAL D52 – included in MULTITOOL SOFT WARE

GM SIEMENS/CONTINENTAL 42R – included in MULTITOOL SOFT WARE

ALFA ROMEO SIMTEC 75.3

Land Rover Siemens SID201

Jaguar Siemens SID201

Jaguar Siemens SID204

VAG Siemens SIMOS 6.2

VAG Siemens SIMOS 7.1

VAG Siemens SIMOS 7.1A

Ford Siemens SIM210 ECU Tool

Ford Siemens SIM22 ECU Tool

Ford Siemens SIM24 ECU Tool

Ford Siemens SIM28 ECU Tool

Ford Siemens SIM29 ECU Tool

Ford Siemens SID802 ECU Tool

Ford Siemens SID803 ECU Tool

Ford Siemens SID803A ECU Tool

Ford Siemens SID804 ECU Tool

Ford SIEMENS/CONTINENTAL EMS2101 – included in MULTITOOL

SOFTWARE

Ford SIEMENS/CONTINENTAL EMS2102 – included in MULTITOOL

SOFTWARE

Ford SIEMENS/CONTINENTAL EMS2103 – included in MULTITOOL

SOFTWARE

Volvo Siemens EMS2000

Volvo Siemens SID803 ECU Tool

Volvo Siemens SID803A ECU Tool

PSA ECU Detect

PSA Siemens SID 201

PSA Siemens SID 801 ECU Tool

PSA Siemens SID 801A ECU Tool

PSA Siemens SID 802 ECU Tool

PSA Siemens SID 803 ECU Tool

PSA Siemens SID 803A ECU Tool

PSA Siemens SID 804 ECU Tool

PSA Siemens SID 805 ECU Tool

PSA Siemens SID 806 ECU Tool



MARELLI+MARELLI2

Reading/writing, pincode reading, mileage changing of Opel ECUs ( Z13DT, Z13DTJ, Z13DTH)  by OBD or on bench (6JO,6O2,6O3 ECUs). Fiat ECUs 8F2,8F3,8DF,8GMF HW502, 8GMF HW503,8GMW,8GSF,8GSW,6JF,6F3, IAW 5SF8, IAW 5SF3, IAW 5SF9 , IAW5NF , IAW5SF.XX, IAW5SF4, IAW 4AF.

Supported ECUs and functions:

SUZUKI – 8DS CAN – MPC5565 R/W – 95640 R/W

SUZUKI – MJD 6O2 KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

OPEL – MJD 6JO KLINE – MPC555 R/W – 95320 R/W

OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W

OPEL – MJD 6O3 CAN – MPC563 R/W – M58BW016DB R/W – 95320 R/W

FIAT – MJD 9DF CAN – SPC5644 R/W – 95128 R/W

FIAT – 8GMK CAN – SPC564A80B4 R/W – 95640 R/W

FIAT – IAW 9GF CAN – SPC564A70L7 R/W – 95640 R/W

FIAT – 8GSF CAN – MPC5565 R/W – 95640 R/W

FIAT – 8GSW CAN – MPC5565 R/W – 95640 R/W

FIAT – 8FMW CAN – MPC5565 R/W – 95128 R/W

FIAT – 8GMF HW03 CAN – MPC5565 R/W – 95640 R/W

FIAT – 8GMF HW02 CAN – MPC5553 R/W – 95640 R/W

FIAT – MJD 8DF KLINE – MPC5553 R/W – 95640 R/W

FIAT – MJD 8F2 CAN/KLINE – MPC5565 R/W – 95640 R/W

FIAT – MJD 8F3 CAN/KLINE – MPC5565 R/W – 95640 R/W

FIAT – IAW 7GF CAN/KLINE – MPC5565 R/W – 95640 R/W – included in

MULTITOOL software

FIAT – IAW 5SF.XX KLINE – ST10F280 R/W

FIAT – IAW 5SF3 CAN/KLINE – ST10F280 R/W

FIAT – IAW 5SF4 KLINE – ST10F296 R/W

FIAT – IAW 5SF8 CAN/KLINE – ST10F296 R/W

FIAT – IAW 5SF9 CAN/KLINE – ST10F296 R/W

FIAT – IAW 4AF HW204 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 4AF HW407 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 59F <HW100 KLINE – 29F200BB R/W – 95080 R/W

FIAT – IAW 59F HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 59F HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 5AF HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W

FIAT – IAW 5AF HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W

FIAT – IAW 5NF.T1/5NF.T9 KLINE – MC68F375 R – 95160 R/W

FIAT – MJD 6JF KLINE – MPC555 R/W – 95320 R/W

FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W

FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W

FIAT IAW 10GF MPC5642 FLASH+95640 EEPROM R/W

VAG IAW 9GV MPC5634 FLASH+95320 EEPROM R/W



DENSO

Reading/writing (64F7055, 64F7058, 64F7059 microcontrollers). FULL FLASH reading/writing; EEPROM reading/writing (usually). All operations are done via K-LINE or CAN by OBD or wired on the bench without opening the ECU. On some ECUs there are some extra functions like odometer calibration, pincode extraction and reset (virgin). Also software has FLASH memory CRC calculator.

ECUs supported:

  • OPEL MERIVA, CORSA C 1.7 CDTI HYBRID ECU. Full R/W 64F7055, R/W 93C66 eeprom, show pincode , reset(virgin). (CAN & K-LINE)

  • OPEL VECTRA C/SIGNUM 3.0 CDTI. Full R/W 64F7058, R/W 93C86 x2 eeprom , show pincode , odometer calibration, reset(virgin). (CAN)

  • OPEL 1.7CDTI 110CV/125CV Z17DTJ/Z17DTR/Z17DTH/A17DTH/A17DTR ASTRA H/ASTRA J/ ZAFIRA B/CORSA D/MERIVA B/TIGRA B. Full R/W 64F7058, R/W 93C86 x3 eeprom , odometer calibration, show pincode , reset(virgin). Full R/W 64F7059, R/W 93C86 x4 eeprom , odometer calibration, show pincode , reset(virgin).  (CAN)

  • MAZDA 3/5/6 RF7 ECU. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MAZDA 2 1.5 from year 2010. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)

  • MAZDA 6 2.2TD R2AC. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MAZDA RX8 . Full R/W 64F7055, R/W 93C56  eeprom. (CAN)

  • NISSAN NAVARA/PATHFINDER 2.5DCI 2005-2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • NISSAN NAVARA/PATHFINDER D40 2.5DCI from 2010. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID till year 2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • MITSUBISHI DELICA D5/OUTLANDER 2.2DID 4N14 from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • SUBARU FORESTER 2.0D KH. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)

  • SUBARU OUTBACK 2.0DNG. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)

  • SUZUKI 1.3/1.5/1.6. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)

  • SUZUKI <2007 1.3/1.5/1.6. Full R/W 64F7055, R/W 93A56  eeprom. (CAN)

  • SUZUKI JIMNY <2007 1.3  Full R/W 64F7055, R/W 93A56  eeprom. (CAN)

  • for Vo-lv-o V50/S40/V40 2006-2010 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)

  • for v-olv-o V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)

  • V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7055 , full R/W external flash 29LV200BC ,R/W 93C56 eeprom. (CAN)

  • for V-ol-vo S80/XC90 4.4L V8 2007-2010   full R/W 64F7058,R/W 93A86 eeprom. (CAN)

  • JAGUAR/LANDROVER P3.0NA / JAGUAR XF 4.2SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)

  • JAGUAR S-TYPE 4.2 V8 V8SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)



FIAT BSI

EEPROM reading/writing, showing the pincode stored in BSI. Tool works by OBD or ont he bench.

BSIs supported:

Magneti Marelli with Freescale MCU 3K91D,1k79X (R/W EEPROM SHOW

Magneti Marelli with NEC MCU 70F3237,70F3378 (R/W EEPROM SHOW PIN);

Siemens Continental Freescale MCU 9S12DG128 (R/W EEPROM SHOW PIN).

Vehicles with Freescale 3K91D,1k79X MCUs:

  • Alfa Romeo: 147, GT

  • Fiat: Stilo(1999-2007), Palio(1999-),Idea

  • Lancia: Thesis, Ypsilon

  • Maserati: Quattroporte, Granturismo

Vehicles with Freescale 70F3237,70F3378 MCUs:

  • Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-)

  • Lancia: Ypsilon(2007-)

Vehicles with Freescale 9S12DG128 MCUs:

Fiat: Panda(2003-)



MOTORCYCLE

FULL FLASH reading/writing, DUCATI BIKES ECUS made by CONTINENTAL. All operations done by CAN.

ECUs supported:

CONTINENTAL M3C with freescale 9S12XDP256 mask 1L15Y;

CONTINENTAL M3C with freescale 9S12XET256 mask 2M53J.



VAGDSG+EASYTRONIC

TEMIC DQ250 MPC555+95160 KLINE

EEPROM 95160 R/W, MPC555 FLASH R/W



BOSCH

Reading/writing.

Supported ECUS and functions:

BMW EDC15C4 KLINE -29F400BT R/W – 95P08 R/W

LAND ROVER EDC15C4 KLINE -29F400BT R/W – 95P08 R/W

SMART ME7.7.0 KLINE – ST10F275 R/W – 95080 R/W

SMART EDG15C-5.X KLINE – 29F400BT R/W – 95P08 R/W

OPEL EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W

OPEL ME7.6.1/ME7.6.2 KLINE – ST10F275 R/W – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME7.6.1/ME7.6.2 KLINE -29F800BB – 95080 R/W – Reset(Virgin) – Change ODO

OPEL ME1.5.5 KLINE -29F400BB – 95080 R/W – Reset(Virgin)VOLVO EDC16C31 CAN (29bit) – M58BW016DB R/W – 95320 (until year 2008)

(XC90 until year 2012)

VOLVO EDC16C34 CAN (29bit) – M58BW016DB R/W – 95160 (V50,S40,C30 until year 2008)  (1.6L)

VOLVO ME9.0 CAN (29bit) – M58BW016DB R/W – 95080 (V50 until year 2008)

VOLVO ME7.0/ME7.0.1 CAN( 500 kbps) – 29F800BB R/W – 95080 R/W – CKS

VOLVO ME7.0/ME7.0.1 CAN(250 kbps) – 29F800BB R/W – 95P08 R/W – CKS

VOLVO EDC15C11 CAN(250kbps/500kbps)/KLINE – 29F400BT R/W – 95P08 R/W

VOLVO EDC15C3 KLINE – 29F400BT R/W – 95P08 R/W

JEEP/CHRYSLER EDC15C5 KLINE – 29F400BT R/W – 95P08 R/W

MB EDC15C6 KLINE – 29F800BT R/W – 95P08 R/W

HONDA ME7.9.3 KLINE – 29F800BB R/W – 95040 R/W

HONDA EDC15C7 KLINE -29F400BT R/W – 95P08 R/W

TOYOTA EDC15C9 KLINE -29F400BT R/W – 95P08 R/W

TOYOTA ME7.9.5 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA ME7.9.51 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA M7.9.5 KLINE – ST10F275 R/W – 95040 R/W

TOYOTA M7.9.52 KLINE – ST10F275 R/W – 95160 R/W

FIAT ME7.3.1 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin)

FIAT ME7.3.H4 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin) – Change ODO – Change Flash Counter

FIAT ME7.9.10 KLINE – ST10F275 R/W – 95160 R/W – Reset(Virgin)

FIAT ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgi

FIAT EDC15C7 KLINE -29F400BT R/W – 95P08 R/W

VAG ME7.5 KLINE – 29F400BB R/W – 95040 R/W

VAG ME7.5-1M KLINE – 29F800BB R/W – 95040 R/W

VAG ME7.5.10 KLINE – 29F400BB R/W – 95040 R/W

VAG ME7.5.20 KLINE – ST10F275 R/W – 95040 R/W

VAG MED7.5.11 KLINE – 29F800BB R/W – 95040 R/W

VAG EDC15P+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W

VAG EDC15VM+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W

PSA M7.4.4 KLINE – 29F400BB R/W – 95080 R/WPSA ME7.4.4 KLINE – 29F400BB R/W – 95160 R/W – Reset(Virgin)

PSA ME7.4.5 KLINE – ST10F275 R/W – 95320 R/W – Reset(Virgin)

PSA EDC15C2 1XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W

PSA EDC15C2 3XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W

KIA EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W

KIA/HYUNDAY KEFICO/BOSCH M(G)7.9.8 KLINE – ST10F275 R/W – 95160 R/W

HYUNDAY BOSCH/KEFICO ME7.9.0 KLINE – 29F400BB R/W – 95040 R/W



VOLVO

Reading/writing of various modules used in Volvo cars.

Supported Modules and functions:

Dashboard cpu mask 1M80F flash+eeprom R/W – 11bit/500kbit CAN

Dashboard cpu mask 1M80F flash+eeprom R/W – 11bit/125kbit CAN

Dashboard cpu mask 1K78X flash+eeprom R/W – 11bit/ 125kbit CAN

Dashboard cpu mask 1H56A eeprom R/W – 29bit/125kbit CAN

Dashboard cpu mask 4F73K flash+eeprom R/W – 29bit/ 125kbit CAN

Dashboard cpu mask 3K91D flash+eeprom R/W – 29bit/125kbit CAN

Dashboard cpu mask 0L85D flash+eeprom R/W – 29bit/ 125kbit CAN

Dashboard cpu mask 3L16Y flash+eeprom R/W – 29bit/ 125kbit CAN

ICM 64F7055 flash R/W – 29bit/ 125kbit CAN

ICM MAC7116 flash+dataflash R/W – 29bit/125kbit CAN

ICM MAC7116 flash+dataflash R/W – 11bit/125kbit CAN

Read view mirror cpu mask 0K75F flash+eeprom R/W – 29bit/125kbit CAN

Read view mirror cpu mask 3L40K flash+eeprom R/W – 29bit/125kbit CAN

Read view mirror cpu mask 0L85D flash+eeprom R/W -29bit/ 125kbit CAN

EPS XC164CS flash+eeprom(25L160) R/W – 11bit/500kbit CAN

Airbag Bosch CR16MCS9 eeprom R/W -29bit/ 125kbit CAN

Airbag TEMIC/CONTINENTAL cpu mask 1L40K flash+eeprom R/W – 29bit/ 125kbit CAN

Airbag TEMIC/CONTINENTAL cpu mask 1L15Y flash+eeprom R/W – 11bit/ 125kbit CAN

PHM ( Phone module) Autoliv 29F800BB flash R/W – 29bit/ 125kbit CAN

PHM (Phone module) Autoliv AM29DL162DT flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 28F200 flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 29F200BB flash R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps 1K79X flash+eeprom R/W – 29bit/ 125kbit CAN

CCM (Climate control module) Alps MAC7111 flash+dataflash R/W – 11bit/ 125kbit CAN

CCM (Climate control module) Alps MPC5516 flash R/W -11bit/ 125kbit CAN



MULTITOOL PSA BSI

Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;

Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W;

Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;

Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;

Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;

Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;

Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W;

Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W;

Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W



MULTITOOL SMART SAM

3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W;

0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W;

2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W.



MULTITOOL FIAT BSI2

Reading/writing of FIAT, FORD, PSA BSI modules made by DELPHI. Also software extracts PIN CODE and shows KEY PREPARATION DATA from the EEPROM dump or data flash dump.

Supported DELPHI BSI types:

FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3237 FLASH R/W;

FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3379 FLASH R/W;

FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM

FLASH R/W ,show PIN, show KEY preparartion data;

FIAT DELPHI BSI 70F3556 CAN . 70F356 DATA & PROGRAM FLASH R/W;

FIAT DELPHI BSI 70F3557 CAN . 70F357 DATA & PROGRAM FLASH R/W;

FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show

KEY preparartion data. 70F3379 FLASH R/W.

FIAT CONTINENTAL BSI MPC5606 CAN . MPC5606 DATA & PROGRAM FLASH R/W.



MULTITOOL OPEL BCM

Reading/writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL.

Also software extracts PIN CODE rom the EEPROM dump or data flash dump.

Supported BCM/BSI types

OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset

PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset

PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show

PIN, reset PIN;

OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W

show PIN, reset, change odometer, change VIN;OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16

R/W show PIN ,reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32

R/W show PIN, reset,change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W.

EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W.

EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.



MULTITOOL OPEL/GM ECU

Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) . Also

software has bootpin recovery mode.

Supported OPEL/GM ECU types

ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);

ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);

EEPROM DUMP VIEWER, EDITOR.



MULTITOOL OPEL/GM TCM

Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL/GM TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);

TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).



MULTITOOL OPEL/GM EPS

Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).

Supported OPEL/GM EPS types:

EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).



FCARFHUBLIC00001

FCA (Fiat Chrysler Automobiles) RFHUB/RFHM Keyless modules

CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 11-bit system)

CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 29-bit system)



MULTITOOL FORD/BCM

Reading/writing of FORD BCM modules made by DELPHI, CONTINENTAL/SIEMENS

Supported BCM types:

FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN. 9S12DT256 EEPROM R/W, 9S12DT256 FLASH R/W;

FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN. 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W;

FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN. 70F3384/70F3637 DATA & PROGRAM FLASH R/W;

FORD CONTINENTAL BCM MPC5607 CAN. MPC5607 DATA & PROGRAM FLASH R/W;

FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W;

FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PRO GRAM FLASH R/W.

FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.

FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASH R/W.

FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH & PROGRAM FLASH R/W.

FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.

FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.



MULTITOOL VOLVO CEM P3

VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

VOLVO DELPHI CEM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.

VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.

VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.



MULTITOOL VOLVO CEM P2

VOLVO DELPHI CEM L M30835F+93C86. M30835F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

VOLVO DELPHI CEM L M30855F+93C86. M30855F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.



WEBASTOLIC000001

FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINEN

TAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

FOMOCOKVMLIC000001

VOLVO P3/FORD/JAGUAR KVM (Keyless Vehicle Module) SIEMENS/CONTI

NENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

OPELPIMLIC000001

OPEL/GM Drive motor power inverted module

ACDELCO S95 with 1xMPC5566 and 3xMPC5565 microcontrollers (FLASH+EMULATED EEPROM ZONEs, reading and writing of PIM/TPIM (Drive motorpower inverter module)



 IO-PROG Programmer BD9 Connector Pinout IO Prog Same With I/O Terminal Multi Tool

Recently Viewed Products Recently Viewed Products
