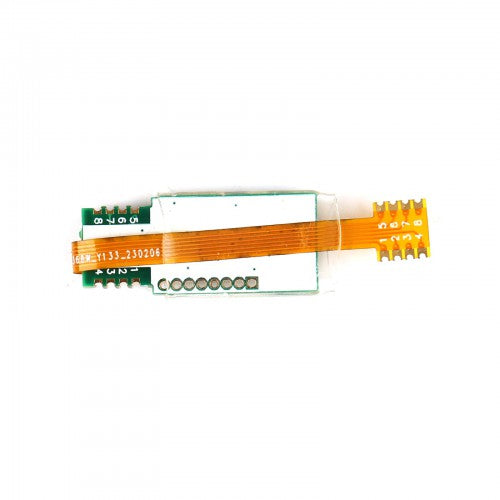

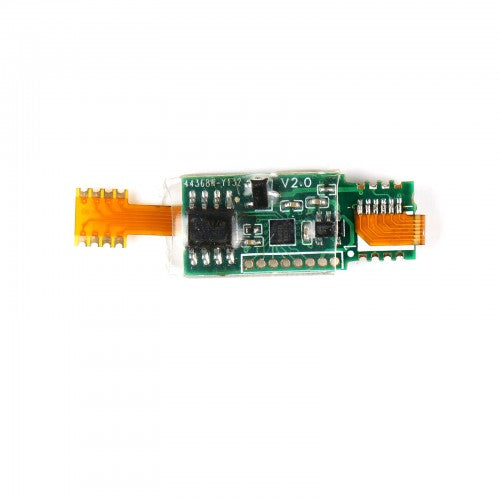

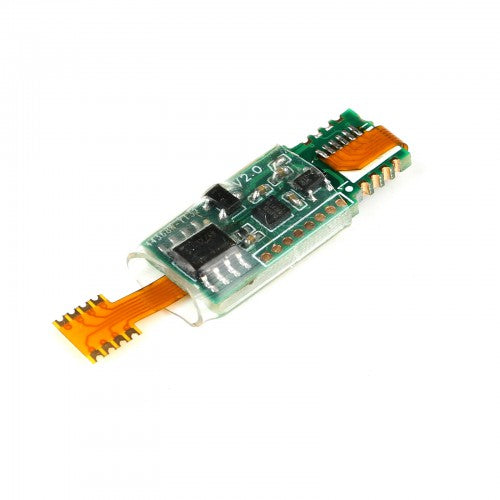

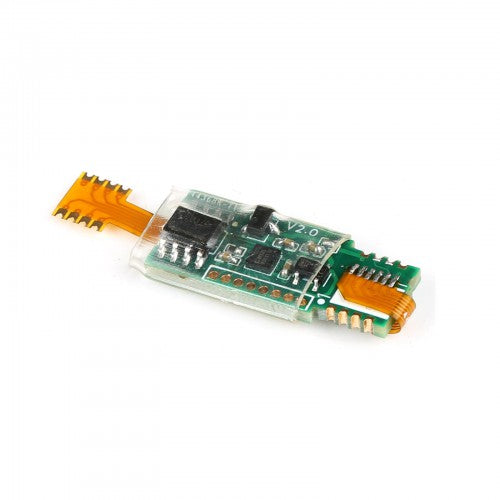

Yanhua 35128 Simulator for MINI ACDP
Yanhua 35128 Simulator for MINI ACDP Instructions
1. Install the CH341SER.EXE driver in the driver folder under the software directory.
2. Connect M35128 Programmer to computer.
3. After opening 35128 PROGRAMMER V1.00.exe, the software will automatically scan and connect the device.
4. If the automatic connection fails, click the "Device Connect" button to connect the device manually.
5. Reading and writing operations can be started after a successful connection.
Yanhua 35128 Simulator for MINI ACDP Operation Process

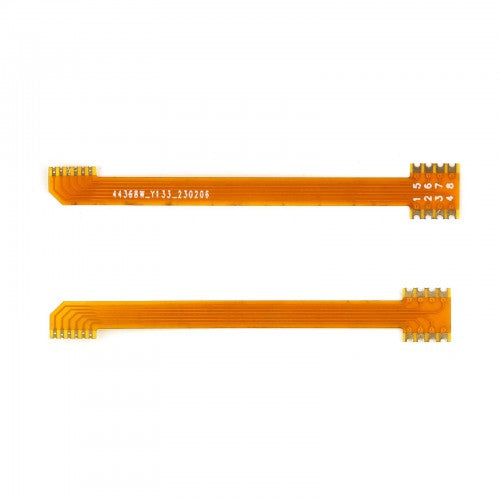

1. Remove the original chip and connect it with the clip (the red wire of the clip need to be connected to pin 1).
2. Read and save the original data.
3. Modify data.
4. Connect the M35128 simulator with the clip and write the modified data.
5. Solder the M35128 simulator.

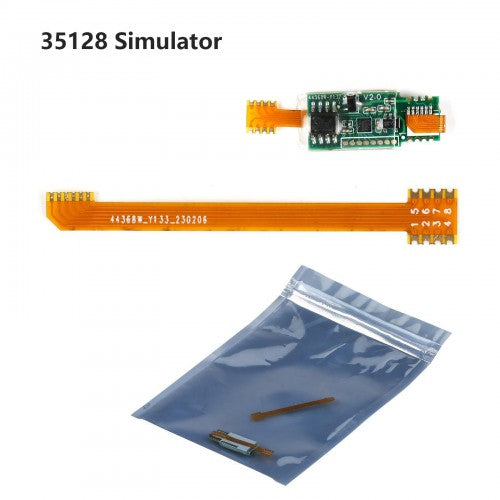

Packing List
1pc x 35128 Simulator
