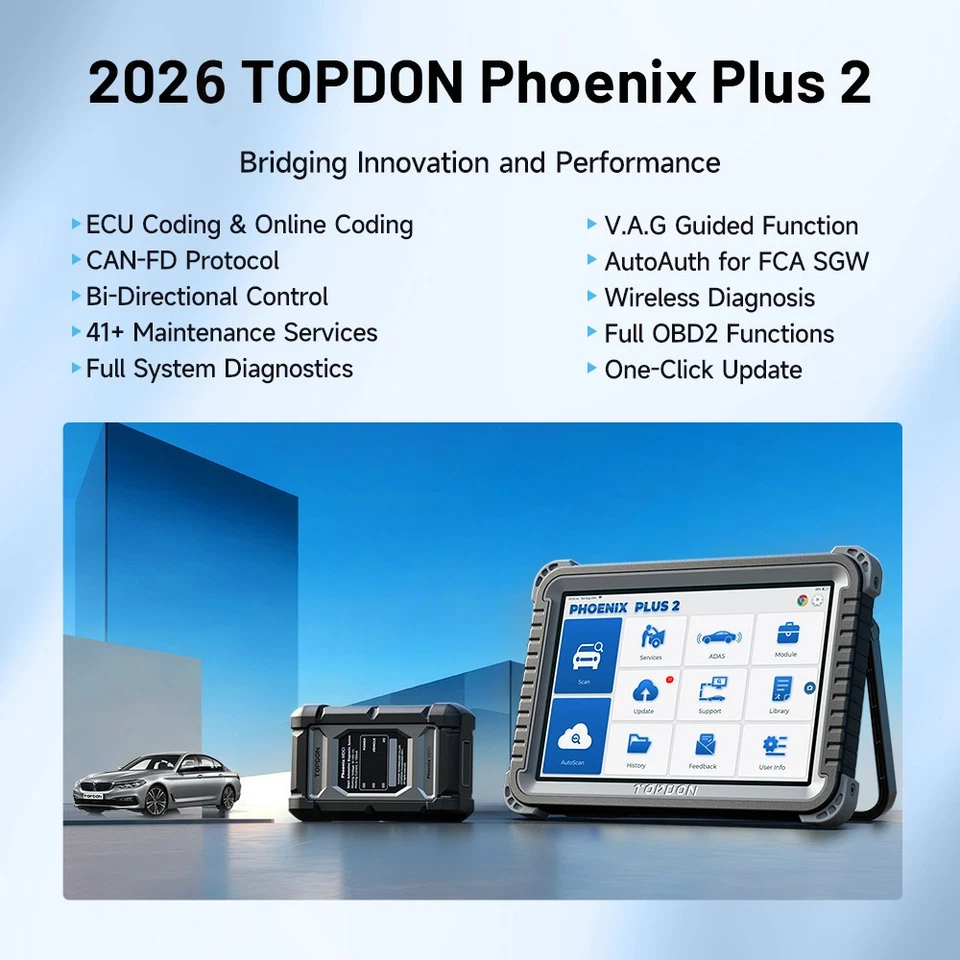

TOPDON Phoenix Plus 2 Full system diagnostics + Bi-directional Control + 41 Special functions, supports ECU coding, VAG Guided Function, FCA AutoAuth with 2 Years Free Update, Multi-language.

TOPDON Phoenix Plus 2 Highlights:

Full system diagnostics + Bi-directional Control + 41 Special functions

Supports ECU coding, VAG Guided Function, FCA AutoAuth

2 Years Free Update, Multi-language.

Global Version, No IP Limitation

12 in 1 Graphic Live Data Stream

Supports Topology Mapping.

Smart AutoVIN & AutoScan, Pre & Post scan

Supports FCA SGW, Renault and Nissan security gateway access (with license)

Advanced ECU & Online Coding

The TOPDON Phoenix Plus 2 offers a robust solution for all your ECU and Online Coding needs, enabling you to activate hidden features, optimize fuel efficiency, and enhance vehicle performance. Flash Hidden Functions: Activate manufacturer-concealed features, such as hidden audio and lighting options, automatic window closure during rain, or auxiliary driving systems. This feature elevates the vehicle’s capabilities beyond its standard settings. Component Matching: Ensure compatibility when replacing vehicle components by matching new parts with existing systems, guaranteeing proper recognition and functionality.

• Restore Functional Status after Repair or Replacement

After making repairs or replacements, you can use this bi-directional diagnostic scanner to re-flash the vehicle control modules, clear the original memories stored in ECU, and write the adaptive data into specific components to get your vehicle back on the right track.

• Customize and Upgrade Vehicle to achieve better performance.

You can also make manual tuning to break the limitations and restrictions of the market-specific settings of the car when it left the factory. With the help of this scan tool’s ECU coding, you can disable annoying functions or activate high-end features, change software to alter how it behaves originally. Here are some examples:

- Disable the automatic start/stop. So when you press down the accelerator pedal/brake pedal, your car won’t automatically start/stop.

- Make the moving pointer move, perform self check, and then return to the initial point at the time the ignition is turned on.

- Help you solve disgusting seatbelt warning sounds.

- When you press the brake pedal, your stoplights can be all lighted up.

- Your turn signals & rear fog lights can be alternatively flashing and etc..

• (PMI) Programmable Module Installation -- Offline Programming: TOPDON Phoenix Plus scanner support PMI function, Compatible with Ford /Lincoln/ Mazda and etc. This function is generally required after the ECU module has been replaced, otherwise the ECU will not work properly.
• Variant Coding: Coding ECUs to meet vehicle variants, such as left-hand drive or right-hand drive. Variant coding includes the enabling and disabling of software-driven functions.


All above customizations are probably not available for some specific car models. Reach us for details.

Bi-Directional Control

Unlock unparalleled control over your vehicle’s systems with our top-tier TOPDON scan tool phoenix plus, featuring powerful Bi-Directional Control functionality. Whether you're a professional technician or a dedicated car enthusiast, this feature allows you to actively interact with your vehicle’s electronic control units (ECUs), performing functional tests, activations, and resets that go beyond simple code reading.

Bi-Directional Control, or active testing, enables you to send commands to various modules to test component operation in real time. This is especially valuable in the U.S. market, where diverse driving conditions and popular models require precision diagnostics and repairs.

42+ Hot Service Functions

Unleash the full potential of your automotive diagnostics with the TOPDON Phoenix Plus 2, the ultimate bi-directional diagnostic scan tool designed for both professional technicians and serious DIYers. Equipped with an incredible 42+ special functions, this device goes beyond standard diagnostics to provide deep insights, precision repairs, and seamless maintenance for a wide variety of vehicles. Whether you are looking to perform advanced calibrations, reset service functions, or customize vehicle settings, the TOPDON Phoenix Plus 2 is your go-to solution.

1. Oil Reset: reset the o.il service lamp after changing the engine o.i.l; re-calculate the optimal o.i.l life change interval for the engine o.i.l maintenance being on schedule.
2. Injector Coding: write the new code into the car system for the correct cylinder in.jec.tion quantity.
3. SAS Reset: reset the steering angle to zero to keep the car running straight.
4. D.P.F Regeneration (**for both diesel and gasoline vehicles): keep the trap stable.
5. BMS Reset: register the battery after replacement.
6. Throttle Adaptation: initialize the throttle actuators to the default state.
7. AdBlue Reset: reset the AdBlue system after refilling the tank to ensure the engine is running properly and meeting standards.
8. EPB Reset: help replace and reset the brake pad.
9. Sunroof Reset: initialize the sunroof when to be locked off, or closed.
10. Gearbox Reset: help complete the gearbox self-learning to improve gear shifting quality.
11. TPMS Reset: Whether you've just replaced tires, sensors, or adjusted air pressure, this essential function ensures your vehicle's Tire Pressure Monitoring System (TPMS) is recalibrated to maintain safety and efficiency on the road. Say goodbye to inaccurate warnings and hello to peace of mind, knowing your tires are always in check. Upgrade your driving experience today!
12. Condition Based Service(CBS) Reset: This TOPDON phoenix diagnostic scan tool allows you to reset the engine o.i.l, spark plugs, front brakes, rear brakes, coolant, vehicle annual inspection, vehicle check and etc. It supports checking the time/mileage recommendations for fixed services and it analyzes this data and tells you when a service is next due.
13. AFS Headlamp Reset: calibrates adaptive headlights after repair, optimizing beam direction for safe, clear driving visibility.
14. Suspension Reset: adjust the vehicle body height s.ensor for level calibration.
15. Gear Learning: resets the transmission for smoother shifting and optimal performance.
16. A/F Reset: adjusts the a ir-fuel ratio for optimal engine performance and fuel effi.ciency.
17. ABS Bl.eeding: removes a ir from the ABS brake lines for firm braking and safety.
18. Coolant Bleed: Removes a ir pockets from the cooling system for optimal engine temperature.
19. Language Change: Changes the display language of the vehicle’s system.
20. N.O.x Sen.sor Reset: Resets the ni.trogen o.xide sen.sor after replacement or repair.
21. Seats Calibration: Adjusts and calibrates electronic seats for proper alignment and function.
22. Stop/Start: Controls or resets the automatic engine stop/start system.
23. Brake Fluid: Checks or resets the brake fluid maintenance indicator.
24. A.irbag Reset: Resets a irbag system after replacement or fault repair.
25. Transport Mode: Activates or deactivates transport mode to save battery during shipping.
26. Tire Reset: Set the size parameters of the modified or replaced tire.
27. Windows Calibration: Calibrates power windows after replacement or reset.
28. AC System Relearn/Initialization: Reinitializes the a ir conditioning system for proper a ir flow and cooling.
29. Intelligent Cruise Control System: Calibrates the cruise control system for accurate speed and distance control.
30. Engine Power Balance Monitoring: Monitors and balances power output from each engine cylinder.
31. Motor Angle Calibration: Calibrates motor angle sensors for precise vehicle control.
32. High Voltage Battery Diagnostics: Checks and diagnoses the health of a hybrid or electric vehicle battery.
33. O.D.O Calibration: Adjusts the odometer for accurate mileage display.
34. Clutch Matching: Matches the clutch system for smoother gear shifts.
35. Codage ECU: Customizes or programs the ECU for specific functions and features.
36. FRM Matching: Matches and programs the Footwell Module (FRM) for electronic control.
37. Turbocharging Matching: Calibrates the turbocharger system for optimal boost and performance.
38. Rainfall Light Sensor: Calibrates sensors for automatic wipers and headlights.
39.  Gateway Module Data Calibration: Calibrates the data exchange module between different vehicle systems and etc..

These functions help in diagnosing, maintaining, and customizing various aspects of a vehicle's performance and safety systems, covering the majority of makes and models worldwide up to the latest year and still expanding.

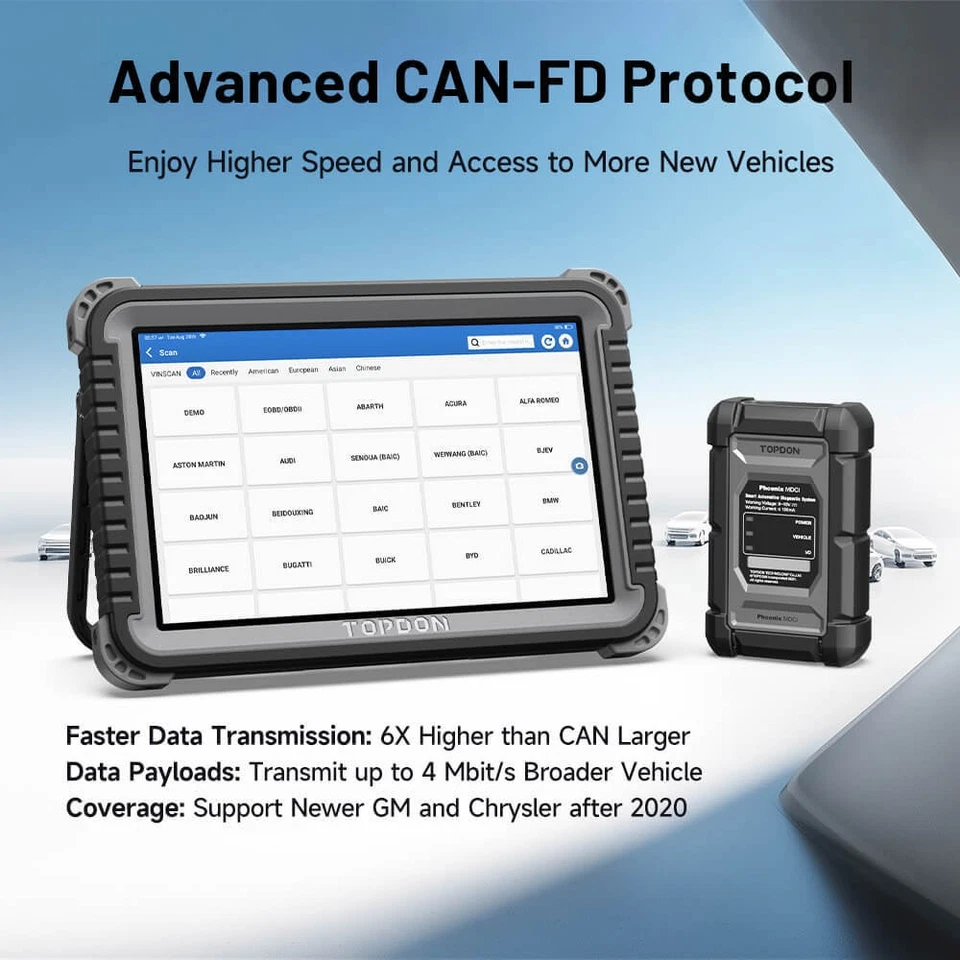

OE-Level Diagnostics with CAN-FD Boost

The Phoenix Plus 2 provides comprehensive support for over 160 vehicle brands, covering critical systems like the engine, transmission, and ABS to ensure a complete assessment of vehicle health. Equipped with the latest CAN-FD protocol, it enables ultra-fast data transfer required for newer vehicles, including Ford, GM, and Chrysler models from 2020 onward.

Streamline Your Diagnostic Process with One-Click

This TOPDON Phoenix Series diagnostic scan tool also carries out comprehensive all system diagnoses. It offers access to all vehicle systems at levels comparable to authorized dealers’ scan tools. The range of available services expands to resets, module coding, bi-direction tests and relearns:

• OE-Level Access: Gives you a window into European, Asian and American vehicles’ all accessible electronic control units; shows the ECU information including unit type, version numbers, and other specifications which is convenient for you to find the matched auto part replacement.
• For Maintenance: Read & clear diagnostic trouble codes (DTCs) in target systems, and locate the trouble area precisely.
• For Analysis: Check freeze frame data, plot PIDs, and monitor the real-time live data stream in text, graph & analog for easy review.
• System Coverage: Engines, Auto Transmission, Airbags, ABS, Cruise Control, Instruments, Self-Leveling Suspension systems, Seats, Doors, Gateway, Steering Angle, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tire Pressure, Rain S.ensors, 4WD System ... all diagnosable ECUs.
• Topology mapping of bi-directional diagnostic tool Phoenix Plus visualizes all major car systems in a diagrammatic tree, and checks all system conditions with one-click, A great assistance for mechanics and professionals to have more efficient diagnostic work than ever before.
• The TOPDON Phoenix Plus scan tool also boasts AutoVIN function to automatically identify vehicle information such as make, model, and year of manufacture immediately. Professional diagnostics are always ready to go.

The function list depends on the vehicle’s make, model, and year. Reach us for details.

Communicate with FCA SGW with Autoauth

1. Starting in 2018, FCA vehicles (compatible with Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat) have been equipped with a security gateway firewall known as the SGW Authentication System (SGM). The TOPDON Phoenix Plus 2 allows you to bypass the SGM—when connected to the internet and using an active AutoAuth subscription—to perform full OE-level diagnostics and bi-directional functions on these SGW-equipped models. Additionally, this TOPDON phoenix scan tool provides secure gateway access for compatible with 2015 and later Renault models, enabling advanced diagnostics and bidirectional control functions that are typically restricted on vehicles with SGW protection.

• TOPDON Phoenix Plus diagnostic scan tool needs to have the AutoAuth subscription. (**There’ll be yearly subscriptions fees required by AutoAuth not TOPDON Phoenix Plus scanner)
• The TOPDON diagnostic scanner needs to have the latest version of diagnostic software.
• The TOPDON scan tool must be connected to the internet to communicate with the FCA SGW Authentication System.

2. The TOPDON Phoenix Plus 2 has access to V.A.G Guided Functions with step-by-step procedure, which streamlines the repair process and promotes a quick and accurate car diagnosis. Follow the prompts for easy and convenient operation, suitable for VW, SKODA, SEAT vehicles and etc..

Graphic Live Data Stream

The live data stream in the TOPDON Phoenix Plus scanner provides real-time, dynamic information from the vehicle’s sensors and control units in an intuitive, easy-to-read format. With the ability to display up to 12 data streams simultaneously, mechanics can efficiently monitor and analyze multiple parameters at once. The 4-in-1 merged data feature allows for the comparison of four streams in a single view, making it easier to spot anomalies and trends quickly. The Phoenix diagnostic system also creates the ideal data management module: ArtiFolder. There you can keep all data files, client info, and car records well organized, as well as review test vehicle history records for first-hand troubleshooting of diagnostic bugs, faults, and errors, to help you use this scan tool more effectively.

2 Years of Free Updates

Stay ahead with 2 years of free software updates, ensuring your TOPDON Phoenix Plus remains up to date with the latest diagnostic advancements and vehicle models. Additionally, our dedicated expert service team is always ready to assist you—whether you need help with functionality, troubleshooting, or repairs—ensuring your success and satisfaction every step of the way.

Visualized Diagnosis for Clearer Insights

Experience the benefits of topology mapping, which provides clear system connections and pinpoints critical issues, drastically cutting diagnostic time. The graphical live data display converts raw data into easy-to-understand visuals, allowing for quick identification of trends, anomalies, and potential issues at a glance.

Wireless to Diagnose Anywhere

Phoenix Plus 2 includes a Bluetooth MDCI VCI/Dongle and includes arobust 12,600mAh battery. With one-click WiFi updates, you'll always stay up to date with the latest advancements.

Expandable Capabilities with Add-on Modules

Upgrade Phoenix Plus 2 with add-on modules. ADAS calibrations, BT Mobile ProS for battery testing, TC001 thermal imaging, and an oscilloscope for analyzing electrical signals.

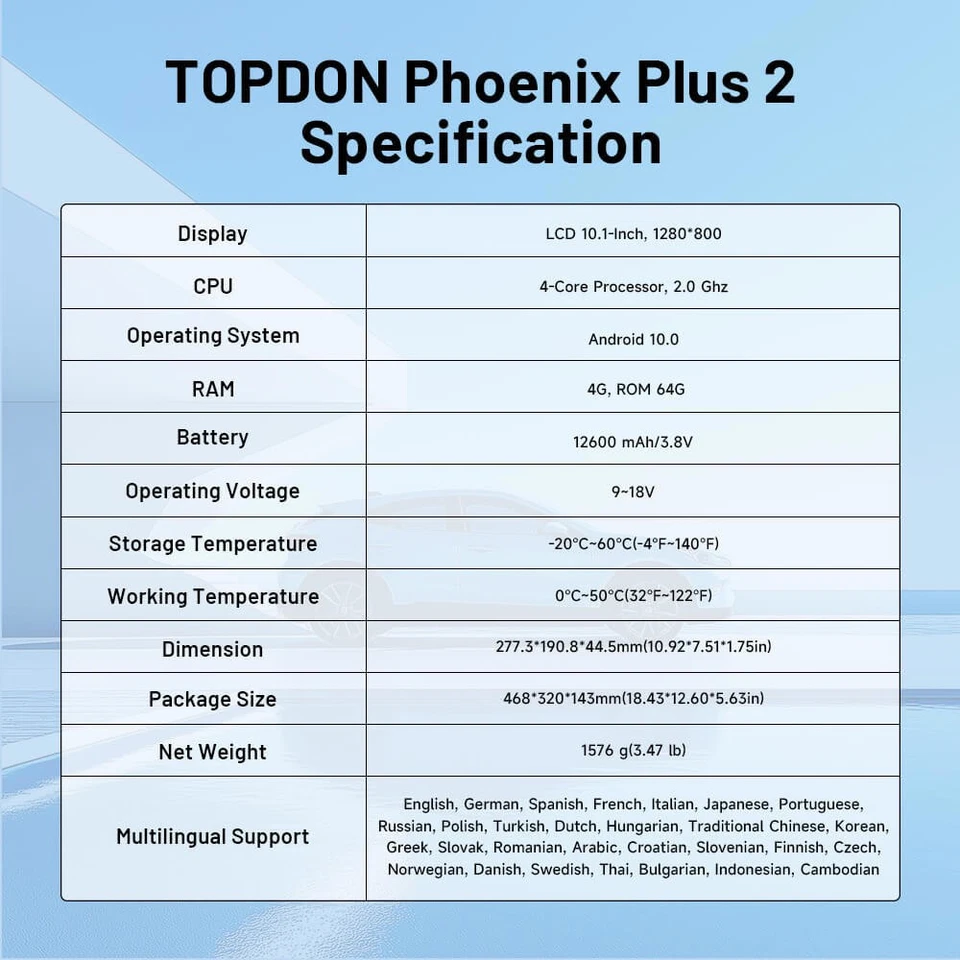

Specifications

CPU: 4-Core 2.0GHz
RAM: 4G
ROM: 64G
Battery Capacity: 12600mAh/3.8v
Android Version: 10.0
Screen Size: 10.1inch
Screen Resolution: 1280×800
Wi-Fi: 2.4 & 5 GHz
Camera: Rear 8.0 MP
Weight: 1.56kg（3.42lb)
Communication: MDCI VCI/Dongle

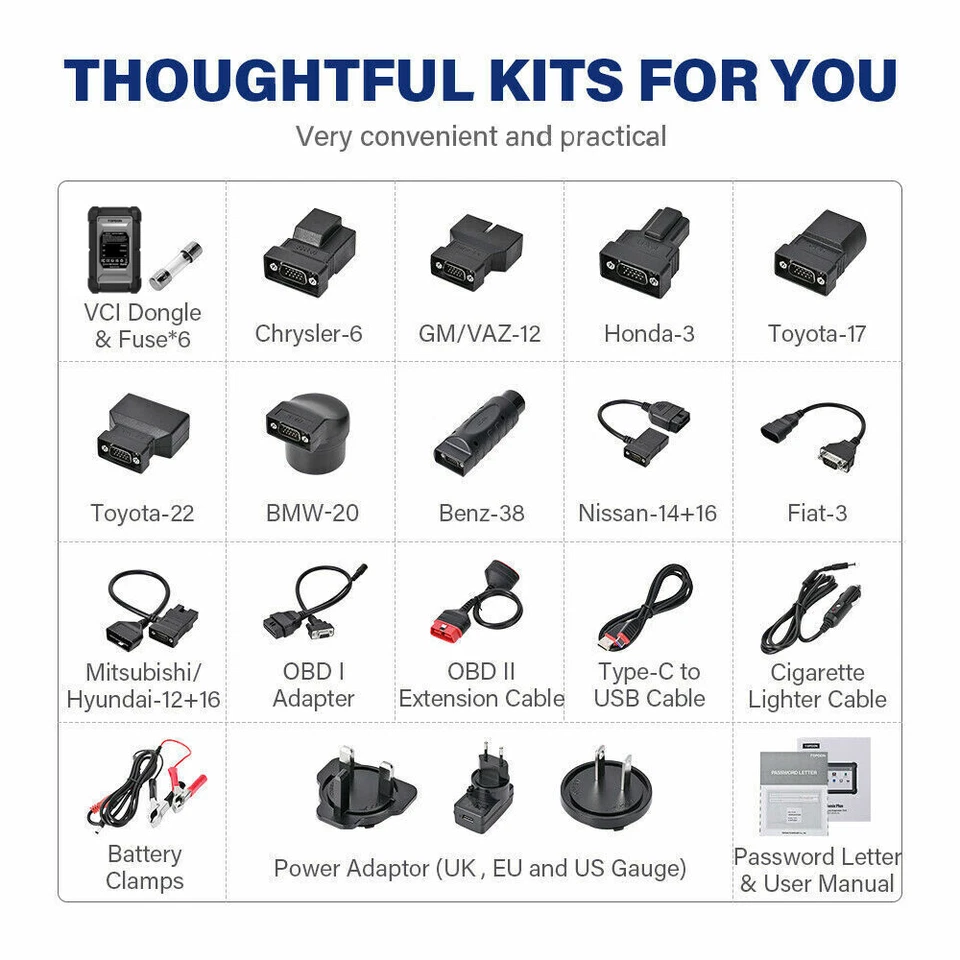

What's in the box

• Phoenix Plus 2
• VCI Dongle
• Power Adaptor
• User Manual
• USB Cable
