Tire Pressure Sensor Core Information Interpretation
Identification Number: This is the sensor's unique identifier, which must be written to the vehicle's ECU during the pairing process. It comes in two formats: HEX (hexadecimal, using 0–9 and A–F) and DEC (decimal, numeric only). Example: HEX: C3D00DF8 | DEC: 4069300
Part Number: The sensor model code is used to look up parts and verify compatibility and specifications (such as frequency); coding formats vary by manufacturer. Examples: 56029481AB, PMV-C215.
Frequency: When replacing the sensor, ensure the operating radio frequency matches that of the original vehicle; common frequencies are 315 MHz and 433 MHz. Examples: 433 MHz, 315 MHz.
Other auxiliary markings: May include the ASIC, serial number (SN), etc., and is typically associated with an ID number; the manufacturer's brand logo may also be printed on it. Example: ASIC, SN: B4L251810220
Detailed Explanation of Tire Pressure Sensor Learning Mode
Pattern 1: Auto-Learn(A)
Applicable to some GM, Ford, Hyundai, and other vehicle models. The vehicle's ECU has automatic recognition capabilities and can learn new sensor IDs under specific driving conditions without the need for special tools.

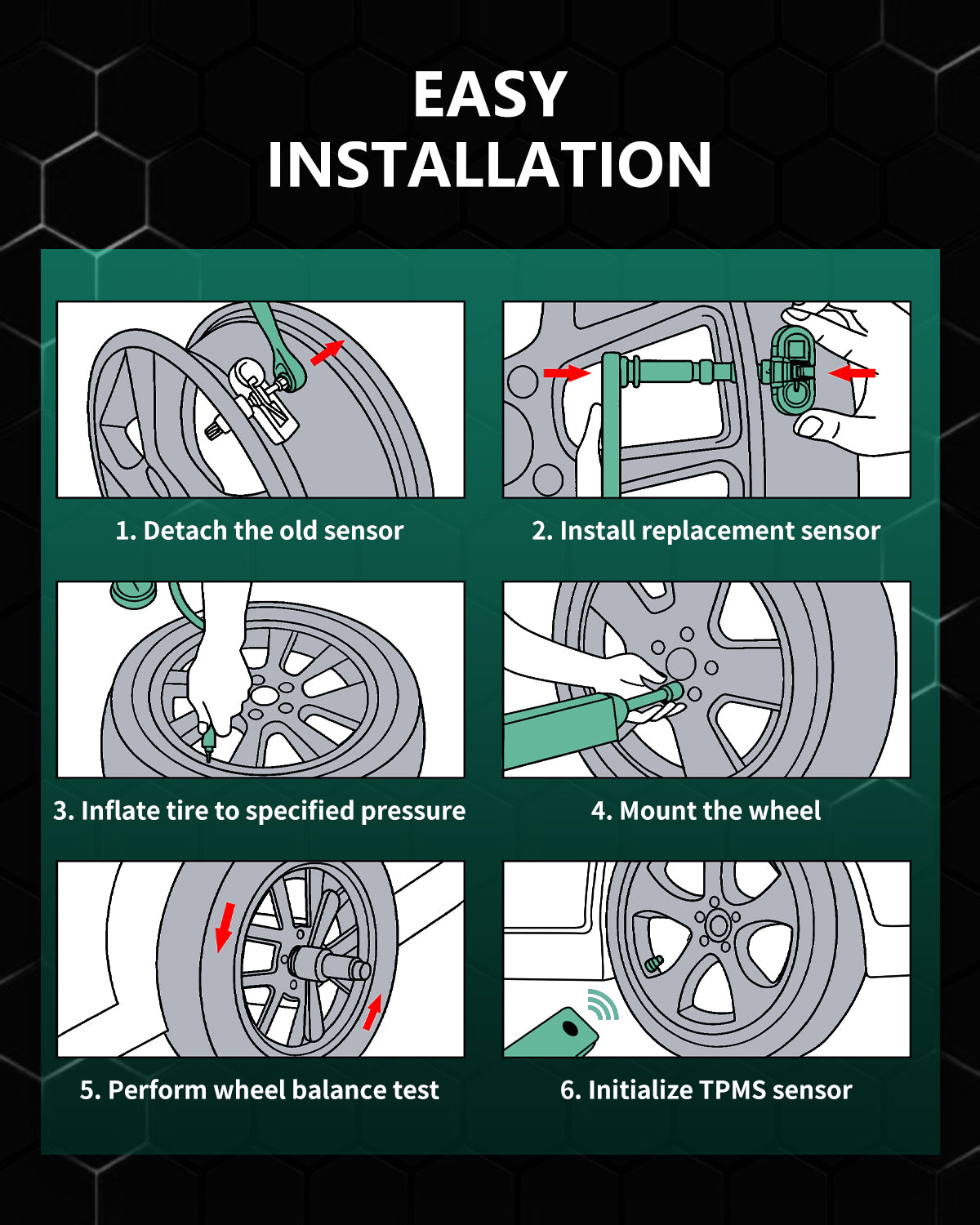

Installation and Rest: Install the sensor and adjust to the standard air pressure; turn off the engine and power, and keep it stationary for at least 20 minutes.
Road test completed: Drive at 30-100km/h for at least 15 minutes. The vehicle will automatically adjust, and the tire pressure warning light will turn off.
Pattern 2: Static-Learn(S)
Applicable to most GM models such as Buick, Chevrolet, and Cadillac. An activation tool (such as EL-50448) is required to sequentially trigger the sensors of each tire to complete ID matching.
Preparation and Entry Mode: After installation, turn the ignition switch to the ON position; enter the learning mode via the in-vehicle menu or button, indicated by the left front turn signal flashing.
Activate the sensors in sequence: Activate in the order of "left front → right front → right rear → left rear", with a time limit of 2 minutes for the first sensor and 3 minutes for the rest.
Key point: The activation order and time limit must be strictly followed, the learning process will be interrupted and fail.
Pattern 3: OBD-Learn(O)
Applicable scenarios: Suitable for most European car brands such as BMW, Mercedes-Benz, and Volkswagen, as well as some Japanese, Korean, and domestic models. The core principle is to directly write the unique ID of the sensor into the vehicle's ECU via the vehicle's OBD interface, achieving precise matching.
01. Prepare ID: Using professional diagnostic equipment, the unique identification IDs of the four tire sensors are read and accurately recorded.
02. Connecting OBD: Establish a physical connection between the diagnostic equipment and the vehicle's OBD II interface to ensure normal communication.
03. Write to ECU: Enter the "Tire Pressure Learning" function menu of the diagnostic tool and follow the prompts to write the recorded IDs one by one into the vehicle ECU.
04. Reactivate the sensor: After writing is complete, reactivate the four sensors in the order of left front, right front, right rear, and left rear to ensure signal synchronization.
05. Road test after engine shutdown to confirm: Turn off the engine and power for at least 25 minutes, then conduct a road test at a speed of 25-40 km/h for more than 15 minutes to complete the system self-learning and matching confirmation.
Pattern 4: Combination Pattern(C)
A/O / S/O / A/S/O
Some high-end or newer models do not operate on a single mode but are compatible with multiple learning methods, including automatic, manual, and OBD. Technicians can flexibly select the most suitable solution based on on-site equipment conditions, vehicle status, and operational efficiency, thus simplifying the operation process.
Pattern 5: Cloning
Applicable Scenarios: For certain vehicle models with closed systems that only recognize specific original factory IDs, the system does not support writing new IDs. In this case, "cloning" technology is required to completely copy the original factory ID of the old sensor into the new programmable sensor to achieve successful system matching.
Cloning from old sensors: Read the original ID information directly from the old sensor, program it completely into the new rewritable ID sensor, and then simply install the new sensor.
Cloning from vehicle systems: The old sensor ID stored in the vehicle's ECU can be read through the OBD diagnostic interface, and then the ID can be written to the new sensor. This method is suitable for situations where the old sensor is damaged and cannot be read.
Manually enter clone: If the physical ID code of the old sensor is known (e.g., it is engraved on the sensor surface), the ID can be manually entered directly on the diagnostic device and programmed into the new sensor.

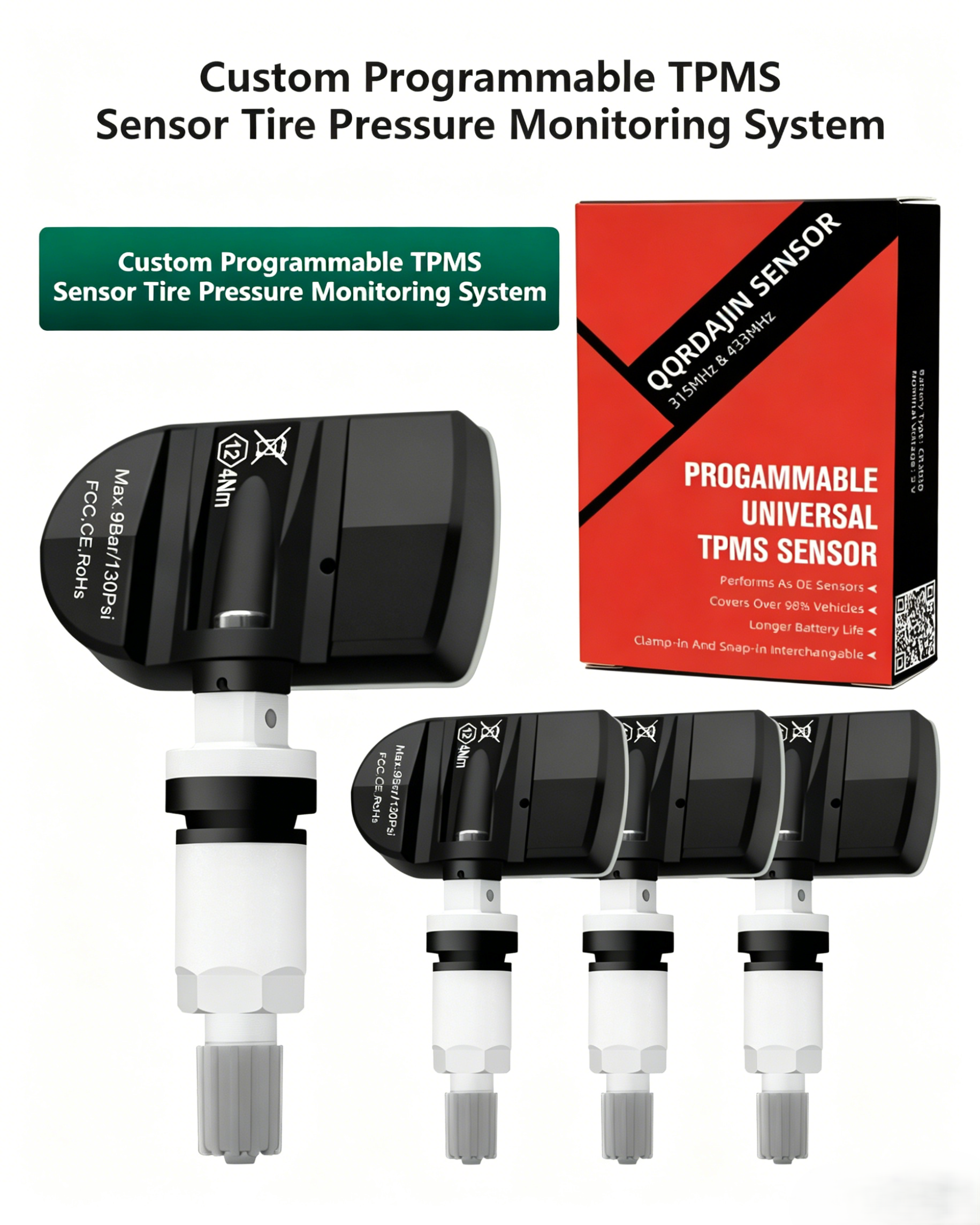

Key note: Cloning requires a programmable sensor that supports ID rewriting and cloning; ordinary sensors cannot perform this operation.
Detailed Explanation of Tire Pressure Sensor Matching Operation
OBD Activation Matching: By connecting the diagnostic tool to the vehicle's OBD interface and sending commands to wake up the sensors, the operation is efficient and convenient without removing the tires.
Automatic matching during road tests: Some vehicle models support automatic learning of sensor IDs while the vehicle is in motion, requiring no additional equipment, making them suitable for scenarios where original factory sensors are being replaced.
Handheld device matching: Using a dedicated handheld programmer, you can flexibly write or copy ID information by placing it close to the tire or scanning the sensor inside the vehicle.
Manual input matching: Manually enter the ID code on the sensor in the vehicle's instrument panel or diagnostic tool interface. This method is highly accurate and suitable for vehicles without automatic learning capabilities.
Key points: The matching mode must be selected according to the vehicle model configuration and sensor type to ensure that the ID information is fully synchronized with the vehicle ECU system.
Practical procedure summary
01 Diagnostic Problems:
After confirming the specific cause of the tire pressure warning, and combining the analysis of the vehicle fault codes, make a preliminary judgment on the sensor status to determine whether the sensor needs to be replaced or rematched.
02 Identification Sensor:
After removing the tire, accurately identify the sensor model, record its ID number, part number, and operating frequency, and confirm that the ID format is hexadecimal (HEX) or decimal (DEC).
03 Select Matching Mode:
Based on the vehicle brand, year, and model information, consult relevant documents to determine the tire pressure matching mode (A/S/O/C mode) supported by the vehicle, providing a basis for subsequent operations.
04 Perform the matching operation:
Strictly follow the standard operating procedures for the selected matching mode, use professional diagnostic equipment to write the sensor ID information, and carefully check the parameters during the operation to avoid input errors that could lead to matching failure.
05 Verification Results:
After the matching is completed, conduct a road test and observe whether the tire pressure warning light on the dashboard is off. At the same time, confirm that the tire pressure data displayed on the central control screen is accurate and updated in real time to ensure that the system is working properly.
Frequently Asked Questions (Q&A)
Q1: Why is the tire pressure light still on after the sensor was replaced?
Possible causes include: 1. No matching/learning operation was performed; 2. Errors occurred during the matching process (such as a timeout or an incorrect sequence); 3. Sensor frequency mismatch; 4. The new sensor itself is faulty; 5. Other faults exist in the vehicle system.
Q2: What happens if I enter the wrong HEX or DEC format?
The direct consequence is a matching failure. The vehicle's ECU cannot recognize the incorrect sensor ID format, causing the tire pressure monitoring system to fail to complete the learning process, and the tire pressure light will remain on. In this situation, the correct ID format must be obtained again, and the matching operation must be performed again strictly according to the specifications.
Q3: How can I find out the tire pressure monitoring method for a vehicle?
There are three ways to obtain the official standard procedures: 1. Consult the vehicle repair manual; 2. Use the vehicle model database of professional diagnostic equipment to search for the specific operation for the corresponding model; 3. Consult experienced technicians or seek solutions on professional online technical forums.
Q4: Is it okay to use sensors from different brands?
As long as the sensor's operating frequency and ID data format are fully compatible with the vehicle system and can successfully complete matching and learning, they can usually be used in combination. However, for long-term system stability and to avoid warranty disputes, it is recommended to prioritize original equipment manufacturer (OEM) parts or market-proven compatible brand sensors.
