CR508S Common Rail Pressure Tester and Simulator
-
Express Estimated Delivery:Sep 10 - Sep 14
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
CR508S Common Rail Pressure Tester and Simulator
CR508S Common Rail Pressure Tester and Simulator
The CR508S is a professional-grade diagnostic and programming device that offers comprehensive functionality for various vehicle systems. With its user-friendly interface and advanced features, the CR508S enables users to quickly diagnose and troubleshoot issues in the engine, transmission, ABS, airbag, and more. Additionally, it supports a wide range of vehicle models and provides access to essential vehicle data for efficient repairs.
cr508-common-rail-pressure-tester-and-simulator-user-manual
Top 6 Reasons to Get CR508S Common Rail Pressure Tester and Simulator:
1) CR508S is the latest upgrade rail pressure tester, it can test kinds of common rail
pressure sensors of diesel engine, include BOSCH,DENSO,DELPHI.
2) CR508S is a portable fuel-way pressure tester and simulator. Except test, CR508S also
can be used for simulating fuel pressure that universal scanner can’t have. By simulation,
users can stimulate conveniently for searching problems on fuel way.
3) CR508S Diesel Engine common rail pressure test can be operated simply with high
accuracy avoiding the complicated operation compared with the previous use of
mechanical pressure gauge pressure tube and problem caused by other factor entering
a damaged fuel injector and the pipe damage , a series of negative effect caused by oil
spills .
4) CR508S greatly improves the working efficiency.Most importantly according to the
standard data to search for the engine starting difficulty and power caused by the lack of
engine fault alarm The instrument is enclosed with standard operating rail pressure data
and details of the fault that can quickly guide the repair staff to trouble shooting and
repair detection of common rail. It truly become an indispensable diagnostic instrument
5) To judge whether the common rail pressure is normal based on the comparison
between the testing results and standard data.Usually indicate the below problem about
the engine if the common rail pressure is unnormal.
Engine is hard to start or could not be started.Engine lacks of power.
Engine power is not stable or some high some low.
Engine climbing powerless.
6) CR508S supports all common rail pressure sensors, including Bosch, Denso and
Delphi; measurement range includes 0MPa to 200Mpa. The accuracy is up to 0.01MPa.
Adaptive measurement mode is adopted for CR508S. User do not need to select, and
the product can automatically recognize type of connected sensors for rapid
measurement.
Upgrade! CR508S Digital Common Rail Pressure Tester and Simulator
for High-Pressure Pump Engine diagnostic tool,More function.
CR508S is upgrade of CR508 ,more function than before ,and fixed some bugs of
CR508
Upgrade 1: Add pressure unit "bar", CR508 only have Mpa as unit ,CR508S has
"bar"unit
Upgrade 2:Add pressure unit "psi", CR508 only have Mpa as unit ,CR508S also has
"psi"unit,so CR508S have "bar""psi""Mpa" as unit
Upgrade 3:Add a botton ,for unit change . on the top of machine ,easy to use ,
Upgrade 4: Adjusted pressure algorithm to make measured values more accurate
Upgrade 5: fixed some bugs of CR508
CR508S Common Rail Pressure Tester and Simulator Vehicle List:
Mercedes benz, BMW, A-udi, Volkswagen, Toyota, Peugeot,Citroen,Nissan, Renault,
Hyundai, KIA, Hino, Isuzu, Yanmar, Cummings, Man, Scania, Volvo, Renault, IVECO,
Weichai, Yuchai, DEUTZ,Detroit,Perkins, John Deere, Opel diesel, and the engine with
engineering machinery and vehicles and so on.
Comparison Between CR508S and Others:
| CR508S | Universal Scanner | Other Rail Pressure tester | Mechanical Rail Pressure meter |
|
| Rail pressure test range | 0-200MPa | 0-200MPa | 0-200MPa | 0-70MPa |
| Test Accuracy | 0.01MPa | 0.01MPa | 0.01MPa | 1MPa |
| Display | LCD | LCD | LED number display | Pointer |
| Test Way | From sensor directly | From diagnostic socket | From sensor directly | Pipe |
| Simulate | YES | NO | NO | NO |
| Simulate Range | 0-200MPa | NO | NO | NO |
| Simulate Accuracy | 0.01MPa | NO | NO | NO |
Main Functions of CR508S Common Rail Pressure Tester and Simulator:
1. Measuring Bosch Common Rail Pressure Sensor;
2. Measuring Denso Common Rail Pressure Sensor;
3. Measuring Delphi Common Rail Pressure Sensor;
4. Stimulating Bosch Common Rail Pressure Sensor;
5. Stimulating Denso Common Rail Pressure Sensor;
6. Stimulating Delphi Common Rail Pressure Sensor;
As long as your joints are the following several, can test:
1. BOSCH
2. DENSO
3. DELPHI
All connectors (Bosch,Denso, Delphi) Focus on one Main cable that is
not easy to lose any connector:
1. LCD screen;
2. Measurement and simulation selection switch;
3. LED indicator light;
4. Common rail pressure lead;
5. Rail pressure simulation regulator;
6. Power cord;
7. Denso Common Rail Pressure Joint;
8. Bosch Common Rail Pressure Joint;
9. Delphi Common Rail Pressure Joint;
10. Host machine;
Packing Including:
1pc x CR508S host machine
1pc x Product use manual
1pc x Main Cable(Denso/BOSCH/Delphi Common Rail Pressure Joint)
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
Package will ship out within 48 hours after payment receive usual, if there is some acceident, we will inform you by order contact information.
VXDAS Policy
Kindly note:
Before returning items to us, please read and follow the instructions below. You can also contact our Customer Service, we will be glad to help you.
Please make sure that you understand our return policy and ensure that all criteria are met before physically sending any items back to us.
Return Policy
What Situation VXDAS Provides Return Policy?- Mis-Ordered Products: If you ordered wrong item by yourself, after communication with VXDAS sales you need to exchange a right item, you can return back and exchange the tool. But you need to pay both shipping cost to us and freight to you again.
- Quality Issues: Our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our return policy will be open for you.
- Non Quality Issues: In some particular situation, our return policy can be open for you after our customer service learning your particular problem, and in this condition we will charge you 10% restock fee, please kindly understand.
What Situation VXDAS DO NOT Provides Return Policy?
- Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.
- Non Quality Issues: If the item is damaged by yourself, we can not provide exchange service for you. You can only return to repair.
How to Return the Items to VXDAS?
After all details confirmed by VXDAS sales and agreed to return back the items, please help to follow the return process provided by VXDAS.
①Return Shipping Method
VXDAS will recommend to use Registered Mail or EMS to return the parcel, and please only send the items back to the shipping address our Customer Service provides. Please DO NOT use DHL/UPS/FEDEX/TNT or other courier for shipment without permission, if we cannot get the returned parcel with these methods, we will not responsible for that.
②Return Cost
If you were ordered wrong items and want to return back, you will bear the return cost.
If it's quality problem and never use before, please contact VXDAS sales to confirm the cost.
If only return for repair or exchange, customer will afford the shipping cost to VXDAS according to company rule.
Remark:
①We promise to obey the return policy when the items have problems above, but you must send back the item after we knowing your problem and what you want us to do. Please kindly contact VXDAS Customer Service to confirm all details before returning the items.
②All return for refund or return for exchange should be done within 7 days. Customer must send out the items and provide returned tracking number with shipping invoice details to VXDAS sales. Otherwise, we may cannot receive the parcel and follow the return and exchange policy.
Refund Policy
You can apply for refund within 14 days since the date you received the goods. Detail rules as follows:
What Situation VXDAS Provides Refund Policy?
- Quality Issues: When the items you receive have quality problem, send us the photo & video to help check & confirm, then follow VXDAS guide to return the original package, we will refund to you fully when full package receive includ the hardware, software or adapters.
- Cancel the order before shipping: If you need cancel the order, please contact VXDAS Customer Service within 12 working hours to cancel. If over 48 hours, the parcel may send out already, then we have to refund after we get back the items.
- Stock Issues: If product is out of stock, we will send email to check if you want to exchange or get refund.
- When the product is lost in transit to you by shipping company, we will refund fully or resend you a new good item.
What Situation VXDAS DO NOT Provides Refund Policy?
Customer received the goods over 14 business day
Mis-Ordered Products: If you ordered wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.
Special Products/Services: Some products or services are not refundable after they have been provided. Like software download link, software installation service and account service etc.
When Can Get Refund?
Repair Policy
In Warranty Time
Most diagnostic tools and software of VXDAS enjoy a 1-year warranty, free repair and 1-year free upgrade during the warranty period.
For special products, please refer to the product description or consult customer service before purchase.
If you have a problem with the product of VXDAS during the warranty period, first provide the order number, problem pictures and operation videos, and contact our customer service technicians to confirm the problem. If the problem cannot be solved remotely, the customer service will guide you on how to send the product back for repair. You may need to bear the shipping cost to us.
After sending the product back, provide us with the tracking number. We will inform you immediately after receiving the product and arrange for repair. When the repair is completed, the product will be tested and sent to you, and the tracking number for re-shipment will be provided. VXDAS will bear the shipping cost.
Out Of Warranty
Over 1 Year warranty: product purchased over 1 year
Man-made damage: including product damage caused by improper use
this situation is out of warranty, there will be repair fee accordingly. You may also need to pay for the shipping cost when repair process finished. To avoid the problem of excessive maintenance costs, be sure to consult with the staff on specific issues.
Before sending back to repair, please contact our sales to check & confirmed the item problem as well, if the product able to fixed, we will processing repair once received.
Warranty Policy
One Year Warranty
All diagnostic tools and softwares from VXDAS will have one year quality warranty period.
(1-time remote service or customized service is not covered by this policy, and some brand products enjoy a 2-year warranty. For details, please refer to the product details page or consult the sales before purchase)
During warranty time, customer can enjoy free technical support and repair.
Before shipping out, all goods will be test by vxdas.com. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.
14 Days Return
If the product has quality problem, VXDAS guarantees to replace a faulty product or full refund after receiving the products in 14 days.
Lost Products
If products get lost in delivery, or you haven't received your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we will help to check and provide solution. Usually we will provide tracking number and tracking link timely. If products get lost on the way and we'll get messages from couriers, then VXDAS will contact you for further solution like resend the parcel or refund.
The Warranty Policy fits for all products except some products which state the warranty specially in description. Like some chips, it doesn't have any warranty after order. Hope you can understand.
According to the different problems, the VXDAS Sales will be responsible for providing the best solutions under the agreement of both parties, such as replacement, refund, discount for next order etc.
The Warranty Policy fits for all products except some products which state the warranty specially in description.
we understand that choosing the right product is crucial
VXDAS Strives to Provide A Hassle-Free Purchasing Journey
Recently Viewed Products
AdblueOBD2 Emulator For DAF/Renault/Ford/Benz/Iveco/Vo.lvo/Scania/MAN Trucks Plug And Drive Ready Device By OBD2

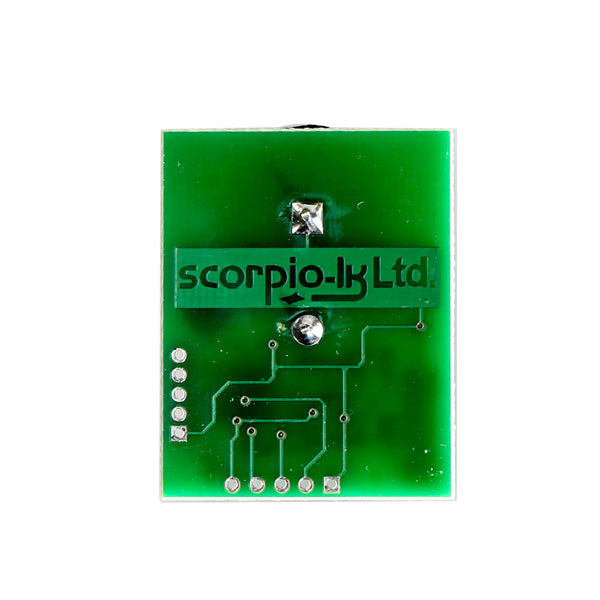

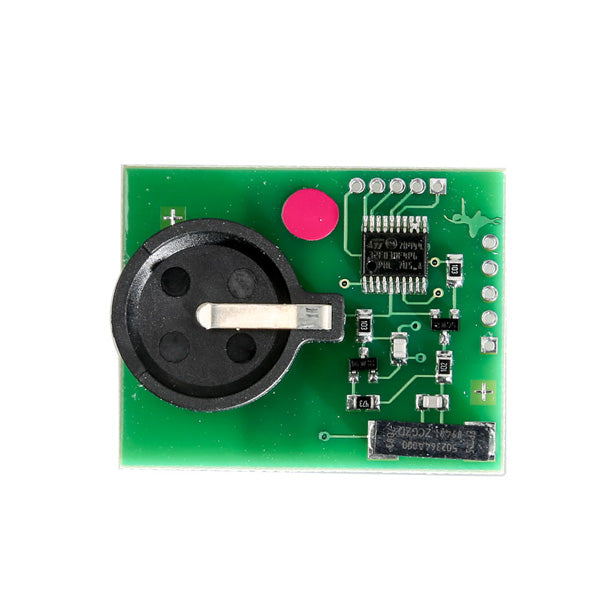

Scorpio-LK Emulators SLK-05 for Tango Transponder Key Programmer
