GSM Tracking Oil GPS Anti-theft Off Remote Relays Shock Control Device Power Tracker Car Locator Alarm Cut Monitoring
-
Express Estimated Delivery:Dec 10 - Dec 14
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
GSM Tracking Oil GPS Anti-theft Off Remote Relays Shock Control Device Power Tracker Car Locator Alarm Cut Monitoring
 |
NOTE:
If you are in Turkey, please write a message to modify the imei number in the order, or contact us after placing the order, we can help you to modify the imei number.
Realtime Tracking
Support GPS And GLONASS Positioning
This GPS Tracker is a 2G GSM GPS Tracker
It is working based on the existing 2G GSM/GPRS network
If your country closed the 2G network ,you can chose another 3G product!
You will can realtime track the device on google maps by mobilephone，tablet and computer
Geo-fence
Set up a geofence for the tracker to restrict its movements within a district.
The unit will send alarm information to APP and web server when it goes out of or get in
this district.
History Route Playback
The APP and web server can record the upload data of the device up to 6 months
you can playback the history route at any time!
Overspeed Alarm
This alarm works only under continuous positioning mode.
When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number
Vibration alarm
About the APP and Web
you can download the APP
there is a ID number in the device
you can login in with the ID number
its original password is 123456
How to use
(I) opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up

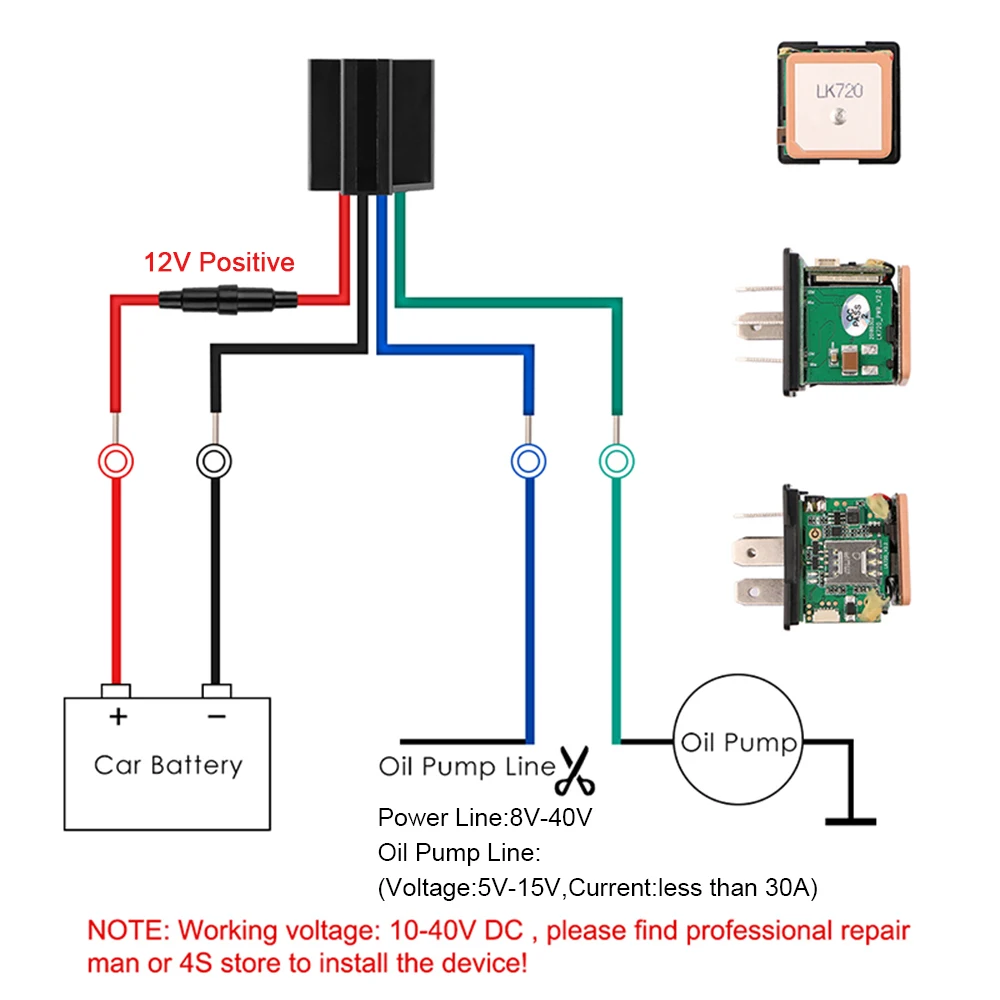

(II)Connect cable follow the picture
(III) Set admin number by sending a SMS command to the SIM card inside device
For example: admin123456+86186******(+86186*****should be youe phone number)
(IV)Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）
About cut off oil function:
Regarding the connection of the line, it is necessary to find a professional person to install, otherwise the oil cut function may not work.
1. The standard power supply of this device is 10V-50VDC, the red line is the positive pole of the power supply, and the black is the negative pole of the power supply; when installing a negative power pole, please select grounding or grounding separately, And do not share with other wires;
2.The oil shutoff control line (green / blue line) is connected to the oil pump line.
off state:power line requires 12V.
When the oil cut function is not available, you need to check:
How to solve problems
Q: If the device start up fail
A:Check the cable connect right or not.
Q:If The device can not obtain location information
A:Place the unit at the open area to test
Q:How to chose the SIM card?
A:The SIM card need support GSM/GPRS and ensure that the card has enough currency and credit
Q:How to use in the foreign country？
A： Please set the APN befor use ,please edit the text "APN123456 CMNET" and send it to the SIM card of the device ,CMNET is Chinese operator's APN, Replace the corresphonding APN when use in other country,APN detail can contact your SIM card carrier
Overview:
This product LK720 is the latest hidden design Relay Car GPS Tracker which is designed
1. Hidden Design and Easy Installation
2. Wide Operating Voltage 10-40V DC, compatible with vehicles on the market!
4. GPS+LBS Double Positioning Ways
5. Realtime Tracking
6. History Route Playback
7. Power Saving Mode
8. Overspeed Alarm
9. Shake Alarm
10. Movement Alarm
11. Virtual Fence
12. Sleep Mode
13. Illegal Cutting Line Alarm Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device
14. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !
Specifications:
|
Content |
Specifications |
|
Dimension |
31(L) x 31(W) x 57(H)mm |
|
Weight |
29.3g |
|
Network |
2G GSM/GPRS |
|
Band |
2G GSM: 850/900/1800/1900Mhz |
|
GPS Sensitivity |
-159dBm |
|
GPS Accuracy |
5m |
|
LBS Accuracy |
100-2000m |
|
GPS Start time |
Cold status 45s Warm status 35s Hot status 1s |
|
Working Voltage |
10-40V DC |
|
Backup Battery |
Chargeable 3.7V 80mAh Polymer Li-ion Battery |
|
Storage Temperature |
-40degC to +85degC |
|
Operation Temperature |
-20degC to +65degC |
|
Humidity |
5%--95% non-condensing |
|
Special Functions |
illegal cut line alarm, Remote Cut Off Fuel, Vibrate Alarm |
