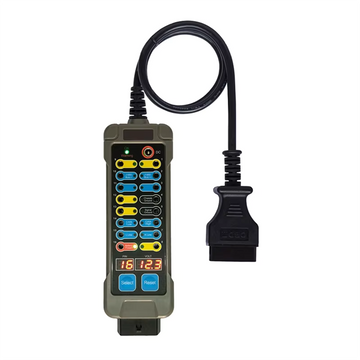

OBD2 Breakout Box 12V 24V Universal DLC Connector with Pin Out Box for Auto, Motor & Heavy-Duty equipments

$45.99

Risparmia

Tipo:
Car Diagnostic Tool
SKU:
OAC007

Options: Without Jumper wire

Without Jumper wire

With Jumper wire

Quantità

Confrontare

Fai una domanda

Guida alle taglie

Condividere

Express Estimated Delivery:Feb 06 - Feb 10
Free Shipping Method: Estimate dilevery 8-19 business days

Guarantee safe & secure checkout

29 people are viewing this right now

OBD2 Breakout Box 12V 24V Universal DLC Connector with Pin Out Box for Auto, Motor & Heavy-Duty equipments

The OBD-II Breakout Box is a CAN bus circuit tester designed for 12V/24V automotive systems.

It connects directly to the vehicle's OBD-II port to detect abnormalities such as short circuits and reverse polarity, protecting diagnostic tools from damage.

It provides real-time communication signal display and allows quick voltage testing on all 16 pins via a selection button. The device includes short-circuit protection, audible/visual alarms for power issues, and comes with a 10-pin adapter (4mm banana connectors).

Key Features & Usage

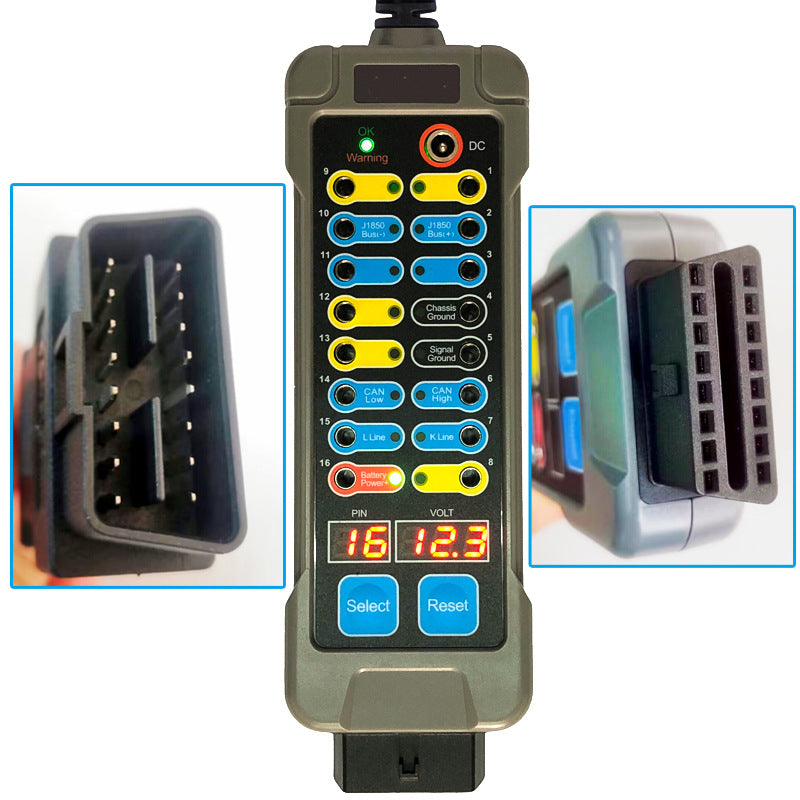

1. Users connect the OBD-II Breakout Box directly to the vehicle's Data Link Connector (DLC), the OBD-II port, to test for any abnormalities at the pins, such as short circuits and reverse polarity. If a short circuit or reverse polarity is present, connect this device first before connecting a diagnostic scan tool to prevent damage.

2. This device provides a real-time display of current communication signals, eliminating the need for a digital multimeter. It provides access to all 16 pin connections during vehicle repair and diagnosis.

3. Users can quickly test the voltage of all 16 pins. By pressing the selection button to choose a pin, the pin voltage will be displayed.

4. The device features short-circuit protection and includes audible and visual alarm functions. It will emit audible and visual alarms when a power supply issue is detected.

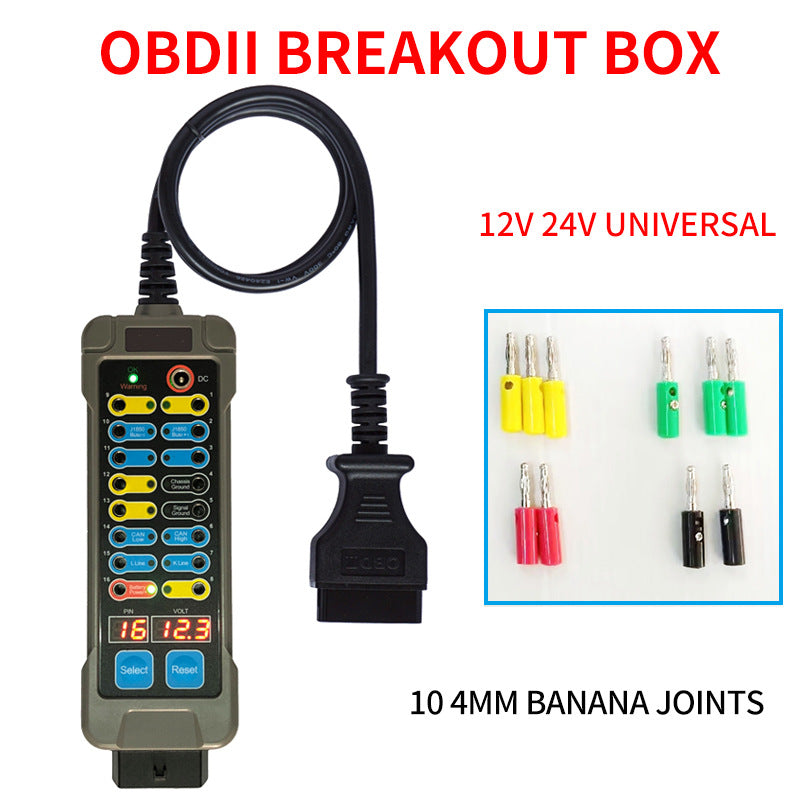

5. Includes a 10-pin adapter (4mm banana connectors).

Specifications & Compatibility

1. Product Type : OBDII Breakout Box

2. Compatibility : 12V / 24V Universal

3. Application : Automotive, Motorcycle, Heavy-Duty Truck, Excavator circuit repair and diagnostic tool.

4. Material: Plastic

Product Details

1. Brand new, high quality.

2. Made from premium materials for durability and reliable performance.

3. Easy to install, no complicated tools required, user-friendly.

4. Professional craftsmanship, refined surface, and a novel, unique design.

5. A universal OBD breakout box tester.

How to use

Important Notes

1.Please note that slight differences in the product may occur due to different production batches.

2. Light reflection and different displays may cause the color of the item in the picture to vary slightly from the real object.

3. Please allow a measurement tolerance of +/- 1-3 cm.

Package Includes :

Option 1:

1 x OBDII Breakout Box

10 x Banana Connectors (4mm dia.)

1 x Manual

1 x Box

Option 2:

1*OBDII Breakout Box

10*Banana Connectors (4mm dia.)

1*Manual

1*Box

1*Jumper wire
