NAVIGATOR TXTs Universal Diagnostic Interface For Multi-Brand Vehicles
NAVIGATOR TXTs Universal Diagnostic Interface For Multi-Brand Vehicles

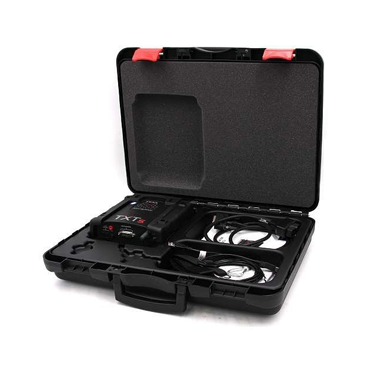

NAVIGATOR TXTs Full diagnostic interface unit that can operate on any type of vehicle and with PASS-THRU protocol. NAVIGATOR TXTs Universal Diagnostic Interface is equipped with shock-absorbing bumpers and OBD interface cable, USB cable, Bluetooth antenna, tool-holding belt, installation manual.
NAVIGATOR TXTs Universal Diagnostic Interface For Multi-Brand Vehicles
NAVIGATOR TXTs - the universal diagnostic interface, the latest multibrand diagnostic interface by TEXA.
Today the diagnostics tool is an essential piece of equipment for every vehicle workshop. Whatever the fault, it is likely that during each repair process the ECUs will need to be accessed to clear the fault codes or configure the replacement components, operations that are only possible using a diagnostic tool.
5 Environments in a single tool
Now even scheduled service and maintenance in many cases requires the use of diagnostic equipment, to reset the service lights and check or activate the various systems. The NAVIGATOR TXTs is the most complete and versatile version in the range, and can be used on any type of vehicle.
The NAVIGATOR TXTs is the most complete and versatile version in the range, and can be used on any type of vehicle. Wireless connectivity means users can carry out diagnostics testing while being free to move around the vehicle and workshop.
NAVIGATOR TXTs can perform all common autodiagnostics tests, including:
read and clear errors,
display engineering parameters and activation status,
set and configure oil change, service and airbag indicator light reset,
ECU configuration,
keys and remote controls.

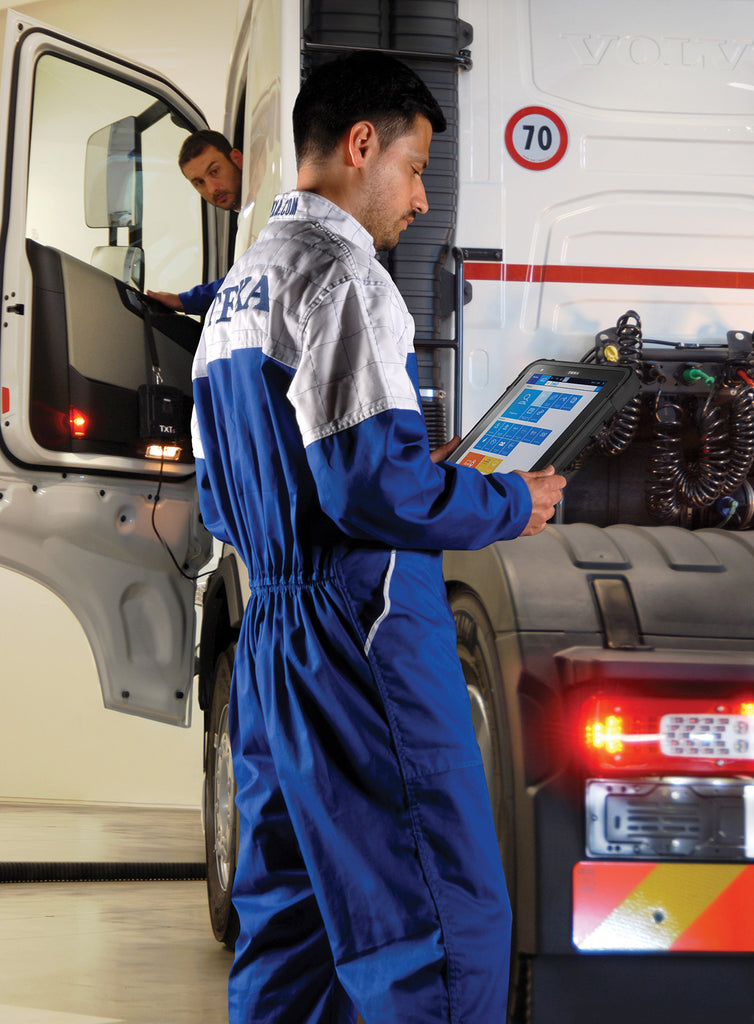

Wireless connectivity means users can carry out diagnostics testing while being free to move around the vehicle and workshop.
PASS THRU
NAVIGATOR TXTs is compatible with the PASS-THRU protocol*, which allows any workshop to connect to each manufacturer’s central server and download software packages or official technical information.
The PASS-THRU function can be used whenever needing to update the software on one or more electronic control units, in the event of malfunctions.

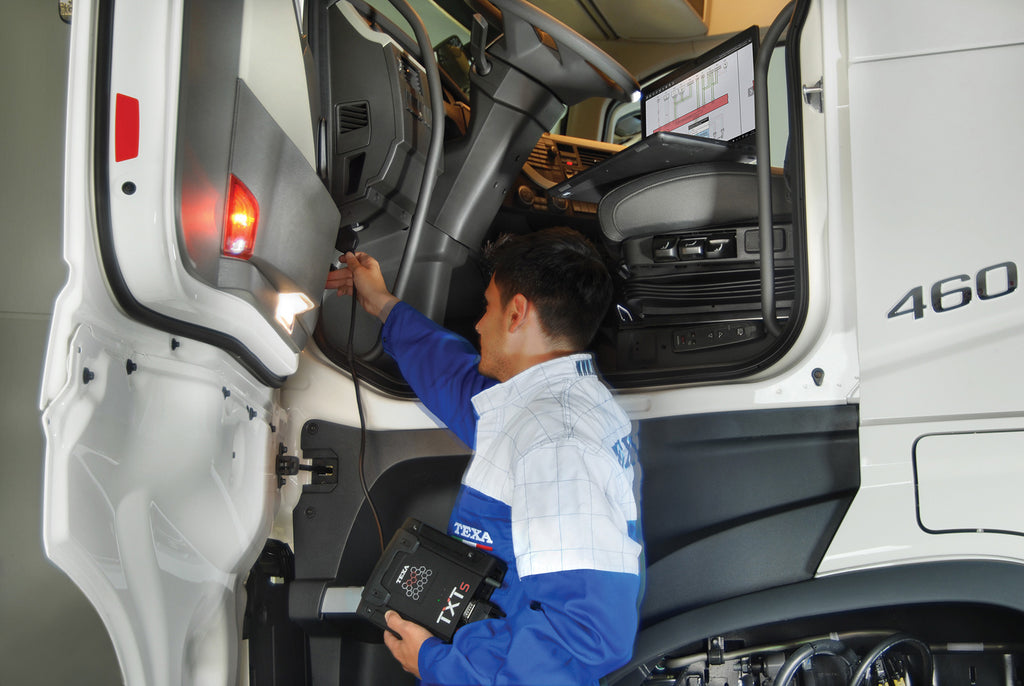

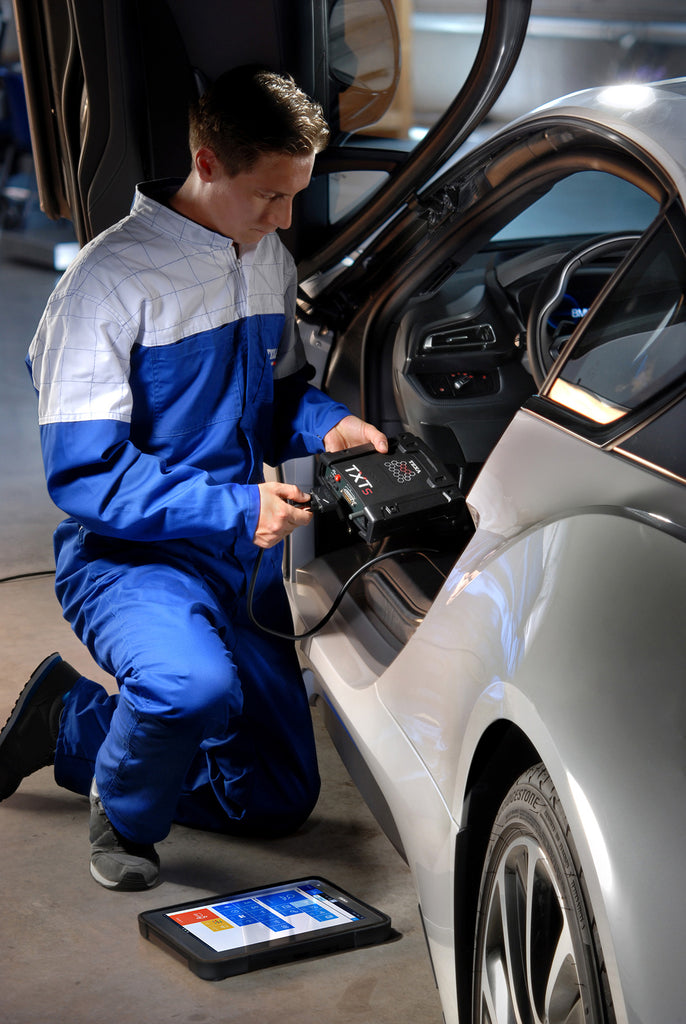

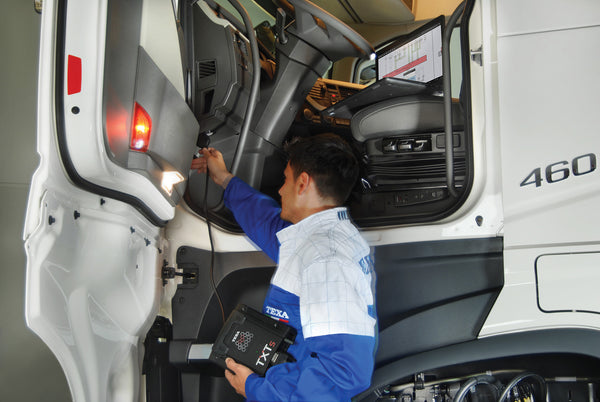

NAVIGATOR TXTs is a powerful multibrand diagnostics and autodiagnostics tool that connects directly to the vehicle’s diagnostic socket, and communicates via Bluetooth with the AXONE Nemo, AXONE 4 Mini and MULTI PEGASO display units, or alternatively with a Windows PC.
Compatible software
IDC4
IDC5
TEX@INFO CAR CONTRACT
LPG - CNG SYSTEMS
AIRBAG VAG CODING
SELF-DIAGNOSIS COMPONENT SHEETS
Technical Specification
-
Processor: CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes
-
SRAM memory: 8 MBits organized 512 KBytes x 16 bits
-
NAND Flash memory: 1 GBit on 8-bit bus
-
Vehicle battery: 12 VDC and 24 VDC systems' management
-
External power supply: 8 ÷ 32 V
-
USB communication: virtual RS232 via USB 2.0 Device
-
Wireless connection: Bluetooth class1 (30 m)
-
Electronic switch: 2-way, 13 independent positions
-
Diagnostic connector: DSUB-26HD standard ISO 22900-1
-
Control unit reprogramming connector: PV as required by the SAE J2534 protocol
-
Supported protocols:
-
Blink codes
-
K, L (with current protection 100 mA), ISO9141-2, ISO14230;
-
CAN ISO11898-2, ISO11898-3
-
SAE J1850 PWM
-
SAE J1850 VPW
-
SAE J2534-1 *
-
-
Power supply connector: 4-pin power mini-din
-
Visible warnings: 1 green LED, 1 red LED, 1 blue LED
-
12 V consumption: 0.25 A typical
-
24V consumption: 0.18 A typical
-
Operating temperature: 0 ÷ 50 °C
-
Stocking temperature: - 20 ÷ 60 °C
-
Operating moisture: 10% ÷ 80% without condensation
-
Dimensions: 160x170x55 mm
-
Weight: 1 kg
-
Regulations:
-
Directive: 1999/5/EC
-
Safety: EN 60950
-
Electromagnetic compatibility: EN 55022, EN 55024, EN 301 489-1
-
Radio systems: EN 301 489-17, EN 300 328-2
-
Configuration options:
• NAVIGATOR TXTs
• NAVIGATOR TXTs TRUCK (NAVIGATOR TXTs + IDC5 Plus truck)

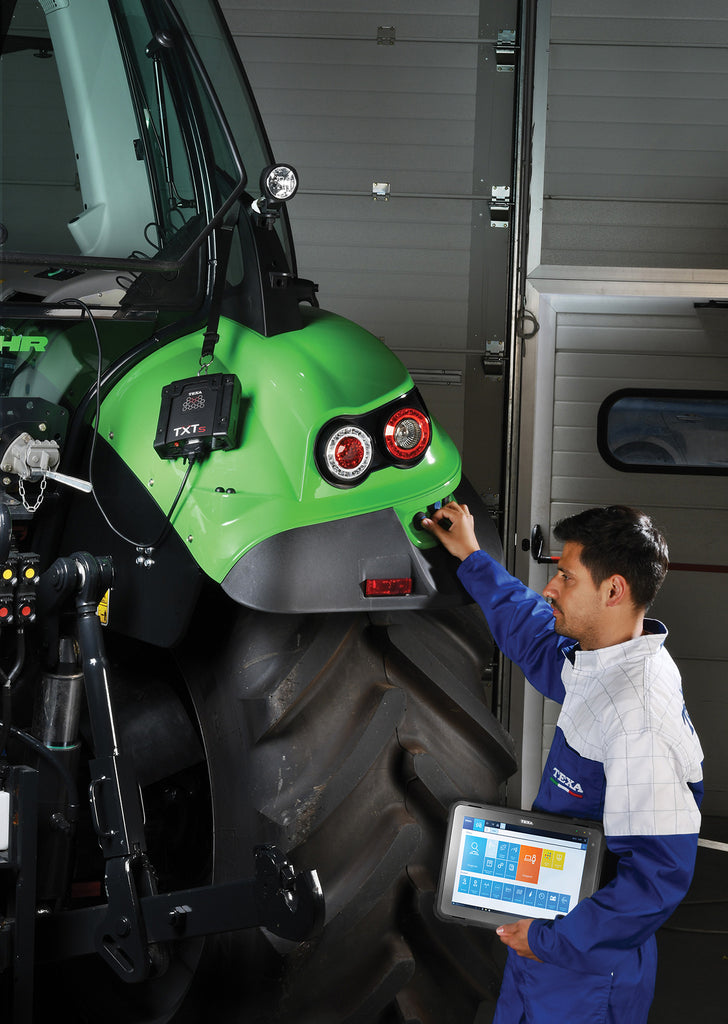

• NAVIGATOR TXTs OHW (NAVIGATOR TXTs + IDC5 Plus OHW + OBD-DEUTSCH 9-pin "Type ll" adapter)
