Launch X431 Pro Elite Review

by Lin Qingxuan on Jul 30, 2024

Launch X431 Pro Elite-- 2024 Best Value Bi-directional Control Supports Program Car Key. In this blog, we will let you know more about Launch X431 Pro Elite in the following content:

Part 1: Launch X431 Pro Elite Introduction

Part 2: Launch X431 Pro Elite Key Programming Capabilities

Part 3: How to program the car key in Launch X431 Pro Elite

Part 4: Launch X431 Pro Elite User and experience

Part 1: Launch X431 Pro Elite Introduction

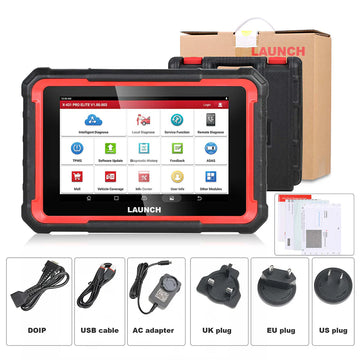

The Launch X431 Pro Elite stands out as a powerful diagnostic tool designed by Launch Tech Co., Ltd., catering to automotive professionals and enthusiasts alike. Beyond its primary function of diagnosing vehicle issues, Launch X431 Pro Elite excels in performing advanced tasks such as programming car keys.

Part 2: Launch X431 Pro Elite Key Programming Capabilities

The Launch X431 Pro Elite not only diagnoses faults but also facilitates various programming tasks, including car key programming. This capability is particularly crucial for repair shops and technicians, enabling them to add new keys, delete lost ones, or reconfigure remote functionalities efficiently.

Part 3: How to program the car key in Launch X431 Pro Elite

Is it easy to program a car key with Launch X431 Pro Elite? The answer is yes. Below we will teach you step by step how to program a key with Launch X431 Pro Elite.

Step 1：Connect the Launch X431 Pro Elite to your vehicle

Ensure the device is properly connected to the vehicle, either via the OBDII port or using Bluetooth/WiFi connectivity, depending on vehicle and device compatibility.

Step 2: Launching the Launch X431 Pro Elite Diagnostic Software

Within the diagnostic software interface, locate the Local Diagnose. Go ahead and get into the Diagnostic module. We are going to select the 16 PIN because it is a US model. Finally confirm the vehicle information and click "ok".

Step 4: Check if your original key can be used with Launch X431 Pro Elite

We're going to do a whole scan so a quick way to know if your chip is programmed or not. We have the light flashing right here that's the security light. Insert the original key for this car and it willturn off right away. It will not flash that means the original key will works. Then insert the other one, the light will continue flashing meaning the chip is not programmed. If you lost all keys, the Launch X431 Pro elite can do the all keys lost as well. We're going to do a Health report and do a system scan.

Step 5: Select the immobilizer system and Transponder Code Regisraiton.

And then follow the belows to register a key：

● Remove key from the key cylinderInsert key back into the key cylinderTurn IGN onpress OK within 120s
● Remove the master key from the cylinder within 20s, press OK
● Insert the key you want to Program within 19 s, then press OK Do not turn the ignition switch ON.

We see the light continues to flash it's registering the key.
We just wait until that light goes away mean that the key is already registered into the system.
Register key completed. It takes about 20s to register the key.
The tool will automatically tell us when the key is done registering.

Step 6: Then we are going to register the key fob.Go back and enter BCM system.

We're going to open the switch with the original key right.
Go to Special function. Select Wireless code registration so use this function to register a new key fob.

Step 7: We are going to press ignition on Driver door. Open and unlocked.

The remaining number of remotes we register are four and currently we have two keys register so we're going to press okay.
We're going to press the lock and unlock button at the same time for about 1 second then we're going to press the unlock button quick.
There we go it's already registered so press okay we cancel going to tum off the ignition.

Step 8: Now we're going to test the remote. And then we get a new key.

Launch X431 Pro Elite User and experience

Using Launch X431 Pro Elite for key programming is typically a straightforward and efficient process. Its intuitive user interface and stable performance ensure high efficiency and accuracy. It provides reliable support even for newer vehicle models or complex systems.

In conclusion, Launch X431 Pro Elite is not just an excellent diagnostic tool but also excels as a key programming solution. Whether you are a professional technician or an automotive enthusiast, it simplifies the management and programming of vehicle keys. If you are seeking a comprehensive automotive maintenance solution, Launch X431 Pro Elite should undoubtedly be on your radar.
