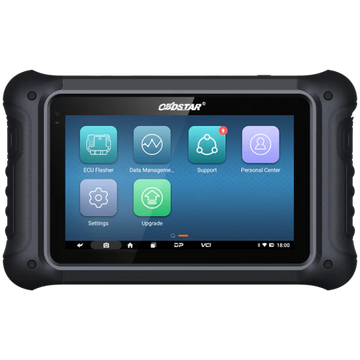

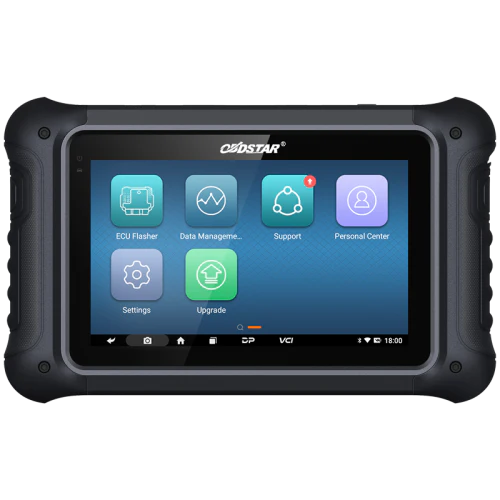

What is OBDSTAR DC706?
OBDSTAR DC706 ECU tool is designed for vehicle ECU programming, DC706 OBDStar support clone ECU by OBD or BENCH modes. not only application for ECU, but also TCM and body/other system. DC706 OBDStar ECU programmer can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery etc.
What does OBDSTAR DC706 Full version do?
OBDSTAR DC706 Different Version: (Now ONLY HAVE full version)
OBDStar DC706 have 7 configuration before when it publish, now only full version availble.
OBDSTAR DC706 Full Version advanced functions:
Combine all the ECM, TCM, Body system function all in one
-
Support 1200+ ECM types(Partial functions require P003 adapter.)
-
Support 280+ TCM types
-
Support 130+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS
Compare with other ECU programmers, what's OBDStar DC706 Features?
OBDSTAR DC706 is more suitable for internal use than tools like Kess, Flex, and PCMflash. OBDSTAR also covers a wider range of vehicles than IO Terminal, including all brands of ZF 8HP TCMs, including Dodge and GPEC-4 PCMs, including GPEC-2, 2A, and 3 PCM's, and it is updated with new software versions from time to time. We collected E39A and E92 GM PCM's, 2 FCA RF Hubs, a Ford continental BCM, a GM Bosch BCM, and a GPEC-2 PCM. Guide and pin out diagrams are clear and accurate. Performed all reading and writing on all of these modules easily and successfully. VIN's were visible on eeprom and d-flash sectors, as well as pin codes.
1. What's the Vehicle does OBDStar DC706 Full version support?
2. How does the OBDStar DC706 work on ECU programming?
OBDSTAR DC706 Supports three standard versions to clone:
ECM clone for cars/motorcycles
TCM clone
Body/Other clone
OBDStar DC706 ECU Tool User Manual:
How to use OBDStar DC706 full? Register it firstly:
Users have to register OBDSTAR DC706 before downloading or updating software.
Attention:
1. Keep charging and connect to the network before registering & upgrading.
2. Each single OBDSTAR device needs a different email to register.
3. If a username was taken, please use a different one for registration.
Here are steps for you to register OBDStar DC706 ECU programmer:
Step 1: Turn on OBDSTAR device
Step 2: Click DP
Step 3: Click Personal center
Step 4: Click Register
Step 5: Fill in personal information
Fill in the information in each field (Items with * must be filled).
Registration is completed.
Step 6: After successful registration, log in to your account.
Step 7: Click upgrade
Download or update software.
Trouble Shooting: Why the OBDSTAR DC706 Full Only have ECM Car Menu?
Solution:
First you need to register DC706 as described above.
Then go to Download, download BCM, ECM motorcycle and TCM software.
Make sure these software are downloaded completely.
OBDSTAR DC706 Test Review:
OBDSTAR DC706 Read VW Jetta MED17.5.6 CS and PIN for AKL, test ok!
Use OBDSTAR DC706 to read eeprom and flash on a 2011 VW jetta ME17.5.6 then used the immc decoder function and got the CS and pin code from the ecu. Much easier to do all keys lost this way than pulling the cluster.
DC706 read eeprom and flash, then hit immo data calculation. then it gives you CS, PIN and MAC.
Immo data decryption gives you the pin and CS.
The DC706 has the decoder function on it It also reads immo data, so you can upload that in your key programmer and make a dealer key.
This is a hell of a lot easier than pulling the cluster.
The key works with 00 7th byte CS, then manually programmed remote. All you have to do is put the CS and PIN and it is programmed.
The key worked perfectly.
DC706 only gives CS 6 Bytes. If 00 7th CS byte didn't work, pull out dashboard to get full immo data (30 mins).
OBDSTAR DC706 ECU Tool Reveiw: Clone Fiat IAW 10GF ECU onBench, work perfectly
IAW 10GF Fiat ECU
Device used:
OBDSTAR DC706 full ECU/TCU cloning tool
OBDSTAR P003 bench adapter
Stable network connection
An Original ECU
A Replacement ECU
Procedure:
In DC706 select ECM Flasher->ECM->latest ECM software version-> Fiat->Fiat Magneti Marelli IAQ 10GF CAN MPC5643+95640 (Bench+ P003)
And then DC706 will show you instructions and wiring diagram.
Follow the wiring diagram to connect ECU with DC706 and P003 adapter.
Press "ECU Info." to Read and confirm ECU information.
Make sure P003 adapter is connected. This function requires network connection.
Connect and identify ECU information.
Read and save eeprom 95640.
Read and save Pflash MPC5642.
Connect new replacement ECU 10GF IAW with DC706 and P003 adapter
Write EEPROM
Write successfully.
Write Flash.
Write flash data successfully.
Before quite operation, press "Disconnect" button.
OBDSTAR DC706 ECU Tool is new generation ECU programming tool to clone ECU, ECM, TCM and Body system, if you're looking for a effective tool for ECU clone, easy to use & update, you can look at it.
