EXTENSIVE COVERAGE:

The MS609 OBD2 code reader works with most OBD2 & CAN compliant vehicles with 16-pin DLCs, including American, Asian and European vehicle models for GM, Ford, Chrysler, Honda, Nissan, Volvo, VW/AUDI, BMW, Mercedes, and more.

FULL OBD2 DIAGNOSES:

Featuring full OBD2 functions as Read/Clear Codes, Live Data, Freeze Frame, I/M Readiness Check, O2 Sensor Test, Vehicle Information, etc., the OBD2 scanner is built to facilitate your daily car maintenance routine for emissions test and SEL turn-off.

ABS TROUBLESHOOTING:

This diagnostic tool also provides ABS testing for mechanics or DIY'ers, allowing an easy diagnosis of ABS for reading enhanced code information, reading codes, and erasing codes. You don't have to make great efforts to turn off the warning light.

GREAT EASE OF USE:

For a better user experience, the OBD2 scan tool is specially designed with DTC definitions displayed together with test results, data record & playback, data printing, and multilingual menu, all for helping you get diagnostic work done more efficiently.

WARRANTY & SERVICE:

Buy it at ease. The MS906 diagnostic tool offers not only fast & professional technical support, but worry-free purchase with refund or replacement for all defects in product materials and workmanship for a period of 12 months from the date of the original purchase.

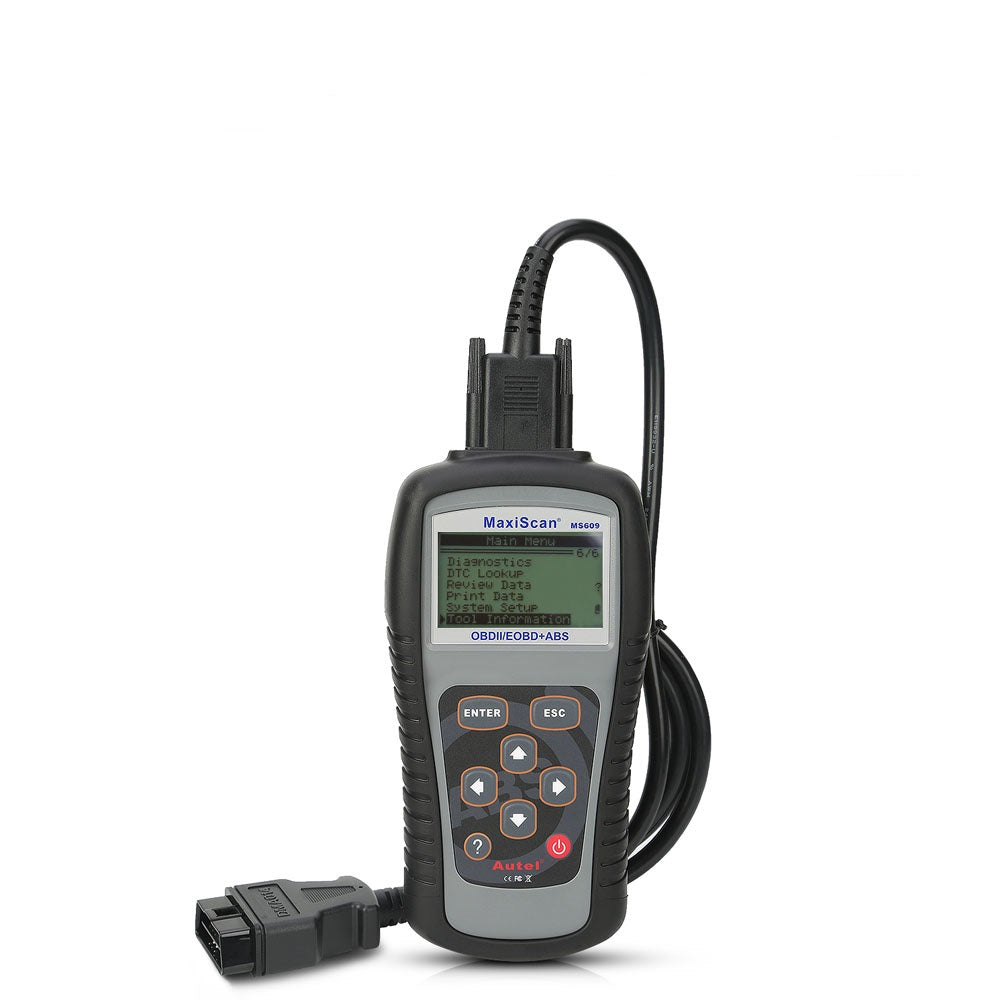

Autel Maxiscan MS609 Features:

1.The Advanced Version of MS509 & AL519

Compared with MS509 & AL519, Maxiscan MS609 offers the same features and functions as the MS509, also it comes with additional benefits of ABS testing and DTC tips which help users determine why the Check Engine Light or the ABS warning light is on.

2. Full OBD2 Functions for Quick Diagnostic Solutions

The MS906 offers full OBD2 functions which are very helpful for users to diagnose the car's troubles, carry out vehicle emissions test, and turn off service engine light:

Read Codes: Display the detected DTCs with detailed descriptions;

Erase Codes: Erase the DTCs to turn off service engine light on the dashboard;

Live Data: View live or real time PID data of vehicle's computer module(s);

Freeze Frame: View the car's operating parameters at the moment a DTC is detected;

I/M Readiness Status: Show if your car is ready for inspection and maintenance testing;

O2 Monitor Test: Test the fuel efficiency and whether the O2 sensors work properly;

On-board Monitor Test: Test every monitor in OBD system to see if they works OK;

Component Test: Allows initiating a leak test for the vehicle's EVAP system;

Vehicle Information: Retrieve vehicle information of VIN, CINs, CVNs, and etc.

3. ABS Testing to Have More Problems Solved

In this function, you can retrieve trouble codes in your car's ABS to find the problem components that cause the MIL turning on and figure out what has happened by DTC definitions provided, and then clear those codes to turn off the troublesome warning light on the instrument board after fixes and repairs.

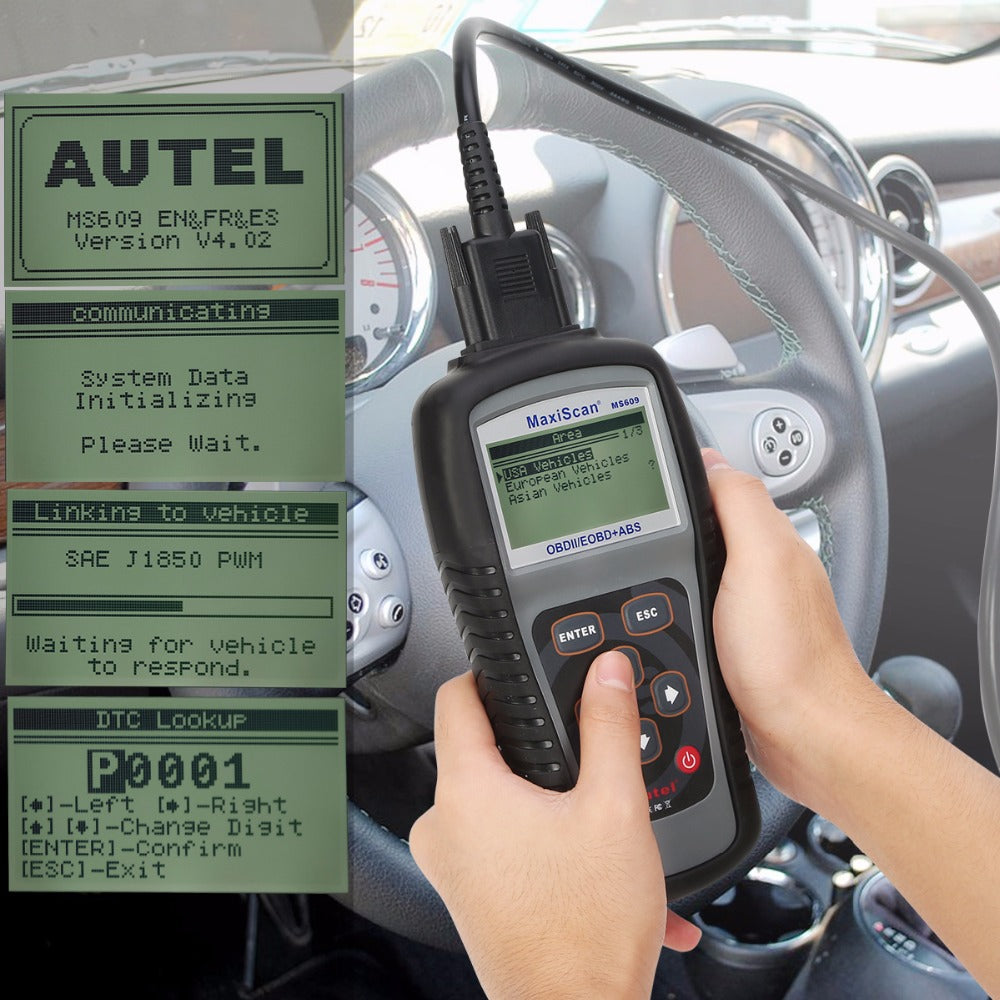

4. Get the DTC Definitions Efficiently

With the built-in DTC Lookup, you can search for definitions of DTCs stored in DTC library for almost every DTC the scanner has detected, including generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes.

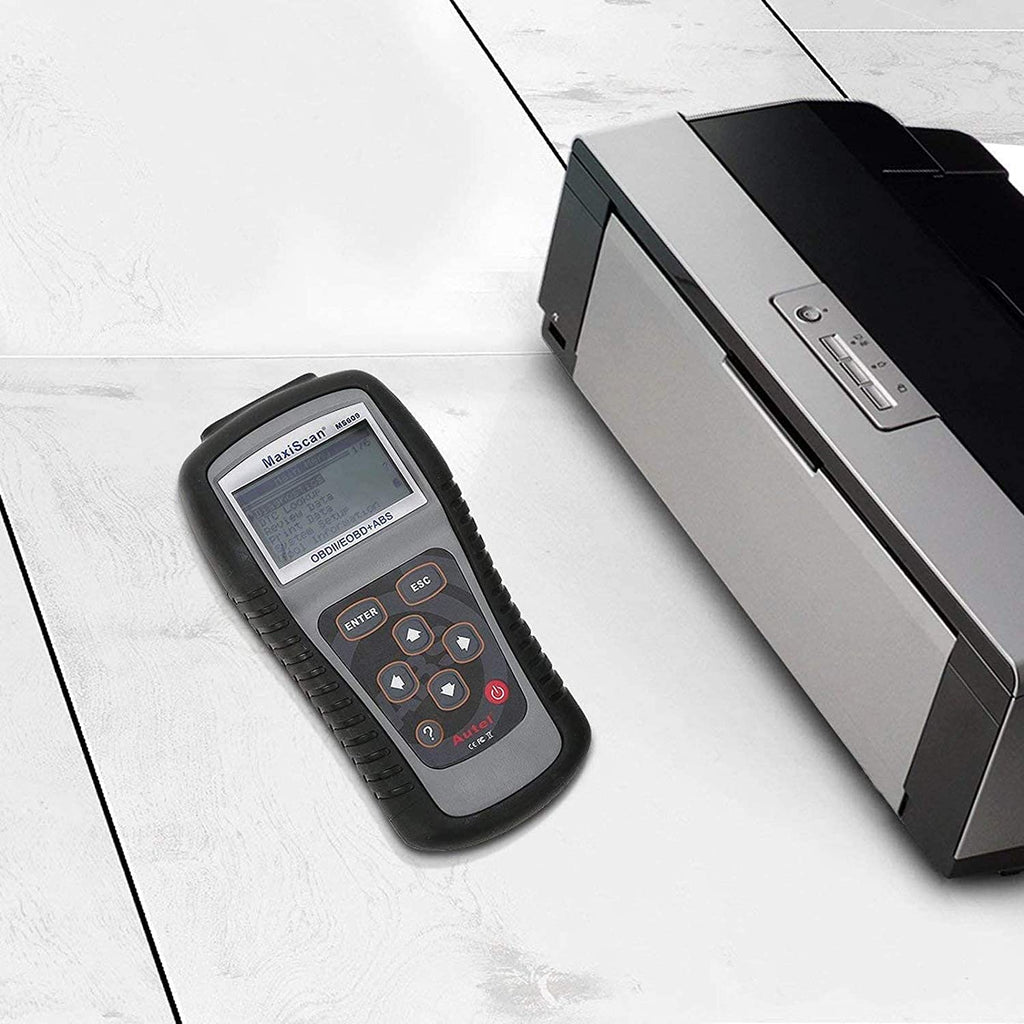

5. Print out Retrieved Data if You Want

This OBD2 code reader allows you to print out the recorded diagnostic data or customized test reports. You can review the data any time and any places, or share it with others.

6. Memory/Battery Backup

MS609 is able to record the data from last test, which helps a lot in data review & analysis. You can still use it even when it's disconnected from vehicle DLC.

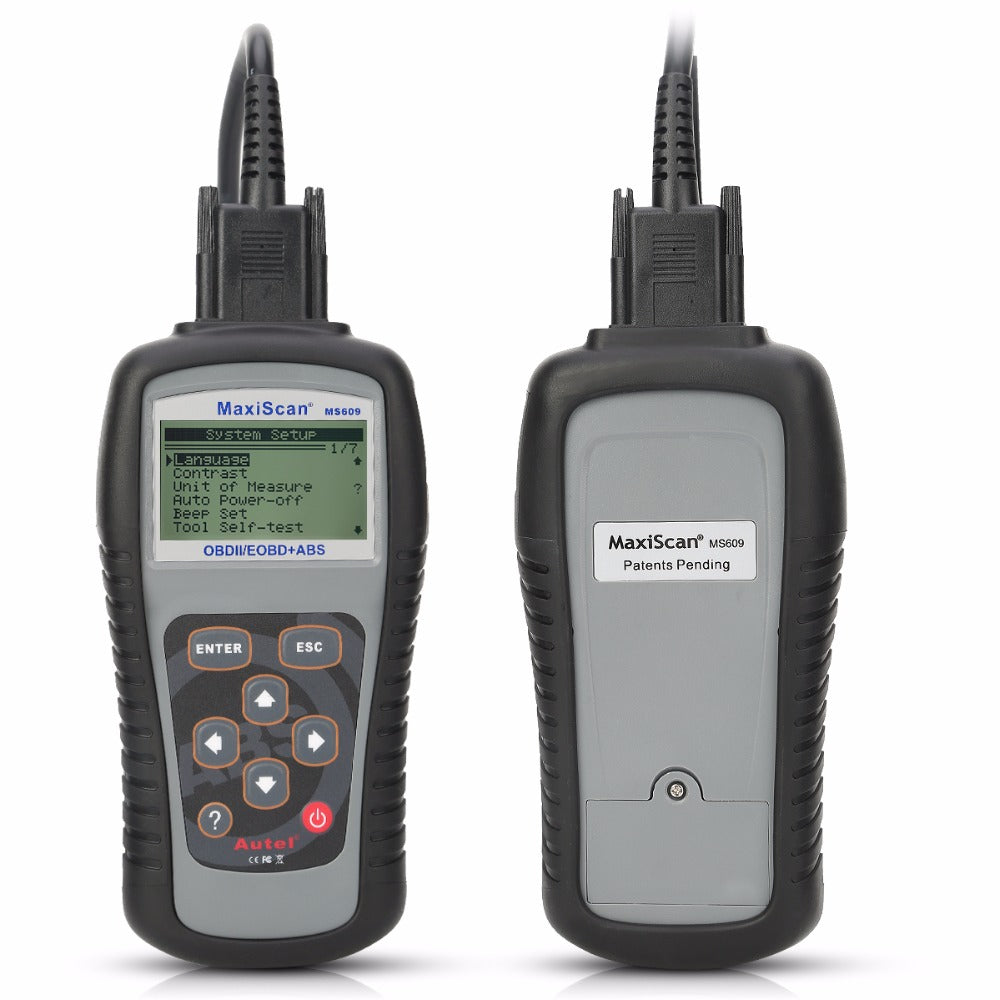

7. Multilingual Support

You are allowed to use it with menu and DTC definitions in English, Spanish and French .

Warranty:

12-month warranty for any possible quality problems.

Warm Tips: If you are unsure if the scanner is suitable for your vehicle, or any questions, feel free to contact us via Amazon email, Q&A, hotline, or you can get information you need on official site.

Autel Maxiscan MS609 Specifications:

Display: Backlit, 2.8-Inch 128*64 pixel display with contrast adjustment

Operating Temperature: 0 to 60°C (32 to 140 F°)

Storage Temperature: -20 to 70°C (-4 to 158 F°)

External Power: 8.0 to 18.0 V power provided via vehicle battery

Internal Power: 9V cell battery

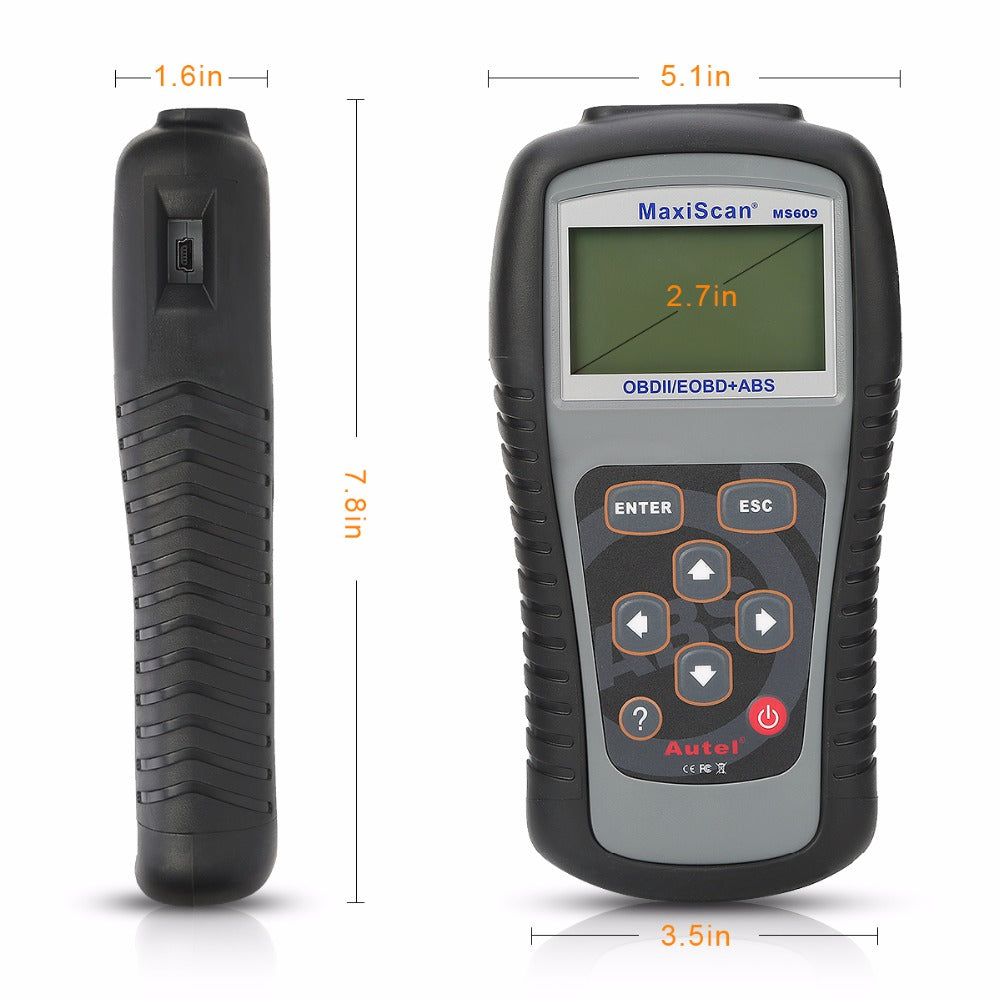

Dimensions: 178 mm*95 mm*35 mm (Length*Width*Height)

NW: 0.38kg (0.84lb)

GW: 0.55 kg (1.21lb)

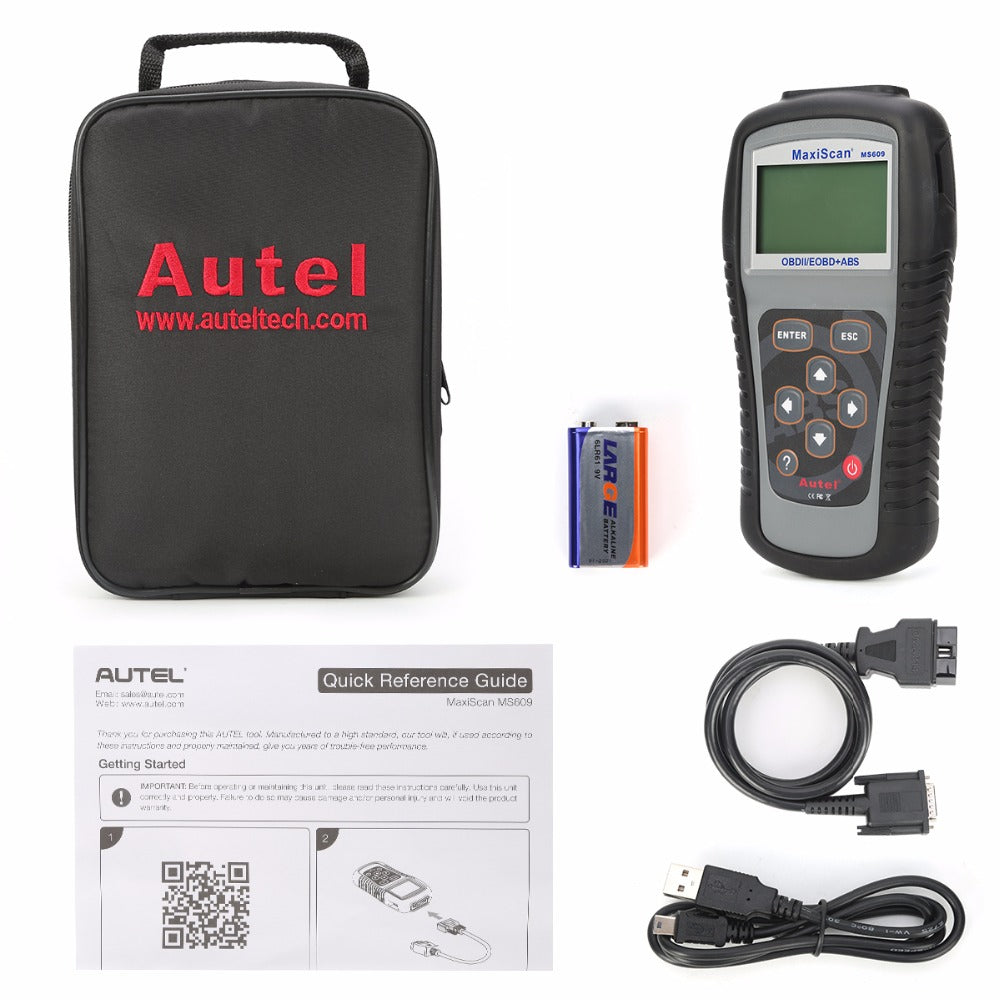

1 * MaxiScan® MS609 Tool

1 * 6-foot OBDII Cable

1 * USB Cable

1 * 9V Cell Battery

1 * CD Software

1 * User's Manual

1 * Nylon Carry Case
