Autel MaxiBAS BT506 Auto Battery& Electrical Systerm Analysis Tool Supports Android& iOS Autel MaxiBAS BT506 Auto Battery& Electrical Systerm Analysis Tool Supports Android& iOS

AM127-A
0.8kg
Autel Scanner
$180.00 $129.00 28%
-
+
Buy it now
Autel MaxiBAS BT506 Auto Battery& Electrical Systerm Analysis Tool Supports Android& iOS
$180.00 $129.00 28%
-
+
Buy it now

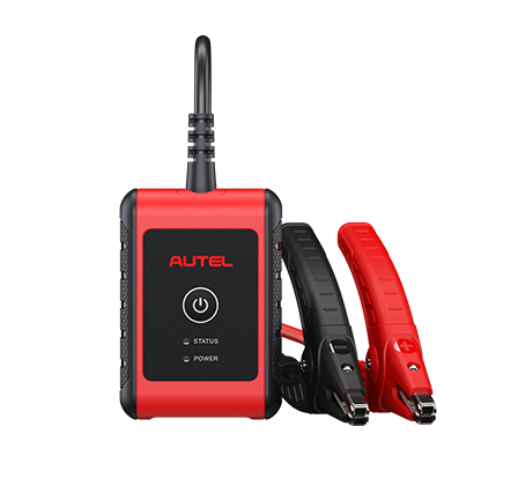

Autel MaxiBAS BT506 Battery and Electrical System Analysis Tool that used as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity.

Not an Average Battery Tester, BT506 is smaller & smarter.

Autel MaxiBAS BT506 is a battery and electrical system analysis tool that enables technicians to view the health status of a vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, and its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold-cranking ability and reserve capacity, which is vital to determine a battery’s true health.

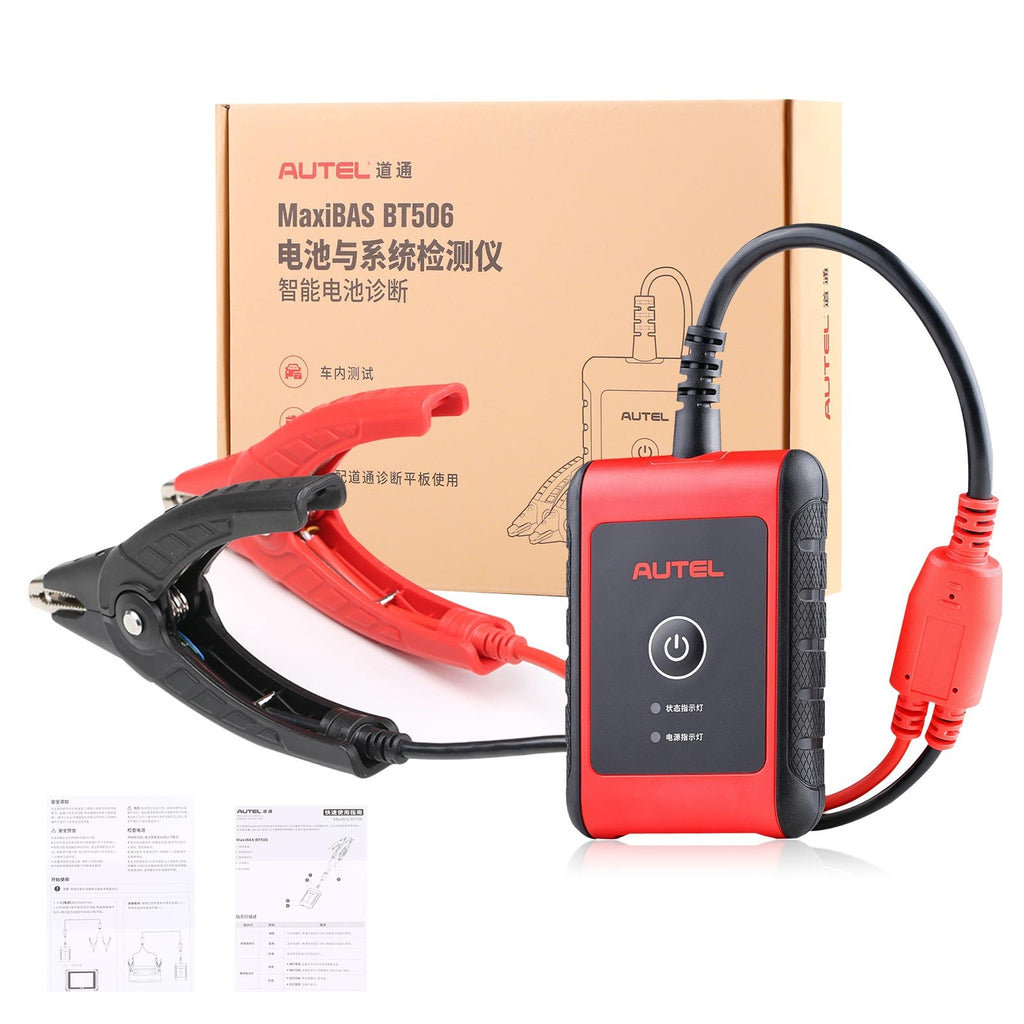

Attention:

Chinese Version

The package box language is Chinese and lable on main unit also Chinese, but the language of device is English, it doesn't effect to use.


Autel MaxiBAS BT506 Highlights:

1.Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries

2.Battery Health Report / Temperature Compensation / Cloud-based Service

3.Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries

4.Test 6- and 12-volt Batteries: 100 - 2000 CCA

5.Test 12- and 24-volt Cranking/Charging Systems

6.Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

7.Creative Adaptive Conductance for 95% accuracy

8.Display test records in list form, offering a summary review tested and vehicles and/or batteries

8.In-vehicle testing of Battery, Starter, Charging system voltage (not amps)



Autel MaxiBAS BT506's main features:

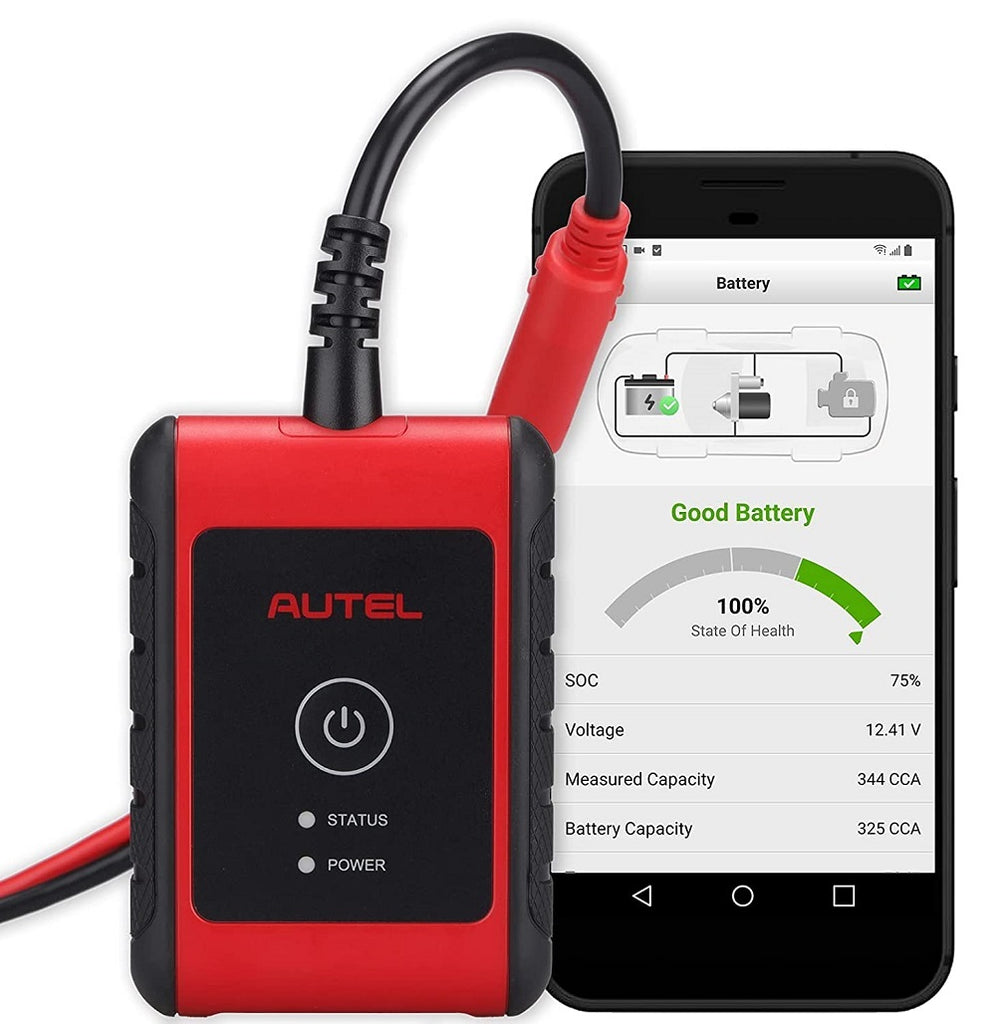

The BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.

Autel MaxiBAS BT506
Autel MaxiBAS BT506

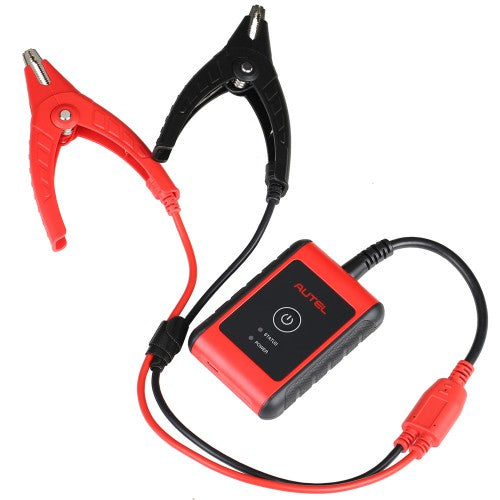

BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color-coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.

Autel MaxiBAS BT506


BT506 vs. BT508 vs. BT608 vs. BT609 Comparison

BT506

Autel MaxiBAS BT506 Specifications:

Connectivity: USB 2.0, Type C and Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320g (0.7 lb.)



Packing LIist:

1pc x MaxiBAS BT506
1pc x User Manual
The BT506 does not have a screen!
To perform testing and display test results the BT506 must be used with an Autel MaxiSys tablet or other smart device (free iOS or Android apps available).



Autel MaxiBAS BT506 Battery and Electrical System Analysis Tool that used as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity.

Not an Average Battery Tester, BT506 is smaller & smarter.

Autel MaxiBAS BT506 is a battery and electrical system analysis tool that enables technicians to view the health status of a vehicle's battery and electrical system. It is not an average battery tester because it measures not only the state of charge but also the battery state of health including its capacity, and its ability to maintain and store the energy. Using adaptive conductance (an advanced battery analysis method), AUTEL MaxiBAS BT506 can produce a more accurate examination of the battery’s cold-cranking ability and reserve capacity, which is vital to determine a battery’s true health.

Attention:

Chinese Version

The package box language is Chinese and lable on main unit also Chinese, but the language of device is English, it doesn't effect to use.


Autel MaxiBAS BT506 Highlights:

1.Supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries

2.Battery Health Report / Temperature Compensation / Cloud-based Service

3.Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries

4.Test 6- and 12-volt Batteries: 100 - 2000 CCA

5.Test 12- and 24-volt Cranking/Charging Systems

6.Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

7.Creative Adaptive Conductance for 95% accuracy

8.Display test records in list form, offering a summary review tested and vehicles and/or batteries

8.In-vehicle testing of Battery, Starter, Charging system voltage (not amps)



Autel MaxiBAS BT506's main features:

The BT506 is a new app-based battery analysis tool developed by Autel. Download the free and easy-to-use mobile app, available for iOS and Android devices, and use it with the BT506 to perform testing and display test results.

Autel MaxiBAS BT506
Autel MaxiBAS BT506

BT506 has positive and negative alligator clamps which are polarity protected, so even if you reverse the clamps and put the negative on the positive terminal, it is OK. In fact, the LED on the tester is color-coded to alert the users of connection and testing status, so the testers will flash red to alert you that you have made the error.

Autel MaxiBAS BT506


BT506 vs. BT508 vs. BT608 vs. BT609 Comparison

BT506

Autel MaxiBAS BT506 Specifications:

Connectivity: USB 2.0, Type C and Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320g (0.7 lb.)



Packing LIist:

1pc x MaxiBAS BT506
1pc x User Manual
The BT506 does not have a screen!
To perform testing and display test results the BT506 must be used with an Autel MaxiSys tablet or other smart device (free iOS or Android apps available).
