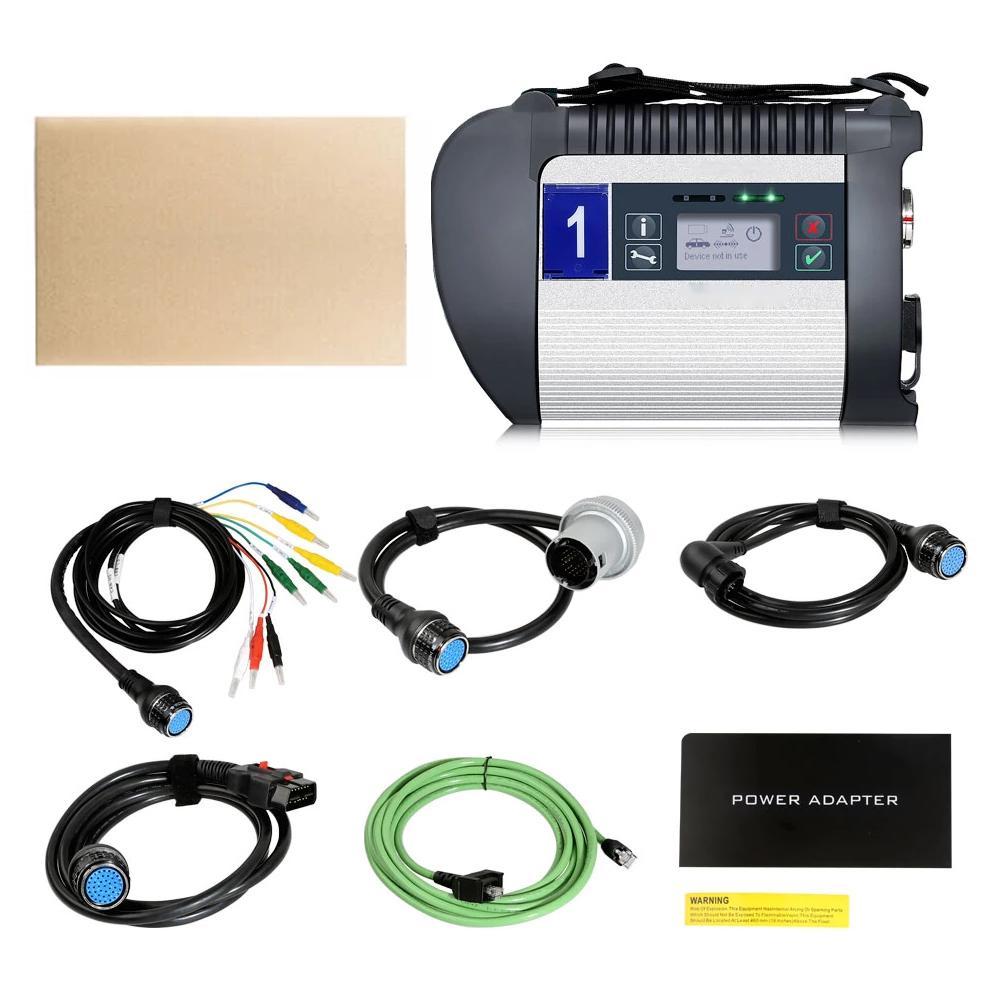

SD Connect C4 DoIP MB Star Diagnostic Tool Support DOIP function for Benz car commander online programming.

VXDAS SD Connect C4 DoIP works with Xentry DAS for the diagnostic systems, with DTS Monaco, and with Vediamo engineering software for offline programming.

VXDAS Recommend:

the M6+ complete kit, supporting the newest 2024.03 software! >>> SUPER MB PRO M6+

Top 12 Reasons to Get MB SD C4 DoIP:

1. The new SDconnect C4 is able to work for DoIP.

2. It's the only SD Connect C4 that supports ethernet communication (DoIP).

3. Have tested no issues on the new Mercedes with DoIP.

4. No need to worry about firmware damage during the update process.

5. The wireless connection is stable. (With built-in Wifi Chip) The SD Connect C4 automatically connects to the WLAN for diagnostic testing.

6. SD Connect C4 not only support K line diagnose and CAN BUS,but also UDS diagnose protocol.

7. SD Connect C4 Connector adopt Military quick swap technology,it can support 10,000 times pull plug,it will be more stable.

8. Remote help is available.

9. Good Quality, It's waterproof, shockproof, and tamper-proof.

10. With Free DTS Monaco & Vediamo.

11. Support both 12V Cars and 24V Trucks.

12. Supported Multi-Languages: English, Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish, and Chinese

Notion!!!

Activation:

1.HDD/SSD software requires activation. When you get the HDD/SSD software, Insert the HDD/SSD into the laptop, and just send the Teamviewer ID and password to us (Support Online or Whatsapp ), and we will activate it for you.

2.Full set ready to use C4 with laptop software already be activated, when buyer receive it can directly use it.

VXDAS offers the best quality SD connect C4 DoIP multiplexer in the market:

1. Full New Chips
VXDAS SD connects C4 comes with full chips and supports all modules. Many SD connects C4 factories use second-hand chips, so their C4 only works for a short time.

2. SD Card Port
Low-quality SD Card port is not real, it is just a hole.

3. LCD Good Protect
Low-quality SD connect C4 LCDs have not protected well their cables, so many customers need to buy a new LCD.

What improved in SD C4 DoIP compared with SD Connect?

New cooler for long operation

Improved WiFi

Easier WiFi setup

No batteries are needed to flash

What is DoIP?

DOIP is ISO 13400 diagnostic protocol.

ISO 13400-1:2011 describes the general use cases and communication scenarios that are covered by an Internet Protocol-based vehicle communication standard. Each use case drives specific communication capabilities of the vehicle communication interface, for instance in order to be interoperable in an existing computer network.

The diagnostic communication over Internet Protocol (DoIP) protocol supports the standardized service primitive interface as specified in ISO 14229-2.

The descriptions in ISO 13400-1:2011 cover different application layer implementations, such as: enhanced vehicle diagnostics (system diagnostics beyond legislated functionality, non-emissions-related system diagnostics); WWH-OBD (World-Wide Harmonized On-Board Diagnostics) as specified in ISO 27145-2 and ISO 27145-3.

The Mercedes Land Rover JLR all use this new Diagnostic Protocol now.

MB SD Connect DoIP features:

1. MB SD Connect C4 DoIP Star Diagnosis supports the wireless diagnosis;

(With Built-in Wifi Chip)

2. MB SD Connect Compact 4 Star Diagnosis not only supports K line diagnosis and CAN BUS, but also UDS diagnose protocol. Because the old MB STAR C4 main board does not have a UDS chip, so old MB STAR C4 can not support it;

3. Connector adopts Military quick swap technology, it can support 10,000 times pull the plug, more stable;

4. All core accessories adopt the original new packing chip, and a 24-hour test guarantees the quality of the products.

VXDAS SD Connect C4 DoIP Support full system diagnostic & programming:

ENGINE/ AUTO-SPEED/ AIR CONDITIONAL SYSTEM/SRS/ ABS/ ASR/MPL/GM/Bz ORIGINAL ANTI-THEFT / DASX SYSTEM / KEYLESS GO SYSTEM / OBD-II SYSTEM

SD C4 DoIP Tested Video

The device is wifi, which is directly detected by turning on the computer (no need to set up)
Account number: XC4 PLUS_3FB0
The password is 123456789

Passenger Cars Supported List:

A(176), A(169), A(168), B(246), B(245), CLC(117),C(205) C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126), E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Van Supported List:

MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

Truck Supported List:

Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

Unimog Supported List:

U20, UGN, UHN

Bus Supported List:

TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/ O403, CONECTO, O404, O405- O408, Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/ OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES

Notice: Some Bus databases do not include, if you work with BUSes, please inquire with our Online support before you purchase. Thanks

This MB SD Connect C4 DOIP hardware only, if you need the MB SD C4 DOIP Xentry software, please click here

If you need MB Star C4 DoIP with a laptop full set ready to use, you can click here

Latest SD C4 Xentry Software includes:

MB Star diagnosis Software List:

- Xentry: V2023.9
- DAS: 2023.9
- EPC: 2018.11
- WIS: 2021.07 （Search for repair information of S223 C206 and other models）
- EPS: 2018.11
- SDmedia offline: 2014.01
- Vediamo: 5.01.01
- Star Finder : 2016, ,Starfinder2022；
- PL72
- DTS Monaco： DTS 9.02+DTS8.14+DTS816 (With 2021 new version database)
- New truck code tool VEDOC
Add offline diagnostic certificate. supporting diagnostic tests for new cars such as S223 C205
When the certificate expires, it can be used normally only by returning to the previous time.

Mercede engineer software Vediamo & DTS Monaco comparison:

Vediamo VS. DTS Monoco
Function	DTS	Vediamo
entire vehicle setting code one-click save	√	×
entire vehicle control unit software number one-click save	√	×
read the entire vehicle fault code	√	×
data exchange	√	×
quick test	√	×
single control unit one-click setting code offline	√	×
Offline programming	√	√
Increase or decrease SA code	√	√
Personalized settings control unit parameters	√	√

Vediamo software introduction:

Vediamo software can only read module single data, set code, authority is too low
DTS Monaco software is developed by Mercede manufacturers, all car data is one click scan and save. Data can be directly changed by the underlying data, and the module used directly copied data replacement. Automatic programming can automatically set code completely out of online operation. not afraid of your new models, the latest models are more awesome

DTS-Monaco software introduction:

1. DTS-Monaco is the official software used by Daimler Benz development engineers

2. DTS Monaco is a universal engineering test terminal for the diagnosis and control function of the vehicle controller, The name Monaco is derived from the modular analyzer used in vehicle traffic

3. DTS Monaco covers all the tasks in the field of engineering, testing, and production test preparation

4. When Mercedes-Benz maintenance tests it is the greatest authority, the perfect support for C4（SDconnect) and (Ecom) Hardware(at present, Das-xentry. Vediamo lower authority)

DTS-Monaco special feature:

1. Quick Test; Entire vehicle ECU quick test, and the test can choose to edit more

2. Variant Coding, Coding with variation add VO- delete VO function

3. ID identification: One click to read the whole car and save all modules programmed numbers

4. Complete Variant Coding； One time to read all the ECU coding vehicle data, can be written to the vehicle again, completely off-line operation

5. Diagnostic Services； Advanced features can see your choice of internal and external data modules, turn on the computer authorization(not driving license), Activate ECU, reset ECU, modify the original chassis number

6. Flash programming； Fully offline programming

7. Diagnostic Trouble Code； Diagnostic module DTC fault code

8. ECU Exchange； Two of the same ECU, by reading data import data exchange

9. Symbolic trace： Record and track the file, after repeated viewing, analysis of fault logic point

DAS Special Functions:

1. DAS Special Function Password Free PKW and SMART
purpose:
when you do special functions, e.g AB or ABR ecu in DAS W204, you are asked to insert password. With this patch, you can enter any character, minimum one and F2 to continue.

2. Audio Video Navigation and telematics - HU Exchange Audio 50 to COMAND password free
purpose: No password required, F3 to continue.

3.Audio Video Navigation and telematics - add Dev menu in DAS COMAND APS menu
purpose: Add developer menu in DAS Comand APS menu

4. TRANSMISSION or GETRIEBE - EGS1 Special Function password free
purpose: No password required, F3 to continue.

5.TRANSMISSION or GETRIEBE - EGS2 Diagnosis Routine password free
purpose: No password required, F3 to continue.

6.DAS Deutsch - TRANSMISSION or GETRIEBE VGS3 SonderAbläufe Sonderfunktionen password free
purpose: No password required, F3 to continue.
This unique menu only if you use DAS in Deutsch (German language). Cmiiw, this is like eeprom dump special function.

7.Adding 204 in DAS STANDALONE

purpose:

Add 204 in DAS Standalone. You can do variant coding in development menu with language (in Deutsch) that are more friendly than vediamo, or adaptation or actuation that are password protected in 204 xentry. I 'facelift' the menu and delete a disturb file compare to the one which floating around. The disturbed file causes 'data missing' error in diagnostic DAS vehicles that are missing definition because of the use of older def file.

8.W164 DAS Password for Tailgate special function

purpose: No Password Required, press F2 to continue
jaxone quote:
"We replaced a Rear Sam Module (bought NEW module from Mercedes) for a ML 320cdi (164) as the old one went in fumes of smoke because of water damage.
Module installed and coded and everything is fine except the height of the tailgate (hydraulic).
When I want to make adaptation of tailgate (in REAR SAM), DAS will come and ask for a password for this function."

9.212 PROTOTYPE FOR XDOS DAS Standalone ver 0.8

purpose:
- Diagnose 212 using XDOS DAS Standalone.
- No cbf conversion error like the one that floating in internet/forum
- Several error fixes for 212 (not fully yet. will be added later)
- Includes old prototype cbf (without seedkey?)
- ability to add/expand Development Data ourselves

10.ADD SMART SAM 450 & 452 Extra Functions for power users purpose:

Add extra functions: Writing VIN & Development Status (inside control unit adaptation).

11.ADD SMART 451 Special Functions for power users purpose:
- Add Development Data & Development Data (inside control unit adaptation) SAM451
- Add Development Data & Extra Coding(inside conrol unit adaptation) ESP451

12.ADD SMART 454 Special Functions for power users purpose:

Add Development Data and Read codingstring in ESP 454

13.Suppress ALL TAN codes for Smart equipment upto 2016-09 without Qutomotive Advertisement purpose:

Suppress ALL TAN codes for Smart equipment upto 2016-09 and without Qutomotive Advertisement

14. ADD SMART 451 & 454 OFFLINE KEY TEACH-IN program key transponder key DAS 2016-12 UP purpose:
Since Xentry 12/16 there is a new system to teach in Smart keys (BR 451 and BR 454). You don't have the TAN input to teach in again. Smart TAN Calculator and the old csdsmart solution don't work anymore. biggrinEAD:
Now you have to log in to daimler server. While Smart 450, 452 don't go online and also do not need TAN codes.
This fix is able to teach in program key transponder key Offline & don't need TAN codes too for Smart SAM451 & ETACS454.

15. ADD SMART 451 & 454 OFFLINE SAM Assignment DAS 2016-12 UP purpose:

SMART 451 454 OFFLINE SAM Assignment 2016-12UP

16.Special Function Password Free Transporter purpose:

Special Function Password Free for Transporter

17.DAS PKW/SMART/TRANSP Offline Programming & Online/Offline Entry of Retrofits & Modifications purpose:

to update ecu firmware & Offline/Online Entry of Retrofist & Modifications

Note:
Change to original mode when update addons. Daimler always update to increase security in Online Programming!!!
If not, the offline patch will get error when using.

18. Nox Torque Limit Setting (FR/CPC0) with correct New FDOK XT purpose:
- Nox Torque limit Setting: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK internally, and change the encrypted random number to correct one in memory
- Added value: UNLOCK Legal speed limit direct edit without going to special function

19.Erase SCR/ADBLUE fault code (in MR) with correct New FDOK XN
purpose:
- Erasing of emission-relevant (SCR/ADBLUE) fault code: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK XN internally, and change the encrypted random number to correct one in memory

20.NFZ SonderFunktion Password Free
purpose: password free for NFZ when doing SonderFunktion (Flash/Programming)

21.Added Offline EOL & VMAX ALL LKW (OBD1 & OBD2) for DAS 2014-12UP
purpose:
Patch original files from XDOS 2018-07:
- Added Offline EOL & VMAX ALL LKW (OBD1 & OBD2) for DAS 2014-12UP
- Added Deleted VIN function
- Avoid MR Manipulation because of change VIN

22.MR1_96 Conversion to emissions standard 'Euro 3' download + Flash Data Complete Purpose:

Offline downgrade MR FLASH memory from Euro 4/5 to Euro 3 to disable AdBlue

23.ADM2 & ADM3 Unlock speed
purpose: Speed limit Read/Write on ADM2 and ADM3 on Kamaz, MAZ, Industrial motors, Crans, Combines

24.CPC4 Unlock speed purpose:

New IMO replace its old ADM2/3 with new CPC4 - TC1796. This will unlock speed limit Read/Write on Kamaz, MAZ, Freightliner,...

Basic programming set code function:

1. unit for off-line programming

2. a key to off-set code

3.W166, cancel the programmed number of calculation method of urea, one perfect canceled all 166 urea system.

The new c s-series to the factory installed conversion:

4.222, 205 installing fragrance systems

5.2015, paragraph 212, changing traffic light permanently lit

6.212, 204, adding electric ear

7.222 205 HU5 traffic solution for DVD video

8.W164 closed recycling system

9.W205, retro atmosphere lamp

10.205, 222 adding electric ear electric trunk, the trunk kicking function

11.166, how to modify the gateway set up codes

12.166 meters finished degrees Fahrenheit to degrees Celsius

13.US standard maintenance mileage be set to the number of miles

14.164 disabled diesel particle filter regeneration system

15.166 canceled urea

16.205 added electric rear vision mirror

17.HU45 regional Chinese resolve lock

18.W204 W166 foldable rear-view mirror

19. change the 166 on board, display in Celsius

20.W212 disable ECO configurations

21. activate the HOLD function ABR2XT

22. open W22 looked up appears

23. the AMG sports package enabled W212

24. the air bag computer reset factory State W166

25. to increase the brightness of the color instrument cluster s W222

26.22.97g to install the steering wheel shift paddles

27.W221 AMG W216 dashboard style

28. airbag ECU unlock W204 212

29. disabled child seat recognition sensors W221

30. opening rear fog lamps as spare brake lights with W222

31. increasing engine power MED177

MB SD C4 software includes:

Quick Test: the vehicle ECU is for rapid testing, test at the same time, you can choose to edit more functionality.

Variant Coding: add VO-delete VO variation functional.

ID identification: one-click to read the whole car and saved all module programming.

Complete Variant Coding: read all ECU coding vehicle data in one pass, and write again to the vehicle, completely offline.

Diagnostic Services and advanced features can see internal and external data you choose modules, open computer authorization (not authorized), activate the ECU reset ECU, modifying the original chassis number.

Flash programming: completely off-line programming,

Diagnostic Trouble Code diagnosis module DTC trouble code.

ECU Exchange: two of the same ECU, are exchanged by reading the data to import the data.

Symbolic trace: recording a trace file

MB SD C4 PLUS Support DOIP Software Display:

VXDAS SD C4 Wire Connection Picture:

VXDAS SD C4 Wireless Connection Picture:

VXDAS SD C4 wireless connection

How to set up IP address for MB SD Connect C4 DoIP?

Step1: Open local connection

Step2: Press Properties

Step3:Choose Internet Protocol Version 4 (TCP/IPv4), press OK to continue

Step4: Enter IP address

IP address: 172.29.127.24

Subnet mask: 255.255.0.0

Step5: Click on Advanced

Step6: Click on Add to configure DoIP IP address

Step7:Set DoIP IP address to 169.254.0.** (i.e 169.254.0.45)

Step8:Click on OK to finish configuration.

What is the Difference Between All MB Star Xentry Diagnostic Tools:

Different MB Diagnostic Devices Comparison

MB SD C4 PLUS Support DOIP Software Display:

Package includes:

Option 1:( C4 DoIP )

1pc x DOIP SD C4 PLUS Multiplexer

1pc x OBDII 16PIN Cable

1pc x 38PIN Cable

1pc x 14PIN Cable

1pc x 8PIN Cable

1pc x Lan Cable

Option 2: (C4 DoIP with Software)

1pc x Xentry Software SSD

1pc x DOIP SD C4 PLUS Multiplexer

1pc x OBDII 16PIN Cable

1pc x 38PIN Cable

1pc x 14PIN Cable

1pc x 8PIN Cable

1pc x Lan Cable

Option 3: (C4 DoIP with Laptop with software)

1set x DOIP MB SD C4 PLUS Connect Compact C4 Star Diagnosis

1pc x Xentry Software SSD

1 set x Lenovo T430 Laptop (Used laptop, not brand new)

After sales file for MB SD Connect C4 DoIP:

https://cdn.shopifycdn.net/s/files/1/0072/5424/5449/files/C4_product_stickers_are_hidden_in_the_box.docx?v=1685958767

[des]

VXDAS SD Connect C4 DoIP Features:
[Strict Selected Quality Mux] Full chips relay on PCB board
[12h Aging Test] all SD Connect tests on ECU before shipping(Support Online or Whatsapp ),
[without battery holder clip] After the upgrade, it can work without batteries.
[Free Gift] Buy SD Connect from VXDAS, get DTS Monaco & Vediamo training E-books as Free Gift[/des]

Login
