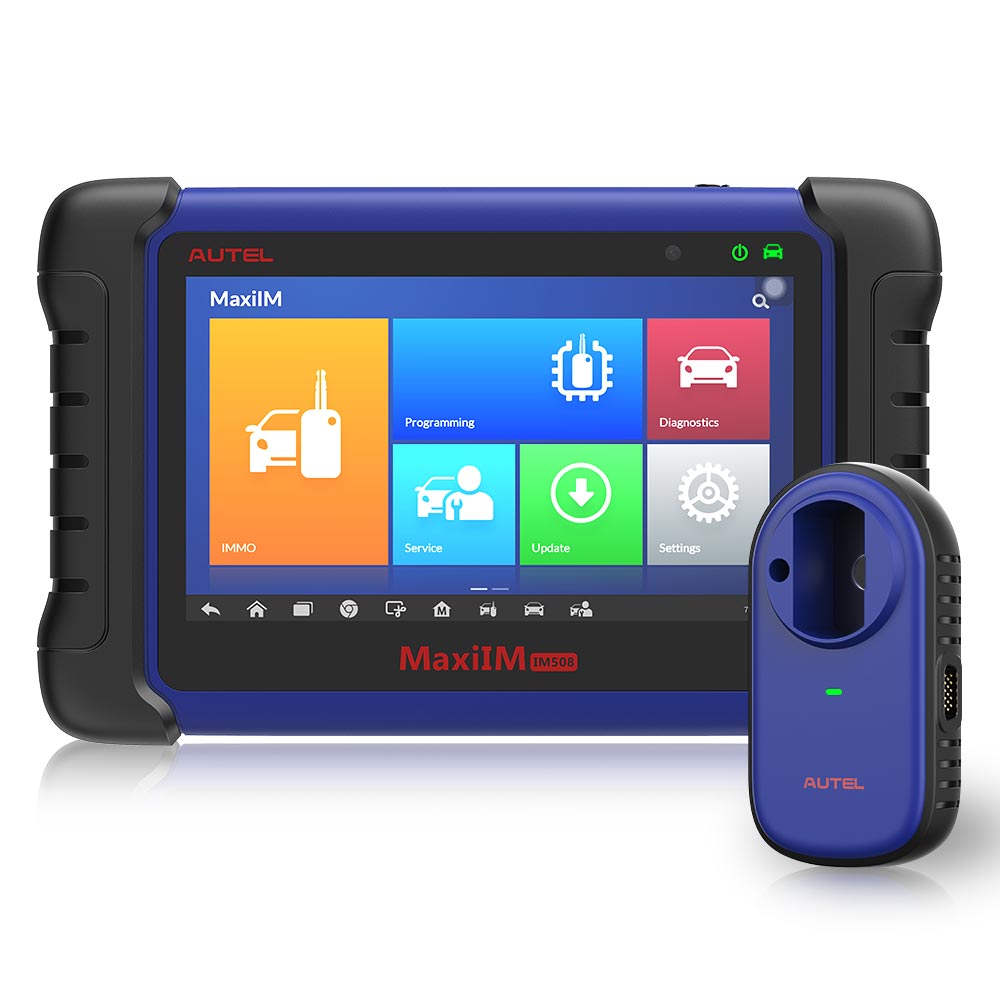

Autel MaxiIM IM508 ADVANCED Immobilizer and Key Programming Tool with Diagnosis & Special Functions Autel MaxiIM IM508 ADVANCED Immobilizer and Key Programming Tool with Diagnosis & Special Functions

0.0kg
Auto Key Programmer
$1,999.00 $1,199.00 40%
-
+

Autel MaxiIM IM508 is powerful immobilizer and key programming tool with advanced diagnostics and service functions. Original Autel MaxiIM IM508 ADVANCED IMMO & KEY PROGRAMMING can Perfectly Replac Auro OtoSys IM100. Autel MaxiIM IM508 has smart and expert model available.


Autel MaxiIM IM508 ADVANCED Immobilizer and Key Programming Tool with Diagnosis & Special Functions


Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device.IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Smart Model: for Guided and Automated Key Learning
Expert Model: or Advanced Key Learning

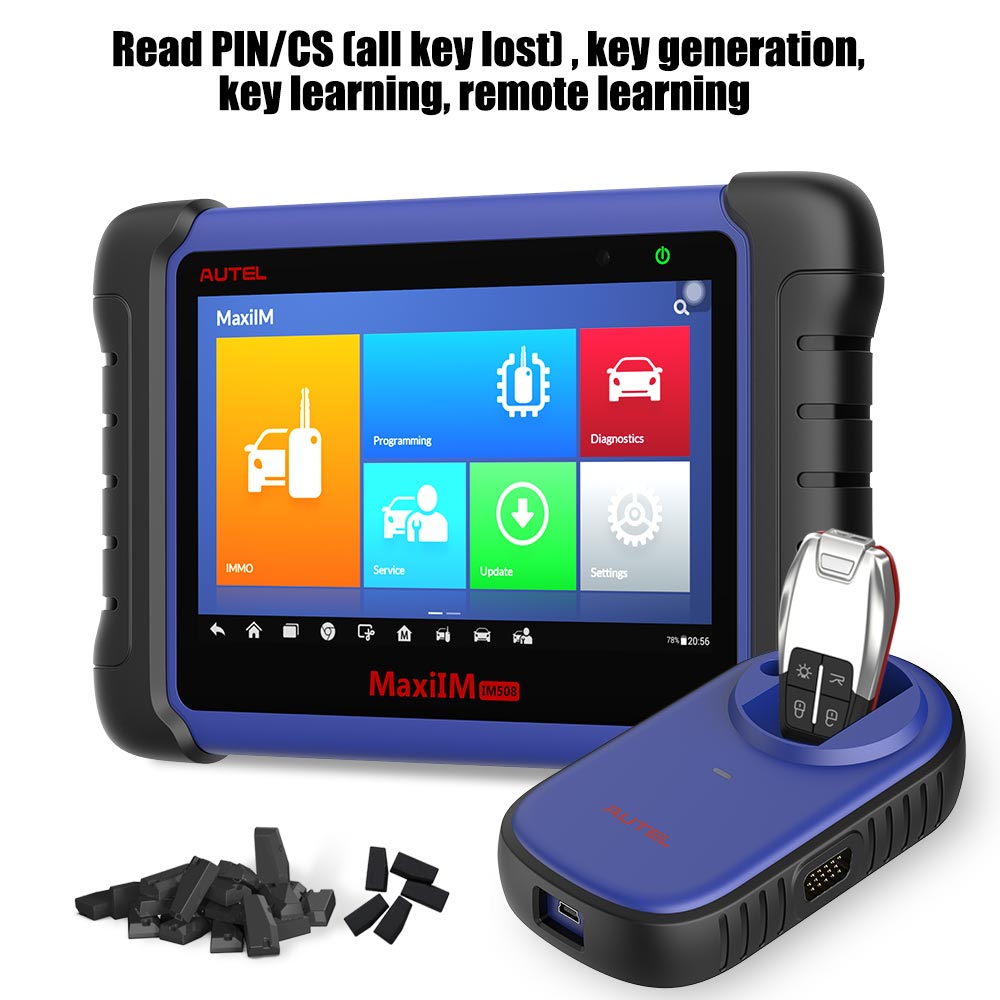

Autel MaxiIM IM508 Function List:



Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All
Key Lost, and More

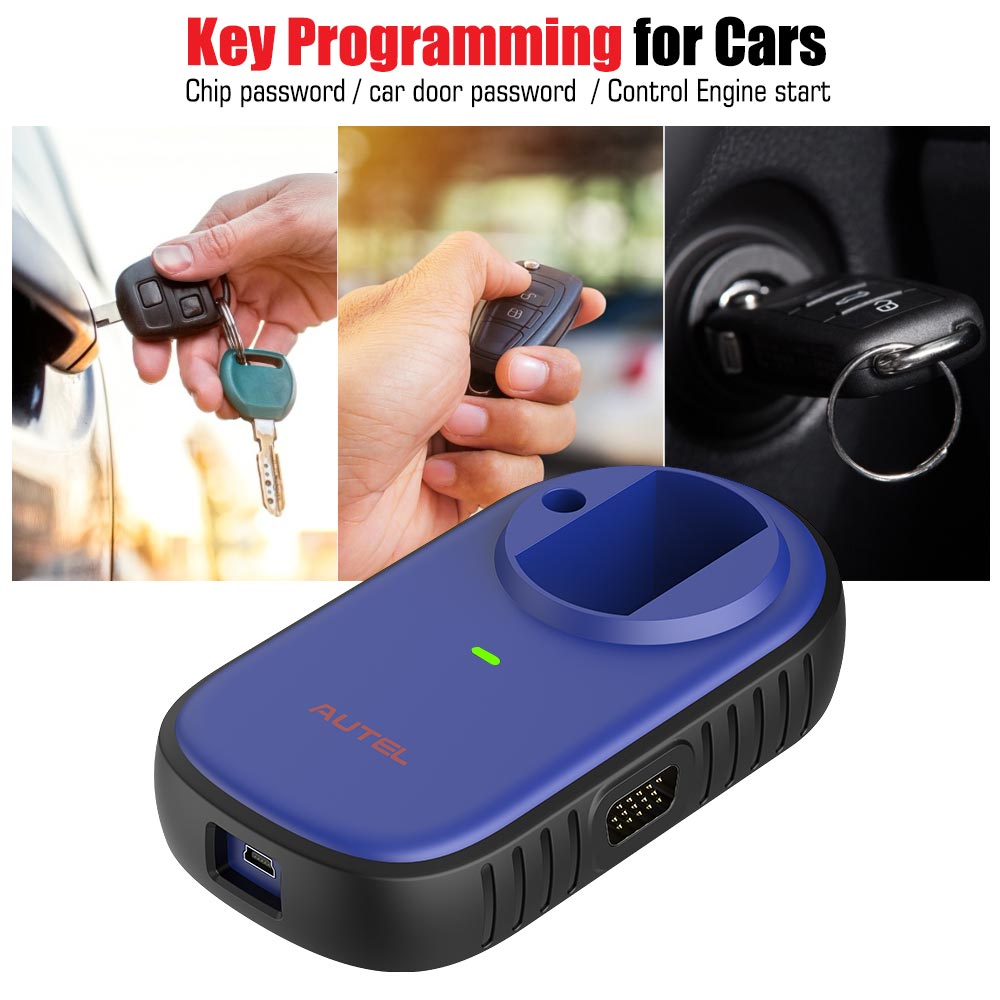

XP200 KEY & CHIP PROGRAMMER

Key Read / Write
EEPROM / MCU Read / Write

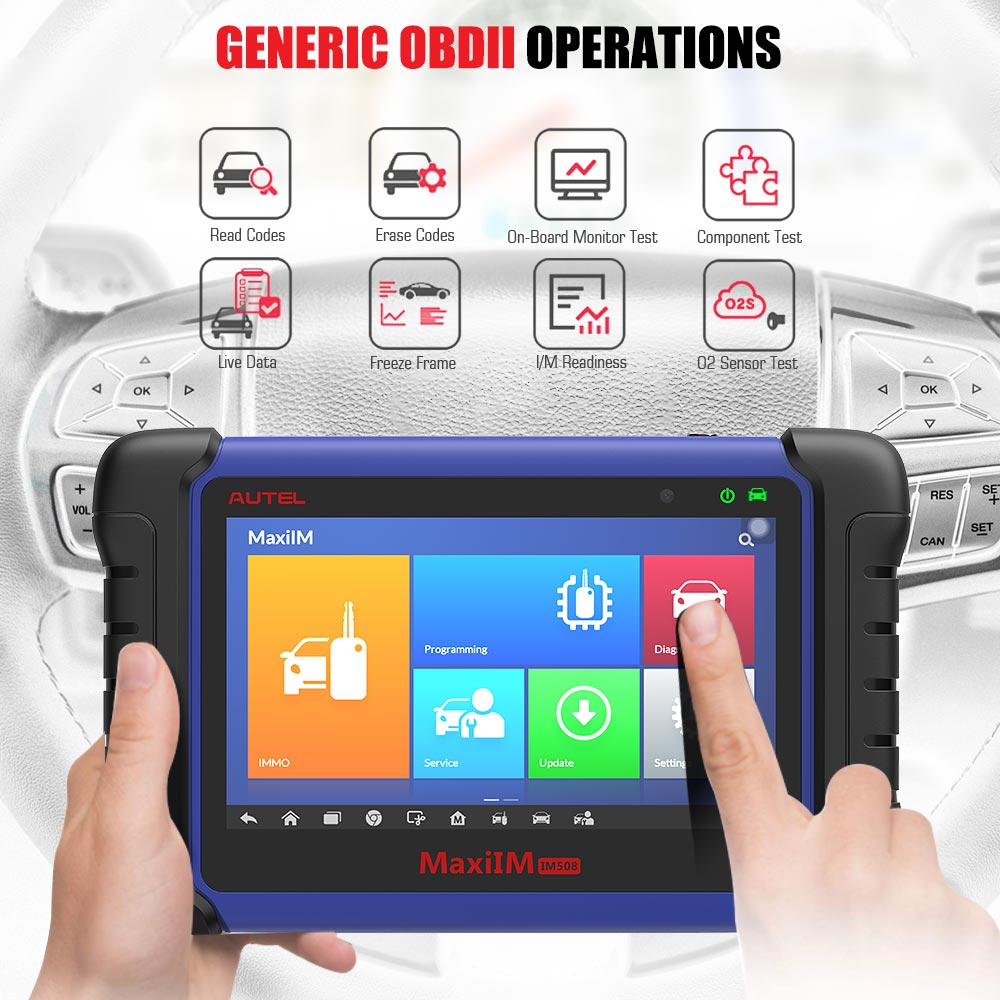

OE-LEVEL DIAGNOSTICS FOR 80+ VEHICLE MAKES

All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications

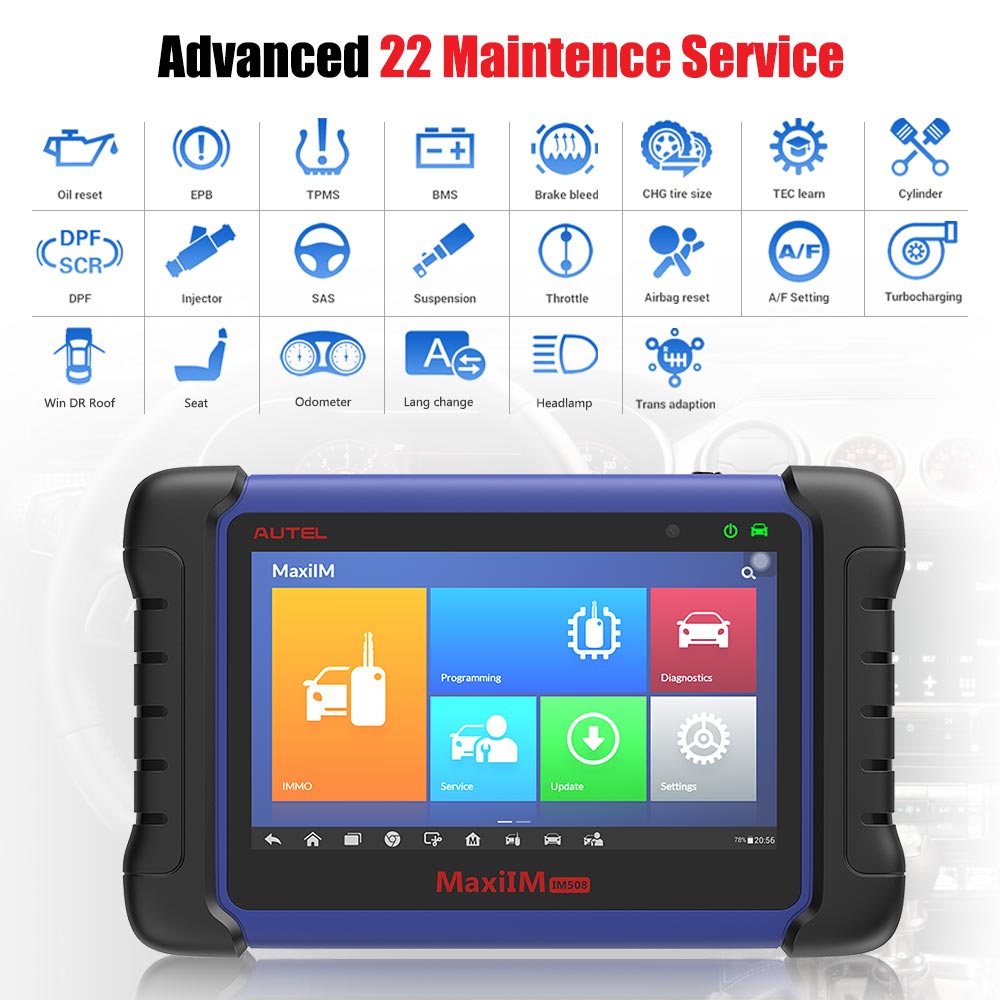

ADVANCED SERVICE FUNCTIONS

EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Relearn
7-inch LCD Touchscreen - 32GB Memory - Android Kit Kat -  Wi-Fi -  Multilingual
Codes & Menus - 5000mAh Li-polymer Battery

Autel IM508 EEPROM Read/Write Supported Types

ATMEL
AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024,AT24C128_1.8
AT24C256_1.8,AT24C512_1.8,AT24C01A,AT25010,AT25020,AT25040,AT25080,AT25160,AT25320,AT25640,AT25128,AT25256
AT25512,AT25010_1.8,AT25020_1.8,AT25080_1.8,AT25320_1.8,AT25640_1.8,AT25128_1.8,AT25256_1.8,AT59C11,AT59C22
AT93C46A,AT59C13,AT93C46,AT93C46R,AT93C56,AT93C57,AT93C66,AT93C76,AT93C86

CATALYST
CAT25C01,CAT25C02,CAT25C04,CAT25C08,CAT25C16,CAT25C32,CAT25C64,CAT25C128,CAT25C256

FAIRCHILD
NM24C16U,NM24C16UT,NM24C17U,NM24C17UT,FM93CS46T

MICROCHIP
85C72,85C82,85C92,25xx080,25xx160,25xx320,25xx640,25xx040_TSSOP,25xx320_TSSOP,25xx640_TSSOP,93C06,25xx040
93C46X,93C46A,93C46,93C46AX,93C46BX_93C46CX,93C56A,93C56,93C66A,93C66,93C76A,93C76,93C86A,93C86

NXP
PCF8582C,PCF8594C,PCF8598C

NATIONAL
NM93C13,NM93C14,NM93CS06,NM93C14TM8,NM93CS46,NM93CS56,NM93CS66

OKI
MSM16911

SONY
CXK1011,CXK1012,CXK1013

Seiko
S_24S45,S_24H30,S_24H30_SOP8,S_24H45,S_24H45_SOP8,S_24S30

ST
M24C01,M24C02,M24C04,M24C08,M24C16,M24C32,M24C64,ST24x01/ST25x01,ST24x02/ST25x02,ST24x04/ST25x04
ST24x08/ST25x08,ST24x16,ST25x16,AT25040_1.8,AT25160_1.8,M95010,M95020,M95160,M95040,M95080,M35080,M95320
M95640,M95256,M95128,M95512,M93C46,M93C56,M93C66,M93C76,M93C86,M93S46,M93S56,M93S66

TOSHIBA
TC89101,TC89102,TC89121,TC89122

TMC
TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86

XICOR
X5043,X5045,X25043,X25045,X24C44

9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128


How to Update Autel MaxiIM IM508?


1.Make sure the Display Table is connected to power source with stable access to the Internet.
2.Tap the Update application button from the MaxiIM Job Menu;or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.
3.Check all available updates:
►If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button;if you want to update all items of diagnostic software,select Diagnose Tab and then tap the Update All button.
►If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).
4.Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.
5.When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.


Autel MaxiIM IM508 vs. IM608 Comparison Chart:


MaxiIM IM508 VS. IM608

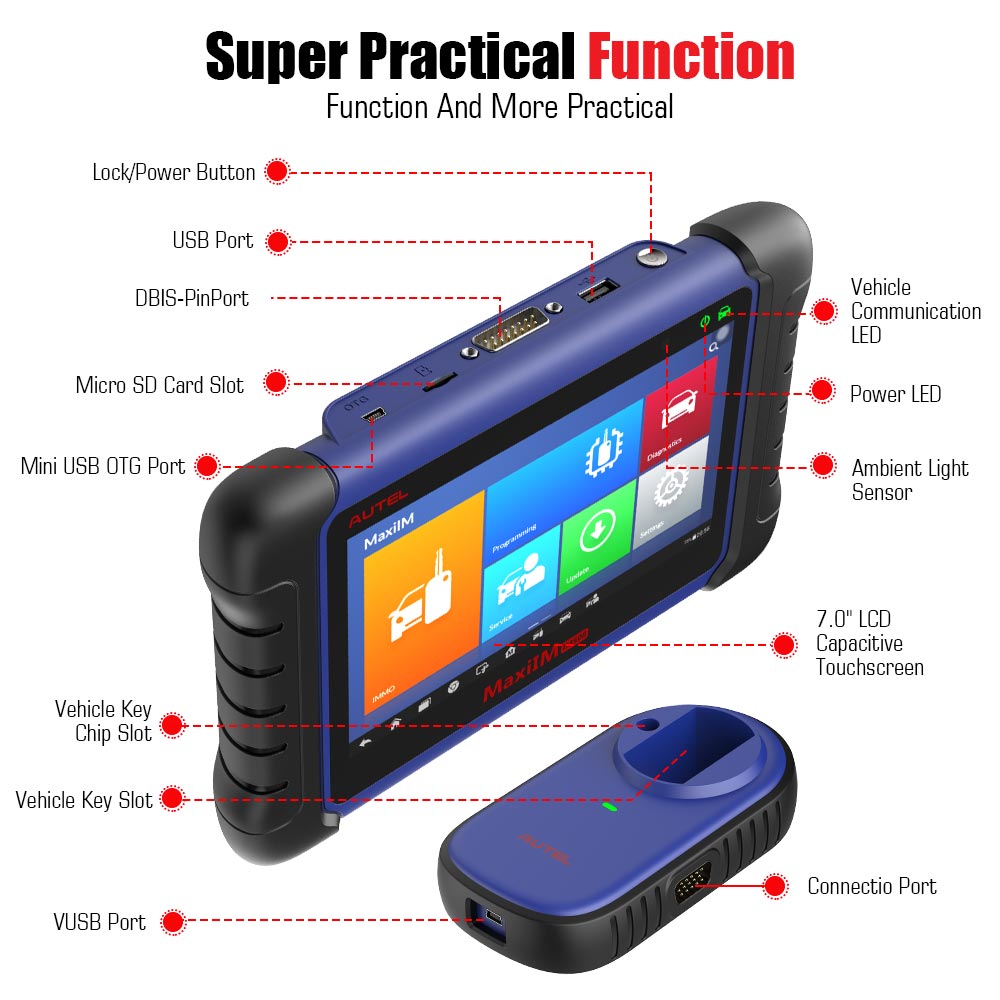

Autel MaxiIM IM508 Specifications:


Operating System:                   AndroidTM 4.4.4
Processor:                                Cortex-A9 processor (1.6 GHz)
Memory:                                   32GB
Display:                                     7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity:                            Mini USB 2.0
                                                  USB 2.0
                                                  Wi-Fi
                                                  Micro SD card (supports up to 32GB)
Sensors:                                    Ambient light sensor for brightness auto changing
Audio Input / Output:             Input: N/A
                                                  Output: buzzer
Power and Battery:                 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life:                 Around 4.5 hours of continuous use
Battery Charging Input:         5 V/1.5 A
Power Consumption:              500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.                     0 to 50°C (32 to 122°F)
Storage Temp.                         -20 to 60°C (-4 to 140°F)
Operating Humidity:              5% - 95% non-condensing
Net Weight:                             788 g (2.42 lb.)
Supported Automotive Protocols:
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

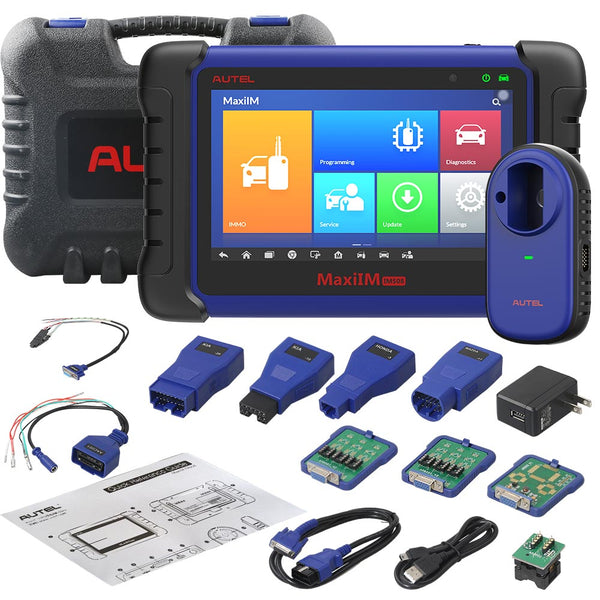

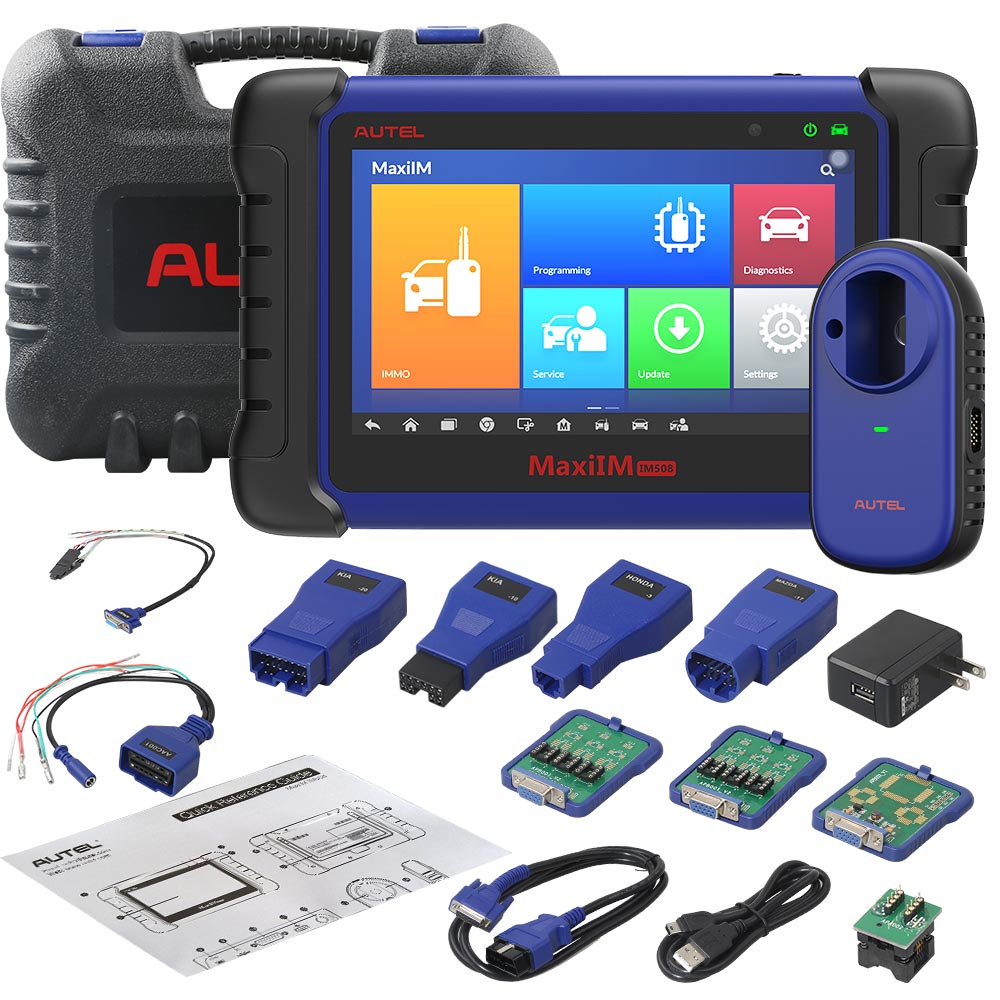

Autel MaxiIM IM508 Package List:


MaxiIM IM508 Tablet
XP200 Key Programmer
AAC001–MED17 Cable
Honda-3 Adaptor
KIA-20 Adaptor
KIA-10 Adaptor
Mazda-17 Adaptor
USB External Power Adapter
Carrying Case
Main cable
Quick guide
Mini USB Cable
Carry Case
