Autel TPMS Scan Tool Autel MaxiTPMS TBE200E Tire Brake Examiner

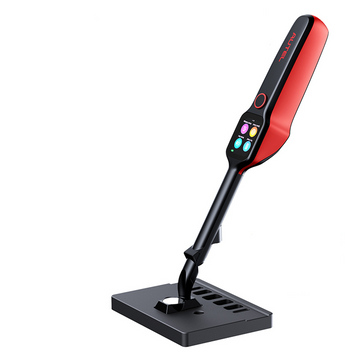

The MaxiTPMS TBE200 is a laser-enabled tire tread depth and brake disc wear detector that provides users with fast and accurate wear measurements (measurement accuracy to 0.1 mm). Brake disc wears can be measured and photographed without removing the tire. It uses a 1.65-inch AMOLED Super Retina touch screen to display measurement data curves in real time. The TBE200 provides uneven wear analysis and detailed replacement and maintenance recommendations, including tire/brake disc replacement, tire rotation/alignment service for quick tire service. The TBE200 dual camera enables users to record tire wear and damage and scan the tire identification number (TIN). The TBE200 can also be used in conjunction with the Autel ITS600 for comprehensive inspection and customs clearance.
Description:
Laser Measurement• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc
Real-Time Tire Health Analisis
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
Comprehensive Test Report
• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
MaxiTPMS TBE200 Specifications:
Recommended Use:Indoor
Processor:4x ARM Cortex-A35 (1.5 GHz)
Memory:1GB RAM LPDDR3 & 4GB ROM
Display:1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity:• Wi-Fi • USB 2.0, Type C
Camera:CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio output Output: Beep
Power and Battery:• 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply
Tested Battery Life:Around 8 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.:-10 to 45°C(14 to 113°F)
Storage Temp.:-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):283.0 mm (11.14'') x 39.0 mm (1.54'') x 33.5 mm (1.32'')
Net Weight:188 g (0.41 lb.)
MaxiTPMS TBE200 Packing List:
Main Unit
Calibration Table
Power Adapter
Type C USB Cable
Quick Reference Guide
Carrying Case
List
[des]
【2022 NEWEST MONEY MAKER FOR TIRE SHOPS】Autel Tire Tester MaxiTPMS TBE200 (E) is an advanced 2-in-1 laser examiner that integrates tire tread depth & brake disc wear check in one tool without the need to remove the tire. Unlike other traditional tire tread testers which can only be used with tire removed, Autel Brake Disc Examiner TBE200 (E) detects tire tread via accurate laser technology with a magnetic head to present real time data on-screen and tire wear and brake disc results.
【SINGLE CHECK & ALL TREAD CHECK】Autel Tire Tread Scan Tool TBE200 (E) offers 2 inspection modes under the Tire Tread application, you can choose what suits you best and presume work in greatest efficiency. Single Check measures the wear of each tire on the vehicle by examining the tread depth in the center area of the tire only and provides one measurement for each tire. All Tread Check examines the tire wear in three separate areas (outer, center, and inner) for comprehensive analysis.
【VEHICLE BRAKE DISC CHECK, WEAR ANALYSIS】This laser-enabled examine tool MaxiTPMS TBE200 (E) diagnoses brake disc wear quickly and accurately without removing tires. The Brake Disc function not only provides brake disc wear measurements, but also offers wear analysis to ensure driving safety. After measurement, swipe left to view details of the chosen disc for graphic measurements and Wear Analysis for service recommendations.
【PAIR WITH AUTEL ITS600 (E) FOR COMPREHENSIVE REPORT】Autel TPMS Tool TBE200 (E) is far more than the functions mentioned. When working with Autel TPMS Relearn Scan Tool ITS600 (E), you can get comprehensive Test Report for TPMS including Measurement Data Curve, Tire Condition & Specification. Together with ITS600 powerful TPMS programming/ relearn/ activate ability, you can basically know everything about the tire and tire monitor system.
【2022 NEWEST UPGRADE MODEL OF TBE100】Autel brake disc wear tester MaxiTPMS TBE200 (E) is upgraded from MaxiTPMS TBE100 to add more detailed functions when using with ITS600 (E), such as scan DOT, tire expiration notice, tire recall lookup, and taking photos of tire wear and damage. In hardware, screen is update to super retina touchscreen and doulble cameras, and battery capacity improved to 3000mAh etc for more fluent and longer operation.
