Vehicle Integrated Diagnostic Platform Full Version Supports Diagnosing And Key Programming For Honda Acura Vehicle Integrated Diagnostic Platform Full Version Supports Diagnosing And Key Programming For Honda Acura

EP93
0.7kg
Car Diagnostic Tool
$118.00 $96.00 19%
-
+

Vehicle Integrated Diagnostic Platform for HONDA Full Version offers car diagnosing and key programming at same time. This Honda diagnostic scanner supports Honda & Acura car from 1992 to 2011 year.

Vehicle Integrated Diagnostic Platform Full Version

1.supports diagnosing and key programming at the same time.
2.It diagnoses for Honda & Acura from 1992 to 2010 and no need to input password, the machine automatically calculate the password and enter the IMMO system.
3. PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later)



Honda Functions:

1.DTC reading and clearing (allows the user to read both permanent and temporary DTCs. Once the fault causing the DTC has been found and repaired the DTC tool can then be used to clear DTCs.)
2.Snapshot function (capture data relative to a trigger event)
3.Vehicle data display (value, line graph, or bar graph formats)
4.DLC locator diagrams
5.Data list display (real-time display of ECU parameters)
6.System Functional Tests (allows for more detailed testing of specific parts of the vehicle systems, "where the ECU" support these tests (e.g. Window movement, Lighting, Vehicle Gauges and engine components))
7.Onboard tutorial
8.Immobiliser
9. It Can Do Smart Keys. No need to input password. The machine automatically calculates the password and enters the IMMO system.



Specification:

1. Hardware and Software Requirements:

1)Use for the following cars: All H-onda model(H-onda & Acura from 1992 to 2008)
2) Hard disk drive with at least 400MB of free space
3) CD-ROM drive (if a high-speed Internet connection is not available)
4) RS232 port required to connect PC to IDT
5) Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)

2. Honda Electronic Control System:

1) Engine System
2) Theft Guard System
3) No key enter system, support serial and USB.
4) Antilock system
5) Safety airbag system
6) Electronic air throttle system
7) Electronic booster system
8) Body electric system
9) Four-wheel turning system
10) ATTS
11) IMA
12) VTM-4
13) TPMS

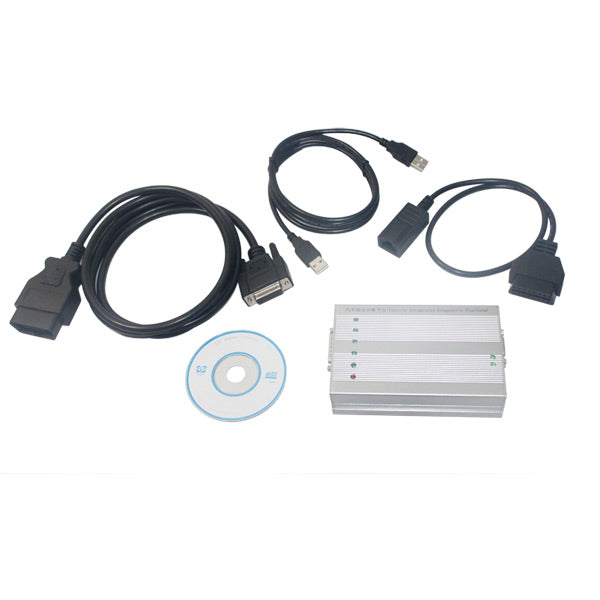

Package List:

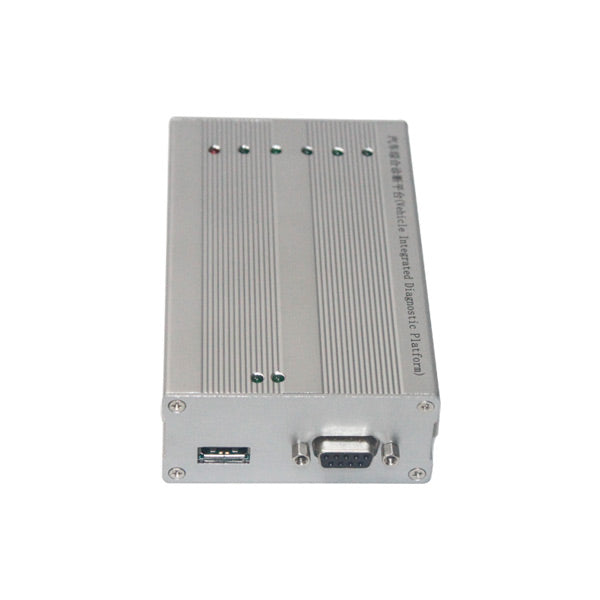

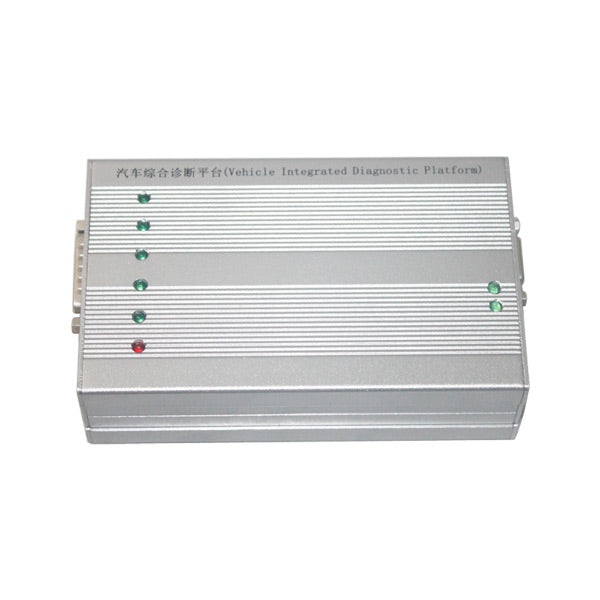

1x Vehicle Integrated Diagnostic Platform for H-ONDA Full Version

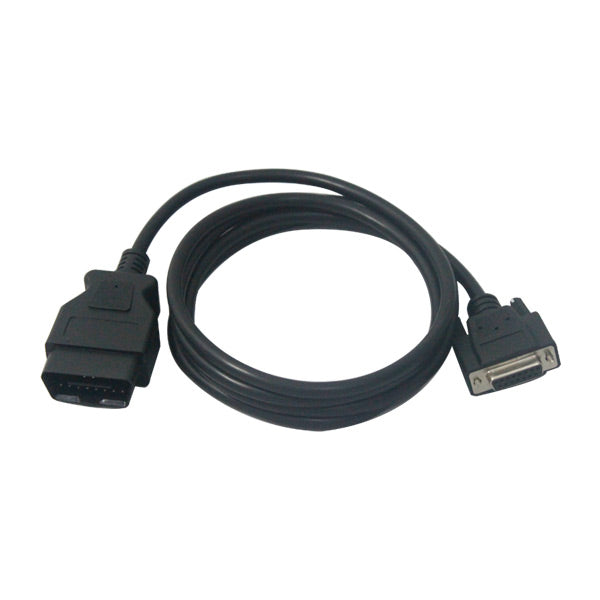

1x OBD2 cable
1x USB Cable

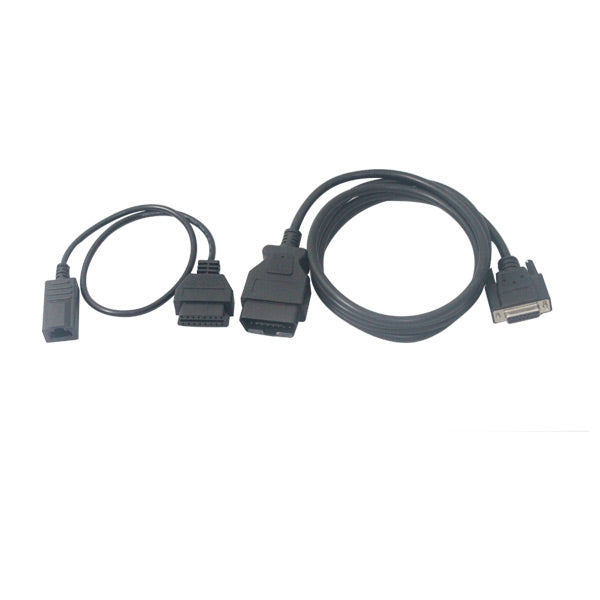

1x H-onda 3pin to 16pin Cable
1xCD


FAQ:

Q: What is the dealer code for this item?
A: 000000000001

Vehicle Integrated Diagnostic Platform for HONDA Full Version offers car diagnosing and key programming at same time. This Honda diagnostic scanner supports Honda & Acura car from 1992 to 2011 year.

Vehicle Integrated Diagnostic Platform Full Version

1.supports diagnosing and key programming at the same time.
2.It diagnoses for Honda & Acura from 1992 to 2010 and no need to input password, the machine automatically calculate the password and enter the IMMO system.
3. PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later)



Honda Functions:

1.DTC reading and clearing (allows the user to read both permanent and temporary DTCs. Once the fault causing the DTC has been found and repaired the DTC tool can then be used to clear DTCs.)
2.Snapshot function (capture data relative to a trigger event)
3.Vehicle data display (value, line graph, or bar graph formats)
4.DLC locator diagrams
5.Data list display (real-time display of ECU parameters)
6.System Functional Tests (allows for more detailed testing of specific parts of the vehicle systems, "where the ECU" support these tests (e.g. Window movement, Lighting, Vehicle Gauges and engine components))
7.Onboard tutorial
8.Immobiliser
9. It Can Do Smart Keys. No need to input password. The machine automatically calculates the password and enters the IMMO system.



Specification:

1. Hardware and Software Requirements:

1)Use for the following cars: All H-onda model(H-onda & Acura from 1992 to 2008)
2) Hard disk drive with at least 400MB of free space
3) CD-ROM drive (if a high-speed Internet connection is not available)
4) RS232 port required to connect PC to IDT
5) Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)

2. Honda Electronic Control System:

1) Engine System
2) Theft Guard System
3) No key enter system, support serial and USB.
4) Antilock system
5) Safety airbag system
6) Electronic air throttle system
7) Electronic booster system
8) Body electric system
9) Four-wheel turning system
10) ATTS
11) IMA
12) VTM-4
13) TPMS


Package List:

1x Vehicle Integrated Diagnostic Platform for H-ONDA Full Version
1x OBD2 cable
1x USB Cable
1x H-onda 3pin to 16pin Cable
1xCD


FAQ:

Q: What is the dealer code for this item?
A: 000000000001
