    GSM Tracking Oil GPS Anti-theft Off Remote Relays Shock Control Device Power Tracker Car Locator Alarm Cut Monitoring GSM Tracking Oil GPS Anti-theft Off Remote Relays Shock Control Device Power Tracker Car Locator Alarm Cut Monitoring

    GL058
    0.5kg
    Car Electronics
    $29.99 $23.99 20%
    -
    +
    Buy it now
    GSM Tracking Oil GPS Anti-theft Off Remote Relays Shock Control Device Power Tracker Car Locator Alarm Cut Monitoring
    $29.99 $23.99 20%
    -
    +
    Buy it now





    NOTE:

    If you are in Turkey, please write a message to modify the imei number in the order, or contact us after placing the order, we can help you to modify the imei number.



    Realtime Tracking



    Support GPS And GLONASS Positioning



    This GPS Tracker is a 2G GSM GPS Tracker



    It is working based on the existing 2G GSM/GPRS network



    If your country closed the 2G network ,you can chose another 3G product!





    You will can realtime track the device on google maps by mobilephone，tablet and computer



    1











    Geo-fence





    Set up a geofence for the tracker to restrict its movements within a district.

    The unit will send alarm information to APP and web server when it goes out of or get in

    this district.



    2















    History Route Playback







    The APP and web server can record the upload data of the device up to 6 months

    you can playback the history route at any time!







    3





    Overspeed Alarm



    This alarm works only under continuous positioning mode.

    When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number



    4





      Vibration alarm

    LK720 (10)

    短信震动报警About the APP and Web





    you can download the APP



    there is a ID number in the device



    you can login in with the ID number



    its original password is 123456











    5

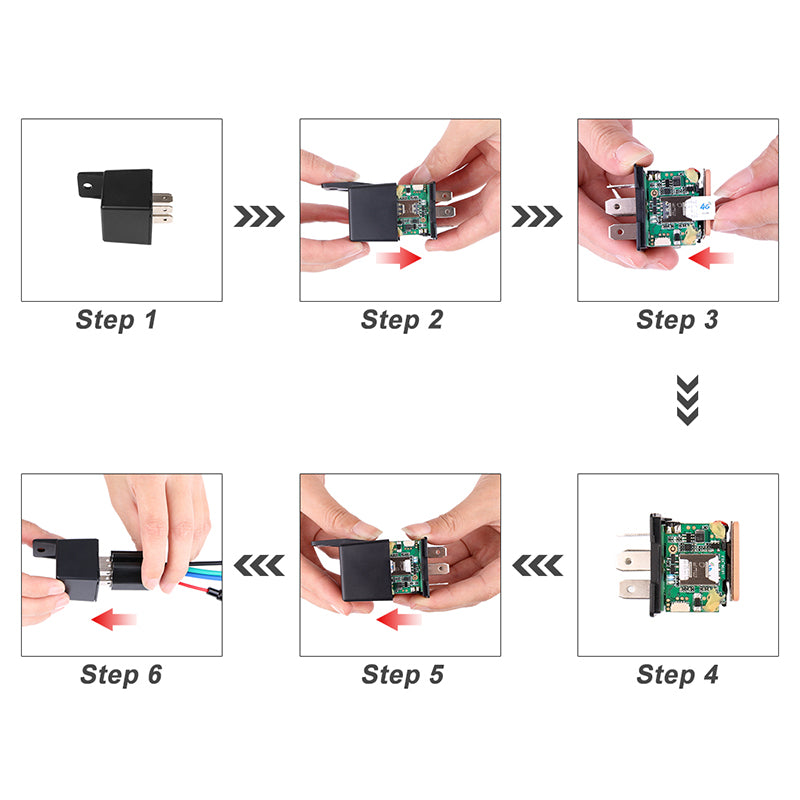

    How to use



    (I) opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up



    (II)Connect cable follow the picture



    (III) Set admin number by sending a SMS command to the SIM card inside device

    For example: admin123456+86186******(+86186*****should be youe phone number)



    (IV)Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）



    1

    About cut off oil function:

    Regarding the connection of the line, it is necessary to find a professional person to install, otherwise the oil cut function may not work.

    1. The standard power supply of this device is 10V-50VDC, the red line is the positive pole of the power supply, and the black is the negative pole of the power supply; when installing a negative power pole, please select grounding or grounding separately, And do not share with other wires;

    2.The oil shutoff control line (green / blue line) is connected to the oil pump line.



    off state:power line requires 12V.

    When the oil cut function is not available, you need to check:

    1. Whether your device uses gps positioning, if it is, after sending the fuel cut command, wait for a while, the device will respond to the command;
    2. If your device gps has no signal, after sending the oil cut command,It takes at least 1 minute for the device to execute the command. Please wait a few minutes.

    QQ图片20190423161518

    1(15)2(3)3(1)4 (2)





    How to solve problems



    Q: If the device start up fail

    A:Check the cable connect right or not.

    Q:If The device can not obtain location information

    A:Place the unit at the open area to test

    Q:How to chose the SIM card?

    A:The SIM card need support GSM/GPRS and ensure that the card has enough currency and credit

    Q:How to use in the foreign country？

    A： Please set the APN befor use ,please edit the text "APN123456 CMNET" and send it to the SIM card of the device ,CMNET is Chinese operator's APN, Replace the corresphonding APN when use in other country,APN detail can contact your SIM card carrier







    Overview:

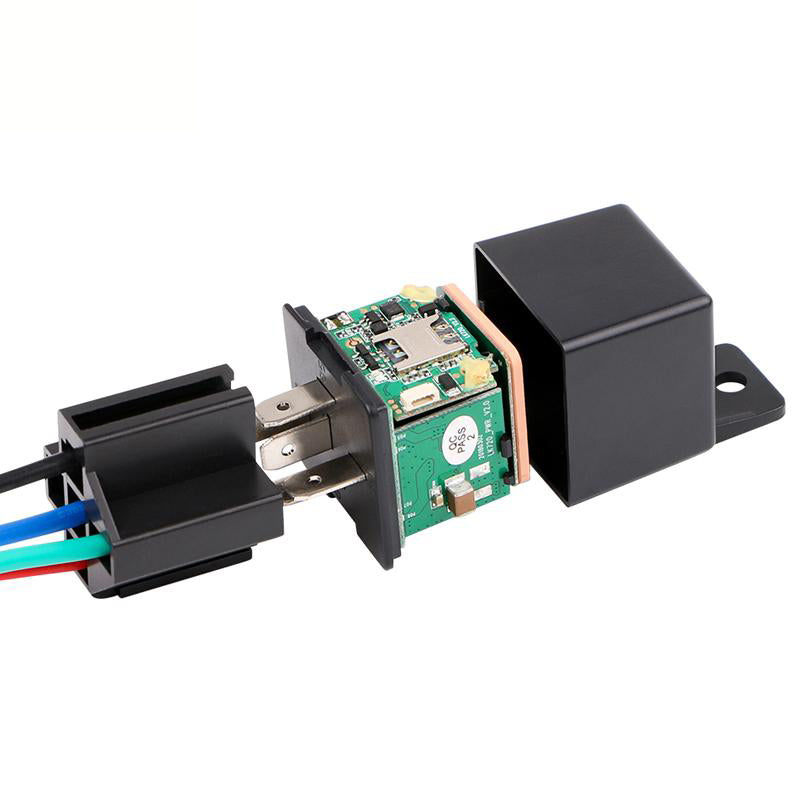

    This product LK720 is the latest hidden design Relay Car GPS Tracker which is designed

    specially for vehicle, such as car, motorcycle, motorbike and truck! It has wide operating

    voltage   10-40V DC   , compatible with most vehicles on the market!

    Besides, it adopts the most advanced technology of GPS and LBS Triple positioning, can

    locate very fast and send you very accurate position information. Under GPS locating

    mode, the accuracy can be less than 5 meters!

    What's more, it can be connected directly with the battery of the vehicle, can get

    continuous power without recharging action! It supports GSM Quad Band

    Frequency(   850/900/1800/1900Mhz   ), can work perfectly around the worldwide!

    At the last, the tracking software for this device is free for using LIFETIME, you needn't

    pay any monthly or yearly fee for the tracking service!

    Applications: Used widely for vehicle and other moving objects tracking.








    Main Functions:


    1. Hidden Design and Easy Installation
    relay outlook design makes the device very convenient for hide and install

    2. Wide Operating Voltage 10-40V DC, compatible with vehicles on the market!
    3. Remotely Cut Off & Resume Fuel
    Once your vehicle was stolen or meet any emergency, you will can remotely cut off the fuel via SMS command or APP to stop the vehicle, of course you also can resume the fuel remotely.

    4. GPS+LBS Double Positioning Ways
    If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

    5. Realtime Tracking
    You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

    6. History Route Playback
    The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!

    7. Power Saving Mode
    The device will go into standby mode automatically when there isn't vibration for 3 minutes , it will go into working mode when it detect vibration again

    8. Overspeed Alarm
    This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.

    9. Shake Alarm
    After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS ldquosensor alarm!rdquo to the admin number when the unit get shocked.

    10. Movement Alarm
    When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

    11. Virtual Fence
    Set up a virtual fence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

    12. Sleep Mode
    * Sleep by time mode
    After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
    * Sleep by shock sensor mode
    After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

    13. Illegal Cutting Line Alarm Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device

    14. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !










    Specifications:

    Content

    Specifications

    Dimension

    31(L) x 31(W) x 57(H)mm

    Weight

    29.3g

    Network

    2G GSM/GPRS

    Band

    2G GSM: 850/900/1800/1900Mhz

    GPS Sensitivity

    -159dBm

    GPS Accuracy

    5m

    LBS Accuracy

    100-2000m

    GPS Start time

    Cold status 45s

    Warm status 35s

    Hot status 1s

    Working Voltage

    10-40V DC

    Backup Battery

    Chargeable 3.7V 80mAh Polymer Li-ion Battery

    Storage Temperature

    -40degC to +85degC

    Operation Temperature

    -20degC to +65degC

    Humidity

    5%--95% non-condensing

    Special Functions

    illegal cut line alarm, Remote Cut Off Fuel, Vibrate Alarm







    NOTE:

    If you are in Turkey, please write a message to modify the imei number in the order, or contact us after placing the order, we can help you to modify the imei number.



    Realtime Tracking



    Support GPS And GLONASS Positioning



    This GPS Tracker is a 2G GSM GPS Tracker



    It is working based on the existing 2G GSM/GPRS network



    If your country closed the 2G network ,you can chose another 3G product!





    You will can realtime track the device on google maps by mobilephone，tablet and computer



    1











    Geo-fence





    Set up a geofence for the tracker to restrict its movements within a district.

    The unit will send alarm information to APP and web server when it goes out of or get in

    this district.



    2















    History Route Playback







    The APP and web server can record the upload data of the device up to 6 months

    you can playback the history route at any time!







    3





    Overspeed Alarm



    This alarm works only under continuous positioning mode.

    When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number



    4





      Vibration alarm

    LK720 (10)

    短信震动报警About the APP and Web





    you can download the APP



    there is a ID number in the device



    you can login in with the ID number



    its original password is 123456











    5











    How to use



    (I) opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up



    (II)Connect cable follow the picture



    (III) Set admin number by sending a SMS command to the SIM card inside device

    For example: admin123456+86186******(+86186*****should be youe phone number)



    (IV)Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）



    1

    About cut off oil function:

    Regarding the connection of the line, it is necessary to find a professional person to install, otherwise the oil cut function may not work.

    1. The standard power supply of this device is 10V-50VDC, the red line is the positive pole of the power supply, and the black is the negative pole of the power supply; when installing a negative power pole, please select grounding or grounding separately, And do not share with other wires;

    2.The oil shutoff control line (green / blue line) is connected to the oil pump line.



    off state:power line requires 12V.

    When the oil cut function is not available, you need to check:

    1. Whether your device uses gps positioning, if it is, after sending the fuel cut command, wait for a while, the device will respond to the command;
    2. If your device gps has no signal, after sending the oil cut command,It takes at least 1 minute for the device to execute the command. Please wait a few minutes.

    QQ图片20190423161518

    1(15)2(3)3(1)4 (2)





    How to solve problems



    Q: If the device start up fail

    A:Check the cable connect right or not.

    Q:If The device can not obtain location information

    A:Place the unit at the open area to test

    Q:How to chose the SIM card?

    A:The SIM card need support GSM/GPRS and ensure that the card has enough currency and credit

    Q:How to use in the foreign country？

    A： Please set the APN befor use ,please edit the text "APN123456 CMNET" and send it to the SIM card of the device ,CMNET is Chinese operator's APN, Replace the corresphonding APN when use in other country,APN detail can contact your SIM card carrier







    Overview:


    This product LK720 is the latest hidden design Relay Car GPS Tracker which is designed

    specially for vehicle, such as car, motorcycle, motorbike and truck! It has wide operating

    voltage   10-40V DC   , compatible with most vehicles on the market!

    Besides, it adopts the most advanced technology of GPS and LBS Triple positioning, can

    locate very fast and send you very accurate position information. Under GPS locating

    mode, the accuracy can be less than 5 meters!

    What's more, it can be connected directly with the battery of the vehicle, can get

    continuous power without recharging action! It supports GSM Quad Band

    Frequency(   850/900/1800/1900Mhz   ), can work perfectly around the worldwide!

    At the last, the tracking software for this device is free for using LIFETIME, you needn't

    pay any monthly or yearly fee for the tracking service!

    Applications: Used widely for vehicle and other moving objects tracking.








    Main Functions:


    1. Hidden Design and Easy Installation
    relay outlook design makes the device very convenient for hide and install

    2. Wide Operating Voltage 10-40V DC, compatible with vehicles on the market!
    3. Remotely Cut Off & Resume Fuel
    Once your vehicle was stolen or meet any emergency, you will can remotely cut off the fuel via SMS command or APP to stop the vehicle, of course you also can resume the fuel remotely.

    4. GPS+LBS Double Positioning Ways
    If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

    5. Realtime Tracking
    You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

    6. History Route Playback
    The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!

    7. Power Saving Mode
    The device will go into standby mode automatically when there isn't vibration for 3 minutes , it will go into working mode when it detect vibration again

    8. Overspeed Alarm
    This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.

    9. Shake Alarm
    After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS ldquosensor alarm!rdquo to the admin number when the unit get shocked.

    10. Movement Alarm
    When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

    11. Virtual Fence
    Set up a virtual fence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

    12. Sleep Mode
    * Sleep by time mode
    After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
    * Sleep by shock sensor mode
    After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

    13. Illegal Cutting Line Alarm Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device

    14. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !










    Specifications:

    Content

    Specifications

    Dimension

    31(L) x 31(W) x 57(H)mm

    Weight

    29.3g

    Network

    2G GSM/GPRS

    Band

    2G GSM: 850/900/1800/1900Mhz

    GPS Sensitivity

    -159dBm

    GPS Accuracy

    5m

    LBS Accuracy

    100-2000m

    GPS Start time

    Cold status 45s

    Warm status 35s

    Hot status 1s

    Working Voltage

    10-40V DC

    Backup Battery

    Chargeable 3.7V 80mAh Polymer Li-ion Battery

    Storage Temperature

    -40degC to +85degC

    Operation Temperature

    -20degC to +65degC

    Humidity

    5%--95% non-condensing

    Special Functions

    illegal cut line alarm, Remote Cut Off Fuel, Vibrate Alarm
