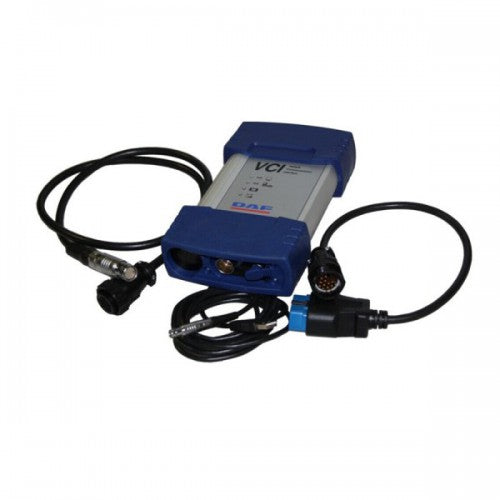

DAF VCI 560 KIT DAF VCI Truck Diagnostic Tool with WIFI DAF VCI 560 KIT DAF VCI Truck Diagnostic Tool with WIFI

HD061
1.1kg
Truck Diagnostic Tool
$3,950.00 $3,550.00 10%
-
+

DAF VCI-560 Kit is a powerful fault diagnosis device that has been developed using the latest advanced technology.

Used in combination with a PC, it provides a tool for quick and efficient analysis of vehicle faults.


DAF VCI-560 KIT DAF Truck Diagnostic Tool Overview

1. Languages Supported: English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

2. Supported Vehicle: DAF Trucks.

3. Free activation for one time, for the second time will cost 150usd. And can only be installed on one laptop.

4. DAF VCI-560 software supports online update.

5. The VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside "Diagnostic Connector".



DAF VCI-560 Truck Diagnostic KIT Features:

DAVIE XDc II can diagnose, troubleshoot and program following vehicles systems:

  • DAF CAB climate system;
  • DAF safety system;
  • DAF security system;
  • DAF transmission system;
  • DAF vehicle control system;
  • DAF door control system;
  • DAF instrumentation system;
  • DAF engine system;
  • DAF tachograph;
  • DAF communication system;
  • DAF after treatment system;
  • DAF break system;


DAF VCI-560 specifications:

Dimensions (W x D x H) 126 x 214 x47 mm;
Weight 1.1 kg.
Power supply from the vehicle electrical system;
The VCI must be powered from the vehicle;
Rated voltages 8 to 32 V DC;
Current consumption in the load range Max. 1 A
If external power is interrupted, the VCI will be buffered by the rechargeable battery;
Battery type NiMH 4,8V/1300mAh.
Support WiFi


DAF VCI-560 Compatible Software:

* DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)
* DAF Davie Application 75.03
* DAF Davie Parts Rapido Subset 15.12FO

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.
Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.
HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.
EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.
You can switch between HD-OBD mode and EOL mode.
For special programming and Service Level see Davie Developer Tool.


DAF VCI-560 Software Screenshots:

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Software

DAF VCI-560 Kit is a powerful fault diagnosis device that has been developed using the latest advanced technology.

Used in combination with a PC, it provides a tool for quick and efficient analysis of vehicle faults.


DAF VCI-560 KIT DAF Truck Diagnostic Tool Overview

1. Languages Supported: English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

2. Supported Vehicle: DAF Trucks.

3. Free activation for one time, for the second time will cost 150usd. And can only be installed on one laptop.

4. DAF VCI-560 software supports online update.

5. The VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside "Diagnostic Connector".



DAF VCI-560 Truck Diagnostic KIT Features:

DAVIE XDc II can diagnose, troubleshoot and program following vehicles systems:

  • DAF CAB climate system;
  • DAF safety system;
  • DAF security system;
  • DAF transmission system;
  • DAF vehicle control system;
  • DAF door control system;
  • DAF instrumentation system;
  • DAF engine system;
  • DAF tachograph;
  • DAF communication system;
  • DAF after treatment system;
  • DAF break system;


DAF VCI-560 specifications:

Dimensions (W x D x H) 126 x 214 x47 mm;
Weight 1.1 kg.
Power supply from the vehicle electrical system;
The VCI must be powered from the vehicle;
Rated voltages 8 to 32 V DC;
Current consumption in the load range Max. 1 A
If external power is interrupted, the VCI will be buffered by the rechargeable battery;
Battery type NiMH 4,8V/1300mAh.
Support WiFi


DAF VCI-560 Compatible Software:

* DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)
* DAF Davie Application 75.03
* DAF Davie Parts Rapido Subset 15.12FO

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.
Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.
HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.
EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.
You can switch between HD-OBD mode and EOL mode.
For special programming and Service Level see Davie Developer Tool.
