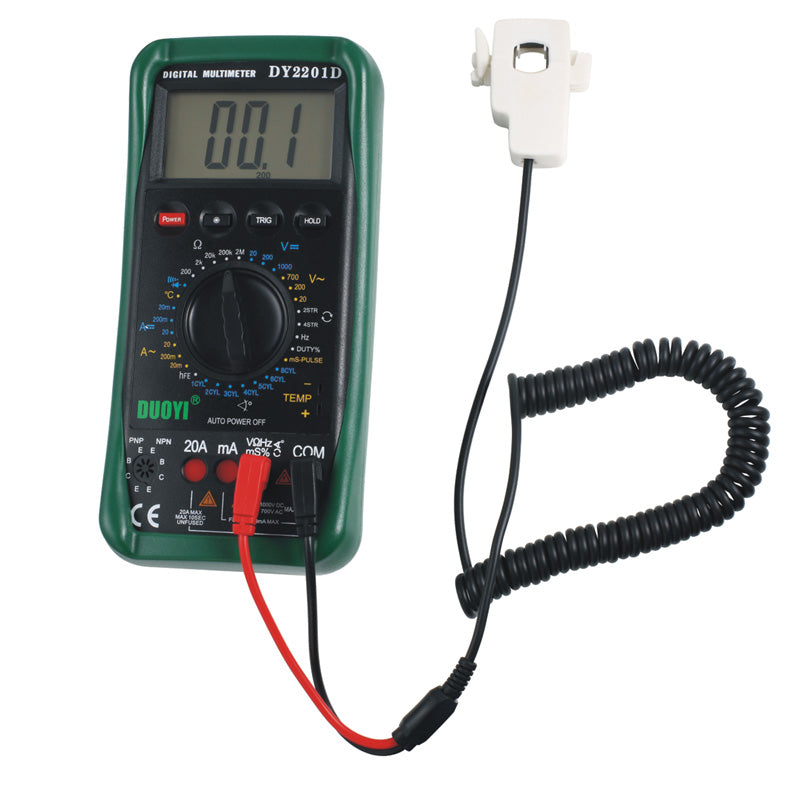

DUOYI DY2201D LCD Digital Automotive Multimeter Frequency Temp Tester with Speed conversion sensor Non-contact RPM Dwell angle DUOYI DY2201D LCD Digital Automotive Multimeter Frequency Temp Tester with Speed conversion sensor Non-contact RPM Dwell angle

0.7kg
Automotive Circuit Tester
$42.79 $40.99 4%
-
+
Buy it now
DUOYI DY2201D LCD Digital Automotive Multimeter Frequency Temp Tester with Speed conversion sensor Non-contact RPM Dwell angle
$42.79 $40.99 4%
-
+
Buy it now

DUOYI DY2201D LCD Digital Automotive Multimeter Frequency Temp Tester with Speed conversion sensor Non-contact RPM Dwell angle

Why Choose DUOYI DY2201D LCD Digital Automotive Multimeter :

The product is suitable for professional auto detection and repair, engineering design, testing, production test, is your ideal portable automobile repair and maintenance tools.



Features Of DUOYI DY2201D LCD Digital Automotive Multimeter :

1. Low power consumption CMOS A/D convert integrate circuit, automatic zero adjustment and polarity display, data hold, warning of low battery voltage and over range exceeding.
2. 32 optional ranges
3. Basic DC voltage accuracy: ±0.5%
4. Measuring of motor dwell angle: 0.1 -360° (1/2/3/4/5/6/8 cylinder)
5. Measuring of motor speed:300RPM-19999RPM (2 Stroke)
600RPM-19999RPM (4 Stroke)
6. Non contact type ( without the line failure ) of engine speed measurement ( clamp test ).
7. Impulse time measurement:0.1mS - 1000 mS
8. Measuring temperature: -40 -1000 Celsius
9. Frequency measurement:2-20kHz.
10. The input end mechanical protection function, to prevent the wrong operation.
11. Full range overload protection function
12. Automatic power off functi on. The power will be shut down automatically after the meter is 15 minutes avoid forgetting powering off after using the meter.
13. Maximum display:1999 (31/2 digit,AC and DC voltage, current, resistance)
19999(Speed, frequency, pulse duration, Dwell)
14. Liquid crystal display: 70 x 48mm big screen, high contrast, 28mm character height, clear and pleasing.
15. LCD back light function, convenient in dark environment operation.
16. Power supply: a 9V battery (NEDA1604, 6F22 or equivalent) (not include in the package)
17. Dimensions: 192x 88x 42mm;
18. Weight: Approx 600g (Including battery and holster)
19. Environment:
Working temperature: 0 -40 Celsius Relative humidity<80%
Storage temperature: -10 -50 Celsius Relative humidity<85%



Specifications Of DUOYI DY2201D LCD Digital Automotive Multimeter:

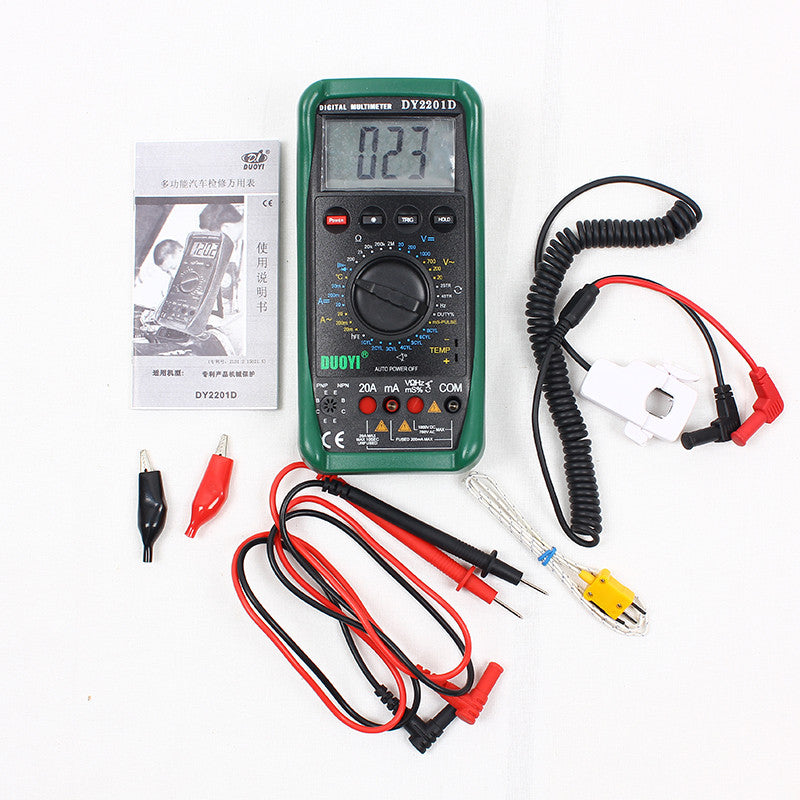

Package Contents:

1 * DY2201D automotive tester
1 * Pair Test Leads
1 * TP01 K temperature measuring probe (250 Celsius)
1 * Speed conversion sensor ( speed test clamp head )
2 * Alligator clip

DUOYI DY2201D LCD Digital Automotive Multimeter Frequency Temp Tester with Speed conversion sensor Non-contact RPM Dwell angle

Why Choose DUOYI DY2201D LCD Digital Automotive Multimeter :

The product is suitable for professional auto detection and repair, engineering design, testing, production test, is your ideal portable automobile repair and maintenance tools.



Features Of DUOYI DY2201D LCD Digital Automotive Multimeter :

1. Low power consumption CMOS A/D convert integrate circuit, automatic zero adjustment and polarity display, data hold, warning of low battery voltage and over range exceeding.
2. 32 optional ranges
3. Basic DC voltage accuracy: ±0.5%
4. Measuring of motor dwell angle: 0.1 -360° (1/2/3/4/5/6/8 cylinder)
5. Measuring of motor speed:300RPM-19999RPM (2 Stroke)
600RPM-19999RPM (4 Stroke)
6. Non contact type ( without the line failure ) of engine speed measurement ( clamp test ).
7. Impulse time measurement:0.1mS - 1000 mS
8. Measuring temperature: -40 -1000 Celsius
9. Frequency measurement:2-20kHz.
10. The input end mechanical protection function, to prevent the wrong operation.
11. Full range overload protection function
12. Automatic power off functi on. The power will be shut down automatically after the meter is 15 minutes avoid forgetting powering off after using the meter.
13. Maximum display:1999 (31/2 digit,AC and DC voltage, current, resistance)
19999(Speed, frequency, pulse duration, Dwell)
14. Liquid crystal display: 70 x 48mm big screen, high contrast, 28mm character height, clear and pleasing.
15. LCD back light function, convenient in dark environment operation.
16. Power supply: a 9V battery (NEDA1604, 6F22 or equivalent) (not include in the package)
17. Dimensions: 192x 88x 42mm;
18. Weight: Approx 600g (Including battery and holster)
19. Environment:
Working temperature: 0 -40 Celsius Relative humidity<80%
Storage temperature: -10 -50 Celsius Relative humidity<85%



Specifications Of DUOYI DY2201D LCD Digital Automotive Multimeter:



Package Contents:

1 * DY2201D automotive tester
1 * Pair Test Leads
1 * TP01 K temperature measuring probe (250 Celsius)
1 * Speed conversion sensor ( speed test clamp head )
2 * Alligator clip
