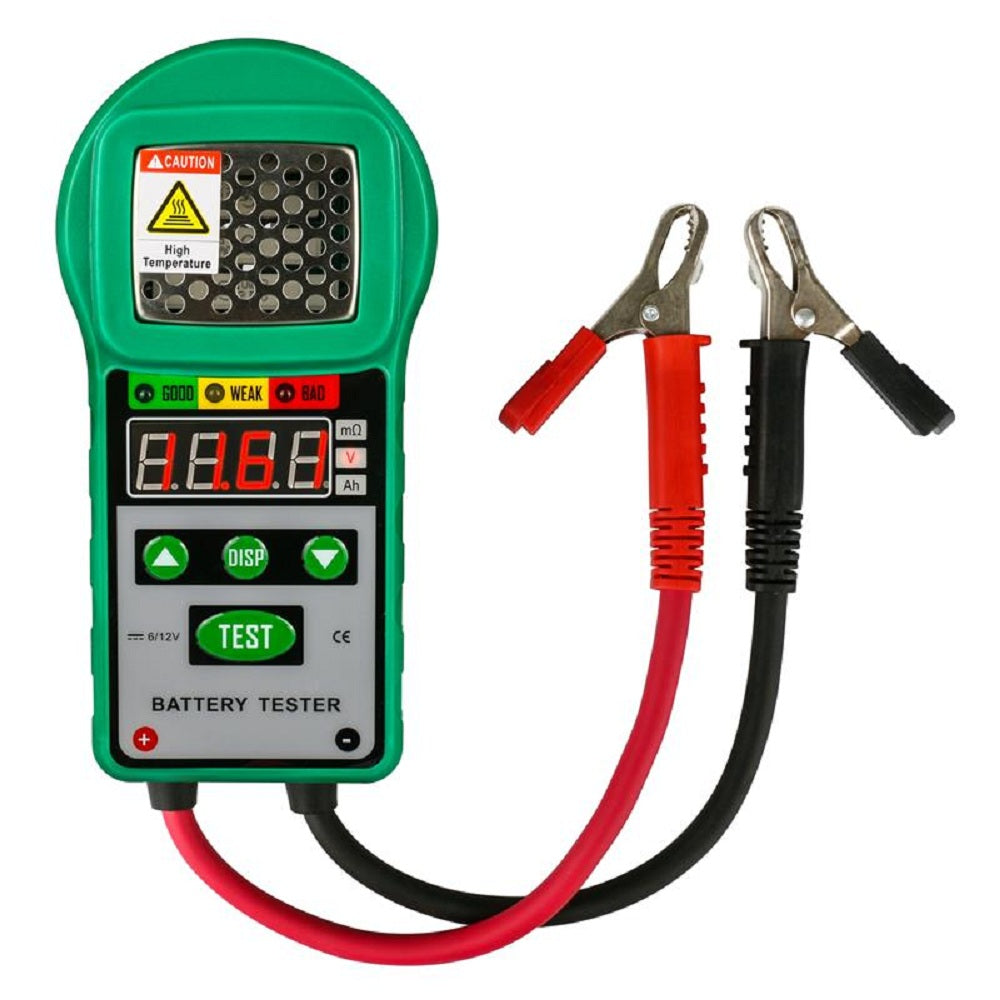

DUOYI DY225 Automotive Battery Tester 6V and 12V DC 4-Wires Resistance Test for UPS, Solar Energy Storage, Marine Battery DUOYI DY225 Automotive Battery Tester 6V and 12V DC 4-Wires Resistance Test for UPS, Solar Energy Storage, Marine Battery

DY225
0.55kg
Battery Testers
$28.89
-
+

DUOYI DY225 Automotive Battery Tester 6V and 12V DC 4-Wires Resistance Test for UPS, Solar Energy Storage, Marine Battery Works for 6V/12V Storage Battery with Maximum Discharge Current 20A and 5Ah to 80Ah

Description For DUOYI DY225 Automotive Battery Tester

  • The instrument can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition,
  • The internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid accumulator.

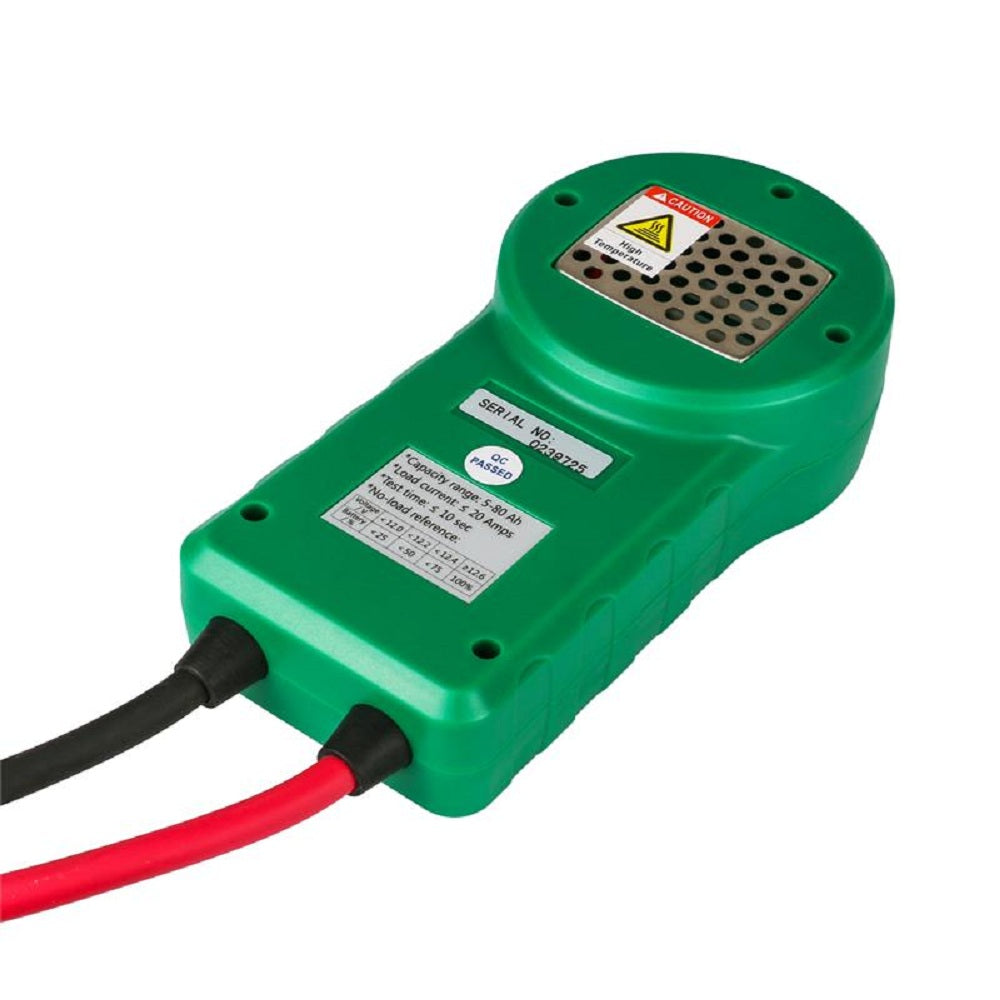

  • The instrument shell is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and more reliable.
  • The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for connection.
  • The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery
  • working condition in the battery working process and make the test result more accurate.
  • 4-wires internal resistance test, 4 digits display for clear reading
  • Avaiable for electric vehicle battery, UPS battery, solar energy storage battery, automotive battery, marine battery,

NOTE: it can not test starting battery(CCA)
The manufacturer provides a quality warranty period of one year for the product.

Specification and Parameters of DUOYI DY225 Automotive Battery Tester

1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 20A.
3. Accumulator capacity detection range: 5Ah ~ 80Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.
6. LED status indication:
Battery condition: "Green" (Sufficient Capacity), "Yellow"(Insufficient Capacity), "Red" (Replace Battery);
Charging system: "Green" (Normal Charging), "Yellow" (Abnormal Charging).
7. Accumulator capacity presetting: continuously adjustable in the range of 5-80Ah, with 5Ah increment.
8. Test time: less than 10s; test time interval: it is suggested as about 5min.
9. Poor contact prompt for test clamp; reverse clamp connection protection; input over voltage protection.
10. Using condition: -10℃ 55 relative humidity: lower than 80%.
11. Product dimension: about 9.5*5.0*19cm; dead weight: about 860g.

Packing list:


1x Battery tester
1x Manual (in English)



DUOYI DY225 Automotive Battery Tester 6V and 12V DC 4-Wires Resistance Test for UPS, Solar Energy Storage, Marine Battery Works for 6V/12V Storage Battery with Maximum Discharge Current 20A and 5Ah to 80Ah

Description For DUOYI DY225 Automotive Battery Tester

  • The instrument can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition,
  • The internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid accumulator.
  • The instrument shell is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and more reliable.
  • The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for connection.
  • The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery
  • working condition in the battery working process and make the test result more accurate.
  • 4-wires internal resistance test, 4 digits display for clear reading
  • Avaiable for electric vehicle battery, UPS battery, solar energy storage battery, automotive battery, marine battery,

NOTE: it can not test starting battery(CCA)
The manufacturer provides a quality warranty period of one year for the product.

Specification and Parameters of DUOYI DY225 Automotive Battery Tester

1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 20A.
3. Accumulator capacity detection range: 5Ah ~ 80Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.
6. LED status indication:
Battery condition: "Green" (Sufficient Capacity), "Yellow"(Insufficient Capacity), "Red" (Replace Battery);
Charging system: "Green" (Normal Charging), "Yellow" (Abnormal Charging).
7. Accumulator capacity presetting: continuously adjustable in the range of 5-80Ah, with 5Ah increment.
8. Test time: less than 10s; test time interval: it is suggested as about 5min.
9. Poor contact prompt for test clamp; reverse clamp connection protection; input over voltage protection.
10. Using condition: -10℃ 55 relative humidity: lower than 80%.
11. Product dimension: about 9.5*5.0*19cm; dead weight: about 860g.

Packing list:


1x Battery tester
1x Manual (in English)
