DUOYI DY226 6V/12V DC Automotive Battery Tester 4 Digits Display for UPS/Solar Energy Storage/Marine Battery DUOYI DY226 6V/12V DC Automotive Battery Tester 4 Digits Display for UPS/Solar Energy Storage/Marine Battery

DY016
0.9kg
Battery Tester
$44.99
-
+
Buy it now
DUOYI DY226 6V/12V DC Automotive Battery Tester 4 Digits Display for UPS/Solar Energy Storage/Marine Battery
$44.99
-
+
Buy it now

DUOYI DY226 6V/12V DC Automotive Battery Tester 4 Digits Display for UPS/Solar Energy Storage/Marine Battery

Description for DUOYI DY226 6V 12V Automotive Battery Tester

DY226 can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition, the internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid accumulator.

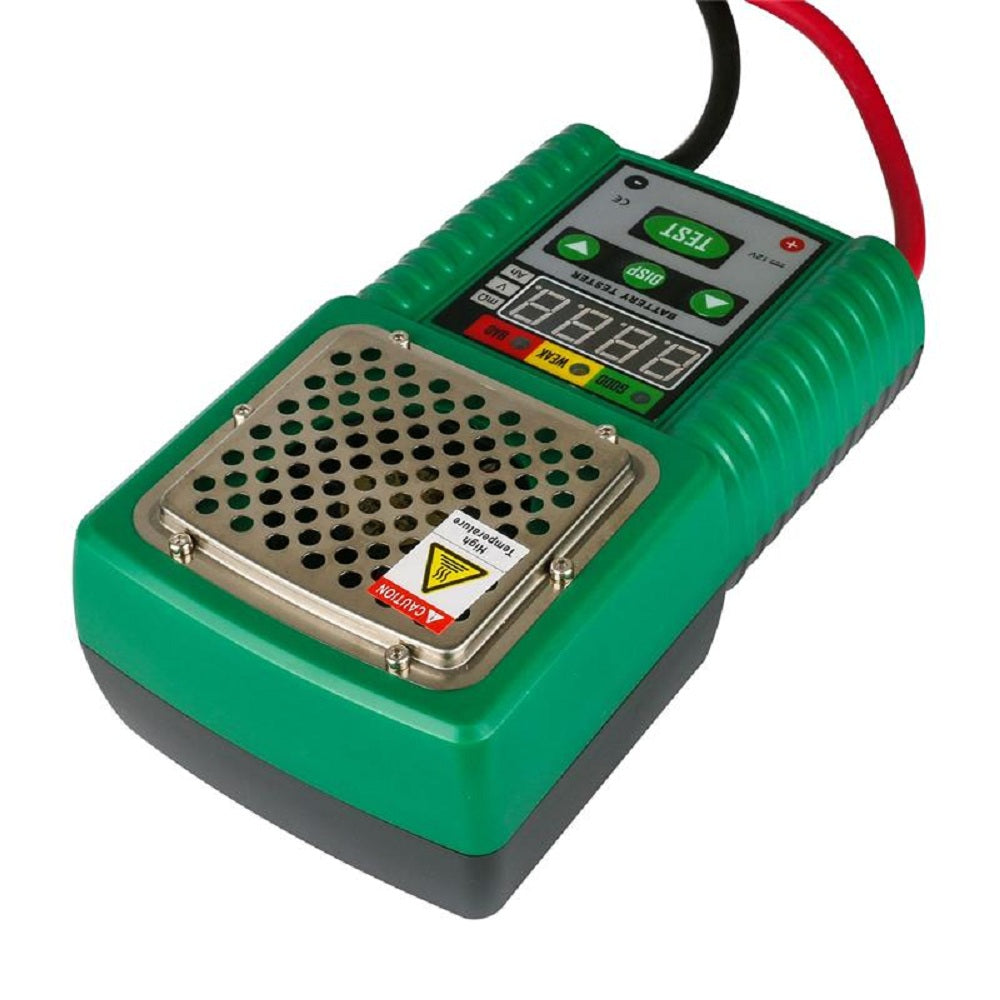

The shell of DY226 is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and more reliable.

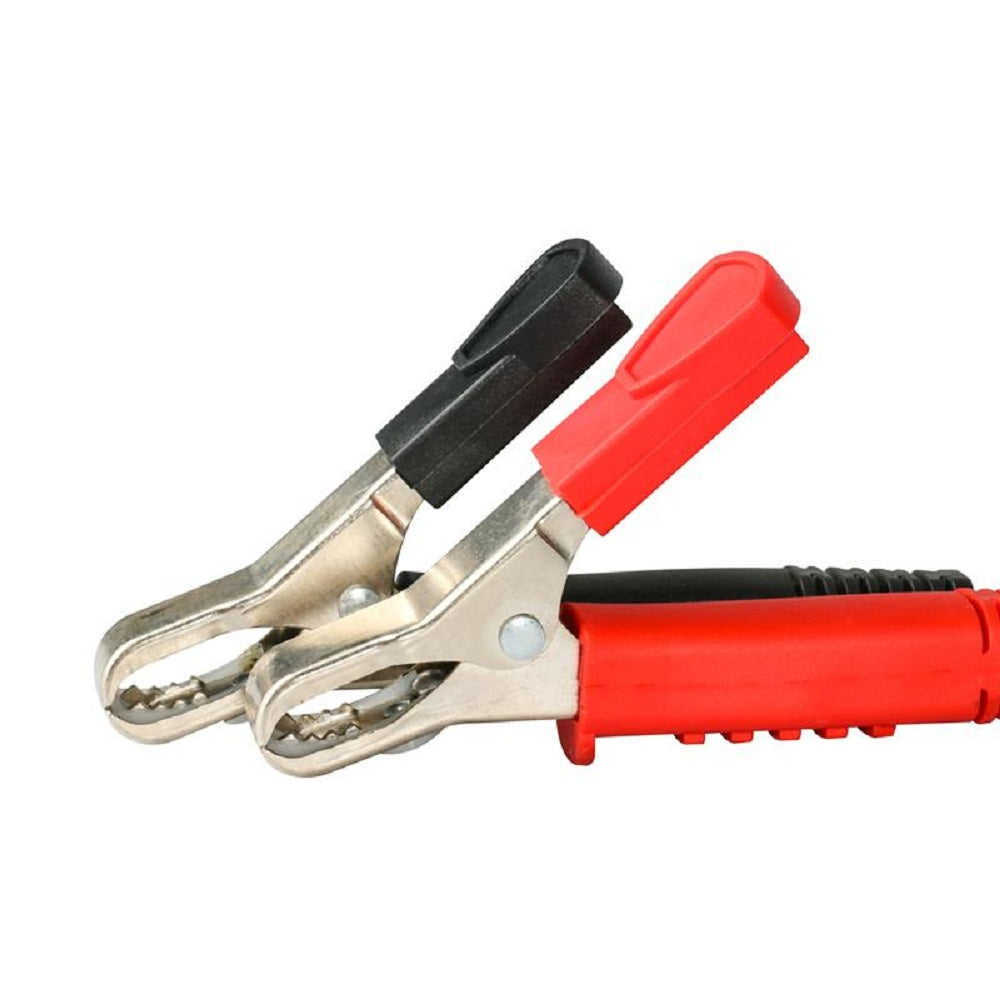

The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for connection.
The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery working condition in the battery working process and make the test result more accurate.
4-wires internal resistance test, 4 digits display for clear reading.

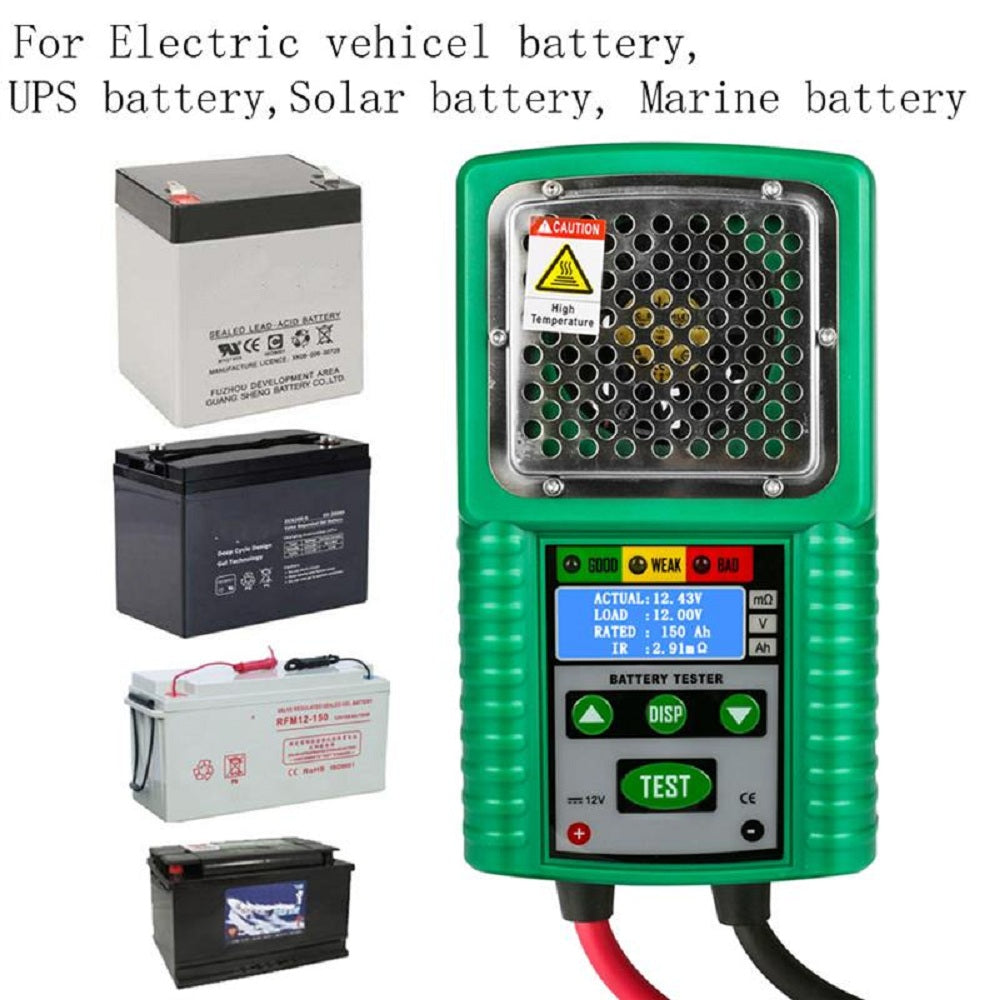

Avaiable for electric vehicle battery, UPS battery, solar energy storage battery, automotive battery, marine battery.

Note: it can not test starting battery(CCA)
The manufacturer provides a quality warranty period of one year for the producted

Feature of DUOYI DY226 6V 12V Automotive Battery Tester

  • Works for 6V/12V storage battery with maximum discharge current 80A and 40Ah to 200Ah
  • 4-wires internal resistance test
  • Built-in automatic timer during test to prevent damage of tester
  • Temperature control for circuit protection
  • Reverse polarity protection
  • Audible and visible indication for test completion
  • Auto data hold
  • 4 digits display for clear reading

Specification and Parameters DUOYI DY226 6V 12V  Automotive Battery Tester

1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 80A.
3. Accumulator capacity detection range: 40Ah ~ 200Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.
6. LED status indication: Battery condition: "Green" (Sufficient Capacity), "Yellow"(Insufficient Capacity), "Red" (Replace Battery);
Charging system: "Green" (Normal Charging), "Yellow" (Abnormal Charging).
7. Accumulator capacity presetting: continuously adjustable in the range of 40-200Ah, with 5Ah increment.
8. Test time: less than 10s; test time interval: it is suggested as about 5min.
9. Poor contact prompt for test clamp; reverse clamp connection protection; input over voltage protection.
10. Using condition: -10℃ 55 relative humidity: lower than 80%.
11. Product dimension: about 11.5*7.0*20.5cm; weight: about 900g.

PackingList

1x Battery tester

1x Manual (in English)

DUOYI DY226 6V/12V DC Automotive Battery Tester 4 Digits Display for UPS/Solar Energy Storage/Marine Battery

Description for DUOYI DY226 6V 12V Automotive Battery Tester

DY226 can quickly, simply, accurately and reliably judge the no-load energy, the on-load condition, the internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid accumulator.
The shell of DY226 is made of solid ABS engineering materials, and the load heating simulation part is up and down installed with stainless steel porous plate, and the fan is configured to strengthen heat dissipation in order to make the test process more stable and more reliable.
The test line part is composed of thick pure copper test wire, and is also configured with four-wire Kelvin test clamp for connection.
The test sampling data are directly sampled from the outgoing terminal of the battery in order to really recover the battery working condition in the battery working process and make the test result more accurate.
4-wires internal resistance test, 4 digits display for clear reading.
Avaiable for electric vehicle battery, UPS battery, solar energy storage battery, automotive battery, marine battery.

Note: it can not test starting battery(CCA)
The manufacturer provides a quality warranty period of one year for the producted

Feature of DUOYI DY226 6V 12V Automotive Battery Tester

  • Works for 6V/12V storage battery with maximum discharge current 80A and 40Ah to 200Ah
  • 4-wires internal resistance test
  • Built-in automatic timer during test to prevent damage of tester
  • Temperature control for circuit protection
  • Reverse polarity protection
  • Audible and visible indication for test completion
  • Auto data hold
  • 4 digits display for clear reading

Specification and Parameters DUOYI DY226 6V 12V  Automotive Battery Tester

1. The instrument is applicable to common 6V and 12V lead-acid accumulators.
2. Load test current: about 80A.
3. Accumulator capacity detection range: 40Ah ~ 200Ah.
4. Maximum voltage: DC 19.99V.
5. Internal resistance range of battery: 1.00milliohm ~ 99.99 milliohm.
6. LED status indication: Battery condition: "Green" (Sufficient Capacity), "Yellow"(Insufficient Capacity), "Red" (Replace Battery);
Charging system: "Green" (Normal Charging), "Yellow" (Abnormal Charging).
7. Accumulator capacity presetting: continuously adjustable in the range of 40-200Ah, with 5Ah increment.
8. Test time: less than 10s; test time interval: it is suggested as about 5min.
9. Poor contact prompt for test clamp; reverse clamp connection protection; input over voltage protection.
10. Using condition: -10℃ 55 relative humidity: lower than 80%.
11. Product dimension: about 11.5*7.0*20.5cm; weight: about 900g.

PackingList

1x Battery tester

1x Manual (in English)
