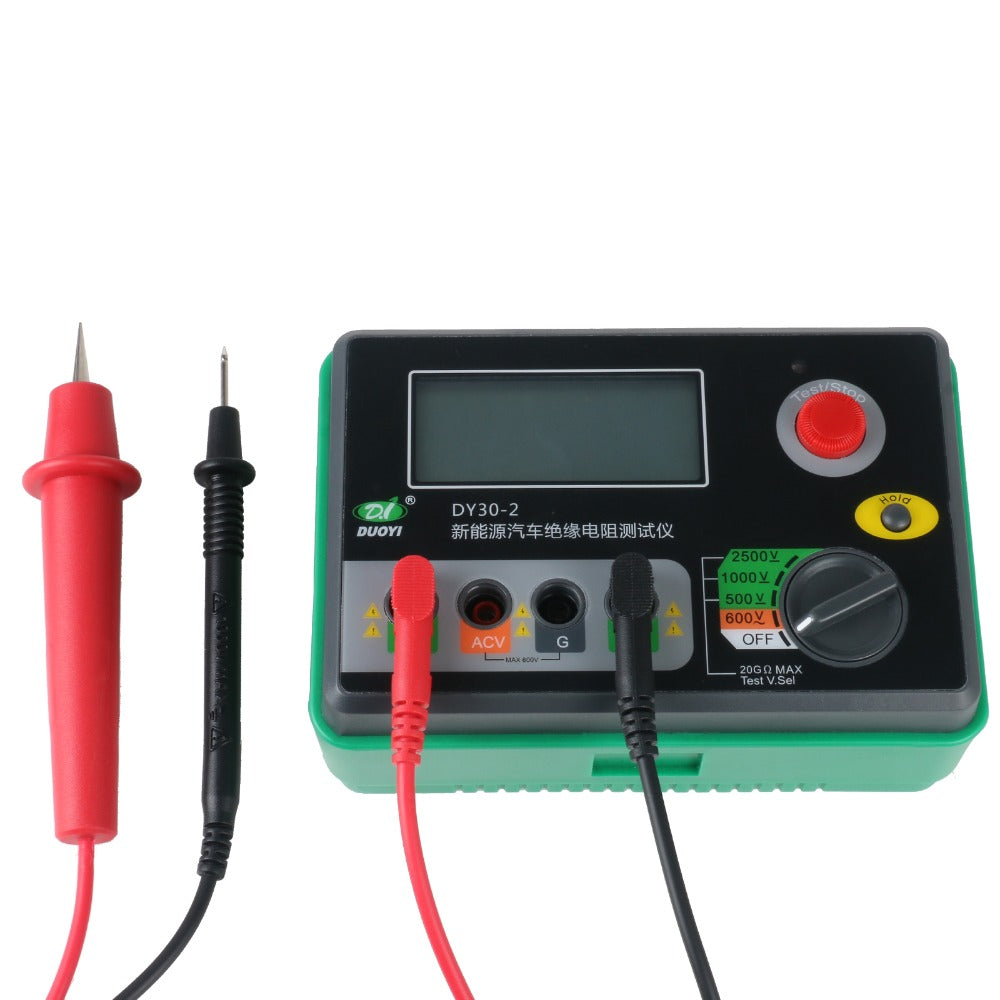

DUOYI DY30-2 Digital Insulation Resistance Tester Meter 20G ohm 500V 1000V 2500V Megohmmeter Voltmeter Car Circuit Test Repair
DUOYI DY30-2 Digital Insulation Resistance Tester Meter 20G ohm 500V 1000V 2500V Megohmmeter Voltmeter Car Circuit Test Repair
DUOYI DY30-2 Digital Insulation Resistance Tester Meter 20G ohm 500V 1000V 2500V Megohmmeter Voltmeter Car Circuit Test Repair
Why Choose DUOYI DY30-2 Digital Insulation Resistance Tester?
It has a fashionable design and improved electronic circuit, so that has the more full function, higher precision, and easier operation.
DY30-x series apply to all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc.
It is a perfect electrical testing meter.
DY30-2, the output voltage testing can be changed in 500V/1000V/2500V for deferent measurement.
Resistance range can touch 20G ohm.
Alternating voltage also can be tested.
Usages Of DUOYI DY30-2 Digital Insulation Resistance Tester :
Used for insulation resistance measurement of various electrical equipment and insulation materials such as
transformers, motors, cables, switches, electrical appliances.
It is the best tool for maintenance, testing and verification of electrical equipment.
Features Of DUOYI DY30-2 Digital Insulation Resistance Tester :
Three test voltages, measure insulation resistance to 20GΩ
AC voltage measurement to 600V
Low resistance buzzer
Data hold, auto range
Low battery warning
Complete with test leads,heavy duty carry cars
Power supply by 6pcs 1.5V AA batteries(Battery not included)
Low power consumed CMOS double integral A/D convertor
3 1/2 digits LCD display, 1999 count
Test voltage: 500V/1000V/2500V
Range: 0-20G ohm, auto range
Voltage below AC 600V can be tested
LED indicating shows high voltage is generated
Data holding with symbol
Output short current is over 1.5mA
Perfect circuit protect
Specifications:
MODEL DY30-1 DY30-2
Testing Voltage 250/500/1000V 500/1000/2500V
Resistance 0~2000MΩ ±(3%+5) 0~20GΩ ±(3%+5)
AC (V) 700V ±(2%+5) 700V ±(2%+5)
Auto Range : yes
Function Symbol Display : yes
Data Hold : yes
Low Resistance Buzzer : yes
Low Battery Warning : yes
LCD MAX. Count : 1999
Power : AA 1.5V x 6pcs UM3 battery (battery not included)
Size : 150*100*70 mm
Net Weight : approx. 680g
Package Include:
1pc x DY30-2 tester
2pc x Insulation test wire
