ELM327 Vgate Scan Advanced OBD2 Bluetooth Scan Tool (Support Android and Symbian) Software V2.1 Hardware V1.5 ELM327 Vgate Scan Advanced OBD2 Bluetooth Scan Tool (Support Android and Symbian) Software V2.1 Hardware V1.5

EL013
0.2kg
OBD2 Scanner
$9.99 $7.99 20%
-
+

Elm327 Usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 elm327 usb code reader scanner



obd2 Scanner ELM327 USB V1.5 Features:

OBD SCAN is the newly developed wireless scan tool.It supports all OBD-II protocols.

real ELM327 v1.5 USB OBD2 Scanner Automatic:

SAE J1850 PWM(41.6Kbaud)

SAE J1850 VPW(10.4Kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

ELM327-V1.5

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

ELM327-Hardware-version-V1.5

default settings(user adjustable)

Works with all OBD-II compliant vehicles

Wireless (Bluetooth) 5~10 meter

Software included for Palm, PDA,Mobile

Software included for Windows PC

Software included for Windows Smartphone



v1.5 ELM327 USB obd2 Car diagnostic scanner tool Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning

(over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

1Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...



ELM327 USB v1.5 obd2 car diagnostic scanner Package List:

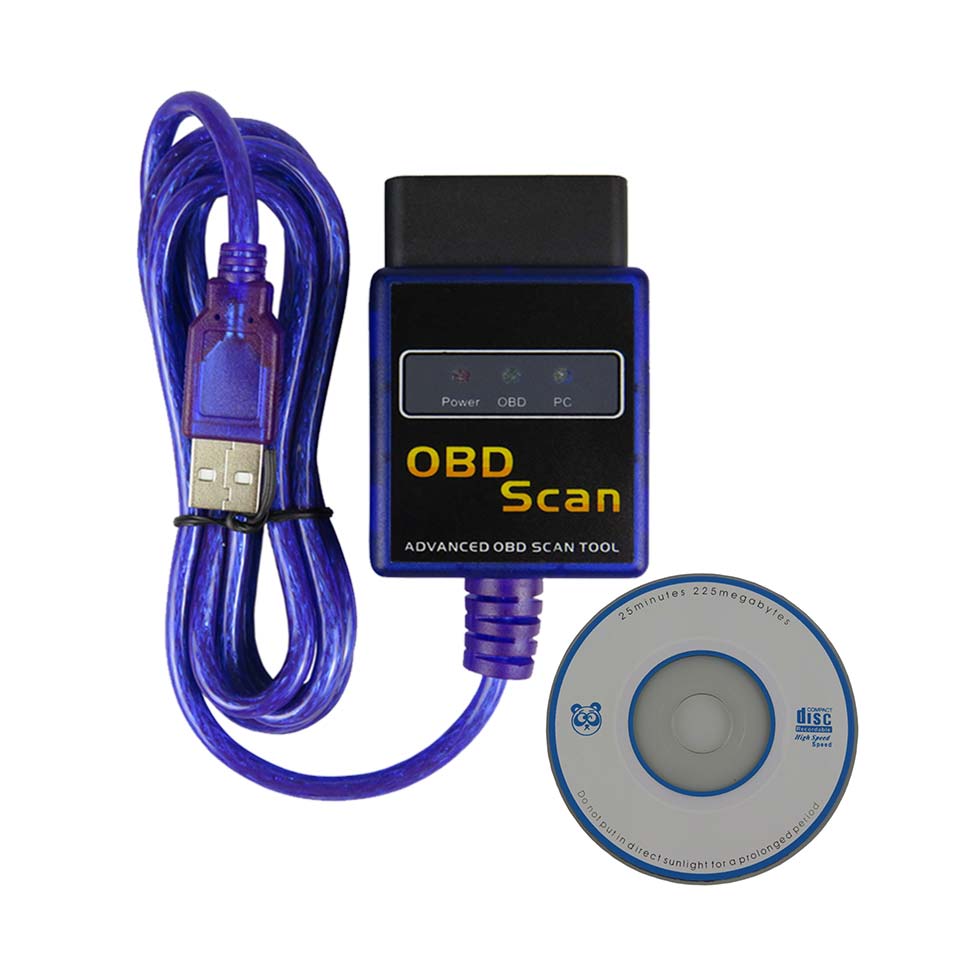

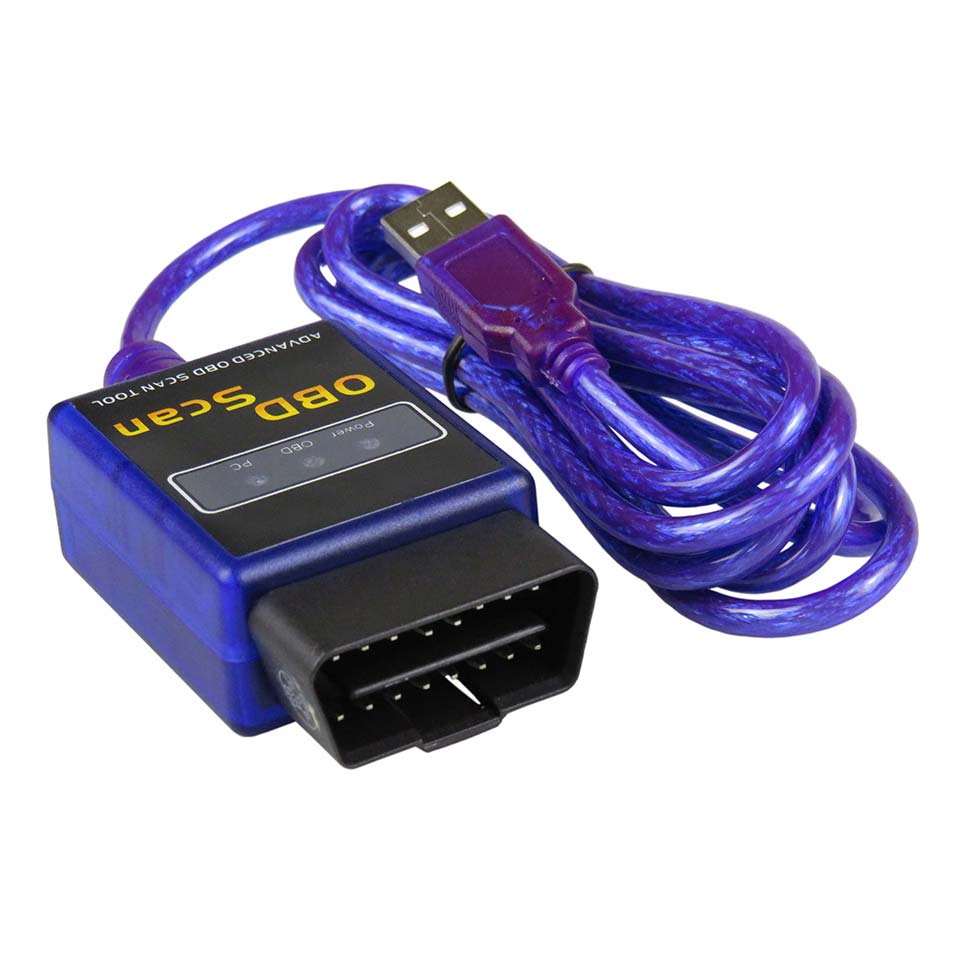

1x vgate obd2 scanner ELM327 v1.5 usb car diagnostic tool
1x CD Software

Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or negative feedback. Thanks T)OBD2-Diagnostic-Tool

elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (3)elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (4)elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (1)



S)OBD2-Diagnostic-Tool

1) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool12) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool13) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool14) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool15) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool16)Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool1

Elm327 Usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 elm327 usb code reader scanner



obd2 Scanner ELM327 USB V1.5 Features:

OBD SCAN is the newly developed wireless scan tool.It supports all OBD-II protocols.

real ELM327 v1.5 USB OBD2 Scanner Automatic:

SAE J1850 PWM(41.6Kbaud)

SAE J1850 VPW(10.4Kbaud)

ISO9141-2(5 baud init,10.4Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

ELM327-V1.5

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

ELM327-Hardware-version-V1.5

default settings(user adjustable)

Works with all OBD-II compliant vehicles

Wireless (Bluetooth) 5~10 meter

Software included for Palm, PDA,Mobile

Software included for Windows PC

Software included for Windows Smartphone



v1.5 ELM327 USB obd2 Car diagnostic scanner tool Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning

(over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

1Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...



ELM327 USB v1.5 obd2 car diagnostic scanner Package List:

1x vgate obd2 scanner ELM327 v1.5 usb car diagnostic tool
1x CD Software

Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or negative feedback. Thanks T)OBD2-Diagnostic-Tool

elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (3)elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (4)elm327 usb diagnostic cable And Connectors ELM 327 Interface OBDII Obd2 (1)



S)OBD2-Diagnostic-Tool

1) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool12) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool13) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool14) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool15) Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool16)Real FT232RL Chip ELM327 USB V1.5 ODB2 Car Diagnostic Interface Scanner ELM 327 USB OBDII ELM-327 OBD 2 Auto Diagnostic-Tool1
