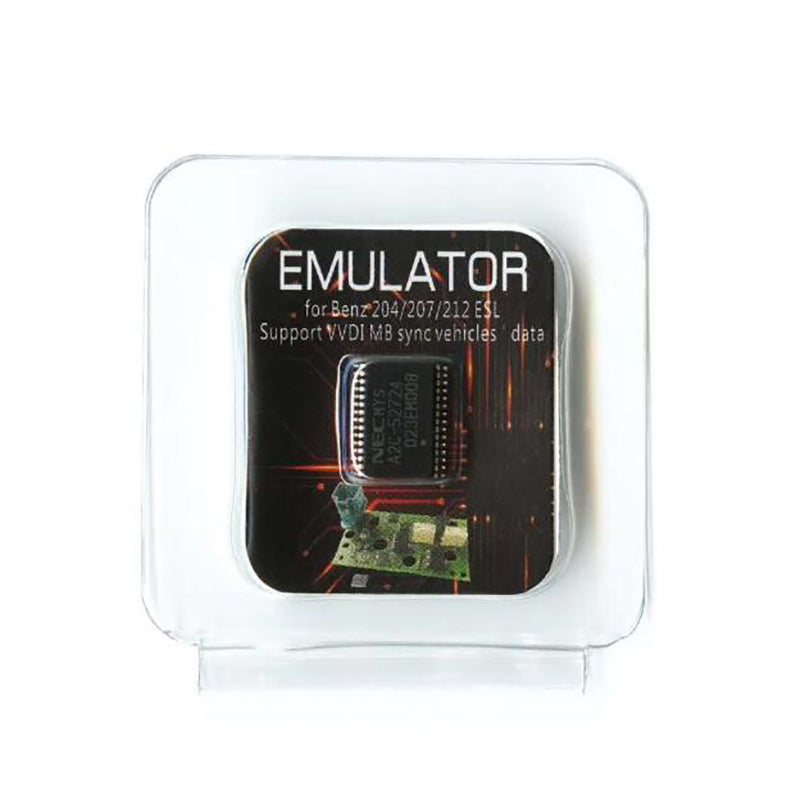

Emulator A2C-52724 NEC chip for Mercedes Benz W204 207 212 ESL 5pcs/lot
Emulator A2C-52724 NEC chip for Mercedes Benz W204 207 212 ESL 5pcs/lot
Emulator A2C-52724 NEC chip for Mercedes W204 207 212 ESL 5pcs/lot
Mercedes-Benz W204 207 212 ESL/ELV Emulator A2C-52724 NEC chip, use VVDI MB or CGDI MB No need EIS renew, no need motors, no need tiny accessories, adaption within minutes.
Operation procedure:
1. Open ESL, pull out the PCB, Change the locked chip with our new Emulator;
2. reassemble back the PCB and the ESL shell, discard the motor, gears and other tiny parts;
3. Connect the ESL, EIS and the VVDI MB with?ESL/ELV test cables， Use VVDI MB or CGDI MB read the ESL status;
4. Renew ESL, erase the code with the Numbers "1";
5. Upload the EIS data, fill in the PSW and write into the ESL, the adaption work is done.
How to use Mercedes W204 207 212 ESL & ELV emulator A2C-52724 NEC chip
First, replace the emulator A2C-52724 NEC chip, discard the motor, gears and other
tiny parts
Then follow the steps below to synchronize the EIS data.
1) Read ESL data
2) Renew ESL,Erase pass: 1111111111111111
3) Load EIS data,paste key pass,click Auto clear TP and personalized,then click to write
4) DONE!
Operation Vedio
Package includes:
5pcs x Emulator A2C-52724 NEC chip for Mercedes Benz W204 207 212 ESL
