EWS3 EWS4 Test Platform Rechargeable For BM-W & Land Rover 10pcs EWS3 EWS4 Test Platform Rechargeable For BM-W & Land Rover 10pcs

WXY030
1.1kg
Auto Key Programmer
$199.00 $119.00 40%
-
+
Buy it now
EWS3 EWS4 Test Platform Rechargeable For BM-W & Land Rover 10pcs
$199.00 $119.00 40%
-
+
Buy it now

EWS3 EWS4 Test Platform Rechargeable For BM-W / Land Rover is an advanced car key charger, and can work with all rechargeable keys 10pcs

It can perform 3 functions as follows without connecting to the BM-W:

1. Able to test EWS3, EWS4 working or not.

2. Able to test whether the PCF7935 chip or EML electronic chip key complete programming or not.

3. Able to test EML key electronic chip working or not, and test after fixing EWS data.



EWS3 EWS4 Test Platform For BM-W & Land Rover Features:

It is rechargeable, besides Tango Key Programmer, BM-W / Land Rover EWS Test Platform is the only device in the current market which able to charge for the rechargeable key. If you own the EWS and BM-W / Land Rover EWS Test Platform, it means you own a set of advanced car key charger, and it can work with all rechargeable keys.



How to use BM-W / Land Rover EWS3 EWS4 Test Platform?

As shown in the following picture, connect the EWS3 / EWS4 with the Test Platform, and supply 12V power for the device, you will see the white indicator flashes, it indicates EWS3 is working well; after the EWS4 is supplied with 12V power, you will see the indicator light fast flash, it indicates EWS4 is working well.

After supplying the power but you can’t see the white indicator flashes, it indicates EWS can’t work well, please check whether 0D46J or 2D47J is not welded well, or maybe EWS is damaged, if it is so you could buy a used EWS and fix it by writing data.

Put the programmed PCF7935 chip or EML electronic chip key near the middle of the test platform, and wait for 3 to 5 seconds, you will hear the relay in the EWS3 or EWS4 make a sound when working and see the red indicator flashes, it indicates the chip programming complete.

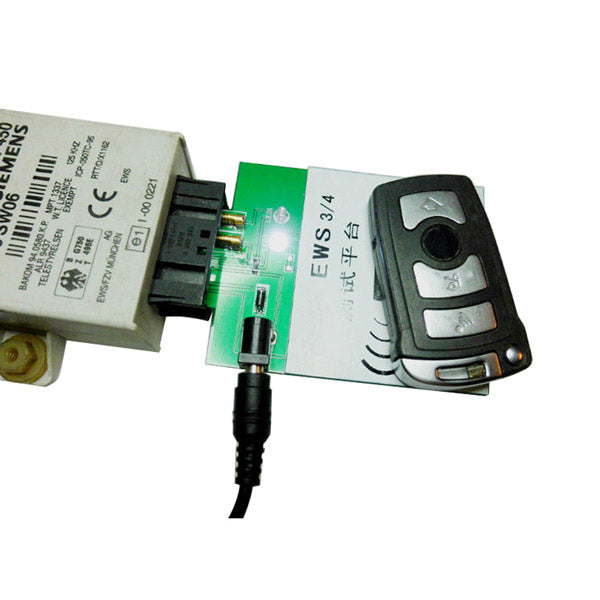

Step 1: Connect EWS3 or EWS4 with the BM-W / Land Rover EWS Test Platform.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS



Step 2: After Supplying 12V Power, You Will See White Indicator Flashes.

Place the chip on the test platform as shown bellow, after the chip is correctly read out, the red indicator will flash.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS

Step 3. Put the induction coil on the sensing area, the indicator light will flash as shown in the following picture.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS



4. BM-W 7 series E65 E66 and X5 EML keys are rechargeable. And this test platform is compatible with all rechargeable keys.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS

Package List:

10pcs x EWS3 EWS4 Test Platform

EWS3 EWS4 Test Platform Rechargeable For BM-W / Land Rover is an advanced car key charger, and can work with all rechargeable keys 10pcs

It can perform 3 functions as follows without connecting to the BM-W:

1. Able to test EWS3, EWS4 working or not.

2. Able to test whether the PCF7935 chip or EML electronic chip key complete programming or not.

3. Able to test EML key electronic chip working or not, and test after fixing EWS data.



EWS3 EWS4 Test Platform For BM-W & Land Rover Features:

It is rechargeable, besides Tango Key Programmer, BM-W / Land Rover EWS Test Platform is the only device in the current market which able to charge for the rechargeable key. If you own the EWS and BM-W / Land Rover EWS Test Platform, it means you own a set of advanced car key charger, and it can work with all rechargeable keys.



How to use BM-W / Land Rover EWS3 EWS4 Test Platform?

As shown in the following picture, connect the EWS3 / EWS4 with the Test Platform, and supply 12V power for the device, you will see the white indicator flashes, it indicates EWS3 is working well; after the EWS4 is supplied with 12V power, you will see the indicator light fast flash, it indicates EWS4 is working well.

After supplying the power but you can’t see the white indicator flashes, it indicates EWS can’t work well, please check whether 0D46J or 2D47J is not welded well, or maybe EWS is damaged, if it is so you could buy a used EWS and fix it by writing data.

Put the programmed PCF7935 chip or EML electronic chip key near the middle of the test platform, and wait for 3 to 5 seconds, you will hear the relay in the EWS3 or EWS4 make a sound when working and see the red indicator flashes, it indicates the chip programming complete.



Step 1: Connect EWS3 or EWS4 with the BM-W / Land Rover EWS Test Platform.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS



Step 2: After Supplying 12V Power, You Will See White Indicator Flashes.

Place the chip on the test platform as shown bellow, after the chip is correctly read out, the red indicator will flash.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS

Step 3. Put the induction coil on the sensing area, the indicator light will flash as shown in the following picture.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS



4. BM-W 7 series E65 E66 and X5 EML keys are rechargeable. And this test platform is compatible with all rechargeable keys.

EWS3 EWS4 Test Platform Rechargeable For BMW & Land Rover_VXDAS

Package List:

10pcs x EWS3 EWS4 Test Platform
