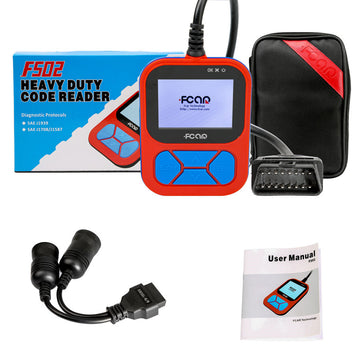

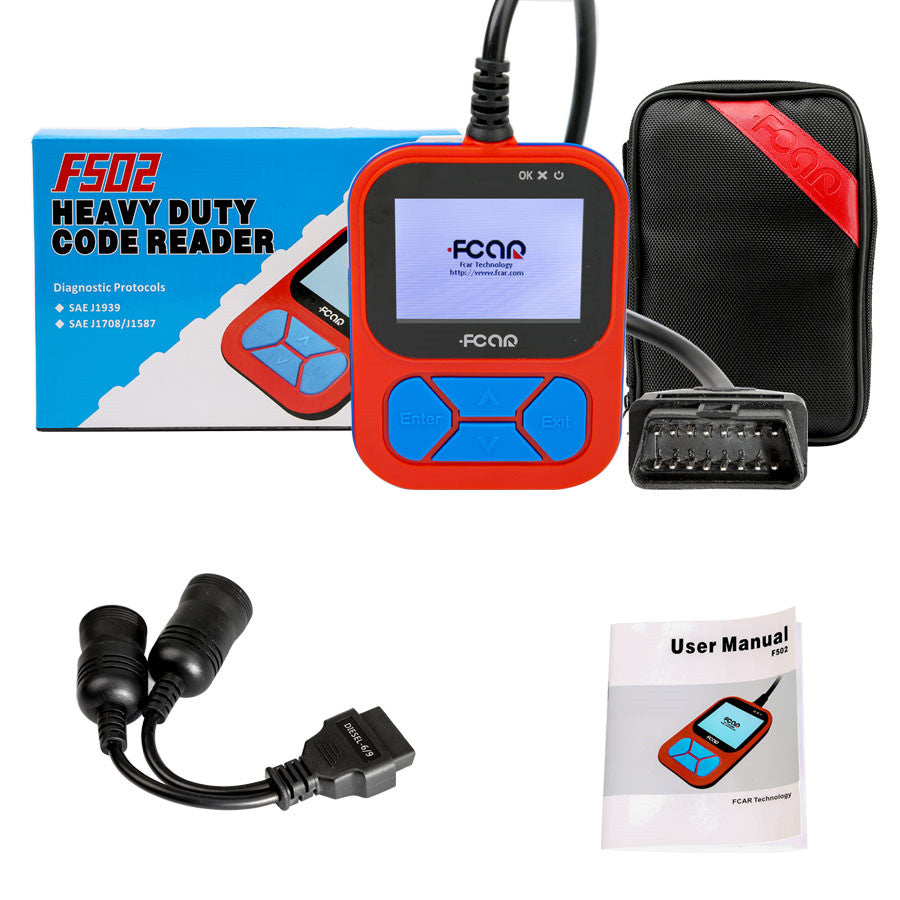

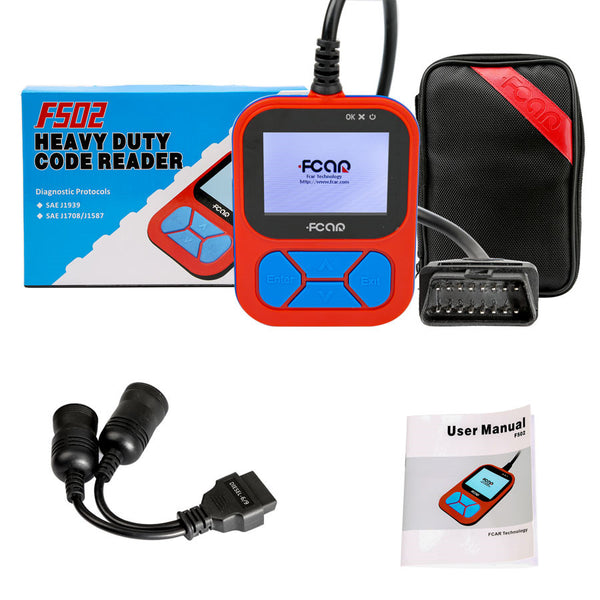

Fcar F502 Heavy Dutry Code Reader
Fcar F502 is a small Heavy Vehicle Code Reader which researched and developed by Fcar. It is with LCD true color display and can support heavy duty truck standard protocols. With high quality and good performance,this code reader can enable vehicle technicians to diagnose heavy duty trucks more easily and quickly.The micro tool is widely used in various maintenance companies, auto manufacturers, repair stations, petrol engine manufacturers and energy-based enterprises etc.
Top 6 Reasons to get Fcar F502 Heavy Duty Code Reader:
1.Exclusive Sale Heavy Duty code reader for the vehicles with standard protocol of heavy-duty trucks (J1939 and J1708)
2.Operation Methods:Diagnose the vehicles by OBD16 via diesel 6PIN and diesel 9PIN Diagnostic Protocol.
3.Supported Language: English
4.Update Online on Official Website
6.Support ECU of vehicles like CUMMINS、Bosch、DELPHI
Fcar F502 code reader Functions
◆Axle, Power Unit
◆Brakes, Power Unit
◆Brakes, Trailer #1
Fcar F502 Update Guide:
Step 1:Long-press “Enter” of Main Unit while insert it with USB cable.See Image 1
Step 2:Long-press “Enter” of Main Unitwhile insert it with USB cable. See Image 2.
Step 3:Long-press “Enter” of Main Unit while insert it with USB cable. See Image 3.
Fcar F502 Parameters:
Screen size :2.8 inch 320×240 LCD
Work voltage:8V ~ 32V
Work current :Typical value <100mA
Connection method :Standard 16-PIN OBD diagnostic connector
Working temperature :0℃~ 50℃
Storage environment temperature: -20℃~70℃
Relative humidity: 60%
Weight of the main unit: 280g

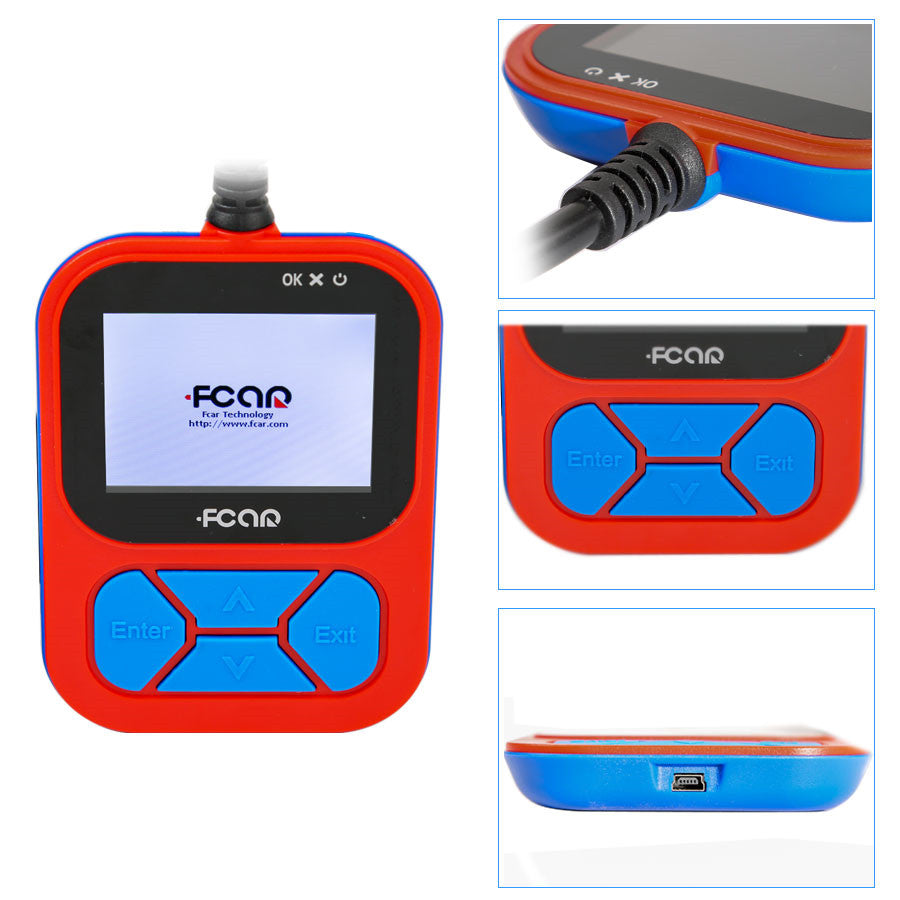

Fcar F502 Firmware Display:
1.OK diagnosis normal indicator light: The indicator light is on in communication diagnosis.
2.OK diagnosis failure indicator light: The indicator light is on when there is a failure of communication diagnosis;
3.Voltage indicator light: The indicator light is on when the machine is connected to OBDⅡ diagnostic sockets.
4.Diagnosis communication line, which should be connected to OBDⅡ diagnostic sockets on the vehicle;
5.Up and down buttons
6.Enter: The button for confirmation;
7.USB data line interface: Backup interface for data connecting;
8.Exit: The button for cancellation and back.
