Original Fcar FVCI Passthru J2534 VCI Diagnosis, Reflash And Programming Tool
Original Fcar FVCI Passthru J2534 VCI Diagnosis, Reflash And Programming Tool

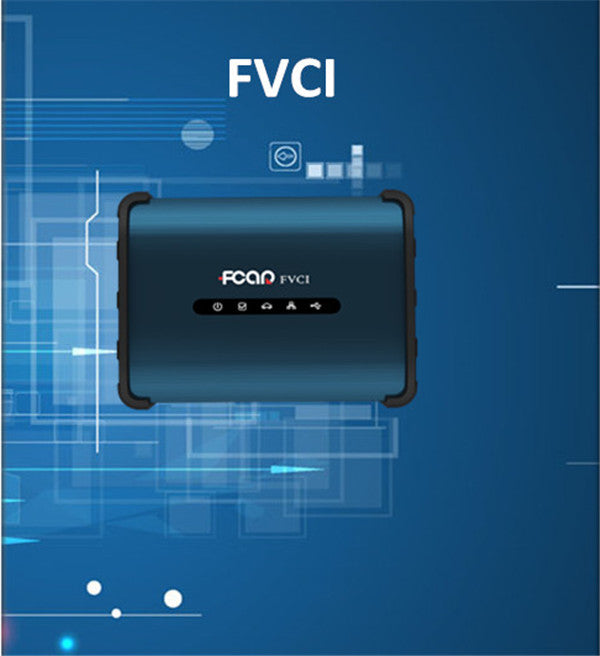

FVCI is a PASS-THRU device of FCAR. Works Same As Autel MaxiSys Pro MS908P, It supports J2534 protocol, and it will support other protocol for free later. FVCI J2534 supports multiply communication manner of DOIP protocol, and it can setup Ethernet(tx_+, tx_-, rx_+, rx_-) and active line to any pin number of OBD2 except for ground pins and power pin.
FCAR FVCI PassThru J2534 Reflash/Diagnostics VCI
FVCI is a PASS-THRU device of FCAR. VCI use 3 ARM microcontrollers design, this will make the processing capacity of FVCI stronger and support OEM software better. It supports J2534 protocol, and it will support other protocol for free later. In addition, the hardware of FVCI supports multiply communication manner of DOIP protocol, and it can setup Ethernet(tx_+, tx_-, rx_+, rx_-) and active line to any pin number of OBD2 except for ground pins and power pin.
FVCI J2534 Diagnostic and Programming
Product Feature:
Three ARM microcontrollers.
Three individual physical communication channels for protocols(CAN, single wire CAN, KWP, PWM, VPW, SCI and so on).
Ethernet converts to OBD2 for DOIP protocol, the pins(tx_+, tx_-, rx_+, rx_-, active line) can set any pin number of OBD2 except for ground pins and power pin.
Program voltage output between 5v and 20v.
One Ethernet port.
One analog input port.
Fcar FVCI Passthru Specification:
FVCI J2534 Support Function:
Diagnose Function:
TOYOTA Techstream
HONDA HDS
Volkswagen ODIS
VOVOL VIDA
GM GDS
BM-W ISTA
JARGUR LANDROVER JLR SDD
Reprogramming:
A-cura, Hon-da
A-udi
B-MW
Chry-sler, D-odge, J-eep, E-agle, Ply-mouth
For-d, Lin-coln, Mer-cury
GM
Hyun-dai
In-finiti
I-suzu
Ja-guar
K-ia
Land Rover
Le-xus
Ma-zda
Mer-cedes-Benz
Mi-ni
Mi-tsubishi
Ni-ssan
Por-sche
Su-baru
Su-zuki
To-yota, Scion
V-olkswagen
V-olvo
FVCI Device Interface:
Right panel
1) DC 12V/1A
2) Network port
3) USB port
4) Update pin, use for firmware update
Left panel
5) Analog input
6) Programming voltage supply, 5V-20V, 120ma
7) Vehicle communication port
Lamp panel
8) Device power status lamp
9) Software of device running status lamp
10) Vehicle communication status lamp
11) Network connection status lamp
12) USB connection status lamp
How to Update Fcar FVCI J2534 Passthru Software & Firmware?
Official website: www.fcar.com
1. Click “FVCI” icon on the desktop. Note: The computer must be connected to internet.
2. Click “Read Version” can read FVCI software and hardware version.
3. Click “Firmware Update” can update the hardware.
4. Click “Software Update” can update the software.
5. Click”DOIP”, then click “Enter DOIP mode”, the FVCI will enter the situation of Ethernet convert to OBD2 of DOIP.
6. Click ”Firmware Refresh” when you operate“firmware update” error.
Update Tips
1) Please enable internet connection before upgrade
2) The firmware version and software version must be the newest version meanwhile. Otherwise the device will appear some error.
3) If you use “Firmware update” failed, you can use “Firmware refresh”.
