GODIAG GT105 OBD2 Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector Converts Car Battery to 12V DC Power
-
Express Estimated Delivery:Oct 09 - Oct 13
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
GODIAG GT105 OBD2 Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector Converts Car Battery to 12V DC Power
GODIAG GT105 OBD II Break Out Box With Immo, Break Out Box is safe and easy to use. Break Out Box Has auxiliary detection communication, used to detect whether there is communication between the vehicle and the vehicle.
Why choose GODIAG GT105 OBD II Break Out Box:
9. Assist in the detection of communication: When you use a device to test on a car and it indicates that there is no communication, then you can use GT105 OBD assistant to plug into the car, detect whether there is communication between the car and the GT105 OBD assistant. If there is no problem with the communication between the car and GT105, maybe your device is faulty or not supported.
About GODIAG GT105 OBD II Break Out Box:
The product is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.
The device provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power. The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.
With GODIAG GT105 OBD II Break Out Box, you can:
All car keys lost matching---wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for anti-theft key learning.)
VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)
The GT105 power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, to read the data of BM-W BENZ anti-theft ECU, or another car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )
Provide a 12V power supply for the key cutter (12V).
Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)

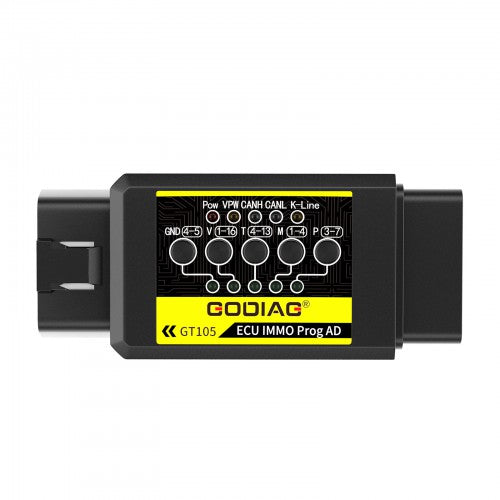

Do you know what the GODIAG GT105 OBD II Break Out Box indicator means?
Package Includes:
1pc x GODIAG GT105 Host
1pc x Power Cord with Battery Clip
