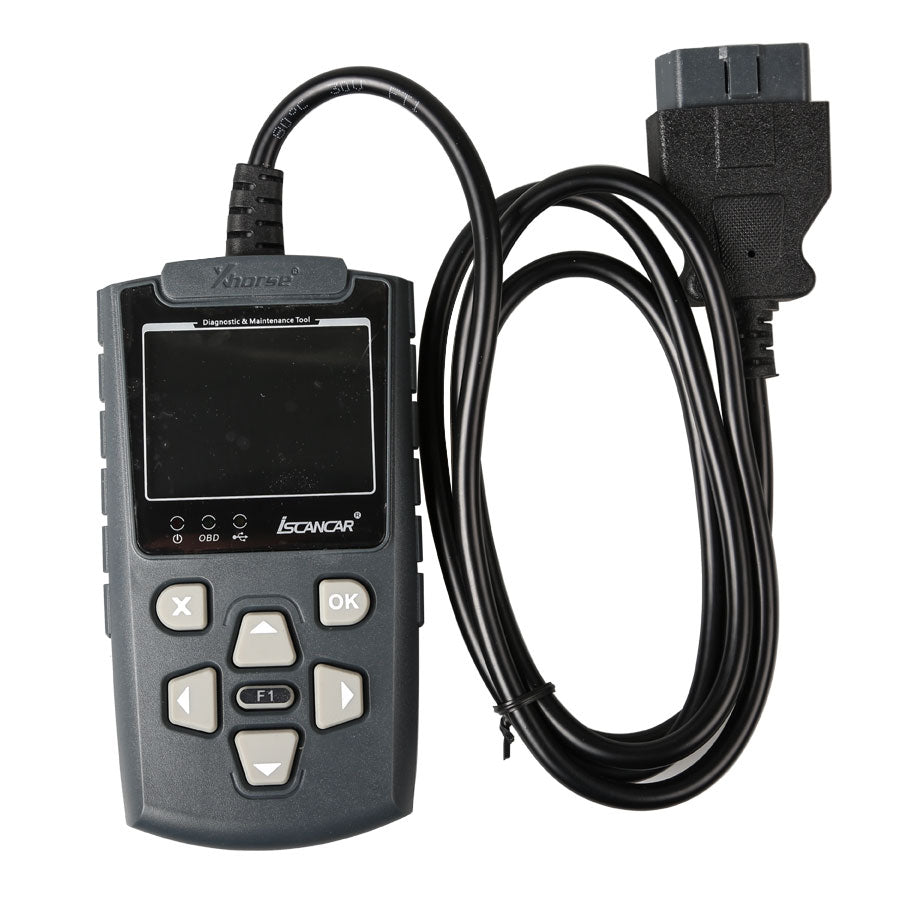

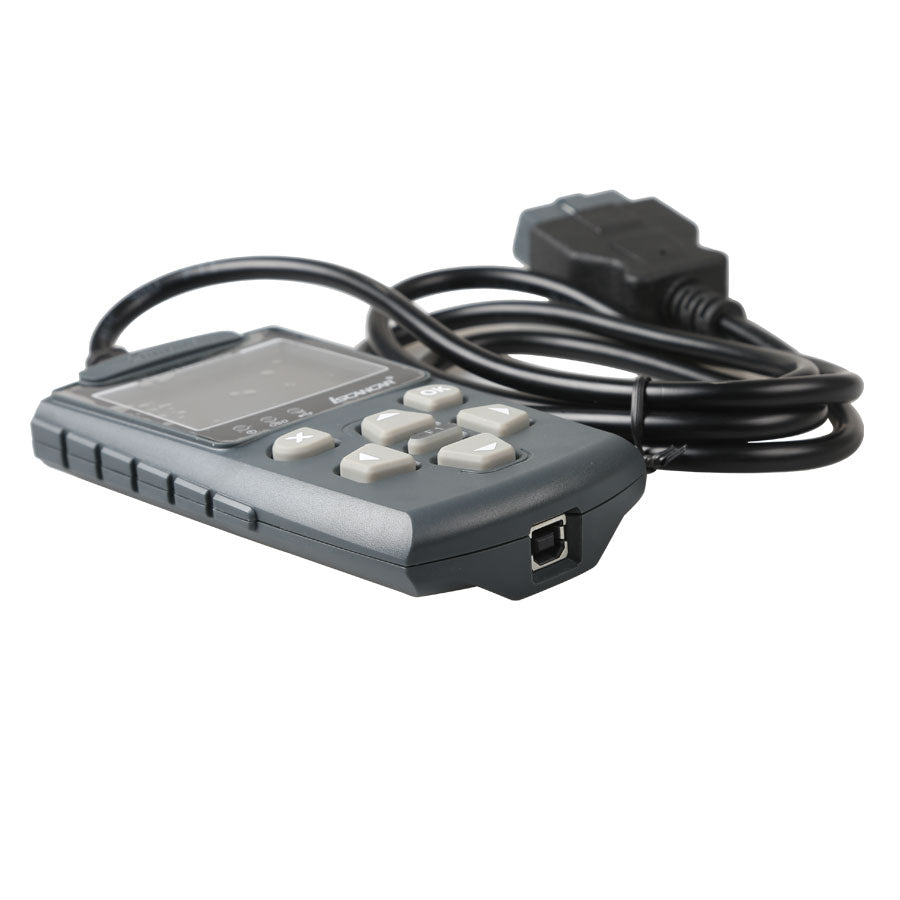

Xhorse Iscancar VAG MM007 Diagnostic and Maintenance Tool Supports Mileage Correction for V-W/A-udi/Skoda/Seat
Xhorse Iscancar VAG MM007 Diagnostic and Maintenance Tool Supports Mileage Correction for V-W/A-udi/Skoda/Seat
- 1. Language: English and Chinese
- 2. Online Upgrade: VAG-MM007 can be upgraded through the internet.
- 3. Support controller diagnostic: basic setting, channel adaption, read DTC, clear DTC,system login etc.
- 4. OBD read PINs, adaption after replacing controller, gateway register etc.
- 5. Offline refresh all module parameters, no need to be online.
- 6. Support all used accessories replacement for V-W, for A-udi, for Skoda, for Seat.
- 1. Language: English and Chinese
- 2. Online Upgrade: VAG-MM007 can be upgraded through the internet.
- 3. Support controller diagnostic: basic setting, channel adaption, read DTC, clear DTC,system login etc.
- 4. OBD read PINs, adaption after replacing controller, gateway register etc.
- 5. Offline refresh all module parameters, no need to be online.
- 6. Support all used accessories replacement for V-W, for A-udi, for Skoda, for Seat.
Iscancar VAG MM-007 supports controller diagnosis, such as basic setting, channel adaption, read DTC, clear DTC, system login etc. And also support special functions: OBD read PINs, adaption after replacing controller, gateway register etc.
Iscancar VAG MM-007 Highlights
1. Language: English and Chinese
2. Online Upgrade: VAG-MM007 can be upgraded through the internet.
3. Support controller diagnostic: basic setting, channel adaption, read DTC, clear DTC,system login etc.
4. OBD read PINs, adaption after replacing controller, gateway register etc.
5. Offline refresh all module parameters, no need to be online.
6. Support all used accessories replacement for V-W, for A-udi, for Skoda, for Seat.
Iscancar VAG MM-007 Functions
1. Basic function:
Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login etc.
2. Guide function:
There are many commonly used functions. We have simplified the process so you can follow more easily.
3. Special function:
change vin, read pin, immo switch, adapt unit module, key learning, fix A-udi RB4/RB8 not start, transport mode, sync dashboard time, clear all DTCs and gateway register
4. Support module including:
5. Built-in database:
There’s a built-in database in the diagnostic tool.
Users can write data record without online account.
It has already supported many controllers, and more data will be continuously added.
6. Essential Function of Refitment and Maintenance:
Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation and EPB replace brake pads. In addition, further functions will be added continuously.
7. Write data record:
When replacing new controller, you must write data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data record offline. And you can active some functions like MKE etc.
Example for write data record:
1. PQ35 gateway 7N0907530AN: active MKE. after writing data record, you can set MKE on dashboard.
2. MQB gateway 5Q0907530AJ: active MKE. after writing data record, you can set MKE on dashboard.
3. PQ35 replace kessy 5K0959434B: before writing data, there’s a DTC “no basic setting”, the car can’t find keys. After writing data the DTC disappear, the car can find keys.
4. MQB replace kessy 5Q0959435A: before writing data, there’s a DTC 10478040(invalid data record), the car can’t find keys. After writing data the DTC disappear, the car can find keys.
5. MQB front camera 5Q0980653G: before writing data, there’s a DTC 0649 (invalid data record), after writing data the DTC disappear.
6. MQB new ACC 5Q0907561A: before writing data, there’s a DTC” invalid data record”, after writing data the DTC disappear.
7. PQ Xenon 5M0907273F: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
8. PQ tire pressure monitor 3AA907273D: before writing data, there’s a DTC 12652550 (invalid data record), the controller don’t work, after writing data the DTC disappear, you can set tire pressure on the dashboard.
9. MQB new DCC 5Q0907376: before writing date, there’s a DTC 813056 (invalid data record), after writing data the DTC disappear.
10. MQB parking assistance 5Q0919298K: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
Support the following dashboard Mileage adjustment
2006-2013 for Sagitar2007-2013 for A-udi R8 /TT/ A3/RS3/S3
2006-2013 for Bora
2006-2013 for Golf 5/6
2006-2013 for Polo
2006-2013 for Lavida (1.4,1.6,2.0)
2006-2013 for new Passat (color & mono]
2006-2013 for Magotan
2006-2013 for CC
2007-2013 for Tiguan
2006-2013 for Touran
2000-2013 A4
2008-2013 A4l, Q5, A5
2008-2013 A6l, Q7
2006-2013 Octavia, Supurb
2006-2013 Hao Rui
2006-2013 for Fabia
2010 - 2013 for A-udi A1
2006-2013 for Most Skoda, for Seat, for V-W, for A-udi this will do the mileage correction OBD Plugin
Technical Support:
1. Xhorse technical support team is professional and efficient, online technical support for free.2. Provide lifelong after-sale perfect service guarantee customer trouble free operation of machine.
3. Consider about customer feedback suggestion and requirement carefully.
Parameters:
LCD resolution: 320×240
USB standard: USB2.0
Working temperature: 0-60°C
OBD line length: 1.5meters
Power consumption: 80mA/12V
Iscancar VAG MM 007 Menu Display:

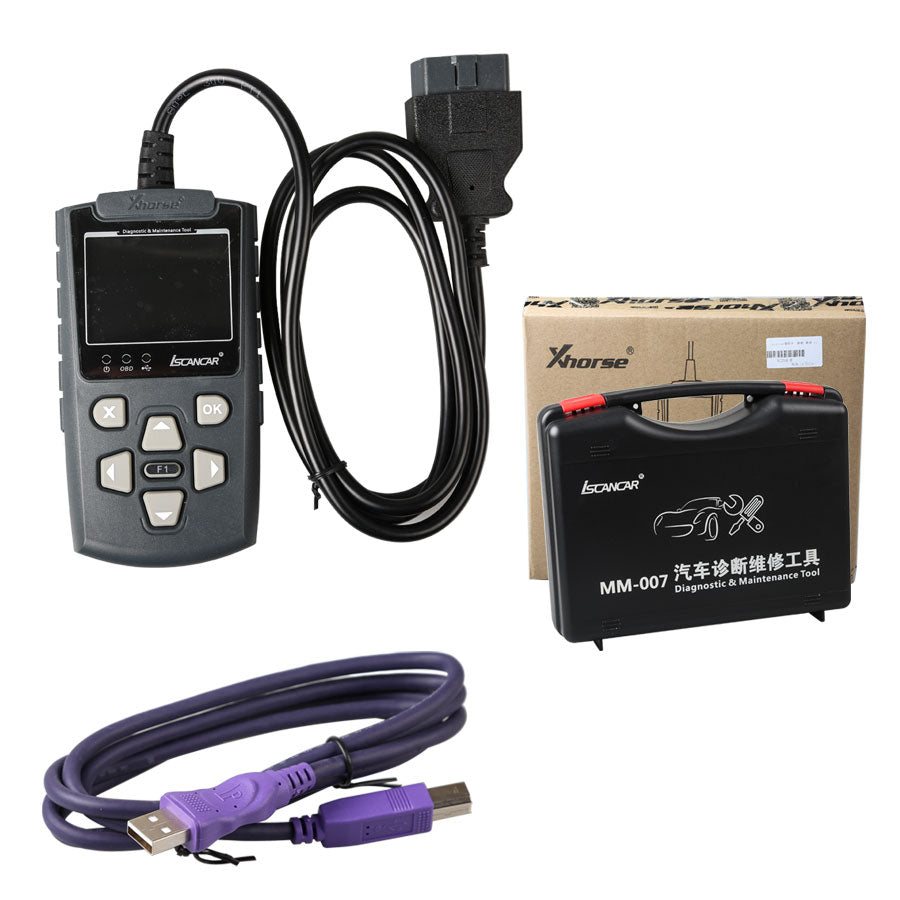

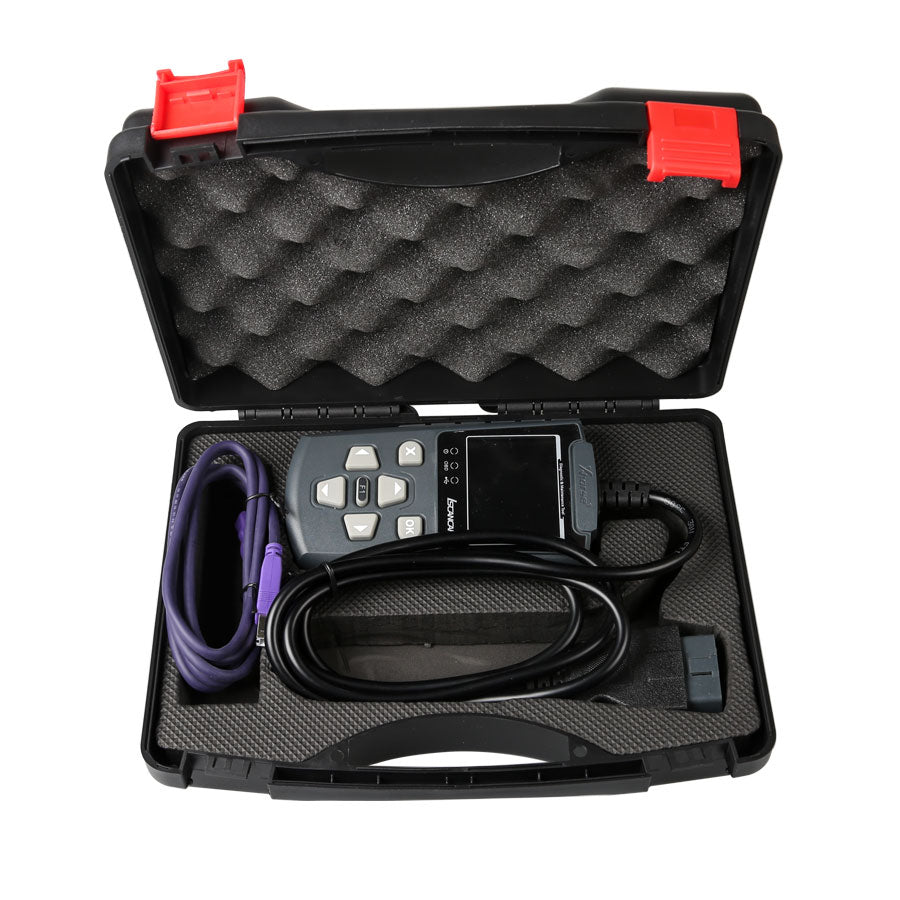

Package including:
1pc x Iscanner VAG MM-007 Diagnostic and Maintenance ToolIscancar VAG MM-007 supports controller diagnosis, such as basic setting, channel adaption, read DTC, clear DTC, system login etc. And also support special functions: OBD read PINs, adaption after replacing controller, gateway register etc.
Iscancar VAG MM-007 Highlights
1. Language: English and Chinese
2. Online Upgrade: VAG-MM007 can be upgraded through the internet.
3. Support controller diagnostic: basic setting, channel adaption, read DTC, clear DTC,system login etc.
4. OBD read PINs, adaption after replacing controller, gateway register etc.
5. Offline refresh all module parameters, no need to be online.
6. Support all used accessories replacement for V-W, for A-udi, for Skoda, for Seat.
Iscancar VAG MM-007 Functions
1. Basic function:
Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login etc.
2. Guide function:
There are many commonly used functions. We have simplified the process so you can follow more easily.
3. Special function:
change vin, read pin, immo switch, adapt unit module, key learning, fix A-udi RB4/RB8 not start, transport mode, sync dashboard time, clear all DTCs and gateway register
4. Support module including:
5. Built-in database:
There’s a built-in database in the diagnostic tool.
Users can write data record without online account.
It has already supported many controllers, and more data will be continuously added.
6. Essential Function of Refitment and Maintenance:
Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation and EPB replace brake pads. In addition, further functions will be added continuously.
7. Write data record:
When replacing new controller, you must write data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data record offline. And you can active some functions like MKE etc.
Example for write data record:
1. PQ35 gateway 7N0907530AN: active MKE. after writing data record, you can set MKE on dashboard.
2. MQB gateway 5Q0907530AJ: active MKE. after writing data record, you can set MKE on dashboard.
3. PQ35 replace kessy 5K0959434B: before writing data, there’s a DTC “no basic setting”, the car can’t find keys. After writing data the DTC disappear, the car can find keys.
4. MQB replace kessy 5Q0959435A: before writing data, there’s a DTC 10478040(invalid data record), the car can’t find keys. After writing data the DTC disappear, the car can find keys.
5. MQB front camera 5Q0980653G: before writing data, there’s a DTC 0649 (invalid data record), after writing data the DTC disappear.
6. MQB new ACC 5Q0907561A: before writing data, there’s a DTC” invalid data record”, after writing data the DTC disappear.
7. PQ Xenon 5M0907273F: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
8. PQ tire pressure monitor 3AA907273D: before writing data, there’s a DTC 12652550 (invalid data record), the controller don’t work, after writing data the DTC disappear, you can set tire pressure on the dashboard.
9. MQB new DCC 5Q0907376: before writing date, there’s a DTC 813056 (invalid data record), after writing data the DTC disappear.
10. MQB parking assistance 5Q0919298K: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
Support the following dashboard Mileage adjustment
2006-2013 for Sagitar2007-2013 for A-udi R8 /TT/ A3/RS3/S3
2006-2013 for Bora
2006-2013 for Golf 5/6
2006-2013 for Polo
2006-2013 for Lavida (1.4,1.6,2.0)
2006-2013 for new Passat (color & mono]
2006-2013 for Magotan
2006-2013 for CC
2007-2013 for Tiguan
2006-2013 for Touran
2000-2013 A4
2008-2013 A4l, Q5, A5
2008-2013 A6l, Q7
2006-2013 Octavia, Supurb
2006-2013 Hao Rui
2006-2013 for Fabia
2010 - 2013 for A-udi A1
2006-2013 for Most Skoda, for Seat, for V-W, for A-udi this will do the mileage correction OBD Plugin
Technical Support:
1. Xhorse technical support team is professional and efficient, online technical support for free.2. Provide lifelong after-sale perfect service guarantee customer trouble free operation of machine.
3. Consider about customer feedback suggestion and requirement carefully.
Parameters:
LCD resolution: 320×240
USB standard: USB2.0
Working temperature: 0-60°C
OBD line length: 1.5meters
Power consumption: 80mA/12V

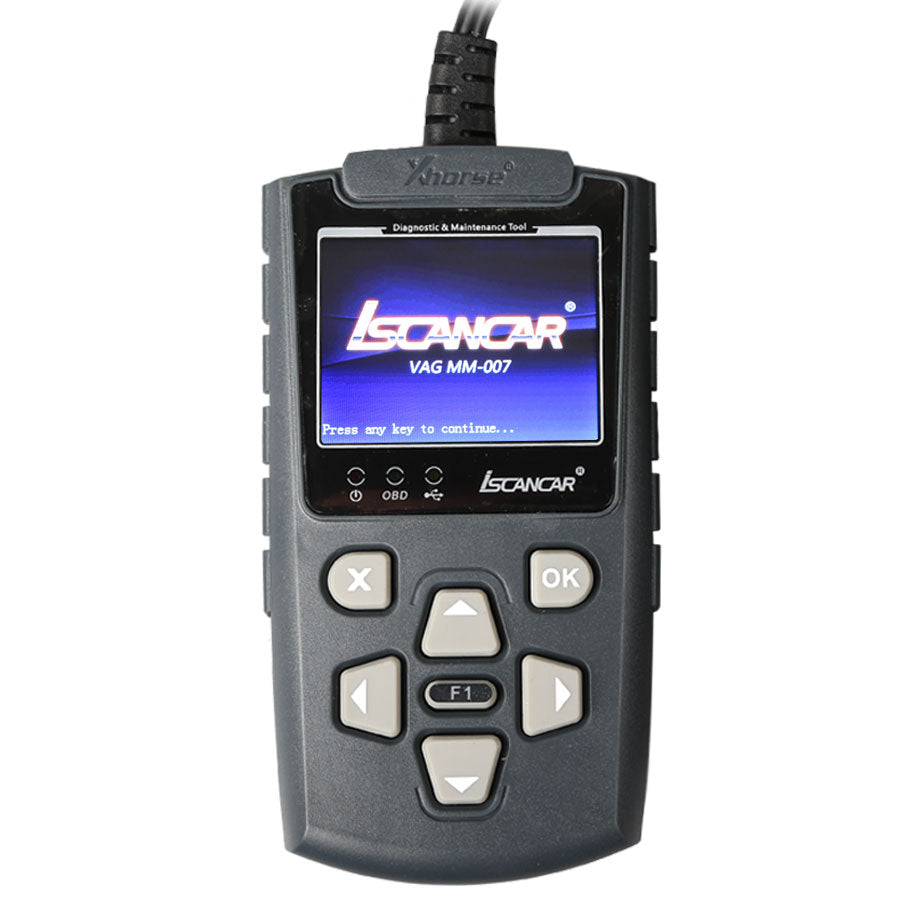

Iscancar VAG MM 007 Menu Display:
Package including:
1pc x Iscanner VAG MM-007 Diagnostic and Maintenance Tool
Online Upgrade:
The V-A-G MM-007 can be upgraded through the internet.
VAG-MM007 V2.2.9 (2018-05-16）
VAG-MM007 V2.2.9 Software Free Download
pls download upgrade kit to update firmware
+1: Simulator:
Sniffer all modules data.
Main menu->Module simulation->sniffer data.
Sniffer CAN Bus data.
Main menu->Module simulation->sniffer data;
Load online file.
Main menu->Module simulation->Load online file.
Simulate all modules.
PC sofware->user choose modules.
+2: Read 4th gen IMMO and MQB dashboard key ID.
Main menu->Guide function->17 dashboard.
+3: Golf7 sportsvan ABS code generate.
Main menu->Guide function->03 ABS.
+4 Parameter files:
Tiguan_PQ35_05KESSY_5K0959434E。
Golf7_19_5Q0907530M。
MQB_19_5Q0907530AF。
MQB_19_5Q0907530AH。
MQB_19_5Q0907530AJ。
MQB_19_5Q09075330AM。
Tiguan_MQB_14_5Q0907376A
PQ_19_7N0907530BG
A-udiS3_19_530AJ
Dynaudio_10channels_5C6035456C
PassatB8_PDC_3Q0919298B
TuranL_19_5Q0907530AM
TuranL_10_5QA919298
Teramont_6C_AreaView
Tiguan_MQB_4B
Tiguan_MQB_6C_AreaView
Tiguan_PDC_5Q0919298C
PassatB8Variant_14_5Q0907376B
SharanGP_3C_5Q0907686B
PassatGP_19_7N0907530BL
NewSuperB_47
leon_fcm_3Q0907338
leon_A5_3Q0980654G
leon_pdc_5QA919294A
leon_44_5Q0909144S
Octavia_A5_5Q0980653G
Octavia_42_5Q4959593E
Octavia_A5_3Q0980654H
Octavia_52_5Q4959592E
Octavia_44_5Q0909144S
octavia_44_5Q0909144T
octavia_3C_5Q0907686B
passatB8_55_7P6907357C
Q3_RMC_8U1035183D
A-udiQ5_6C_AreaView4M0907428E
A-udiQ5_22_sportdiff_8K0907163B
A-udiR8_MXB_4H4907357F,G
Fix: others.
V2.2.3 (2018-02-08)
+add function:
change MQB mileage,support cars:
A-udi A3/S3 2014+
A-udi Q2
V-W Golf7
V-W Polo(MQB)
V-W Tiguan II
V-W Touran II
V-W crafter 2017+
V-W Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use Xhorse upgrade kit, select 2.2.3 version firmware to update.
V2.2.3 (2018-02-08)
+add function:
change MQB mileage,support cars:
A-udi A3/S3 2014+
A-udi Q2
V-W Golf7
V-W Polo(MQB)
V-W Tiguan II
V-W Touran II
V-W crafter 2017+
V-W Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use Xhorse upgrade kit, select 2.2.3 version firmware to update.
V2.1.8 (2017-07-18)
---------------------------------------------
1:Add EA111 UDS engine check oil level.
2:Add EA111 UDS genine clear value adapt throttle.
3:Add UDS EPB set "VIN check" option.
4:Add GTI7.5 3Q0907338 parameter file.
5:Add A-udi start-stop setting.
6:Add A-udi A4(2017) sports needle.
7:Fix 4B unit connection bug.
8:Change some description of parameter files.
V2.1.6 (2017-05-15)
---------------------------------------------
1:Add magotan/CC replace new comfort module.
2:Add MIB RCTA sensors setting.
3:Add some controller configuration parameter files.
4:Add SD card format &create folders.
5:Add recover coding after refresh parameter files.
6:Fix other bug.
V2.1.4 (2017-04-27)
---------------------------------------------
1:parameter refresh write multi data blocks one time.
2:Fix can't auto detect instrument type when read PIN.
3:Add parameter files as below:
3.1: New lavida steering assistance 180909144.
3.2: skoda PQ superb kessy.
3.3: lamando kessy three antennas.
3.4: V-W411 kessy 5K0959434H.
3.5: V-W411 BCM light data. 5K0937087AG.
3.6: V-W411 DCC 3C0907376x.
3.7: V-W411 gateway(active/deactive MKE).
3.8: V-W411 DSP config data(fender/dynaudio).
3.9: V-W411CS headlight AFS.5M0907357G.
3.10:V-W411CS front camera,3Q0980654.
V2.1.3 (2017-04-22)
---------------------------------------------
1:Add 2017 sharan light data.
2:Add xenon static AFS.
3:Fix reprogram BCM firmware bug.
4:Fix reprogram UDS module bug.
5:Add parameter files as below:
5.1: lamando ACC 5Q0907572A/B/D.
5.2: lamando PDC 5Q0919294.
5.3: lamando PLA 5Q0919298A/D.
5.4: lamando Kessy 5Q0959435A.
5.5: lamando Gateway 5Q0907530N/Q.
5.6: lamando rear left door 5Q4959393B/595B.
5.7: lamando rear right door 5Q4959393B/595B.
5.8: V-W37x headlight AFS 5Q0907357/A/D.
5.9: V-W37x SWA 5Q0907686.
5.10: V-W37x front camera 5Q0980653C/E/F.
5.11: V-W37x steering assistance 5Q0909144P.
V2.1.2 (2017-04-13)
--------------------------------------------
1:Add PQ MIB clear DTC after updating firmware.
2:Add PQ MIB golden menu.
3:Add sharan sliding door basic setting.
4:Add Lane keep for 30 seconds.
5:Add 0AM DSG Software Nr Index Version GKBS.
6:Add some parameter files.
7:Fix some bugs.
Online Upgrade:
The V-A-G MM-007 can be upgraded through the internet.
VAG-MM007 V2.2.9 (2018-05-16）
VAG-MM007 V2.2.9 Software Free Download
pls download upgrade kit to update firmware
+1: Simulator:
Sniffer all modules data.
Main menu->Module simulation->sniffer data.
Sniffer CAN Bus data.
Main menu->Module simulation->sniffer data;
Load online file.
Main menu->Module simulation->Load online file.
Simulate all modules.
PC sofware->user choose modules.
+2: Read 4th gen IMMO and MQB dashboard key ID.
Main menu->Guide function->17 dashboard.
+3: Golf7 sportsvan ABS code generate.
Main menu->Guide function->03 ABS.
+4 Parameter files:
Tiguan_PQ35_05KESSY_5K0959434E。
Golf7_19_5Q0907530M。
MQB_19_5Q0907530AF。
MQB_19_5Q0907530AH。
MQB_19_5Q0907530AJ。
MQB_19_5Q09075330AM。
Tiguan_MQB_14_5Q0907376A
PQ_19_7N0907530BG
A-udiS3_19_530AJ
Dynaudio_10channels_5C6035456C
PassatB8_PDC_3Q0919298B
TuranL_19_5Q0907530AM
TuranL_10_5QA919298
Teramont_6C_AreaView
Tiguan_MQB_4B
Tiguan_MQB_6C_AreaView
Tiguan_PDC_5Q0919298C
PassatB8Variant_14_5Q0907376B
SharanGP_3C_5Q0907686B
PassatGP_19_7N0907530BL
NewSuperB_47
leon_fcm_3Q0907338
leon_A5_3Q0980654G
leon_pdc_5QA919294A
leon_44_5Q0909144S
Octavia_A5_5Q0980653G
Octavia_42_5Q4959593E
Octavia_A5_3Q0980654H
Octavia_52_5Q4959592E
Octavia_44_5Q0909144S
octavia_44_5Q0909144T
octavia_3C_5Q0907686B
passatB8_55_7P6907357C
Q3_RMC_8U1035183D
A-udiQ5_6C_AreaView4M0907428E
A-udiQ5_22_sportdiff_8K0907163B
A-udiR8_MXB_4H4907357F,G
Fix: others.
V2.2.3 (2018-02-08)
+add function:
change MQB mileage,support cars:
A-udi A3/S3 2014+
A-udi Q2
V-W Golf7
V-W Polo(MQB)
V-W Tiguan II
V-W Touran II
V-W crafter 2017+
V-W Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use Xhorse upgrade kit, select 2.2.3 version firmware to update.
V2.2.3 (2018-02-08)
+add function:
change MQB mileage,support cars:
A-udi A3/S3 2014+
A-udi Q2
V-W Golf7
V-W Polo(MQB)
V-W Tiguan II
V-W Touran II
V-W crafter 2017+
V-W Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use Xhorse upgrade kit, select 2.2.3 version firmware to update.
V2.1.8 (2017-07-18)
---------------------------------------------
1:Add EA111 UDS engine check oil level.
2:Add EA111 UDS genine clear value adapt throttle.
3:Add UDS EPB set "VIN check" option.
4:Add GTI7.5 3Q0907338 parameter file.
5:Add A-udi start-stop setting.
6:Add A-udi A4(2017) sports needle.
7:Fix 4B unit connection bug.
8:Change some description of parameter files.
V2.1.6 (2017-05-15)
---------------------------------------------
1:Add magotan/CC replace new comfort module.
2:Add MIB RCTA sensors setting.
3:Add some controller configuration parameter files.
4:Add SD card format &create folders.
5:Add recover coding after refresh parameter files.
6:Fix other bug.
V2.1.4 (2017-04-27)
---------------------------------------------
1:parameter refresh write multi data blocks one time.
2:Fix can't auto detect instrument type when read PIN.
3:Add parameter files as below:
3.1: New lavida steering assistance 180909144.
3.2: skoda PQ superb kessy.
3.3: lamando kessy three antennas.
3.4: V-W411 kessy 5K0959434H.
3.5: V-W411 BCM light data. 5K0937087AG.
3.6: V-W411 DCC 3C0907376x.
3.7: V-W411 gateway(active/deactive MKE).
3.8: V-W411 DSP config data(fender/dynaudio).
3.9: V-W411CS headlight AFS.5M0907357G.
3.10:V-W411CS front camera,3Q0980654.
V2.1.3 (2017-04-22)
---------------------------------------------
1:Add 2017 sharan light data.
2:Add xenon static AFS.
3:Fix reprogram BCM firmware bug.
4:Fix reprogram UDS module bug.
5:Add parameter files as below:
5.1: lamando ACC 5Q0907572A/B/D.
5.2: lamando PDC 5Q0919294.
5.3: lamando PLA 5Q0919298A/D.
5.4: lamando Kessy 5Q0959435A.
5.5: lamando Gateway 5Q0907530N/Q.
5.6: lamando rear left door 5Q4959393B/595B.
5.7: lamando rear right door 5Q4959393B/595B.
5.8: V-W37x headlight AFS 5Q0907357/A/D.
5.9: V-W37x SWA 5Q0907686.
5.10: V-W37x front camera 5Q0980653C/E/F.
5.11: V-W37x steering assistance 5Q0909144P.
V2.1.2 (2017-04-13)
--------------------------------------------
1:Add PQ MIB clear DTC after updating firmware.
2:Add PQ MIB golden menu.
3:Add sharan sliding door basic setting.
4:Add Lane keep for 30 seconds.
5:Add 0AM DSG Software Nr Index Version GKBS.
6:Add some parameter files.
7:Fix some bugs.
