KT200 ECU Programmer KT200 ECU/TCU programmer Support OBD/BENCH/BOOT/JTAG/BDM Multiple Protocols
KT200 ECU Programmer KT200 ECU/TCU programmer Support OBD/BENCH/BOOT/JTAG/BDM Multiple Protocols
KT200 ECU programmer read and writes ECU & TCU FLASH and EEPROM in OBD, Bench, Boot Mode, and BDM/JTAG.KT200 ECU Programmer covers ECU & TCU of cars, trucks, motorcycles, tractors, and boats.
Notion:
Please be sure to use the software and equipment of KT200 to obtain the wiring diagram, and read and write according to the wiring diagram.
Do not use the wiring method of other tools to read and write with KT200, it will damage the KT200 ecu programmer, and we will not provide after-sales service in this case.
KT200 ECU Programmer is a complete tool for reading and programming ECU (engine control units) and TCU via OBD/Bench/Boot mode, the BDM/Jtag systems are also available.
KT200 New Software Free Download:
KT200 Software V23.02.01：KT200 ECU Programmer Software

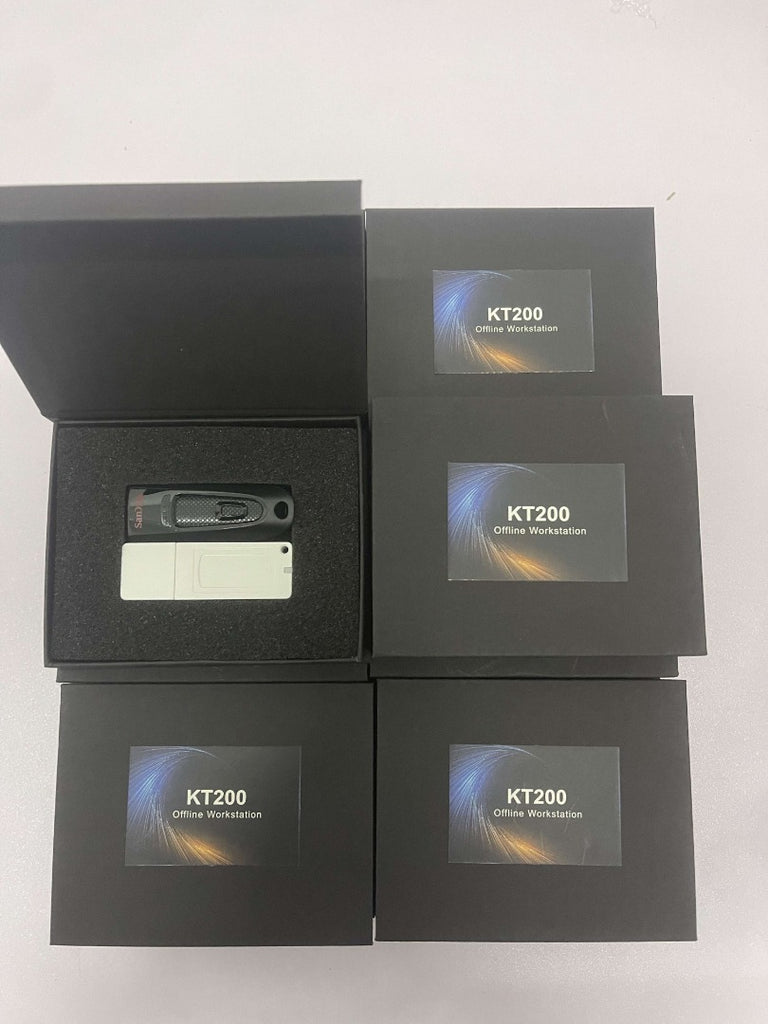

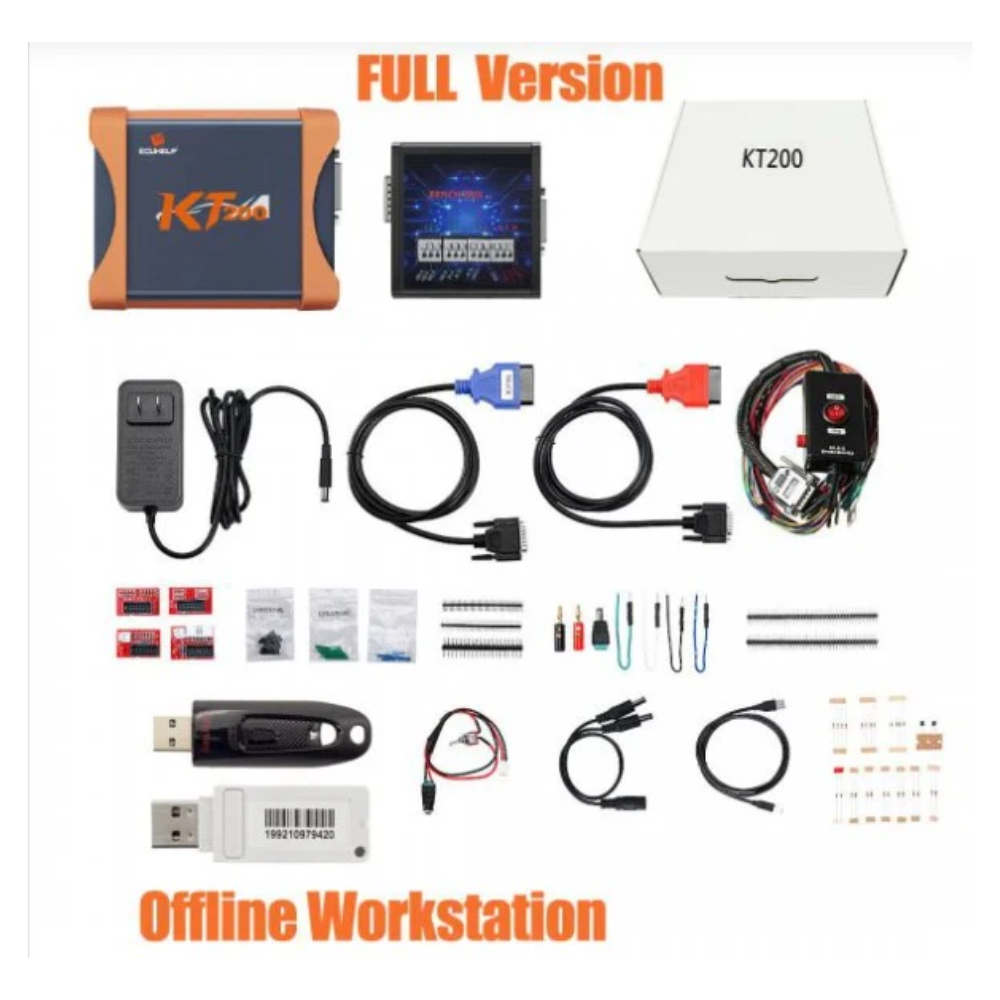

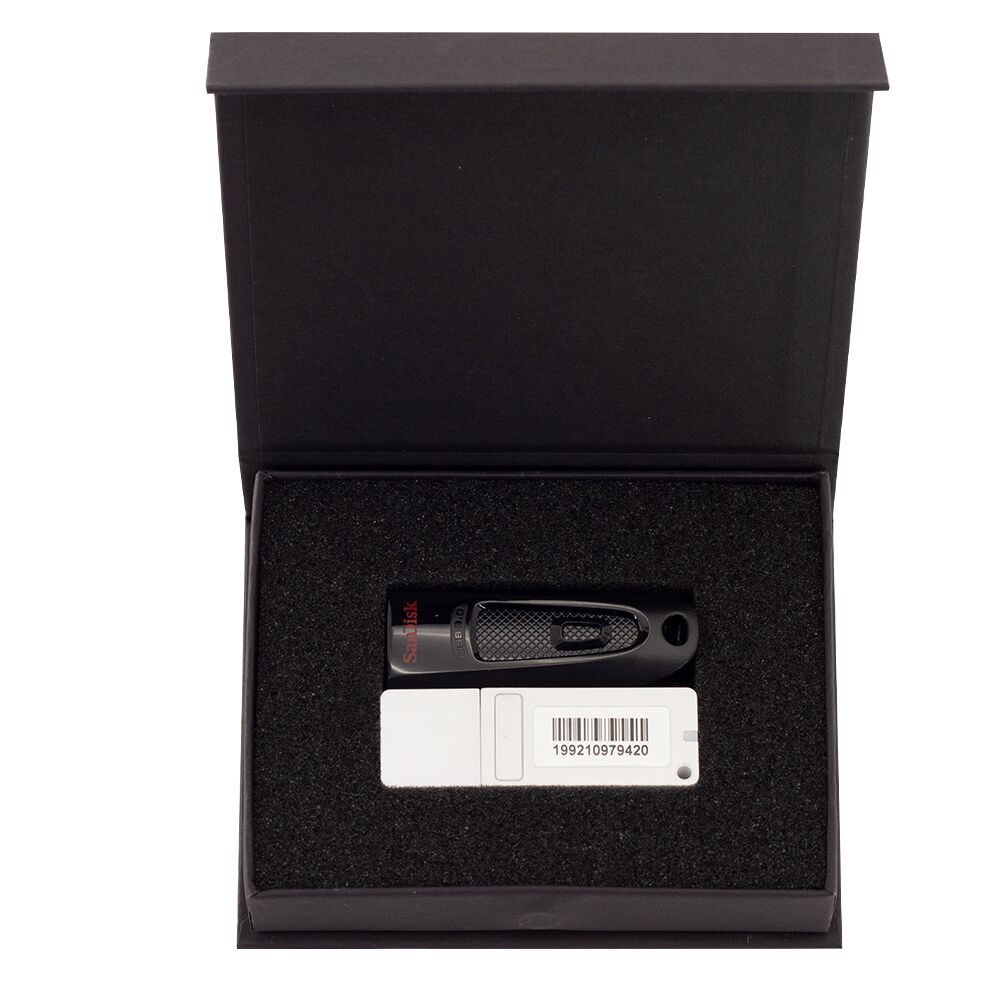

Offline Workstation Software: Click here for the latest update link
If you need to purchase an Offline Workstation separately, please click here>>
If use offline work station, after 15 days please connect KT200 with Internet network to upload its database.
About KT200 Service
1. Support Checksum Calculation
2. 1-year warranty period, after-sales service guarantee (>>Online Technical Support)
3. Free Update Online
4. No Annual Subscription
5. Additional TCU package available for Automatic Transmissions for free
6. Get free VR files and Damaos files
KT200 Manual And Related Problem-Solving Methods:
KT200 Manual And Related Problem-Solving Methods
KT200 Software Version V23.02.01：
1. Fixed the bug that the software functions were not synchronized.
2. Optimized server connection time, high speed, and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode. For example, the EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read-and-write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
8. This update is mainly a software update and no new protocols have been added.
9. The KT200 has always been supported by other devices that have been circulated online.
10. New protocol updates will be announced, so stay tuned.
KT200 Support ECU/TCU List:
KT200 ECU Programmer Support ECU List
KT200 ECU Programmer Support TCU List
More Software is free and shared by VXDAS to inquiry VR Files, for EGR DPF removal, etc.
KT200 ECU Programmer 2 Type Version:

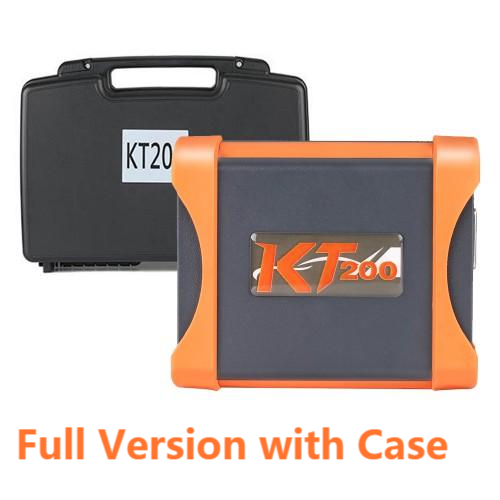

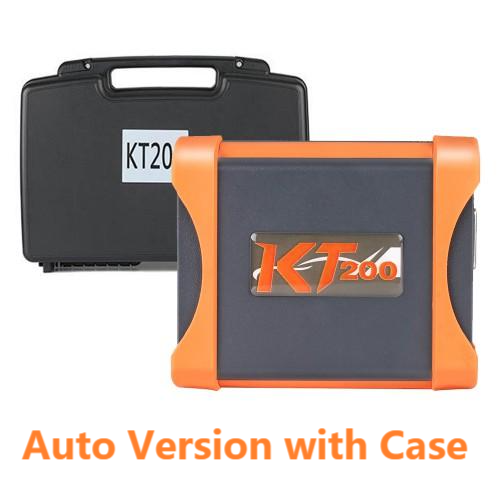

Auto Version: OBD function limited, does not support Motorbike, Tractors & Boats by OBD function.

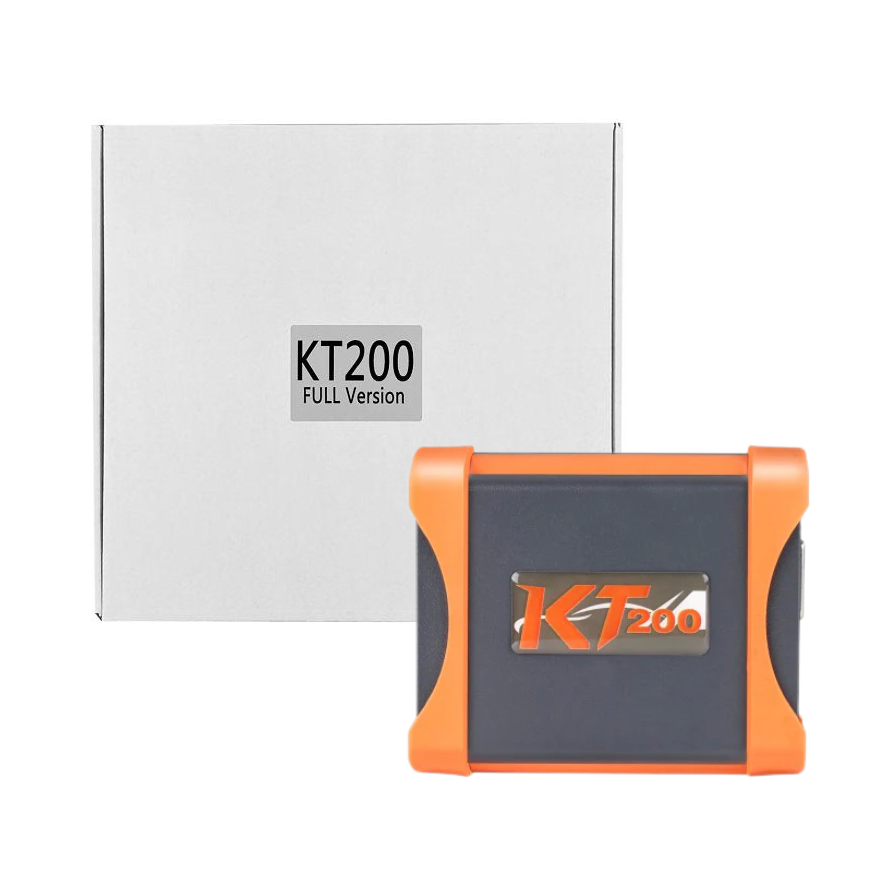

Full Version: all configurations unlimited
| Auto Version | Full Version | |
| Full System | √ | √ |
| Bench Mode | √ | √ |
| BOOT Mode | √ | √ |
| BDM/JTAG | √ | √ |
| TCU Gear | √ | √ |
| Car OBD | √ | √ |
| Truck OBD | √ | √ |
| Motorbike OBD | × | √ |
| TractorOBD | × | √ |
| Boat OBD | x | √ |
KT200 ECU Programmer Overview:
|
Hardware Multiple Protocols |
OBD/BENCH/BOOT/BDM/JTAG |
| Software Version: | V23.02.01 |
| Extra Fee | No Need for Yearly subscription |
| Software Update | Free update online lifetime |
|
|
|
|
|
Windows 8/8.1 Windows 10 Windows 11 |
|
|
RAM > 8GB |
|
|
|
KT200 New Software V12.10 Installation Video
KT200 ECU Programmer Review - BOOT BM-W
KT200 ECU Programmer Work On VW EDC16 via Bench Pin Out
KT200 ECU Programmer Clone Toyota Denso via BDM Mode:
KT200 ECU Programmer Features:
1. KT200 ECU Programmer from vxdas.com covering up to 5400 ECU, and over 500 TCU.
2. Support Audi/VW ECU Clone via Bench Mode pinout.
3. Bosch EDC17, MED17/ME17, and SIEMENS Pcr2.1(with Pinout also unlocking possibility) read and write in Bench Mode.
4. ChipTuningKit KT200 ECU Programmer Vehicle list is constantly updated and stays ahead of the industry.
7. The KT200 ECU programmer software allows you to forcibly write (forcible clone) without checksumming and supports forcibly reading and writing unknown ECUs with supported chip models.
8. Covering a full range of German, ECU Programmer, Japanese, American, and Chinese models.
10. Software Update: Update online free lifetime via http://www.ChipTuningKit.com
ChipTuningKit KT200 ECU Programmer Functions:
1. ECU/TCU clone
2. Read and write ECU data
3. ECU maintenance engineering
4. Full read and write ECU/TCU data
5. OBD2 reading (Currently only supports 2008-2020 vehicles )
6. Checksum correction
7. Read and write Virtual data
8. Supports online update
9. Full read and write TCU (Micro+EEPROM)
10. Must work online (access online server)
11. ECU remapping
Notion:
1. Please close the anti-virus program before you run the KT200 software, it may incorrectly identify the software as harmful and break it.
2. Please connect to the Internet to work with KT200 software, otherwise, it will not work.
3. We provide the following items: DTC code Removal EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
KT200 ECU Programmer Compare with PCMTuner
KT200 ECU Programmer VS PCMTuner |
||
| Name | KT200 ECU Programmer | PCMTuner |
| Image |  |
 |
| Software language | English, Deutsch, Italiano, Francais, Espanol, Portugues, Polish, Czech, Romana, Turkish | English, Russian |
| Master or Slave version | Master | Master |
| Offline/online | Must work online | Works offline, VR needs online. |
| Operation mode | Bench, Boot, BDM/KTAG and OBD mode | Bench, boot and OBD mode |
| ECU types | Bosch, magneti marelli, continental,
denso, Delco, Temic or siemens |
Bosch, magneti marelli,
continental or siemens |
| VR | free VR files in the ECU Help program | online access to VR files |
| Checksum calculation | Yes | Yes |
| License | Auto Version:(7 licenses)Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT,
Bench Mode, TCU Gear |
67 modules in 1 (MODULE LIST) |
| Full Version:(10 licenses)Car OBD, Truck OBD,
Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear |
||
| Support DTC Gearbox | Yes | Yes |
| Audi VAG Gearbox | Yes | Yes |
| PCR .1 | Yes | Yes |
| EDC16 | Yes | with Fetrotech plugin |
| EDC17 | Yes | Yes |
| ME9.0 | Yes | No |
| Read ISN | No | No |
| MG1 MD1 | Yes, built-in | with Fetrotech plugin |
| VR server and files | Yes | Yes |
| With wiring diagram | Yes | Yes |
| Tuner account | Yes | Yes |
| Free damaos for tuner | Yes | Yes |
| Ticket system for support | No | Yes |
| Clone ECU and TCU | Yes | Yes |
| Car OBD | Yes | Yes |
| Truck OBD | Yes | No |
| Tractor OBD | Full Version Yes | No |
| Auto Version No | ||
| Boat OBD | Full Version Yes | No |
| Auto Version No | ||
| Motorbike OBD | Full Version Yes | No |
| Auto Version No | ||
| Technical support | No annual subscription required | No annual subscription required |
| ECU List | KT200 ECU List | PCMTuner ECU/TCU List |
| KT200 TCU List | ||
| Dongle | No dongle | USB Smart Dongle |
What's the difference between KT200 ECU Programmer & CG FC200?
KT200 ECU Programmer VS CG FC200 ECU Programmer |
||
| Name | KT200 | CG FC200 |
| Image |  |
 |
| Software Language |
Italian, English, Dutch, French,
Spanish, Polish, Portuguese, Czech, Romanian, Turkish |
English, French, Spanish,
Polish, Turkish, Chinese |
| Dongle | NO | NO |
| ECU Search |
Search ecu by ecu number,
car brand |
Search ecu by bosch ecu
number, car brand |
| Operation mode |
Beach, Boot, BDM/KTAG
and OBD mode |
Bench, Boot, and OBD
Mode |
| ECU types |
Bosch, magneti marelli, continental,
denso, Delco, Temic or siemens |
Bosch |
| Vietual reading | Free VR files in ECUHelp program | NO |
| Wiring diagram |
Check wiring in KT200, online
update wiring diagram and Device show you wiring diagram |
Device shows you wiring diagram |
|
Tuner account for
DPF, EGR, ADBlue OFF and Remap |
YES | NO |
| Checksum | YES |
Can calculate checksum online
as long as the subscription is active |
| Update & Subscription |
KT200 free update online,
No subscription, No annual fee, no monthly fee. |
1 Year Free update, subscription
is $125/ year |
| ECU List | Support ECU List | Support ECU List |
| TCU List | Support TCU List | NO |
| License |
Auto Version:(7 license)Car OBD,
Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear |
Full License |
|
Full Version:(10 license)Car OBD, Truck OBD,
Tractor OBD , Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear |
||
| Read ISN | NO | YES |

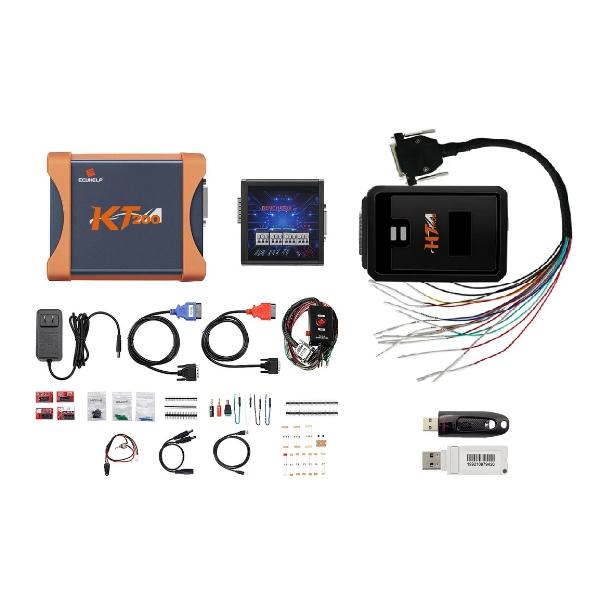

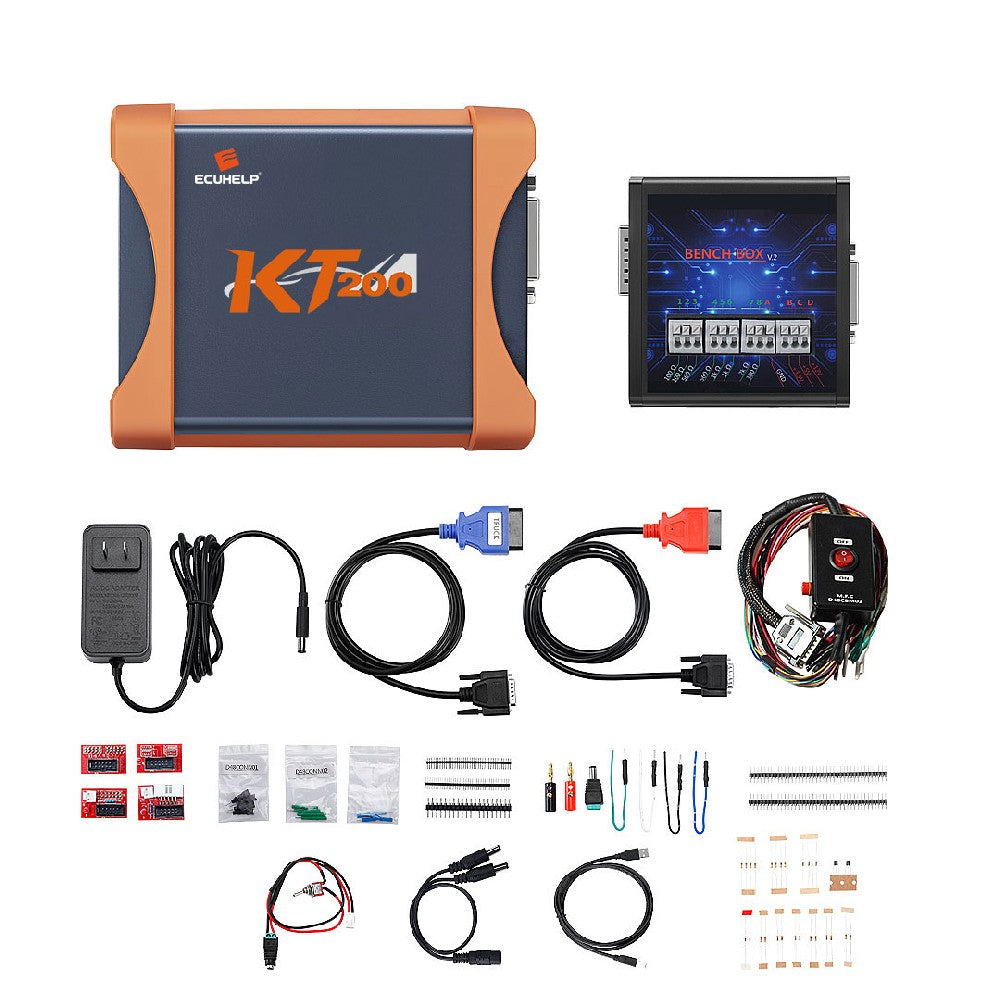

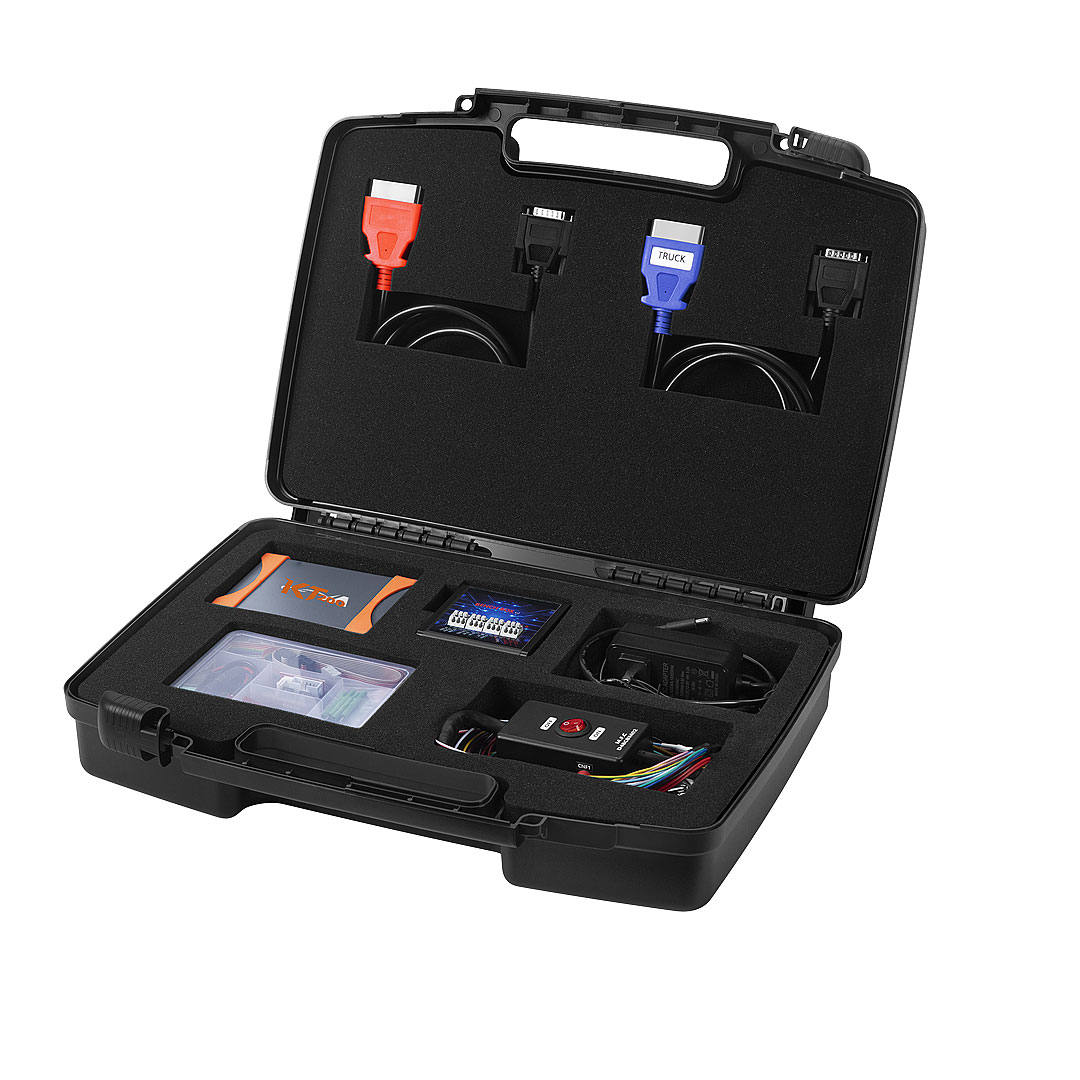

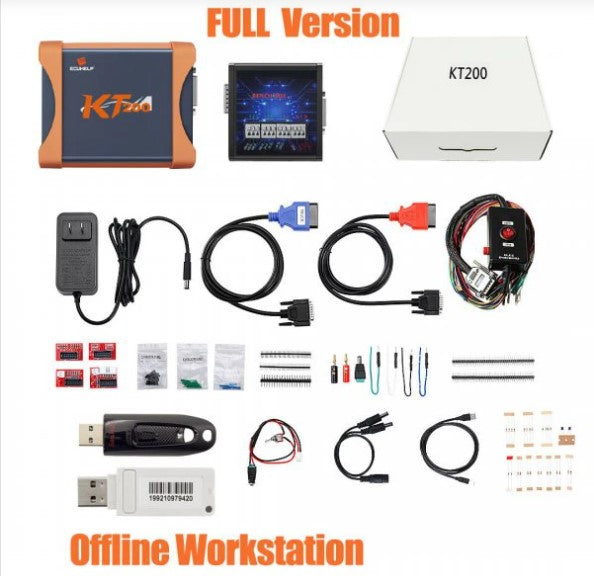

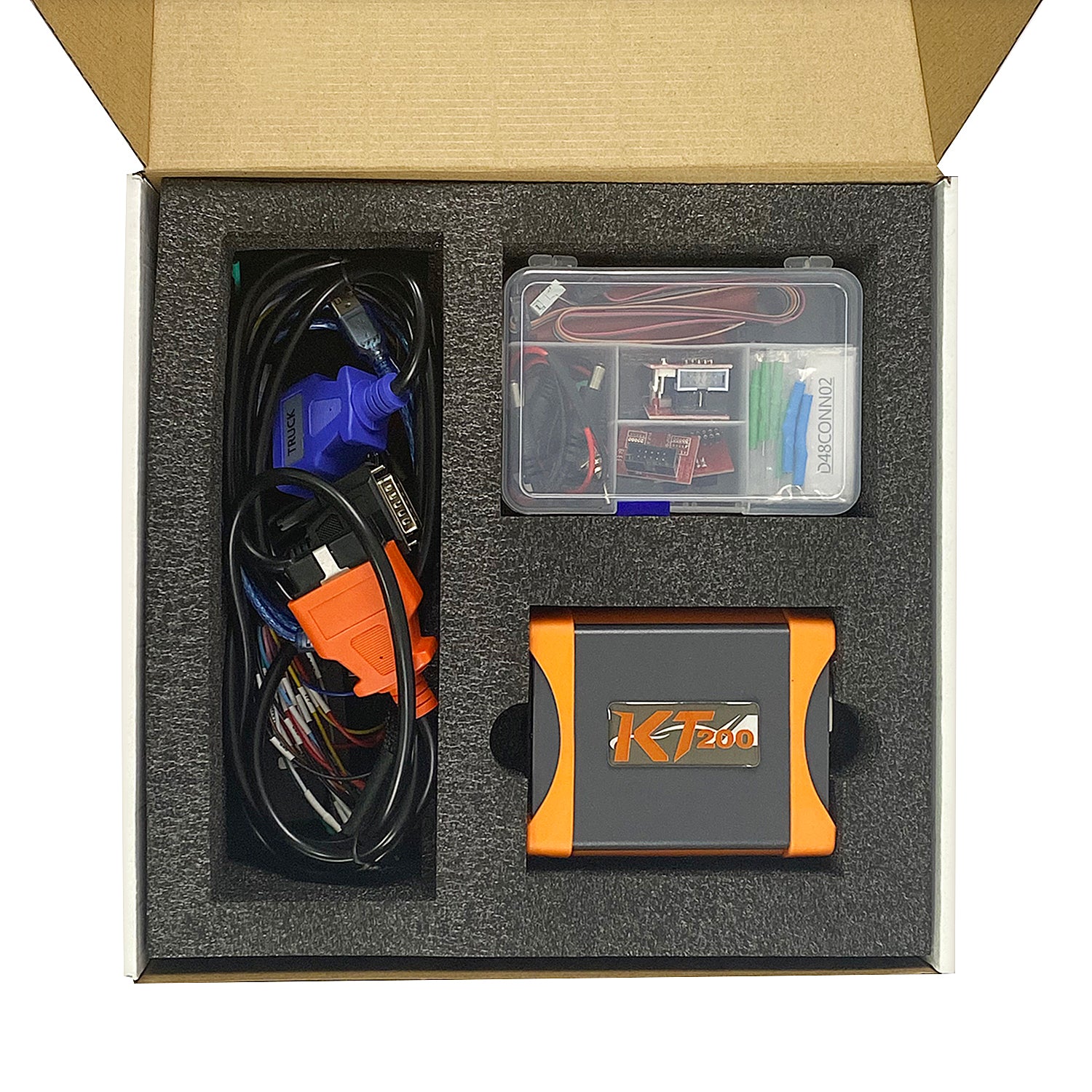

KT200 ECU Programmer Packing List:
Master x 1,
BENCH BOX x1,
OBD wires x 2,
pinout line x 1,
BDM adapter x4,
Transfer cables x 3,
Power wire x 4,
Set of resistors x1,
Adapter plugs x 4 sets,
Power adapters x 5 sets.
Software(Optional): Auto Version/Full Configuration Software
