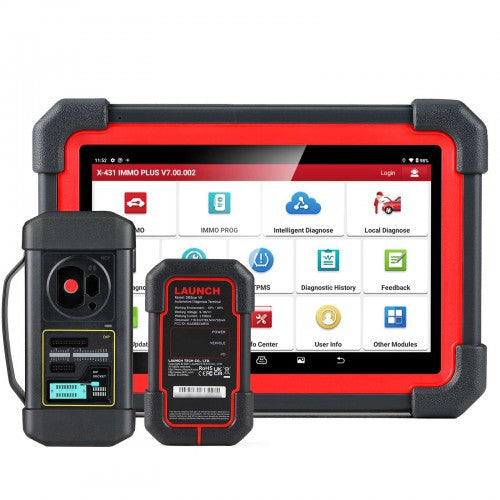

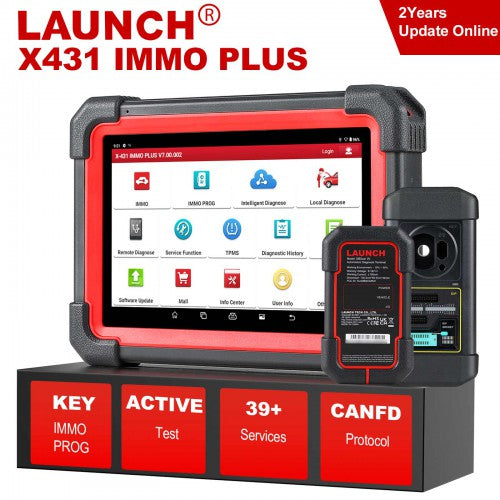

LAUNCH X431 IMMO PLUS Key Programmer IMMO Clone Diagnostics 3-in-1 Supports ECU Coding and 39 Special Functions

Regular price $1,139.00
Sale price $1,139.00 Regular price $1,215.00
Unit price
Save 6%
Compare Ask a question

Ask a Question

* Required fields

Share
  • Express Estimated Delivery:Oct 15 - Oct 19

  • Free Shipping Method: Estimate dilevery 8-19 business days

Guarantee safe & secure checkout

LAUNCH X431 IMMO PLUS

LAUNCH X431 IMMO PLUS Key Programmer IMMO Clone Diagnostics 3-in-1 Supports ECU Coding and 39 Special Functions

Description
Return & Warranty

LAUNCH X431 IMMO PLUS Key Programmer Supports ECU Coding 39 Special Functions

X431 IMMO Plus Functions:

Three functions in One

1) IMMO: read password, match key, replace module, renew data
2) Clone: Engine, Gearbox
3) Diagnosis for Full function of all car series: diagnosis, coding, IMMO, initialization
IMMO IMMO password reading
ignition key learning
IMMO module replacement
module erase/renew  Mercedes-benz, BM-W
CLONE engine module clone
Gearbox module clone
DIAGNOSTICS system diagnosis
special functions


Introduction:

LAUNCH X431 IMMO PLUS key programmer has three functions: IMMO, clone, diagnostics. It uses USB connection, which makes clone and matching faster and more stable. Launch X431 IMMO PLUS is an upgraded version of LAUNCH X431 IMMO ELITE, which adds ECU coding functionality



Why do you buy Launch X431 IMMO Plus from VXDAS?

  • LAUNCH official authorized dealer
  • 2 Year Free Update Online on LAUNCH Official Website, 1 Year Warranty
  • Global Version NO IP Limit
  • Lifetime Tech Support Online

LAUNCH X431 IMMO PLUS Highlights

1. Professional key programming tools, support all lost keys and add new keys. Specialist V-W/A-udi, BM-W and Mercedes functions

2. Complete OE-Level system diagnosis + 39 Reset services

3. Full bi-directional control (active test) + ECU coding + ECU module clone

4. FCA “Auto Auth” Access

5. 2 years free update

6. Auto scan + remote diagnostics + diagnostic feedback…

7. VAG Guided Functions

Other Functions:

1) IMMO PIN code reading
Adding keys and all keys lost matching without removing the 4th generation OBD of Volkswagen
Ford IMMO (data synchronization) initialization
Nissan B18 IMMO replacement without password
Lost Toyota keys
Lost all Volvo keys
Lost all Peugeot keys
Citroen key lost/module replacement

2) BM-W ISN code reading and writing
bm-w key matching
BM-W 6/8HP gearbox erase
Porsche key matching
Mercedes-Benz key matching (FBS3)
Mercedes-Benz key increase calculation password (FBS3)

3) Mercedes-Benz key lost calculation password (FBS3)
Benz engine, erase gearbox (FBS3)
Benz lock replacement (FBS3)
The Mercedes-Benz gear module erase (FBS3 and before)
Mercedes Engine Block Clone (FBS4)
Mercedes-Benz Gearbox Module Clone (FBS4)
V-W A-udi MQB Engine, Gear Box, Steering Column Replacement
V-W A-udi BOSCH engine clone
V-W A-udi Siemens engine clone
Adding and all keys lost for the fourth-generation instrument of Volkswagen Online
V-W online fourth-generation meter MQB keys added and all keys lost
Volkswagen fourth generation instrument (5ND920873B) replacement
UDS engine replacement function after 14 years, fourth-generation instrument + fifth-generation Bosch engine (no need for the original car engine)

4) BOSCH ECM Clone
CONTINENTAL/SIEMENS ECM clone
DELCO ECM clone
Bosch TCM clone
ZF TCM clone
GETRAG TCM clone
Temic TCM clone
DELCO TCM clone
BOSCH ECM clone
CONTINENTAL/SIEMENS ECM CLONE
DELCO ECM clone
Bosch TCM clone
ZF TCM clone
GETRAG TCM clone
Temic TCM clone
DELCO TCM clone
bm-w key matching
BM-W engine ISN code reading and replacement
BM-W BOSCH engine clone
BM-W Siemens engine clone
BM-W E chassis 6HP, 8HP gearbox erase
BM-W E chassis 6HP, 8HP gearbox clone
BM-W F/G chassis 8HP gearbox erase
BM-W F/G chassis 8HP gearbox clone
BM-W (CAS1, CAS2, CAS3, CAS4, FEM/BDC) Replacement
Porsche key matching
Martha mileage adjustment
Mercedes-Benz key matching (FBS3)
Mercedes-Benz key increase calculation password (FBS3)
Mercedes-Benz key lost calculation password (FBS3)
Benz engine, erase gearbox (FBS3)
Benz lock replacement (FBS3)
The Mercedes-Benz gear module erase (FBS3 and before)
Mercedes Engine Block Clone (FBS4)
Mercedes-Benz Gearbox Module Clone (FBS4)

Full System Diagnostics OE-Level with LAUNCH X431 IMMO PLUS

As an OE level car diagnostic tool, LAUNCH X431 IMMO Plus can access almost all car ECUs to read, clear codes, extract real-time data, freeze frame, ECU information, and perform active tests, match, adapt, turn off signal lights, reset monitors. A full range of car models and a complete car diagnostic system make it a professional car diagnostic tool.

Includes: ABS systems, engine systems, SAS systems, TPMS systems, IMMO systems, battery systems, oil service systems, SRS systems, DPF systems, air conditioning systems, transmission systems, etc..

Active tests (bidirectional control)

Through active component tests, also called drive tests, Launch X431 IMMO PLUS can pinpoint the location of vehicle problems, allowing you to quickly know if any system, component, or subsystem is working properly or not. For example, if the fuel pump is not working and causing the ignition to fail, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the immo elite x431, you can quickly determine if it is a wiring, relay, or pump problem without removing any parts. (Note: Not all features are available and vary by vehicle!)

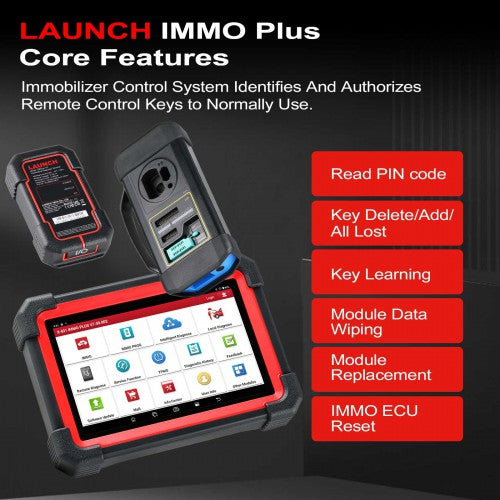

IMMO Functions+Key Programming

As a professional IMMO programmer, Launch IMMO Plus can help you: Read PIN/CS, Reset/Code/Backup/Clone IMMO ECU, Replace/Clone Module, Read/Delete IMMO Data, Read & Write EEPROM/MCU Chip, Read/Write EEPROM and FLASH of ENG ECU and TCM ECU, Read/Write MC9S12 Encryption Chip, Add/Delete a Key Fob, All Keys Lost, Key generation, Key learning, Remote learning, etc.

 ECU Coding+Bi-Direction Control+Over 39 Service Functions+AUTO VIN
LAUNCH X431 IMMO Plus support 39+ special resets which gives you the ability to use professional-level relearn procedures to complete repairs or maintenance, Reset Brake/SAS/Gear/Oil...ECU coding can help you customize your car faster as needed, optimize the specific performance of vehicles to improve fuel efficiency, unlock hidden features, and deactivate annoying features.

Full System Diagnosis of 10000+ Vehicles Covered:

LAUNCH IMMO Plus supports multiple car models in Europe, America, and Asia

Anti-theft Advantages:

1. Anti-theft Module Replacement: support BM-W, Mercedes-Benz, V-olkswagen A-udi, Porsche, Honda, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, GAC Trumpchi, SAIC Maxus, Great Wall Motor, Chery, Dongfeng Fengxing, JAC passenger car, and other models anti-theft related module replacement functions;
2. Anti-theft Password Reading: Supports anti-theft password reading for BM-W, Mercedes-Benz, V-olkswagen A-udi, Peugeot Citroen, G-M, Nissan, Hyundai, Kia, Chery, Dongfeng Fengxing, JAC passenger cars, etc.;
3. Key Matching: Support Ford, G-M, Mercedes-Benz, BM-W, V-olkswagen A-udi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, Great Wall Motor, Chery, Changan Automobile, Jianghuai Passenger Car, Wuling Baojun, The key matching function of BYD and other models.

4. Support V-olkswagen A-udi MQB platform engine ECU replacement or cloning (no need for the original car engine ECU data, it can be directly read from the key);
5. Support V-olkswagen A-udi MQB platform gearbox ECU replacement or clone;
6. Support A-udi (0AW/0B5) 5th-generation gearbox ECU replacement;
7. Support V-W 4th generation UDS engine ECU read, write and clone;
8. Supports more than 170 types of Bosch, more than 10 types of Siemens engine ECUs, and 18 types of gearbox ECUs that can be cloned in BENCH mode without demolition (covering various models in Europe, America and Asia, and continuing to increase);
9. Support the wiping function of the Mercedes-Benz engine, gearbox, lock head, and BM-W gearbox;
10. Support the matching function and password calculation function of Chery sedans and JAC passenger cars up to 2021;


LAUNCH X431 IMMO PRO /PLUS supports CANFD and DIOP protocol now, it supports G-M after 2020!

LAUNCH X431 IMMO PLUS is the only key programming/diagnostics product in this price range that is compatible with the CAN-FD protocol and supports the latest for G-M vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in a CAN frame, which is faster than other products, and reduces the risk of undetected bugs to greatly improve the user experience.

2020-2021 Chevrolet Onix
Support 2020 Chevrolet Tracker
Support 2020 Chevrolet Suburban
Support 2021 Chevrolet Tahoe
Support 2021 Buick
Support 2021
Cadillac Escalade Support 2021 Cadillac Escalade
Support 2021 G-MC Yukon Support 2021
G-MC Yukon XL Support
Holden
Support DAEWOO
Support Alpheon
Support Ravon
Support Pontiac
Support Saturn
Support Hummer Support

Specification:

Processor: 2.0GHz, 4 cores
OS: Android 10.0
RAM: 4GB
Storage: 64GB
Battery: 12300mAh

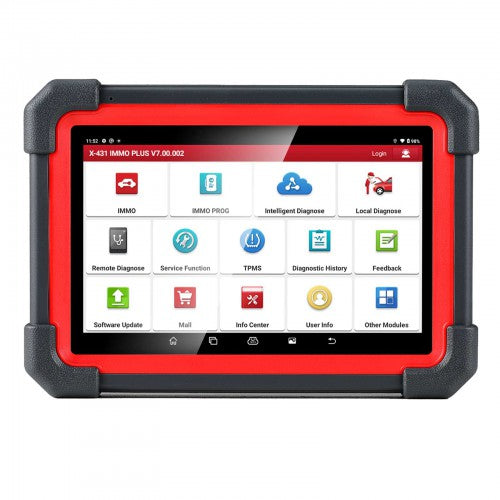

Display: 8 inches, 1280*800 resolution
Camera: rear 8 million pixels
WIFI: 2.4GHz/5GHz (dual frequency)
Interface: TYPE A *1 &TYPE C*1
Working temperature: 0~50℃
Size: 234*166*39.5(mm)

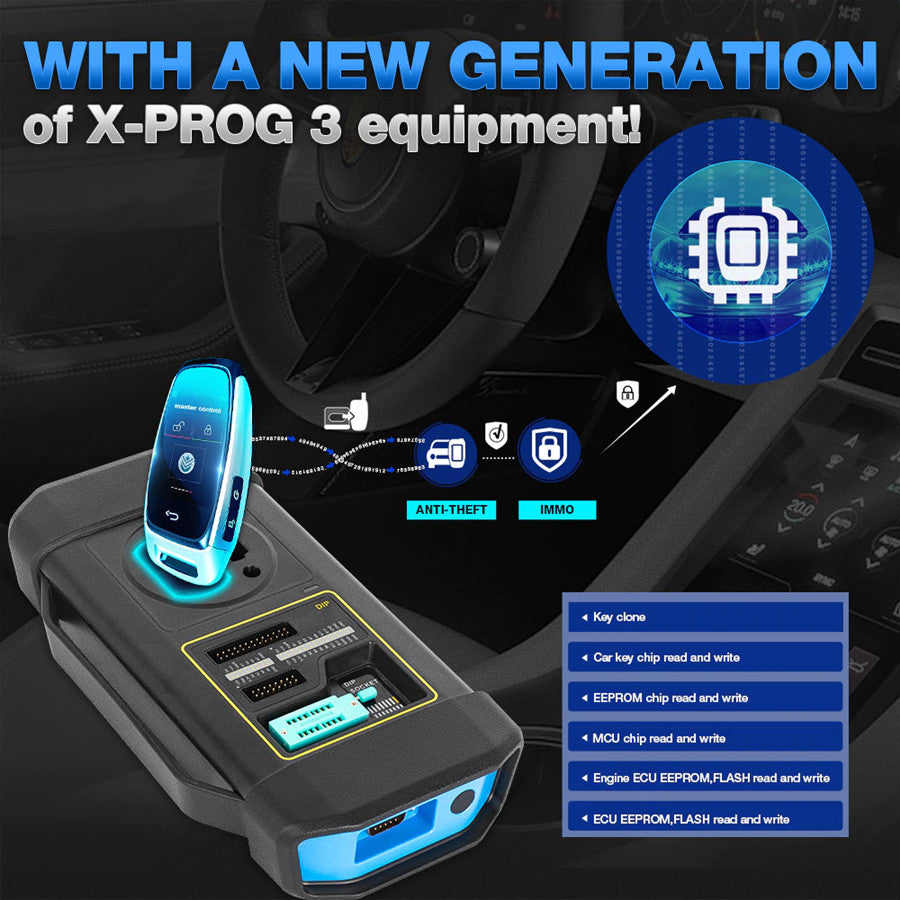

Launch X431 X-PROG3 details and functions:

1. Car key slot -Place the car key to perform the key matching function etc.

3. Mercedes-Benz key infrared slot – put the Mercedes-Benz infrared key to perform the key matching function

4. Car key hole – put the key chip to perform matching keys

5. Status indicator–power indicator

6. DIY slot-Connect anti-theft computer pin through cable to read and write data

7. Locker install chip burning socket- FULL EEPROM or MCU data read and write operations

8. DC12V power supply – connect DC12 power supply

9.DB15 – Connect main wiring



Remote diagnostics

This option is designed to help repair shops or technicians

Start instant messaging and remote diagnostics, making repairs faster.

Intelligent Diagnostics

This module allows you to use the currently selected vehicle’s fault information to access its data (including vehicle information, diagnostic record histories) from the cloud server to perform quick testing, eliminate guesswork, and manually step through menu selection.

Diagnostic history

This feature provides quick access to tested

vehicles and users can choose to view the test report or return to the last operation without starting from scratch

LAUNCH X431 IMMO PRO / PLUS Supported Cars List:

For IMMO Function:

European Cars:

For A-udi, For Benz, For BM-W, For Citroen, For G-M, For Land Rover, For Mazda, For Opel, For Peugeot, For Porsche, For Renault, For MG (SAIC), For Seat, for Skoda, for Sprinter, for Suzuki, for Ford, for V-olvo, for V-W

Chinese cars:

For GWM, for Changhe, for Brilliance, for Chery, for FAW Tianjin, for ZX Auto

American cars:

for Aston Martin, for Fiat (Brazil ), for Chrysler, for Ferrari, for Fiat, for Maserati

Asian cars:

for BAIC, for Changan, for BYD, for Foton, for Haima, for Honda, for Hyundai, for Kia, for Maxus, for Mitsubishi, for Nissan, for Perodua, for Proton, for Subaru, for Toyota, for Zotye

LAUNCH X431 IMMO PLUS Diagnostics Brand Coverage

European Cars:

For Martin Aston, for BENZ/MAYBACH, for BM-W/MINI/HCBM-W/ROLLSROYCE, for CITROEN/FUKANG, for Ferrari, for Fiat/Abbas/Lancia/Romeo/NanjingFiat, for GAz, for IZH, for Land Rover/ Jaguar, for Martha Lahti, for OPEL/G-MSA/VAUXHALL, for PAZ, for PEUGEOT/DFPEUGEOT, for Porsche, for RENAULT, for DACIA, for Saab, for Skoda, for Seaz, for seat, for Smart, for transporter and v- class, for UAZ, for VAZ, for V-olvo, for V-W / BUGATTI,

American cars:

for Brazil Fiat, for G-M, for CHRYSLER/DODGE/JEEP, for G-M/BUICK/CADILLAC/CHEVROLET, for Ford/ChinaFord Lincoln/EuropeanFord, for vinfast

Asian cars:

for Daewoo, for Daihatsu, for HONDA/ACURA/DFHONDA/GZHONDA, for Hyundai, for INDIAN MAHINDRA, for INDIAN MARUTI, for INDIAN TATA, for JPISUZU, for Kia, for LUXGEN, for Mahindra, for MARUTI, for PERODUA( Perodua), for MAZDA/YQMAZDA, for Mitsubishi, for NISSAN/INFINITV/DFNISSAN, for Perodua, for Proton, for SAIP, for Ssangyong, for Subaru, for Suzuki, for TATA, for TOYOTA/LEXUS/TJTOYOTA

Chinese cars:

for ZAZ, For Beijing, for Chang’an, for ChangCheng, for Changhe, for Xiaokang, for DR, for ECUAID, for BYD, for Foton, for HaFei, for Haima, for Brilliance, for Jiangling, for Iveco, for JAC, for Gonow, for Xiamen Golden, for Kowloon, for Lifan, for SG-MW, for SAIC Chase, for MVM, for Chery, for SAIC & MG, for SG-M/CHCHEVROLET/CHBUICK/CHCADLLAC, for GAC Chuan Qi, for Tianjin FAW, for ZhongShun, for ZOTYE, for Zhongxing

Launch X431 IMMO Plus vs IMMO Elite:

The biggest different feature is IMMO Plus supports ECU Coding while IMMO Elite can't.
IMMO Plus supports advanced system diagnostic while IMMO Elite supports basic system diagnostic, this will allow IMMO Plus supports more brands vehicles to do full system diagnostic, active test, module initialization and free resets.

For X-431 IMMO ELITE, it covers basic diagnostic functions, including read version information, read DTCs (Diagnostic Trouble Codes), clear DTCs and read data stream.
For X-431 IMMO PLUS, it covers full diagnostic function, including read version information, read DTCs (Diagnostic Trouble Codes), clear DTCs, read data stream, actuation test, matching, coding and programming etc

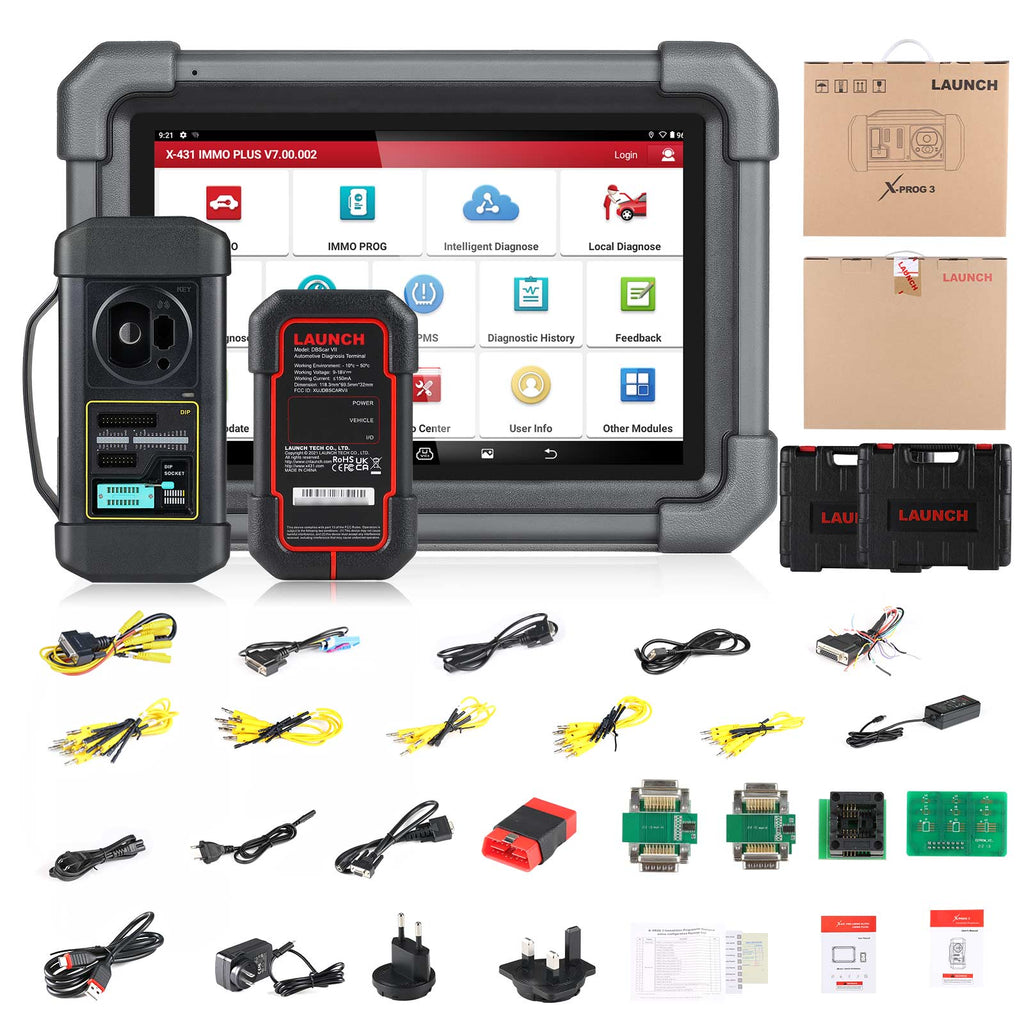

 Package Includes:


1pc x LAUNCH X431 IMMO PLUS Display tablet
1pc x VCI connector
1pc x Diagnostic cable
1pc x Password envelope
1pc x Type-A to Type-C USB cable
1pc x X-PROG 3 immobilizer programmer kit
1pc x Non-16pin adaptor cable kit
1pc x Power adaptor
