LED BDM Frame Stainless Steel with ECU RAMP 22pcs Adapters Full Set for KTAG KESS KTM LED BDM Frame Stainless Steel with ECU RAMP 22pcs Adapters Full Set for KTAG KESS KTM

ET460
6.7kg
ECU Chip Tuning
$199.00 $179.00 10%
-
+

LED BDM Frame Stainless Steel with ECU RAMP 22pcs Adapters Full Set for KTAG KESS KTM , BDM Probe Adapters Full Set (22pcs in total) work for KTAG KESS KTM Dimsport ECU programmer, support Denso Marelli Bosch Siemens... etc protocols.

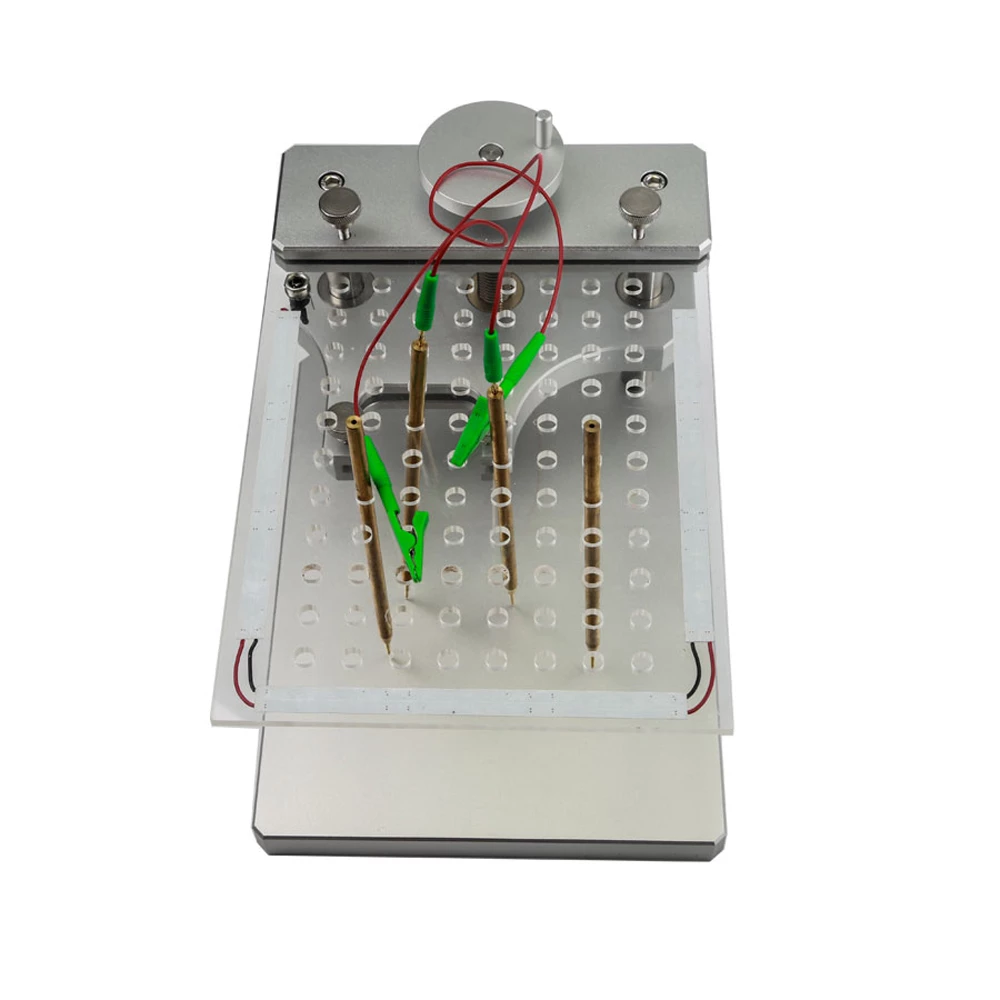

BDM Frame Stainless Steel Description:

1. It consists of a Acrylic board, Mesh and 4 Probe Pens.

2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

3. It is the best bracket for ECU Update/ECU Brush and Write / ECM Modified and programming / Probe holder / Dimsport aids.

4. It works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, DIMSPORT AIDS, and other ECU chip tuning tools.

5. It is easy to use, much better than the old bdm frame.

Tip:
No PCBs in this package! The LED works on 12 volts. When connected with the probe, disconnect the 12 volt battery for the LED battery, it will work. The pin probe is adjustable.



BDM Probe Adapters Full Set Features:

Adapter width: ~60mm width for original BDM Probe, not for low quality plastic with 40mm width.

Adapter thickness: 2mm

Adapter colour: Green

A full set comes with 22 BDM adapters.

Notice: It can only work with stainless steel BDM Frame in our website.

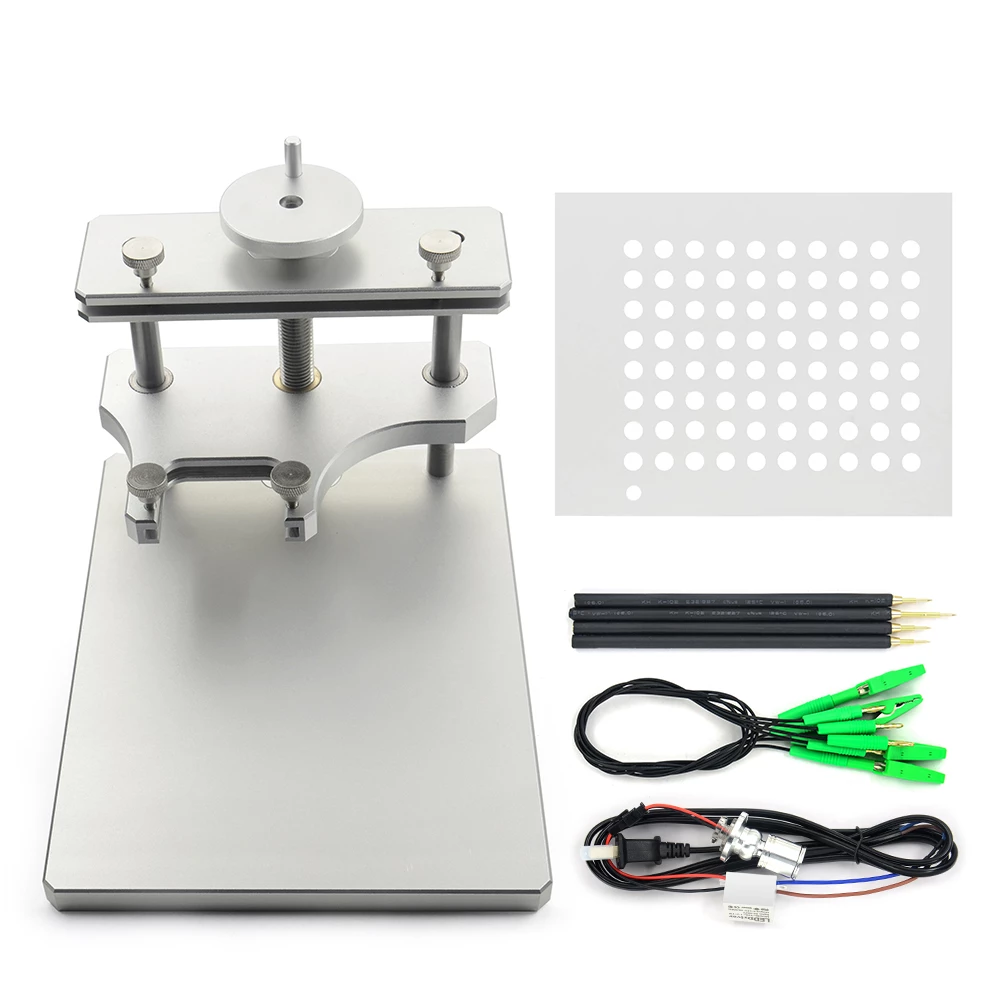

Package List:

BDM Frame Stainless Steel

1 pc x BDM frame
1 pc x Bdm frame with LED (made by Acrylic plate)
4 pc x Probe cable
4 pc x Probes

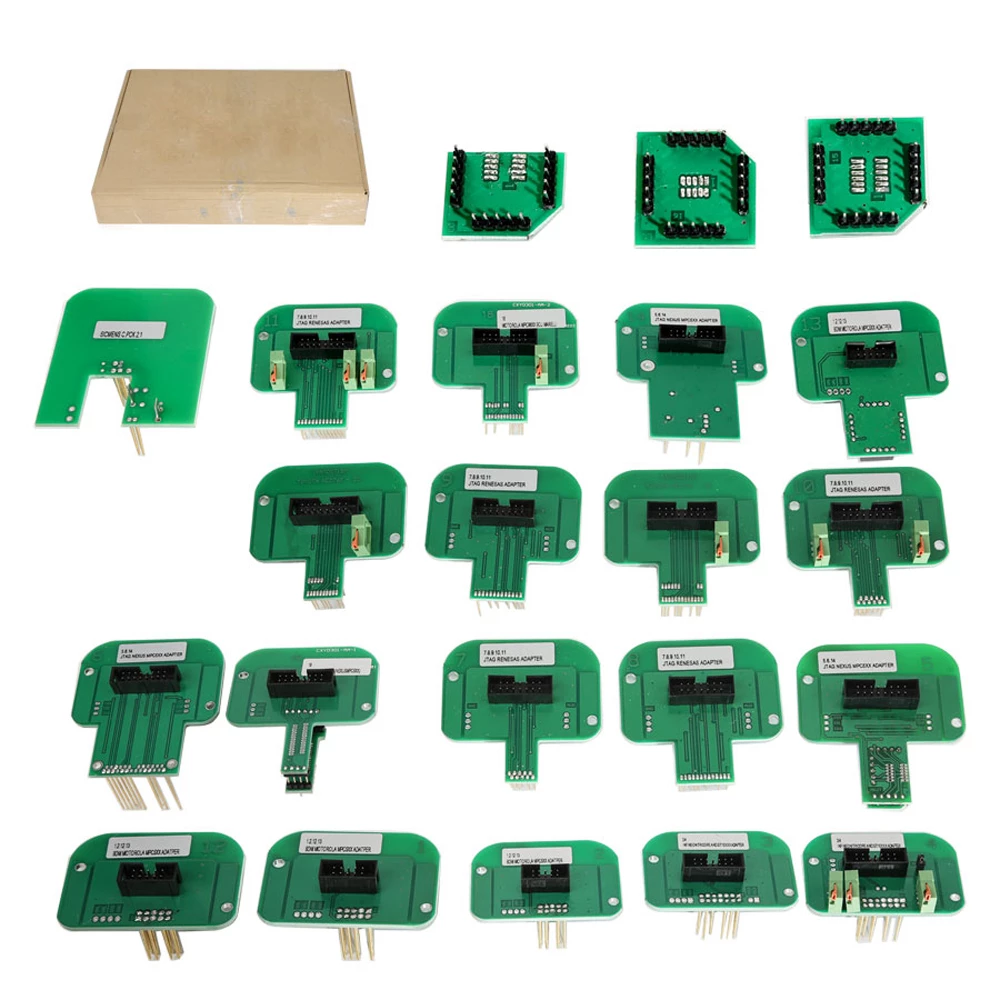

BDM Probe Adapters Full Set

1 14AM00T01M Bosch
2 14AM00T02M Delphi DCM
3 14AM00T03M Bootloader ST10xx
4 14P600KT04 Infineon Tricore EDC/MED17
5 14AM00T05M Marelli MPC55xx JTAG
6 14AM00T06M Delphi MPC55xx JTAG
7 14AM00T07M Denso CN1 Boot
8 14AM00T08M Denso CN2 Boot
9 14AM00T09M Denso CN3 Boot
10 14AM00T10M Denso CN1 AUD
11 14AM00T11M Denso CN2 AUD
12 14AM00T00M Delphi DCI
13 14AM00TBAS Base Adapter 1.27
14 14AM00T14M NexusEFI T6 Lotus
15 14AM00TB02 Magneti Marelli BDM insert
16 14AM00TB01 Siemens BDM insert
17 14AM00TB03 EDC7 BDM insert
18 14AM00T18M Magneti Marelli MPC/SPC56xx
19 14AM00T13M Nexus MPC5xx TRW ECU
20 VAG 1.6tdi - Siemens-Continental PCR2.1
21 14AM00T15M Toyota NEC76F-20
22 14AM00T16M Toyota NEC76F-26
