Lonsdor K518ISE/K518S/K518 Pro Key Programmer Supports V-W 4th & 5th IMMO and Odometer Adjustment No Token Limitation
Lonsdor K518ISE/K518S/K518 Pro Key Programmer Supports V-W 4th & 5th IMMO and Odometer Adjustment No Token Limitation
Lonsdor K518ISE Key Programmer and K518S Basic Version both with Android OS, fast online upgrade, supports Immobilization Key Programming, Odometer adjustment, V-W 4th&5th IMMO, Free BM-W FEM key programming.
Lonsdor K518ISE & K518S Key Programmer Advantages
1. Immobilization Key Programming
2. Odometer adjustment

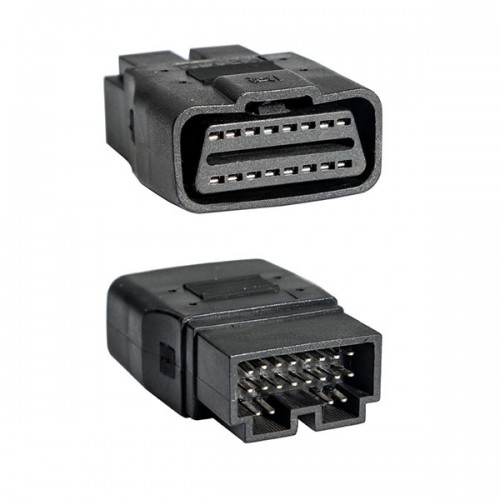

3. Built-in Volkswagen 4th & 5th adapter
4. Built-in Chip & remote detection module.
5. Free BM-W FEM key programming
6.No Need Token for all cars
Lonsdor K518ISE & K518S universal auto key programmer, with wider vehicle coverage in key programming. It is customized as the first masterpiece to the overseas market from Lonsdor. With months of preparation and rigorous testing, from the software design to the user experience, it epitomizes Lonsdor years of industry experience. It is tailored and perfect for vehicle locksmiths, to help make their work easier, faster, and more powerful!

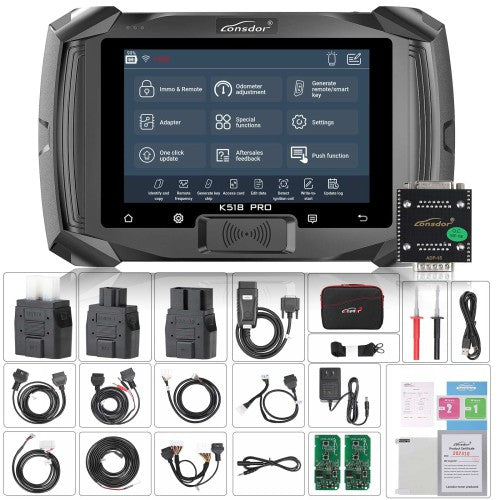

Lonsdor K518 Pro Key Programmer Advantages
- Based on the more comprehensive functions and features of K518
- Support most models on the market, including luxury cars, domestic cars, and Volkswagen cars
- Networking/Pincode/OBD program, most models do not require it
- Supports 24V vans and heavy trucks
- Based on Android 9, the operation is more optimized
- It has a quad-core A7, which has the strongest computing power, twice that of A33
- Excellent and powerful ultra-high energy consumption ratio
- The first to support the 8A (H chip) generation
- Added support for CANFD and DoIP protocols
Lonsdor K518 Pro Key Programmer Software/Hardware Advantages
- Trendy tablet design with support frame, better user experience;
- Based on Android 9, more optimized operation;
- With Quad-core A7, the strongest computing power, 2 times that of A33;
- Excellent and powerful ultra-high energy consumption ratio;
- The first to support 8A(H chip) generation;
- Global Version, supports Indian, Malaysian etc brands
- Added support for CANFD and DoIP protocols. Supports GM CAN FD models 2021-2023
- 2 Years Free Update Online, $480 (1st Subscription), $360 (2nd Subscription), $200 (3rd Subscription)
- With free Volvo, Nissan new Sylphy Sentra , Toyota AKL, JLR AKL license within software update subscription. (Don't need to pay for license seperately)
- Multi-language: English, Turkish, Portuguese, French, Russian, Spanish, Italian, German, Swedish, Hebrew, Burmese (Swicth langauge in machine)
- Check Lonsdor K518 Pro Vehicle List
- Adds VAG MLB Key programming (Dec. 2023)
Note: The function of the Lonsdor K518 Pro (FCV) Key Programmer and Lonsdor K518 Pro Key Programmer is the same, the Lonsdor K518 Pro Key Programmer supports more cars.
Lonsdor K518 Pro Special Functions
Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generation
Identify&Copy chip: Identify info and status of almost all car key chips on the market
Generate remote: Detect remote key’s frequency
Simulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc
Decode chip: Support 46 and 4D chip decoding
Ignition coil Detect: if the coil has signal, also identify key type on AKL condition
Key settings: Set Lonsdor smart key,LT20 series
Unlock key: Unlock Toyota 8A smart key
Access control card: Identify and copy IC/ID card
K518 Pro Recent Update:
Add GM CAN FD IMMO Models (Built-in CAN FD, don't need adapter)
SUPPORT MODELS
CAN FD
Silverado\2021-2023\Smart key
Suburban\2021-2023\Smart key
Tahoe\2021-2023\Smart key
Silverado 1500\2021-2023\Smart key
Silverado 3500\2021-2023\Smart key
Silverado\2021-2023\Smart key
Suburban\2021-2023\Smart key
Tahoe\2021-2023\Smart key
Onix\lmmobilizer\2020-
Trax\Smart key\2020-
Trax\lmmobilizer\2020-
Lonsdor K518 Pro Key Programmer Specific Features:
Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO
Latest Toyota/Lexus chip type 8A/4A smart key programmed with free pin code
2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)
Land Rover/Jaguar 2018- Change RFA module to program smart key
2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key
Latest Mazda smart key all key lost w/o PIN code
Latest Honda chip type 4A smart key all key lost
Latest Subaru chip type 8A smart key programmed
Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost
Latest Hyundai/Kia chip type 4A/47 smart key programmed
Latest Ford Mustang IMMO program
BMW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO
Latest GM CAN-FD protocol IMMO
90% of 2010-2020 GM models read pin code from BCM
V-olkswagen/ A-udi/ Skoda/ Seat MOB platform IMMO and odometer adjustment
Ssangyong smart key and mechanical key program
Latest Maserati read pin code and smart key program
Ferrari(458,F12, F149) key programmed via OBD
Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.
Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.
Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.
Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.
Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc
Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.
Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
Support generate key chip like 4D,46,48,T5,793
K518S VS K518S PRO:
What is the difference between K518SE/K518S/K518 Pro?

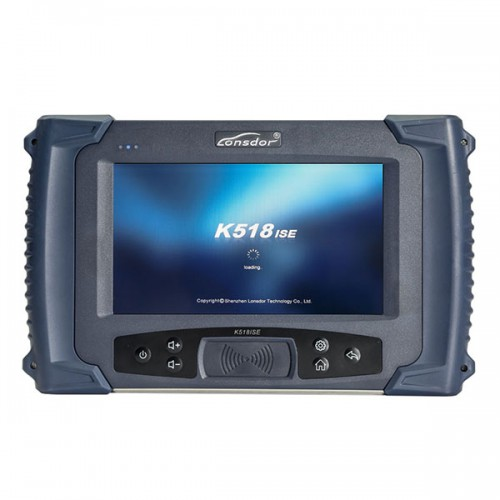

Lonsdor K518ISE Key Programmer Special Features:
Volvo (S40 S60 S80 V40 V60 V70 C30 C70 XC60 XC70 XC90) full version (mechanical key, smart key, keyless-go) key programming
Toyota Lexus smart key all lost offline via OBD with 5-in-1 LKE emulator (94/ D4, 98, 39, 88/ A8, A9),
BM-W CAS1 CAS2 CAS3 CAS3+ CAS3++ CAS4 CAS4+ FEM BDC key programming
Mitsubishi all key lost via simulate chip with emulator
Mazda latest model of smart key programming without PIN code
V-W A-udi Skoda Seat – MQB platform key programming & odometer adjustment
Porsche 911 / 997 / Boxster / Cayman (2005-2010) key programming via LKE emulator without PIN code
H-yundai KIA – 46 chip / 46 smart key / 47 smart key / 8A smart key / read PIN code
Peugeot Citroen DS – read PIN code & add key or all key lost for most of models
Renault Latitude / Fluence key programming without 32-bit PIN code
Renualt Koleos (2010-2016) read PIN code to program via OBD
GM series 2010-2018 – support more than 80% models via read PIN code from BCM
Subaru all key lost via OBD reset PEPS
Land Rover and Jaguar key programming via OBD – support FK72 / HPLA KVM version
Rolls-Royce Phantom key programming
Ferrari (458, F12, F149) – key programming via OBD
Jeep Grand Cherokee (2014-) – read PIN code to program
New Ssangyong series key programming without PIN code
Jeep Renegade (2017) key programming
Jeep Compass (2018) smart key programming
Mercedes-Benz (2014-FBS4) – support 166, 205, 213, 222 chassis without network or OEM tool
Maserati (2017) smart key programming----support Levante, Ghibli, Quattroporte
MG6 – read PIN code to program via OBD
Smart 453 – read PIN code to program
Generate dedicated key chip – 4D, 46, 48, T5, 7936
Key chip identification and remote frequency detection

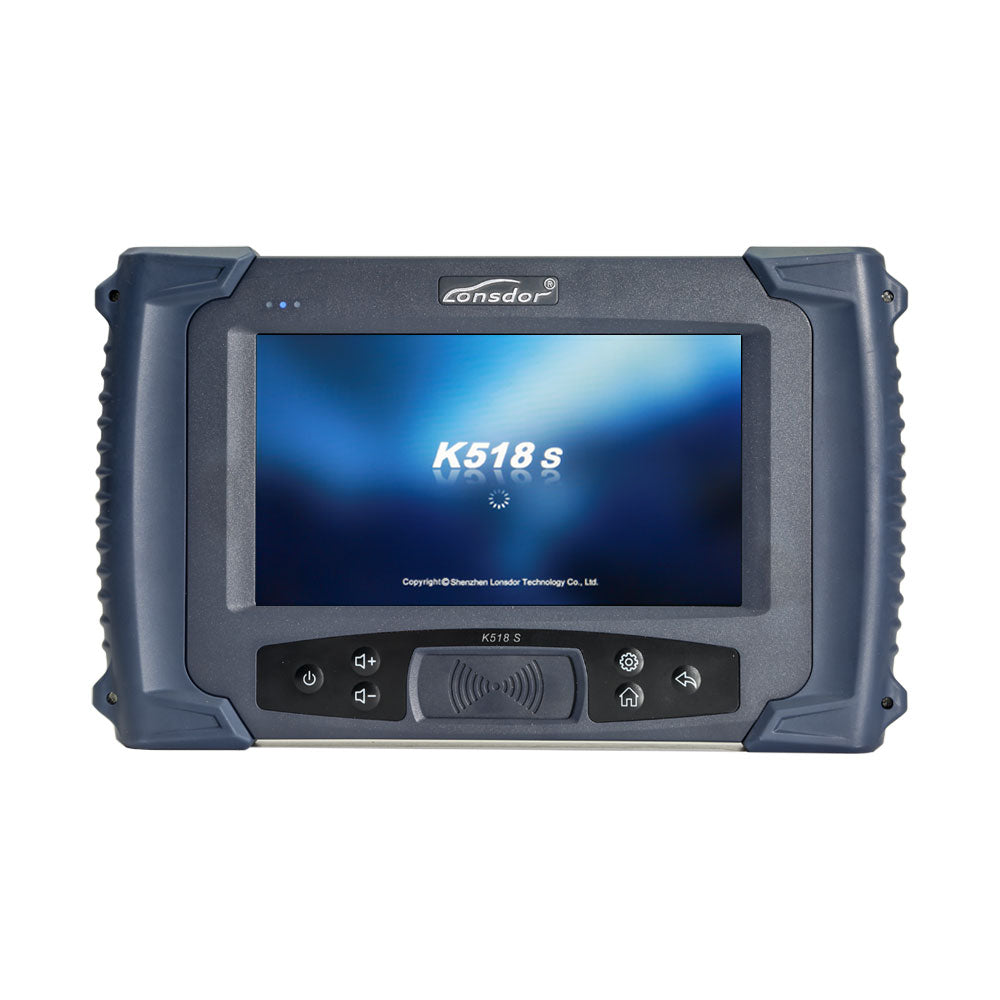

Lonsdor K518S Key programmer Special Features:
Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BM-W CAS3/CAS3+/CAS3++: direct OBD programming
BM-W CAS4/CAS4+: dismantle & read data programming
BM-W FEM system key programming & All keys lost
2016 -New Maserati: smart key programming
2016 -New Ford: smart key programming
H-yundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518S Pro Key programmer Special Features
Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO
Latest To-yota/Lexus chip type 8A/4A smart key programmed with free pin code
2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)
Land Rover/Jaguar 2018- Change RFA module to program smart key
2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key
Latest Mazda smart key all key lost w/o PIN code
Latest Honda chip type 4A smart key all key lost
Latest Subaru chip type 8A smart key programmed
Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost
Latest H-yundai/Kia chip type 4A/47 smart key programmed
Latest Ford Mustang IMMO program
B-MW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO
Latest GM CAN-FD protocol IMMO
90% of 2010-2020 GM models read pin code from BCM
V-olkswagen/ A-udi/ Skoda/ Seat MOB platform IMMO and odometer adjustment
Ssangyong smart key and mechanical key program
Latest Maserati read pin code and smart key program
Ferrari(458,F12, F149) key programmed via OBD
Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.
Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.
Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.
Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.
Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc
Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.
Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
Support generate key chip like 4D,46,48,T5,793
Lonsdor K518 Pro & K518ISE & K518 Key Programmer Immobilization Car List
Europe: for A-udi, BM-W, Benz, V-W, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG, Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart, Borgward
America: Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury
Asia: Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota, Shigaoka Queen
China: Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car models are included)
Lonsdor K518 Pro & K518ISE & K518 Key Programmer Odometer Correction Car List
Odometer Correction Car List: V-W, Porsche, Ford, Jaguar, Land Rover, Mazda, A-udi, Renault, Hummer, Hyundai, Kia...
Note: More high-end cars will be updated very soon.
Lonsdor K518ISE & K518S Key Programmer with so many unprecedented features + built in RFID Transponder Reader/Writer
1st tool to introduce Kia / Hyundai Read PIN code function for Type 46 & 47 keys + Add Smart Key without PIN code;
1st tool to program keys for all Volvo models via OBD
1st tool to introduce Universal Smart Key Emulator shown picture below .
K518ISE & K518S key programmer works with the smart key emulator as below, need to purchase alone.
Original SKE-LT Smart Key Emulator for Lonsdor K518S Key Programmer
SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
Toyota Smart Key all lost Lamborghini Porsche BM-W & LandRover Ferrari Models covered + a whole lot of Chinese made vehicles GreatWall Haval Borgward MG Beiqi Foton as well
Lonsdor K518ISE & K518S Key Programmer Connection Diagram
Lonsdor K518ISE & K518S Key Programmer Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,V-W TP1.6 TP2.0 etc

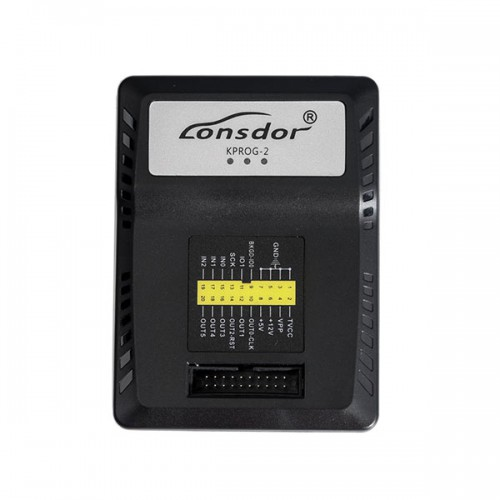

KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m
Lonsdor K518 Pro Key Programmer Technical Parameter:
Operation system: Android 9
Processor: Allwinner A50
Memory: Ram 2G flash 8G
Display: MIPI 800*1280
WiFi: (802.11 b/g/n)
USB: USB2.0
Bluetooth: 4.1
SD card: support Plug & Unplug
Battery: 5800MA
Input voltage: 12V
Shell material: PC hard shell+TPR60°
Dimension: 26* 3 *16CM

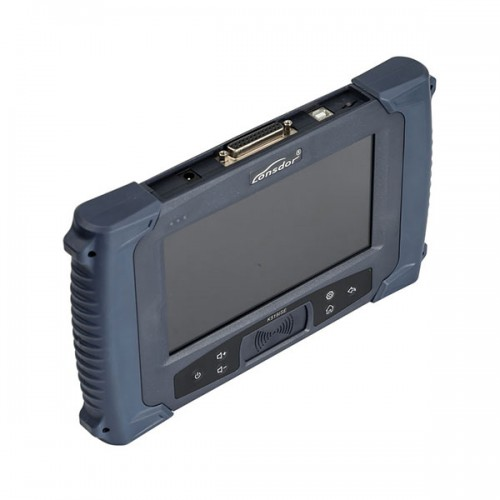

Lonsdor K518ISE & K518S Key Programmer Main Unit Appearance
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE & K518S

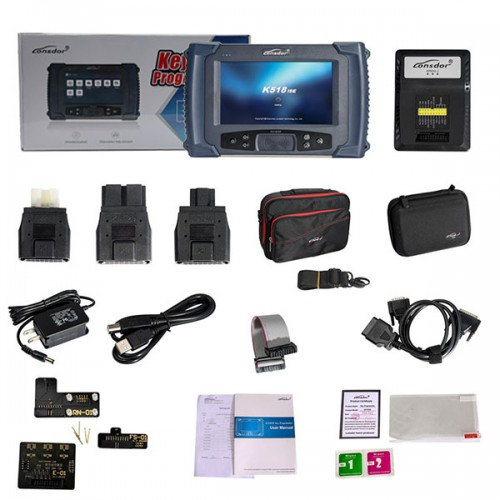

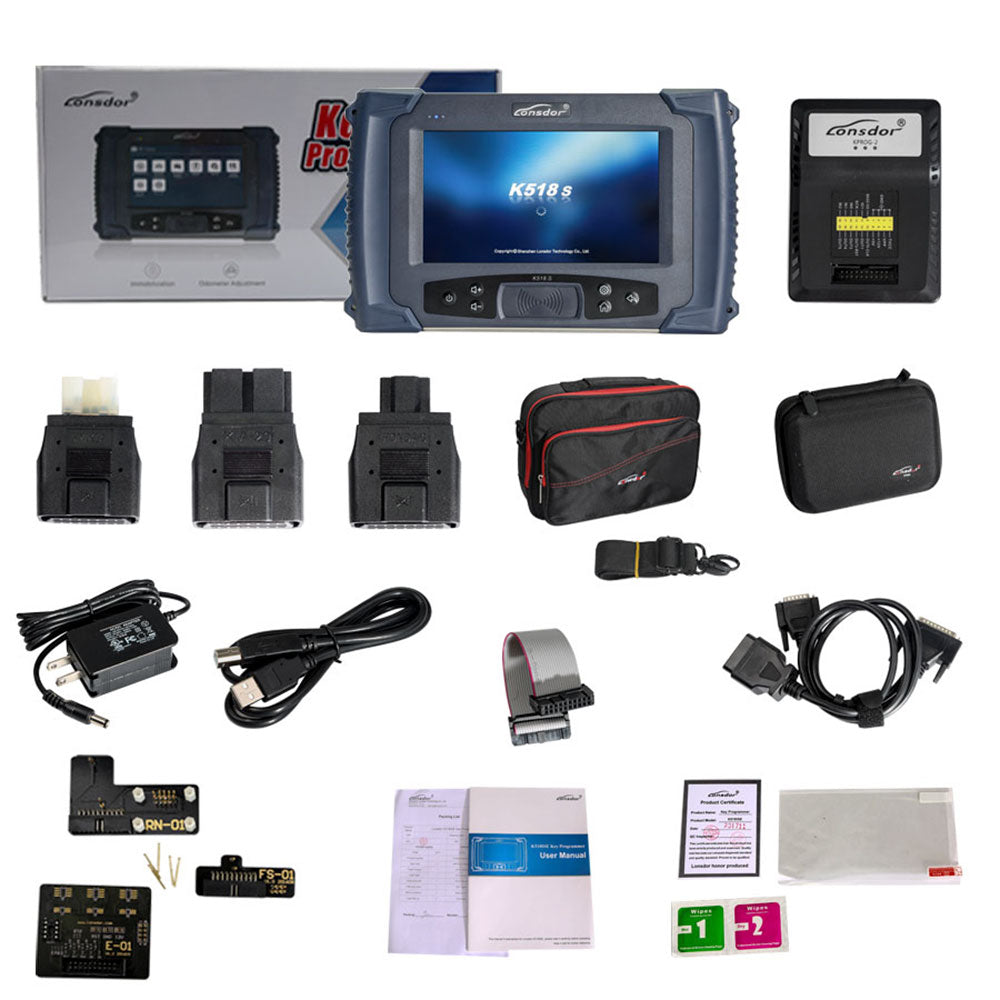

Packing List For K518S or K518SE:
1pc X Lonsdor K518S Key Programmer
1pc x Portable Bag(big)
1pc x Lonsdor K518ISE or K518S Main Host (Optional)
1pc x Power Adaptor
1pc x USB Cable
1pc x Packing Bundle
1pc x OBD Test Cable

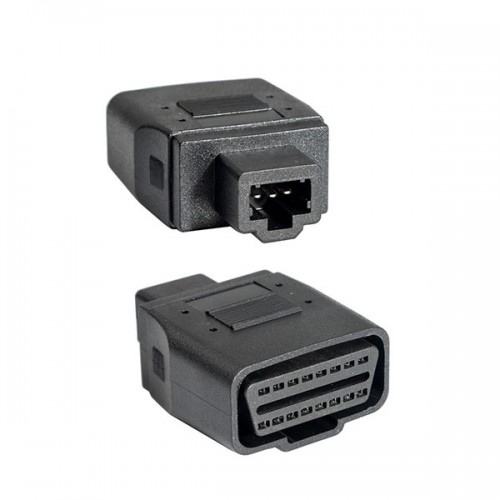

1pc x Extra Connector
1pc x User Manual
1pc x Portable Bag(small)
1pc x KPROG Adapter
1pc x RN-01 Board
1pc x E-01 Board
1pc x FS-01 Board
1pc x 20P Cable
5pc x Backup Pin
1pc x Certificate
Packing List For K518 Pro:
1set x Lonsdor K518 Pro
2pcs x LT20 smart key
1pc x Toyota FP30 cable
1pc x Nissan 40 BCM cable
1pc x JCD 12+8 FCA cable
1pc x JLR AKL active alarm bypass cable
1px x ADP Adapter
Lonsdor K518ISE Key Programmer and K518S Basic Version both with Android OS, fast online upgrade, supports Immobilization Key Programming, Odometer adjustment, V-W 4th&5th IMMO, Free BM-W FEM key programming.
Lonsdor K518ISE & K518S Key Programmer Advantages
1. Immobilization Key Programming
2. Odometer adjustment
3. Built-in Volkswagen 4th & 5th adapter
4. Built-in Chip & remote detection module.
5. Free BM-W FEM key programming
6.No Need Token for all cars
Lonsdor K518ISE & K518S universal auto key programmer, with wider vehicle coverage in key programming. It is customized as the first masterpiece to the overseas market from Lonsdor. With months of preparation and rigorous testing, from the software design to the user experience, it epitomizes Lonsdor years of industry experience. It is tailored and perfect for vehicle locksmiths, to help make their work easier, faster, and more powerful!
Lonsdor K518 Pro Key Programmer Advantages
- Based on the more comprehensive functions and features of K518
- Support most models on the market, including luxury cars, domestic cars, and Volkswagen cars
- Networking/Pincode/OBD program, most models do not require it
- Supports 24V vans and heavy trucks
- Based on Android 9, the operation is more optimized
- It has a quad-core A7, which has the strongest computing power, twice that of A33
- Excellent and powerful ultra-high energy consumption ratio
- The first to support the 8A (H chip) generation
- Added support for CANFD and DoIP protocols
Lonsdor K518 Pro Key Programmer Software/Hardware Advantages
- Trendy tablet design with support frame, better user experience;
- Based on Android 9, more optimized operation;
- With Quad-core A7, the strongest computing power, 2 times that of A33;
- Excellent and powerful ultra-high energy consumption ratio;
- The first to support 8A(H chip) generation;
- Global Version, supports Indian, Malaysian etc brands
- Added support for CANFD and DoIP protocols. Supports GM CAN FD models 2021-2023
- 2 Years Free Update Online, $480 (1st Subscription), $360 (2nd Subscription), $200 (3rd Subscription)
- With free Volvo, Nissan new Sylphy Sentra , Toyota AKL, JLR AKL license within software update subscription. (Don't need to pay for license seperately)
- Multi-language: English, Turkish, Portuguese, French, Russian, Spanish, Italian, German, Swedish, Hebrew, Burmese (Swicth langauge in machine)
- Check Lonsdor K518 Pro Vehicle List
- Adds VAG MLB Key programming (Dec. 2023)
Note: The function of the Lonsdor K518 Pro (FCV) Key Programmer and Lonsdor K518 Pro Key Programmer is the same, the Lonsdor K518 Pro Key Programmer supports more cars.
Lonsdor K518 Pro Special Functions
Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generation
Identify&Copy chip: Identify info and status of almost all car key chips on the market
Generate remote: Detect remote key’s frequency
Simulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etc
Decode chip: Support 46 and 4D chip decoding
Ignition coil Detect: if the coil has signal, also identify key type on AKL condition
Key settings: Set Lonsdor smart key,LT20 series
Unlock key: Unlock Toyota 8A smart key
Access control card: Identify and copy IC/ID card
K518 Pro Recent Update:
Add GM CAN FD IMMO Models (Built-in CAN FD, don't need adapter)
SUPPORT MODELS
CAN FD
Silverado\2021-2023\Smart key
Suburban\2021-2023\Smart key
Tahoe\2021-2023\Smart key
Silverado 1500\2021-2023\Smart key
Silverado 3500\2021-2023\Smart key
Silverado\2021-2023\Smart key
Suburban\2021-2023\Smart key
Tahoe\2021-2023\Smart key
Onix\lmmobilizer\2020-
Trax\Smart key\2020-
Trax\lmmobilizer\2020-
Lonsdor K518 Pro Key Programmer Specific Features:
Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO
Latest Toyota/Lexus chip type 8A/4A smart key programmed with free pin code
2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)
Land Rover/Jaguar 2018- Change RFA module to program smart key
2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key
Latest Mazda smart key all key lost w/o PIN code
Latest Honda chip type 4A smart key all key lost
Latest Subaru chip type 8A smart key programmed
Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost
Latest Hyundai/Kia chip type 4A/47 smart key programmed
Latest Ford Mustang IMMO program
BMW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO
Latest GM CAN-FD protocol IMMO
90% of 2010-2020 GM models read pin code from BCM
V-olkswagen/ A-udi/ Skoda/ Seat MOB platform IMMO and odometer adjustment
Ssangyong smart key and mechanical key program
Latest Maserati read pin code and smart key program
Ferrari(458,F12, F149) key programmed via OBD
Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.
Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.
Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.
Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.
Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc
Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.
Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
Support generate key chip like 4D,46,48,T5,793
K518S VS K518S PRO:
What is the difference between K518SE/K518S/K518 Pro?
Lonsdor K518ISE Key Programmer Special Features:
Volvo (S40 S60 S80 V40 V60 V70 C30 C70 XC60 XC70 XC90) full version (mechanical key, smart key, keyless-go) key programming
Toyota Lexus smart key all lost offline via OBD with 5-in-1 LKE emulator (94/ D4, 98, 39, 88/ A8, A9),
BM-W CAS1 CAS2 CAS3 CAS3+ CAS3++ CAS4 CAS4+ FEM BDC key programming
Mitsubishi all key lost via simulate chip with emulator
Mazda latest model of smart key programming without PIN code
V-W A-udi Skoda Seat – MQB platform key programming & odometer adjustment
Porsche 911 / 997 / Boxster / Cayman (2005-2010) key programming via LKE emulator without PIN code
H-yundai KIA – 46 chip / 46 smart key / 47 smart key / 8A smart key / read PIN code
Peugeot Citroen DS – read PIN code & add key or all key lost for most of models
Renault Latitude / Fluence key programming without 32-bit PIN code
Renualt Koleos (2010-2016) read PIN code to program via OBD
GM series 2010-2018 – support more than 80% models via read PIN code from BCM
Subaru all key lost via OBD reset PEPS
Land Rover and Jaguar key programming via OBD – support FK72 / HPLA KVM version
Rolls-Royce Phantom key programming
Ferrari (458, F12, F149) – key programming via OBD
Jeep Grand Cherokee (2014-) – read PIN code to program
New Ssangyong series key programming without PIN code
Jeep Renegade (2017) key programming
Jeep Compass (2018) smart key programming
Mercedes-Benz (2014-FBS4) – support 166, 205, 213, 222 chassis without network or OEM tool
Maserati (2017) smart key programming----support Levante, Ghibli, Quattroporte
MG6 – read PIN code to program via OBD
Smart 453 – read PIN code to program
Generate dedicated key chip – 4D, 46, 48, T5, 7936
Key chip identification and remote frequency detection
Lonsdor K518S Key programmer Special Features:
Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BM-W CAS3/CAS3+/CAS3++: direct OBD programming
BM-W CAS4/CAS4+: dismantle & read data programming
BM-W FEM system key programming & All keys lost
2016 -New Maserati: smart key programming
2016 -New Ford: smart key programming
H-yundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518S Pro Key programmer Special Features
Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO
Latest To-yota/Lexus chip type 8A/4A smart key programmed with free pin code
2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)
Land Rover/Jaguar 2018- Change RFA module to program smart key
2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key
Latest Mazda smart key all key lost w/o PIN code
Latest Honda chip type 4A smart key all key lost
Latest Subaru chip type 8A smart key programmed
Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost
Latest H-yundai/Kia chip type 4A/47 smart key programmed
Latest Ford Mustang IMMO program
B-MW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO
Latest GM CAN-FD protocol IMMO
90% of 2010-2020 GM models read pin code from BCM
V-olkswagen/ A-udi/ Skoda/ Seat MOB platform IMMO and odometer adjustment
Ssangyong smart key and mechanical key program
Latest Maserati read pin code and smart key program
Ferrari(458,F12, F149) key programmed via OBD
Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.
Support American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.
Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.
Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.
Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc
Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.
Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification
Support generate key chip like 4D,46,48,T5,793
Lonsdor K518 Pro & K518ISE & K518 Key Programmer Immobilization Car List
Europe: for A-udi, BM-W, Benz, V-W, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG, Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart, Borgward
America: Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury
Asia: Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota, Shigaoka Queen
China: Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car models are included)
Lonsdor K518 Pro & K518ISE & K518 Key Programmer Odometer Correction Car List
Odometer Correction Car List: V-W, Porsche, Ford, Jaguar, Land Rover, Mazda, A-udi, Renault, Hummer, Hyundai, Kia...
Note: More high-end cars will be updated very soon.
Lonsdor K518ISE & K518S Key Programmer with so many unprecedented features + built in RFID Transponder Reader/Writer
1st tool to introduce Kia / Hyundai Read PIN code function for Type 46 & 47 keys + Add Smart Key without PIN code;
1st tool to program keys for all Volvo models via OBD
1st tool to introduce Universal Smart Key Emulator shown picture below .
K518ISE & K518S key programmer works with the smart key emulator as below, need to purchase alone.
Original SKE-LT Smart Key Emulator for Lonsdor K518S Key Programmer
SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
Toyota Smart Key all lost Lamborghini Porsche BM-W & LandRover Ferrari Models covered + a whole lot of Chinese made vehicles GreatWall Haval Borgward MG Beiqi Foton as well
Lonsdor K518ISE & K518S Key Programmer Connection Diagram
Lonsdor K518ISE & K518S Key Programmer Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,V-W TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m
Lonsdor K518 Pro Key Programmer Technical Parameter:
Operation system: Android 9
Processor: Allwinner A50
Memory: Ram 2G flash 8G
Display: MIPI 800*1280
WiFi: (802.11 b/g/n)
USB: USB2.0
Bluetooth: 4.1
SD card: support Plug & Unplug
Battery: 5800MA
Input voltage: 12V
Shell material: PC hard shell+TPR60°
Dimension: 26* 3 *16CM
Lonsdor K518ISE & K518S Key Programmer Main Unit Appearance
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE & K518S
Packing List For K518S or K518SE:
1pc X Lonsdor K518S Key Programmer
1pc x Portable Bag(big)
1pc x Lonsdor K518ISE or K518S Main Host (Optional)
1pc x Power Adaptor
1pc x USB Cable
1pc x Packing Bundle
1pc x OBD Test Cable
1pc x Extra Connector
1pc x User Manual
1pc x Portable Bag(small)
1pc x KPROG Adapter
1pc x RN-01 Board
1pc x E-01 Board
1pc x FS-01 Board
1pc x 20P Cable
5pc x Backup Pin
1pc x Certificate
Packing List For K518 Pro:
1set x Lonsdor K518 Pro
2pcs x LT20 smart key
1pc x Toyota FP30 cable
1pc x Nissan 40 BCM cable
1pc x JCD 12+8 FCA cable
1pc x JLR AKL active alarm bypass cable
1px x ADP Adapter
