MST-90+ Automotive Power Processor Programming Voltage Regulator Charger Supply for Car ECU Programming Voltage Stabilizer MST-90+ Automotive Power Processor Programming Voltage Regulator Charger Supply for Car ECU Programming Voltage Stabilizer

ER042
8.0kg
Automotive Circuit Tester
$415.00 $395.00 5%
-
+

MST-90 Programming voltage regulator is also called MST-90 Automotive Power processor, which supply power to the car and adjust the voltage when the car is programming. Beacuse if the voltage is too high, it will damage the ECU. If the voltage is too low, it can't be programmed.

MST-90+ Automotive Power Processor Function:

* Smart vehicle Program

* Charging dedicated power

* Input voltage 220V only, Output Voltage 14V/120A.

* High temperature alarm.

* Intelligent charger for motor vehicles starter battery

* Extensive protection functions and self-protection functions

* Short circuit and reverse polarity protection


MST-90+ Automotive Power Processor Applicable models:

For Volvo, for Porsche, for Volkswagen, for Audi, for BMW, for Mercedes-Benz, for General Motors Etc.


Automotive Programming Dedicated Power Output Characteristics

DC voltage: 14.5V

Rated current: 0-100A

Rated maximum power: 1500W

Ripple and noise: 100mVp-p


Automotive Programming Dedicated Power Input Characteristics

input voltage: AC220V±15%, or AC110V±15%

Frequency range: 40-60HZ

Power Factor: 0.95

Efficiency: 85%


Automotive Programming Dedicated Power Protection Features

Overload: 90-110% of rated output power

Output voltage/ A : 14V /120A

Working temperature: -40°C±85°C

Safety: UL60950, TUV EN60950-1

Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC

Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH

EMC: Complies with EN55022, EN61000



MST-90+ Automotive Power Processor Package Including:

1set x  Automotive Programming Dedicated Power



Operating instruction

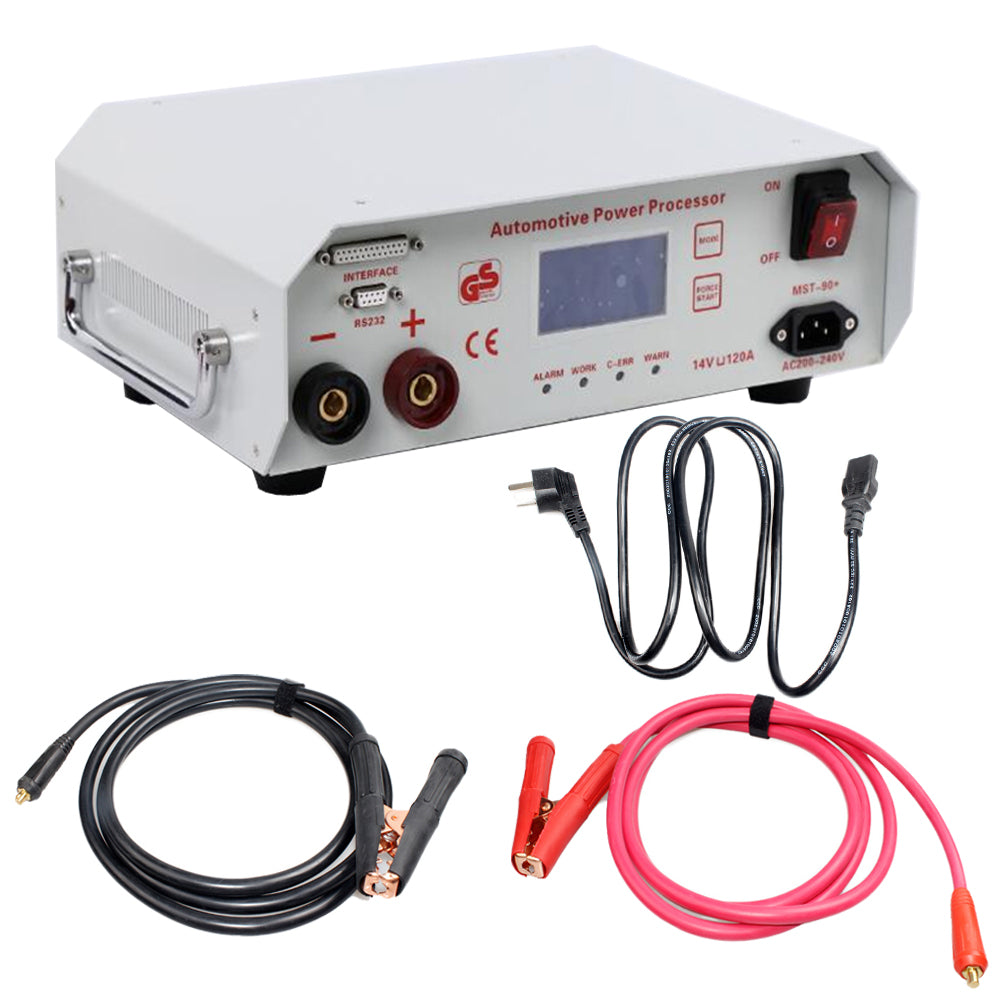

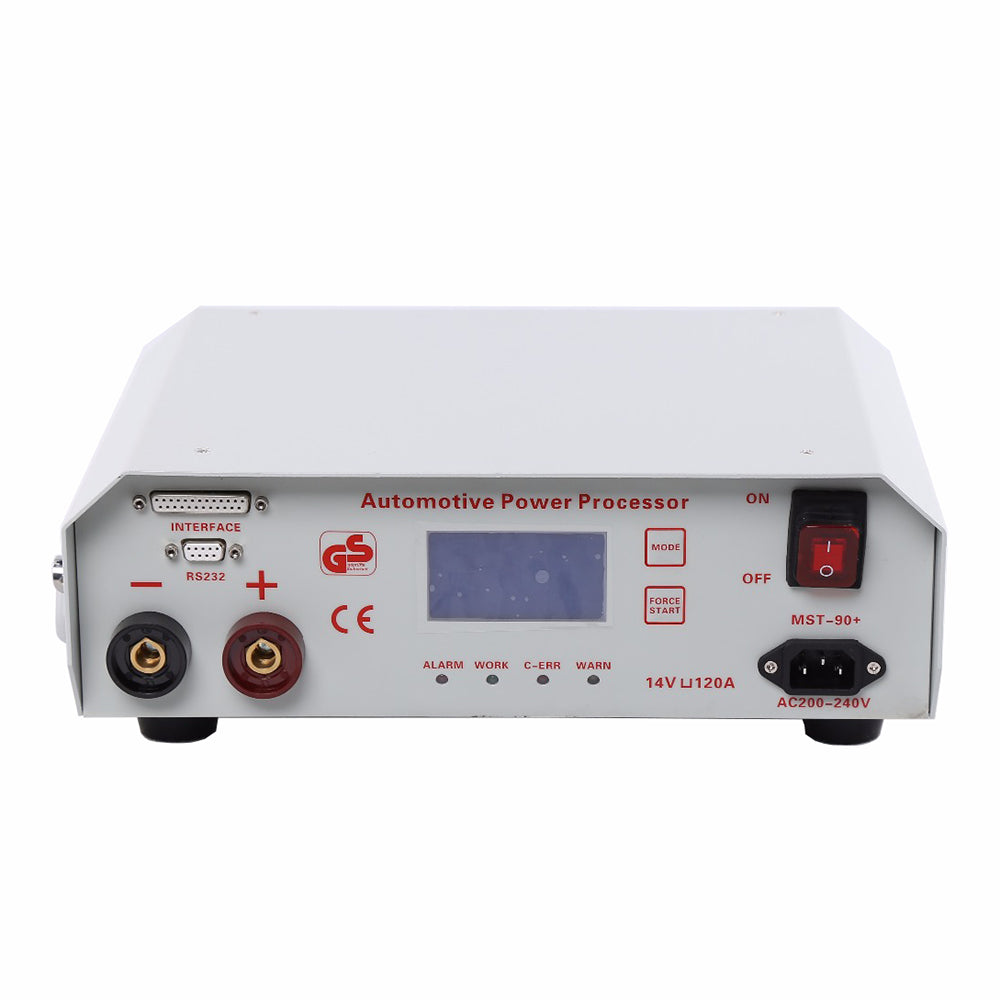

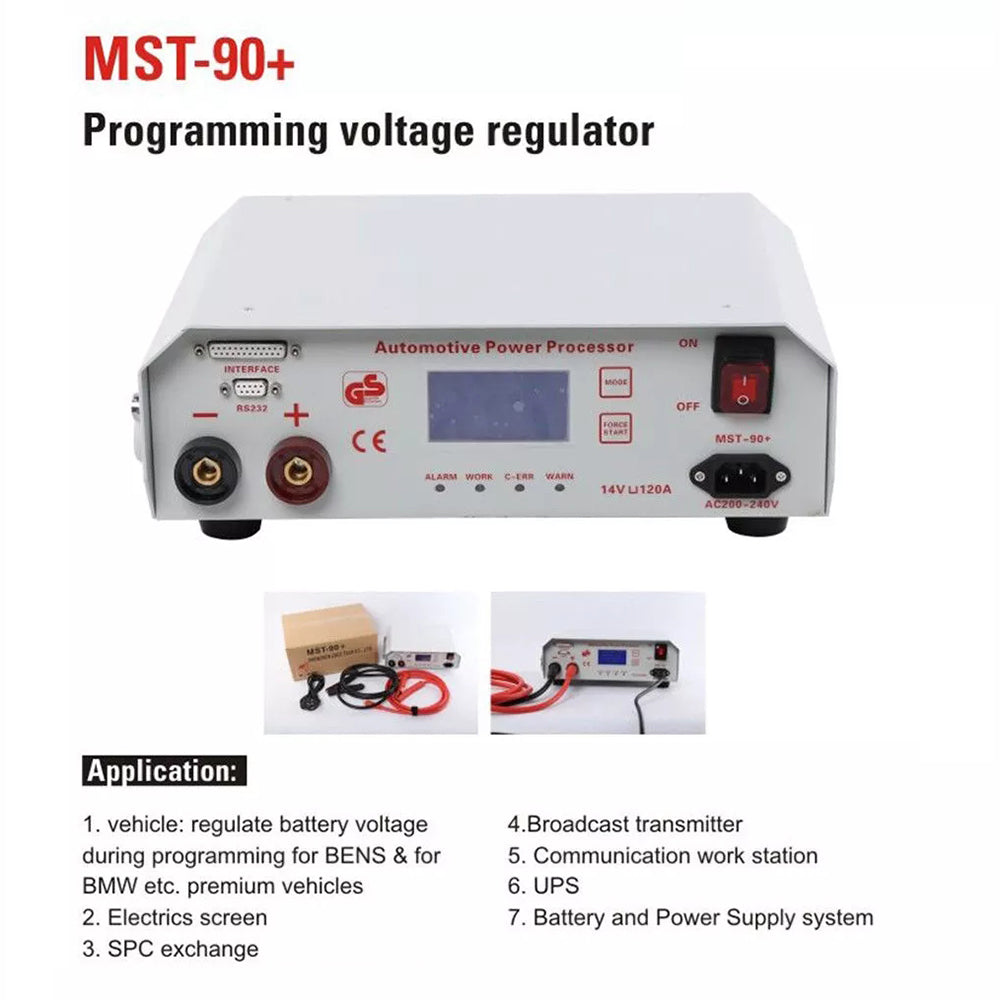

Item Pictures:

MST-90 Programming voltage regulator is also called MST-90 Automotive Power processor, which supply power to the car and adjust the voltage when the car is programming. Beacuse if the voltage is too high, it will damage the ECU. If the voltage is too low, it can't be programmed.

MST-90+ Automotive Power Processor Function:

* Smart vehicle Program

* Charging dedicated power

* Input voltage 220V only, Output Voltage 14V/120A.

* High temperature alarm.

* Intelligent charger for motor vehicles starter battery

* Extensive protection functions and self-protection functions

* Short circuit and reverse polarity protection


MST-90+ Automotive Power Processor Applicable models:

For Volvo, for Porsche, for Volkswagen, for Audi, for BMW, for Mercedes-Benz, for General Motors Etc.


Automotive Programming Dedicated Power Output Characteristics

DC voltage: 14.5V

Rated current: 0-100A

Rated maximum power: 1500W

Ripple and noise: 100mVp-p


Automotive Programming Dedicated Power Input Characteristics

input voltage: AC220V±15%, or AC110V±15%

Frequency range: 40-60HZ

Power Factor: 0.95

Efficiency: 85%


Automotive Programming Dedicated Power Protection Features

Overload: 90-110% of rated output power

Output voltage/ A : 14V /120A

Working temperature: -40°C±85°C

Safety: UL60950, TUV EN60950-1

Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC

Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH

EMC: Complies with EN55022, EN61000

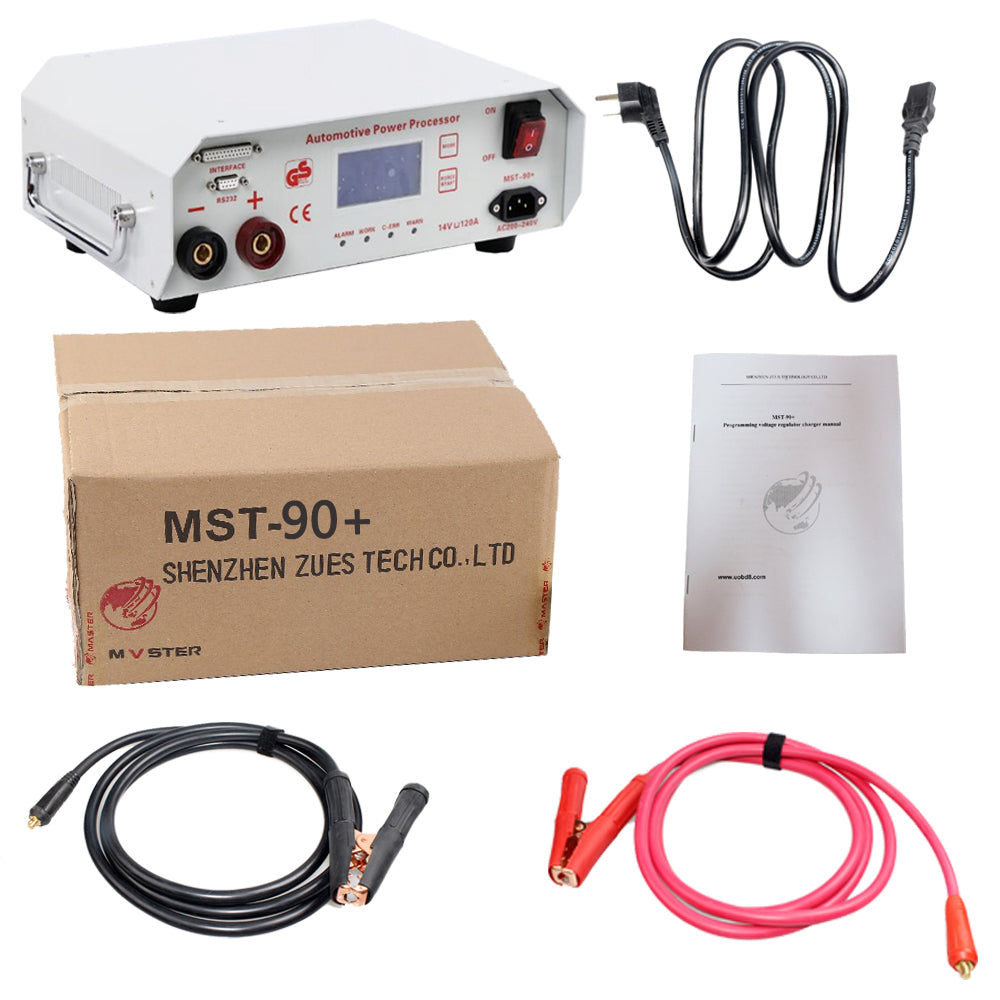

MST-90+ Automotive Power Processor Package Including:

1set x  Automotive Programming Dedicated Power



Operating instruction
Item Pictures:
