MST-9000+ Automobile Sensor Signal Simulation Tool MST-9000 Fit Multi-brands Cars Made In Asia Europe USA MST-9000+ Automobile Sensor Signal Simulation Tool MST-9000 Fit Multi-brands Cars Made In Asia Europe USA

AP015
13.0kg
Automotive Circuit Tester

Why To Get MST-9000+ Automobile Sensor

1. Language: English
2. Software version: 2012 MST-9000+, update via Email
3. Increase Simulate Knock Sensor Function, Output Port are KS2, KS2
4. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need
5. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D.
6. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.

Why To Get MST-9000+ Automobile Sensor

1. Language: English
2. Software version: 2012 MST-9000+, update via Email
3. Increase Simulate Knock Sensor Function, Output Port are KS2, KS2
4. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need
5. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D.
6. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.

$579.00 $449.00 22%
-
+

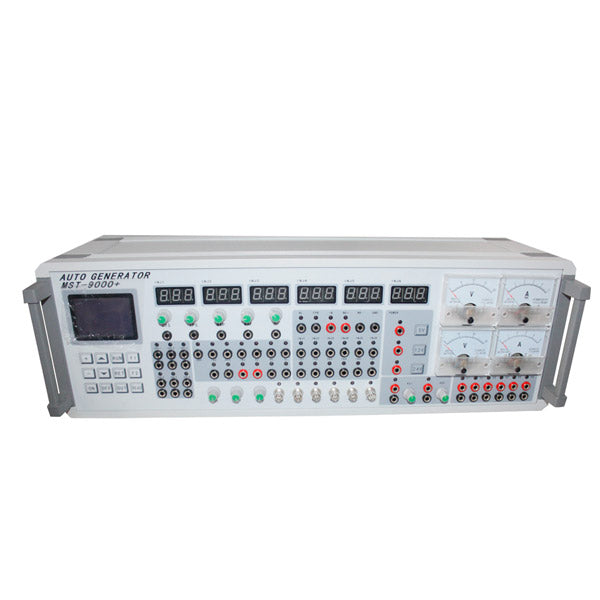

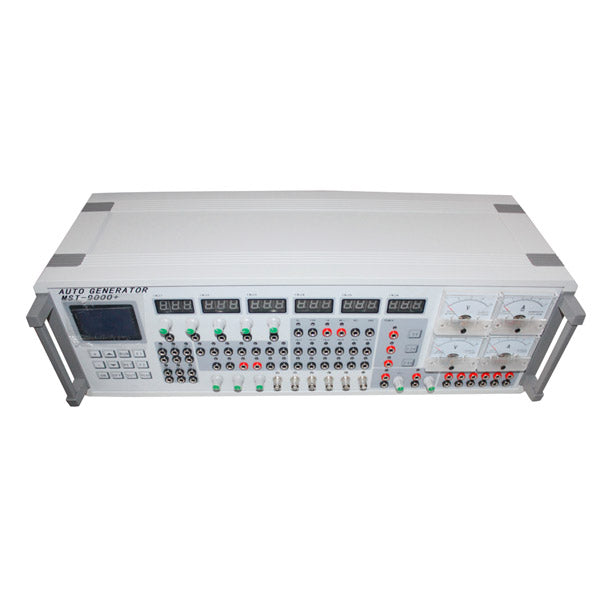

MST-9000+ automobile sensor signal simulator isan very useful tool for professional technician during car ECU reparing.

It's has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.

MST-9000+ Automobile Sensor Highlights:

1. Language: English

2. Software version: 2012 MST-9000+

3. Update: Via Email

4. Warranty: 1 year

5. Increase Simulate Knock Sensor Function, Output Port are KS2, KS2

6. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need

7. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D.

8. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.



MST-9000 Description:

This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.


MST-9000+ Major Function:

1. Users can set the engine control system, independent of different types of crank signal output (for all models of computer-driven)

2. Automatic transmission input and output shaft signal simulation

3. Set the waveform data is written directly

4. Engine speed signal output

5. Speed signal output (Hall signal, magnetic signal)

6. Three, four-channel ABS wheel speed signal output

7. PC board working current test

8. EGR solenoid valve drive

9. Carbon can clear the solenoid valve drive

10. Tachometer drive

11. Blower Control Module Driver

12. Idle valve driver

13. Stepper motor drive (4, 6 lines)

14. Injector Driver

15. Ignition coil driver

16. Ignition module drive

17. Parking sensor (ultrasound) probe drive

18. Automatic Shift Valve Drive

19. Shift quality valve drive

20. hydraulic valve drive

21. Water temperature, intake air temperature, outdoor temperature, evaporation temperature

sensor signal simulation box

22. Oxygen sensor signal simulation (manual)

23. Oxygen sensor signal simulation (auto signal)

24. Throttle signal simulation

25. Carbon can clear the solenoid valve simulation

26. EGR solenoid valve simulation

27. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation

28. Ignition coil simulation

29. Injector simulation

30. Idle stepper motor simulation (four-lane, six-lane)

31. A \ C relay simulation

32. Pump relay simulation

33. Radiator fan relay simulation

34. Audio signal outputs, power amplifier driver

35. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation

36. Fuel injection pulse width measurement

37. Central lock server simulation

38. Burglar resistance simulation

39. User Extension


MST-9000 Special Feature:

1. All cars crank signal simulation experts

It can be set arbitrary waveform output, can produce all the models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform data, waveform memory card from the long-term preservation, waveform data for free online updates.



2. All cars sensor signal simulation experts

Speed signal, speed signal (Hall, magnetic, optical signals), ABS wheel speed signal, the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation



3. All cars Actuator experts

Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc. etc all cars actuator simulation experts:
Actuators simulation for Ignition coil, injectors, idle speed stepper motor, ultrasonic generators etc.
Strong domestic first-line five-channel editing functions crank signal
Five arbitrary wave signal analog output



Output Signal:

magnetic signals, Hall signals, optical signals
1. Actuator: Drive current 3A, 1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment;

2. Sensor Signal Simulation: resistance 100Ω~10000Ω voltage of 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V

3. The implementation of simulated driving: 69-channel simultaneous output

4. Stepper motor drive: current 1A, applicable to all vehicles with four, six, stepping motor driver;

5. Ammeter maximum test current: 5A

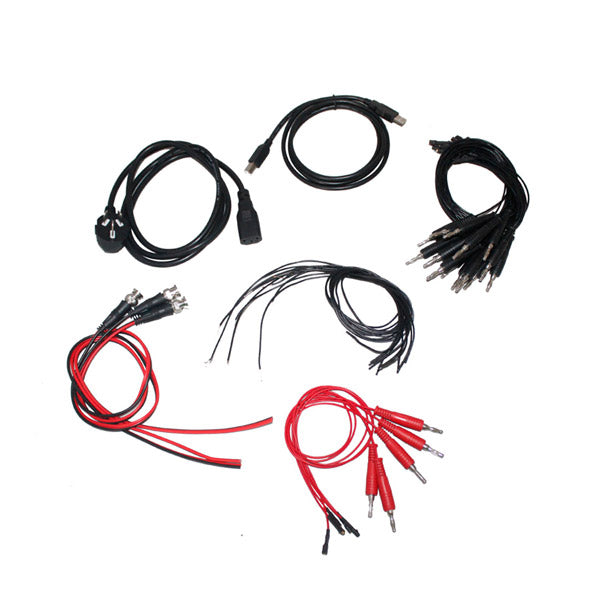

Packing List:

1 set* Sensor signal simulation expert Gold Edition

2 pcs* Data line

2 pcs* Power line

1 pcs * CD

1 pcs* USB cable

MST-9000+ automobile sensor signal simulator isan very useful tool for professional technician during car ECU reparing.

It's has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.

MST-9000+ Automobile Sensor Highlights:

1. Language: English

2. Software version: 2012 MST-9000+

3. Update: Via Email

4. Warranty: 1 year

5. Increase Simulate Knock Sensor Function, Output Port are KS2, KS2

6. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need

7. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D.

8. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.



MST-9000 Description:

This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.


MST-9000+ Major Function:

1. Users can set the engine control system, independent of different types of crank signal output (for all models of computer-driven)

2. Automatic transmission input and output shaft signal simulation

3. Set the waveform data is written directly

4. Engine speed signal output

5. Speed signal output (Hall signal, magnetic signal)

6. Three, four-channel ABS wheel speed signal output

7. PC board working current test

8. EGR solenoid valve drive

9. Carbon can clear the solenoid valve drive

10. Tachometer drive

11. Blower Control Module Driver

12. Idle valve driver

13. Stepper motor drive (4, 6 lines)

14. Injector Driver

15. Ignition coil driver

16. Ignition module drive

17. Parking sensor (ultrasound) probe drive

18. Automatic Shift Valve Drive

19. Shift quality valve drive

20. hydraulic valve drive

21. Water temperature, intake air temperature, outdoor temperature, evaporation temperature

sensor signal simulation box

22. Oxygen sensor signal simulation (manual)

23. Oxygen sensor signal simulation (auto signal)

24. Throttle signal simulation

25. Carbon can clear the solenoid valve simulation

26. EGR solenoid valve simulation

27. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation

28. Ignition coil simulation

29. Injector simulation

30. Idle stepper motor simulation (four-lane, six-lane)

31. A \ C relay simulation

32. Pump relay simulation

33. Radiator fan relay simulation

34. Audio signal outputs, power amplifier driver

35. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation

36. Fuel injection pulse width measurement

37. Central lock server simulation

38. Burglar resistance simulation

39. User Extension


MST-9000 Special Feature:

1. All cars crank signal simulation experts

It can be set arbitrary waveform output, can produce all the models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform data, waveform memory card from the long-term preservation, waveform data for free online updates.



2. All cars sensor signal simulation experts

Speed signal, speed signal (Hall, magnetic, optical signals), ABS wheel speed signal, the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation



3. All cars Actuator experts

Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc. etc all cars actuator simulation experts:
Actuators simulation for Ignition coil, injectors, idle speed stepper motor, ultrasonic generators etc.
Strong domestic first-line five-channel editing functions crank signal
Five arbitrary wave signal analog output



Output Signal:

magnetic signals, Hall signals, optical signals
1. Actuator: Drive current 3A, 1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment;

2. Sensor Signal Simulation: resistance 100Ω~10000Ω voltage of 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V

3. The implementation of simulated driving: 69-channel simultaneous output

4. Stepper motor drive: current 1A, applicable to all vehicles with four, six, stepping motor driver;

5. Ammeter maximum test current: 5A




Packing List:

1 set* Sensor signal simulation expert Gold Edition

2 pcs* Data line

2 pcs* Power line

1 pcs * CD

1 pcs* USB cable
