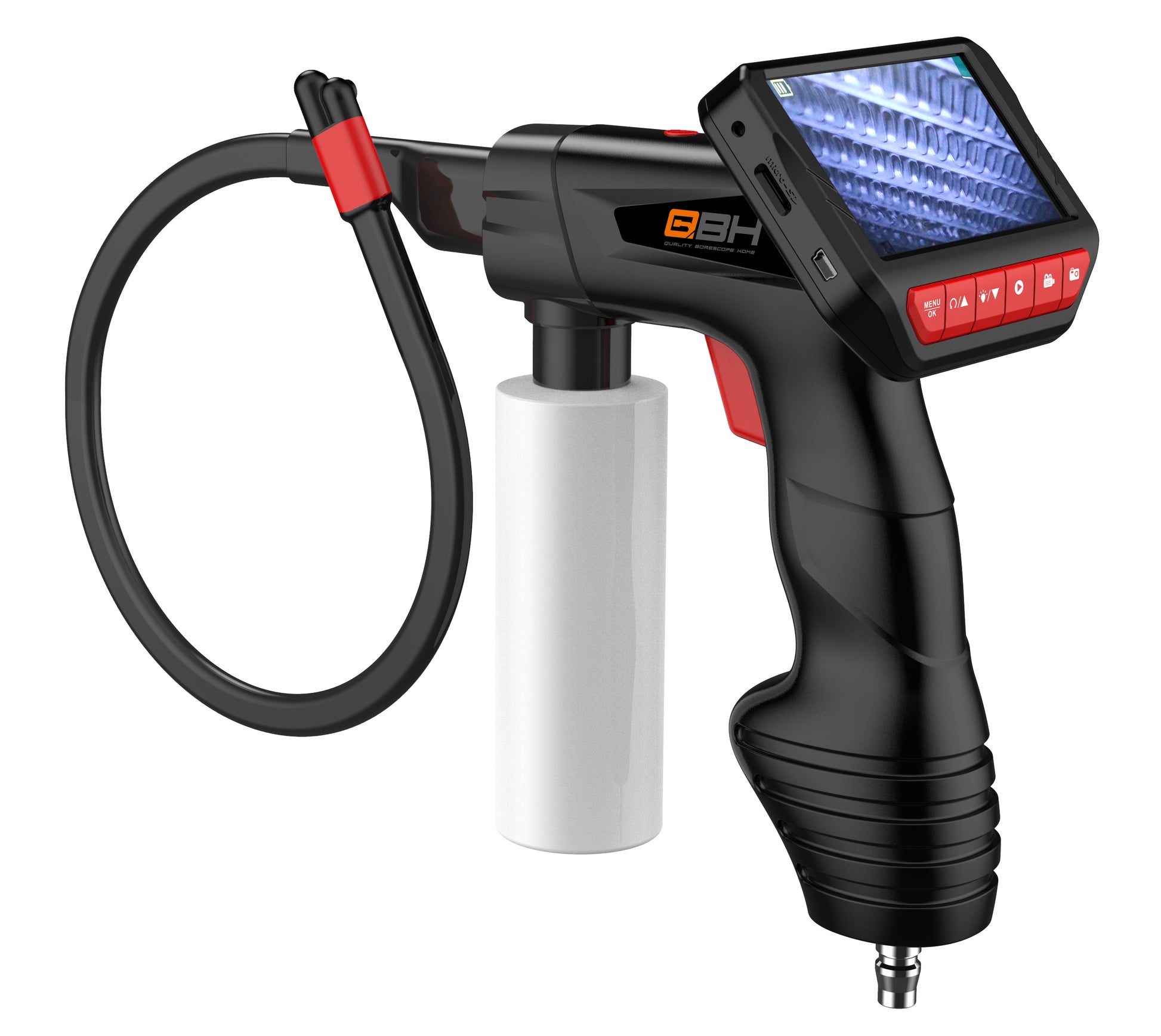

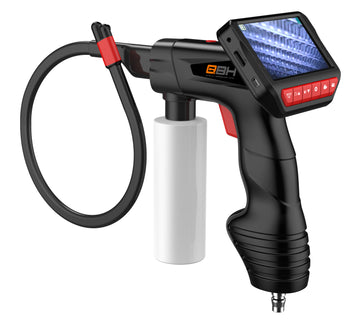

Multifunctional cleaning borescope inspection camera for car evaporator cleaning Multifunctional cleaning borescope inspection camera for car evaporator cleaning

NKJ003
2.5kg
Borescopes
$199.00 $139.00 30%
-
+

Multifunctional cleaning borescope inspection camera for car evaporator cleaning

This Multifunctional cleaning borescope is for cleaning endoscopes of automotive air conditioner evaporators. It is suitable for narrow spaces and dead corners where the field of vision is blurred, it is impossible to observe, and cleaning is difficult.

Used together with detergents to achieve non-destructive testing and cleaning. The method of use is: Connect the air pipe to the lower air inlet at the rear of the product, and fill the storage bottle with detergent and disinfectant.

Through the non-destructive inspection video function of the endoscope, the liquid spray port extending with the camera is viewed for real-time observation. After the air switch wrench is pulled, the air pressure drives the liquid in the liquid reservoir to be ejected.

For small parts, the cleaning status can be checked in real time.



Multifunctional cleaning borescope Specification:

Screen

Power supply: polymer lithium battery, 3.7V

Battery capacity: 1650mAh

Battery using time: about 5 hours

Charging indicator light: red light when charging, green light when charging full

Working indicator light: green light when working, light flashes ten times when low power, and turn off without light

ON/OFF: press long to turn off, press long to turn off

Charging time: about 3 hours

Charging mode: mini USB DC4.35V-6V

Charge current(OFF): 700ma

Standby current: less than 20ma

Max.working current: 190ma

Reset key : YES

Key button(3): ON/OFF, image rotation, screen brightness

Image rotation: YES,0,90,180 and 270 degree rotation

Screen size: 4.3 inch

Pixels: 320*240

Focus distance: fixed focus

Screen brightness control: YES



Handle

Power supply: polymer lithium battery

Battery capacity: 1000ma

Using time: about 4.5 hours

Water control mode/times: direct connection, unlimited times

Gas control mode/times: electromagnetic valve, 300,000 times

Charging indicator light: red light when charging, green light when charging full

Working indicator light: green light when working, light flashes ten times when low power, and turn off without light

Charging time: about 2 hours

Max.transient current: less than 500ma

Max.stable current: 130ma

Multifunctional cleaning borescope inspection camera for car evaporator cleaning

This Multifunctional cleaning borescope is for cleaning endoscopes of automotive air conditioner evaporators. It is suitable for narrow spaces and dead corners where the field of vision is blurred, it is impossible to observe, and cleaning is difficult.

Used together with detergents to achieve non-destructive testing and cleaning. The method of use is: Connect the air pipe to the lower air inlet at the rear of the product, and fill the storage bottle with detergent and disinfectant.

Through the non-destructive inspection video function of the endoscope, the liquid spray port extending with the camera is viewed for real-time observation. After the air switch wrench is pulled, the air pressure drives the liquid in the liquid reservoir to be ejected.

For small parts, the cleaning status can be checked in real time.



Multifunctional cleaning borescope Specification:

Screen

Power supply: polymer lithium battery, 3.7V

Battery capacity: 1650mAh

Battery using time: about 5 hours

Charging indicator light: red light when charging, green light when charging full

Working indicator light: green light when working, light flashes ten times when low power, and turn off without light

ON/OFF: press long to turn off, press long to turn off

Charging time: about 3 hours

Charging mode: mini USB DC4.35V-6V

Charge current(OFF): 700ma

Standby current: less than 20ma

Max.working current: 190ma

Reset key : YES

Key button(3): ON/OFF, image rotation, screen brightness

Image rotation: YES,0,90,180 and 270 degree rotation

Screen size: 4.3 inch

Pixels: 320*240

Focus distance: fixed focus

Screen brightness control: YES



Handle

Power supply: polymer lithium battery

Battery capacity: 1000ma

Using time: about 4.5 hours

Water control mode/times: direct connection, unlimited times

Gas control mode/times: electromagnetic valve, 300,000 times

Charging indicator light: red light when charging, green light when charging full

Working indicator light: green light when working, light flashes ten times when low power, and turn off without light

Charging time: about 2 hours

Max.transient current: less than 500ma

Max.stable current: 130ma
