New OBDSTAR P003 Bench/Boot Adapter Kit for ECU CS PIN for OBDSTAR IMMO Series Tablets X300 DP, X300 Pro4 and X300 DP Plus

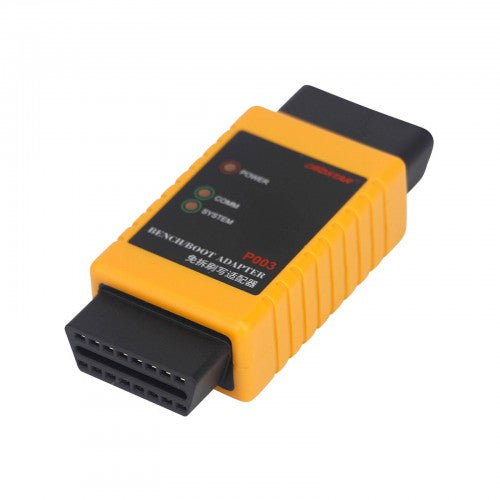

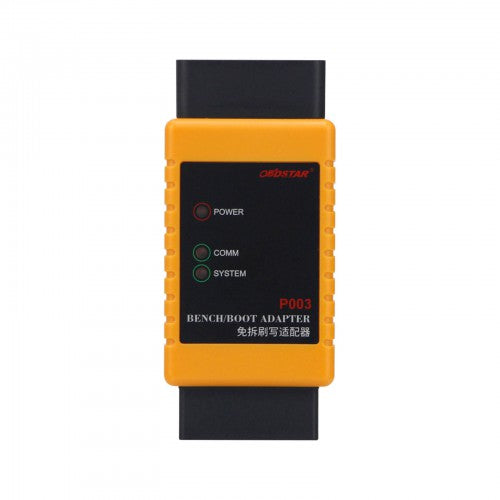

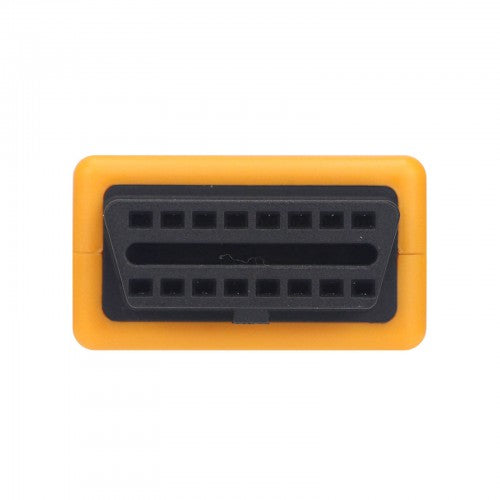

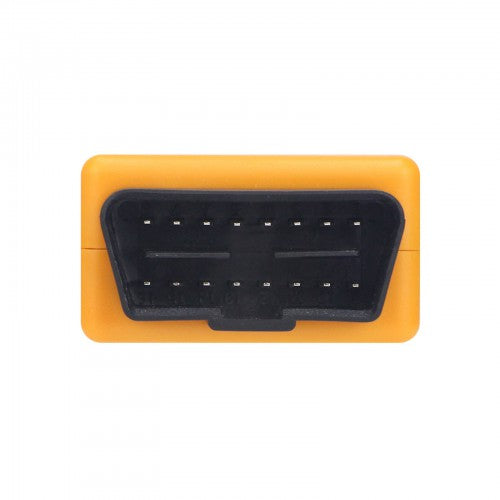

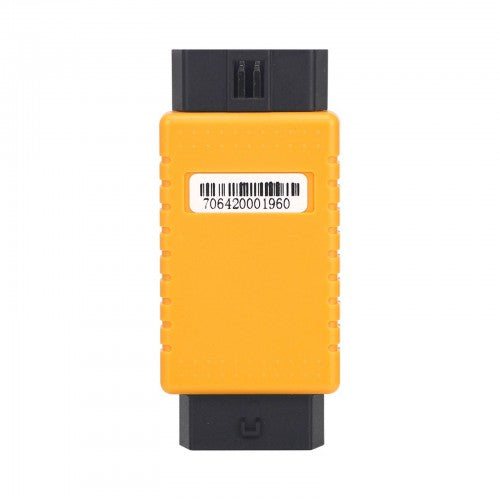

OBDSTAR P003 ECU Bench Adapter for OBDSTAR IMMO Series Tablets
OBDSTAR P003 Adapter Feature:
For BOSCH ECU data reading, CS, Pincode reading etc., including A-udi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...
OBDSTAR P003 Adapter Functions
1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading eeprom , PinCode
3. Bosch EDC17C60 reading eeprom , PinCode
4. Bosch MD1CS018 reading eeprom, PinCode
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
OBDSTAR P003 Adapter Supported ECU list:
BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.
OBDSTAR P003 Adapter Compatible OBDSTAR tablets:
Used with OBDSTAR IMMO series tablets.
- X300 DP/Key Master DP
- X300 Pro4/Key Master 5
- X300 DP Plus/Key Master DP Plus
OBDSTAR P003 Adapter Advantages
- Portable Design
- Easy Operation
- High Performance
OBDSTAR P003 Adapter Instructions
Used with OBDSTAR IMMO series tablets.
Supported ECU list:
1. Continental PCR2.1(TC1796)
-
2010-2014 A-udi A1 (8X) 1.6L Diesel
-
2009-2012 A-udi A3 (8P) 1.6L Diesel
-
2009-2013 Seat Altea 1.6L Diesel
-
2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
-
2010-2012 Seat Leon II 1.6L Diesel
-
2014 Seat Toledo (KG) 1.6L Diesel
-
2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
-
2010-2013 Skoda Fabia II (5J) 1.6L Diesel
-
2010-2011 Skoda Roomster (5J) 1.6L Diesel
-
2013-2014 Skoda Rapid (NH) 1.6L Diesel
-
2011-2013 Skoda Superb (3T) 1.6L Diesel
-
2012/2015 Skoda Yeti (5L) 1.6L Diesel
-
2010-2015 V-W Caddy (2K) 1.6L Diesel
-
2009-2013 V-W Golf VI 1.6L Diesel
-
2010-2013 V-W Golf Plus 1.6L Diesel
-
2011-2014 V-W New Beetle (9C) 1.6L Diesel
-
2011 V-W Passat (B7) 1.6L Diesel
-
2009-2014 V-W Polo V 1.6L Diesel
-
2010-2015 V-W Touran (1T) 1.6L Diesel
2. Bosch MED17.4.4(TC1793)
-
Citroen C3 Mk2
-
Citroen C4 Gran Picasso
-
Citroen C4 MK2
-
Citroen C5 (RD/TD)
-
Citroen C6
-
DS DS3
-
DS DS5
-
DS DS6
-
Peugeot 2008
-
Peugeot 208
-
Peugeot 3008 (P84)
-
Peugeot 3008 (T84)
-
Peugeot 308 (T9)
-
Peugeot 4008
-
Peugeot 408
-
Peugeot 508
3. Bosch EDC17C60(TC1793)
-
Citroen Berlingo
-
Citroen C-Elysee
-
Citroen C3 Aircross
-
Citroen C3 MK2
-
Citroen C3 Picasso
-
Citroen C4 Cactus
-
Citroen C4 MK2
-
Citroen C4 Picasso
-
Citroen Jumpy
-
Citroen Spacetourer
-
DS DS3
-
DS DS4
-
DS DS5
-
Peugeot 2008
-
Peugeot 208
-
Peugeot 3008 (P84)
-
Peugeot 308 (T9)
-
Peugeot 5008 (T87-P87)
-
Peugeot 508
-
Peugeot Expert
-
Peugeot Ranch/Partner
-
Peugeot Traveller
-
Opel/Saturn/Vauxhall Combo E
-
Opel/Saturn/Vauxhall Crossland X
-
Opel/Saturn/Vauxhall Grandland X
-
Toyota Proace
4. Bosch MD1CS018
-
Mahindra BS-6
5. Bosch MED17XX/EDC17XX
-
EDC17U01(TC1766)
-
EDC17C46(TC1767)
-
EDC17C54(TC1797)
-
EDC17C64(TC1797)
-
EDC17CP44(TC1797)
-
EDC17CP44 MS(TC1797)
-
MED17.5(TC1766)
-
MED17.5.1(TC1766)
-
MED17.5.20(TC1766)
-
MED17.5.5(TC1766)
-
MED17.5.5 HW2(TC1766)
-
MED17.5.2(TC1767)
-
MED17.5.5(TC1767)
-
MED17.5.5 HW2(TC1767)
-
MED17.5.21(TC1782)
-
MED17.5.25(TC1782)
-
MED17.1.1(TC1797)
-
MED17.1.1 MS(TC1797)
-
MED17.1.6(TC1797)
-
V-W/Skoda/A-udi/Seat, Bentley, Lamborghini, Porsche...
6. Bosch ME17XX
-
ME17.5.6(TC1767)
-
ME17.5.20(TC1767)
-
ME17.1.1(TC1797)
-
ME17.1.6(TC1797)
-
V-W/Skoda/Seat, Bentley
...
OBDSTAR P003 Harness Connection Diagram

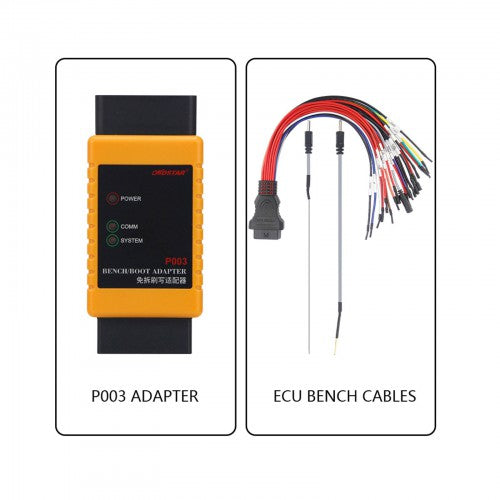

Package List:
1 x P003 adapter

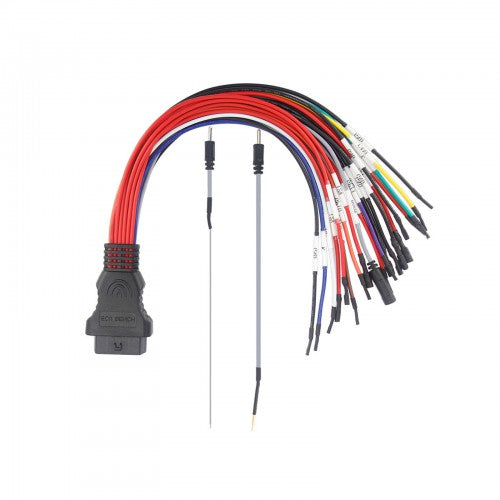

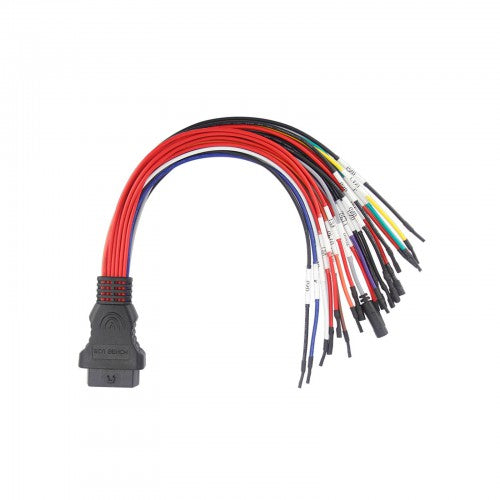

1 x ECU BENCH cables
