OBDSTAR P003+ Adapter Kit Working with OBDSTAR DC706 series tablets

OBDSTAR P003+ Adapter Kit Working with OBDSTAR DC706 series tablets

Regular price $125.00
Sale price $125.00 Regular price
Unit price
Description
Return & Warranty

OBDSTAR P003+ compatibles with P003

for OBDSTAR DC706 and supports ME9.0, MED9.1, MED9.6.1, ME9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8.

OBDSTAR P003+ Adapter Kit Advantages:

Portable Design
Easy Operation
High Performance

Support P002 and P003 functions
Works together with OBDSTAR DC706 series

OBDSTAR P003+ Adapter Kit Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003+ KIT
2. Bosch MED17.4.4 reading eeprom , PinCodeP003+ KIT
3. Bosch EDC17C60 reading eeprom , PinCodeP003+ KIT
4. Bosch MD1CS018 reading eeprom, PinCodeP003+ KIT
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

OBDSTAR P003+ Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

If DC706 says the function only supported by P003+ adapter and MP001, you cannot use normal P003.

1. Continental PCR2.1(TC1796)

2010-2014 A-udi A1 (8X) 1.6L Diesel

2009-2012 A-udi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 V-W Caddy (2K) 1.6L Diesel

2009-2013 V-W Golf VI 1.6L Diesel

2010-2013 V-W Golf Plus 1.6L Diesel

2011-2014 V-W New Beetle (9C) 1.6L Diesel

2011 V-W Passat (B7) 1.6L Diesel

2009-2014 V-W Polo V 1.6L Diesel

2010-2015 V-W Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

Toyota Proace

4. Bosch MD1CS018

Mahindra BS-6

How to connect the P003+ adapter and ECU BENCH cables with OBDSTAR tablet devices?

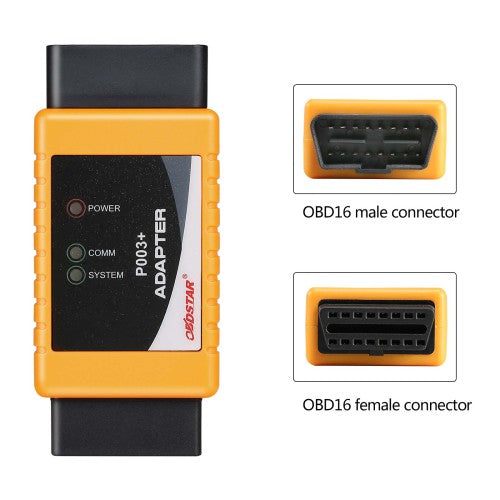

1. Diag cable OBD connector(male)
2. Connect P003+ connector(female)
3. P003+ adapter
4. Boot jumper(spring needle)
5. Boot jumper(welding)
6. ECU pin connector
7. ECU boot connector
8. 12V power

Bench Mode:

Step 1: Connect 1, 2, 3  together as pic below;
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 12V power with diagnostic device;
Step4: read data

Boot Mode:

Step 1: Connect 1, 2, 3 together as pic below;

Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 7 with 4 or 5 and connect it to ECU;
Step4: connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

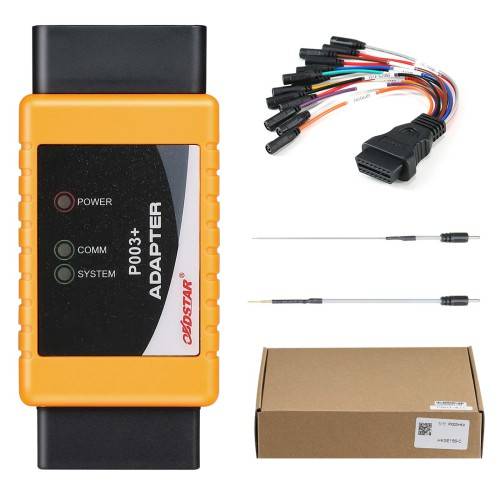

OBDSTAR P003+ Adapter Kit Packing List:

1pc x OBDSTAR P003+ adapter
1pc x ECU BENCH jumper
