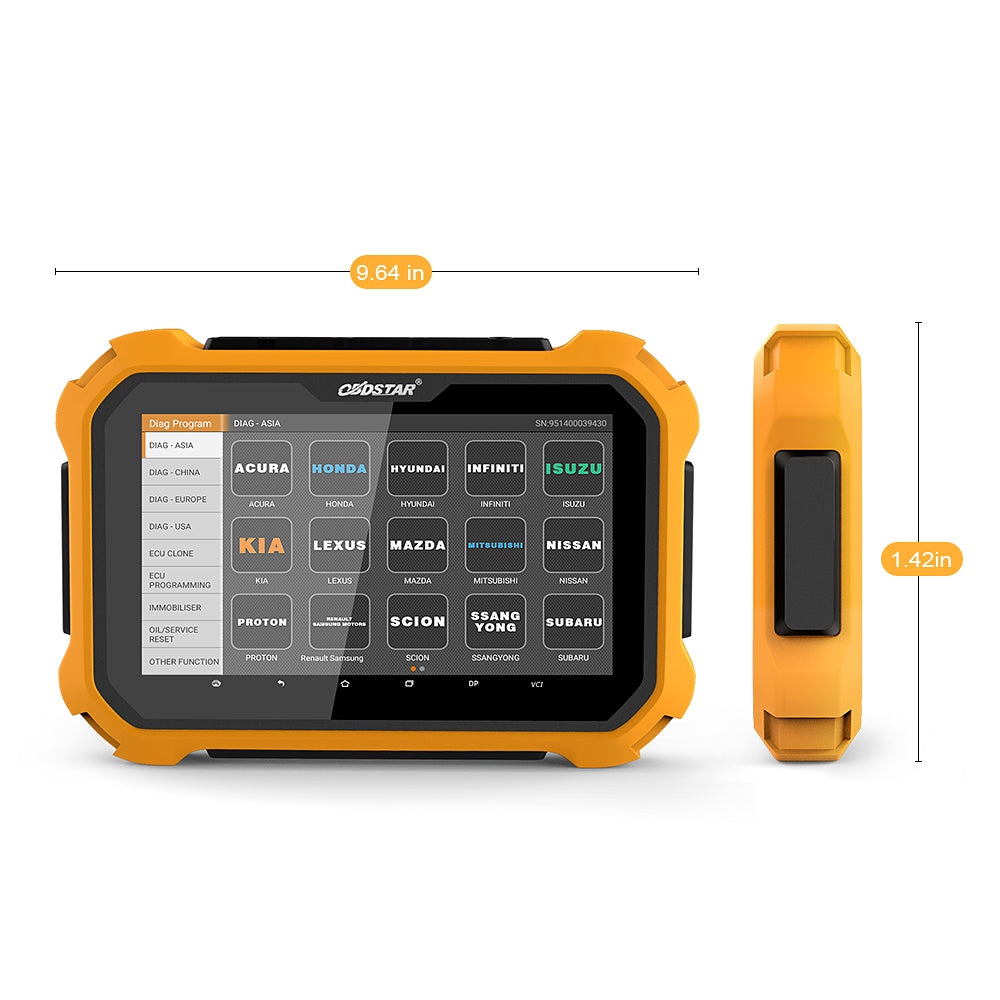

OBDSTAR X300 DP PLUS Auto Key Programmer Tablet Immobilizer Key Master DP OBD2 Automotive Scanner Tool All Key Lost ECU Clone OBDSTAR X300 DP PLUS Auto Key Programmer Tablet Immobilizer Key Master DP OBD2 Automotive Scanner Tool All Key Lost ECU Clone

KP182
8.0kg
Auto Key Programmer

Why Choose X300 DP PLUS Auto Key Programmer

  • 1. Built-in VCI Box: Different from X300 DP PAD, the upgrade version X300 DP PAD Plus has built-in VCI Box, communication more stable and you have no worry to lost VCI on customer's car.
  • 2. 8-inch Touchscreen and Back Bracket Design: Large screen given you better experience on using X300 DP PAD PLUS, the PAD can directly Charge directly via OBD interface. Back Bracket Design allow you prop on the steering wheel or stand on the table
  • 3. 3 in 1 P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
  • 4.Powerful Function: IMMO+Adjustment+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning) Adapter (P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)
  • 5.Special Feature: Switch Activation Function, ECU Clone(Now only for Volvo/GM/Peugeot/Citroen and we are adding more car models),

Why Choose X300 DP PLUS Auto Key Programmer

  • 1. Built-in VCI Box: Different from X300 DP PAD, the upgrade version X300 DP PAD Plus has built-in VCI Box, communication more stable and you have no worry to lost VCI on customer's car.
  • 2. 8-inch Touchscreen and Back Bracket Design: Large screen given you better experience on using X300 DP PAD PLUS, the PAD can directly Charge directly via OBD interface. Back Bracket Design allow you prop on the steering wheel or stand on the table
  • 3. 3 in 1 P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
  • 4.Powerful Function: IMMO+Adjustment+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning) Adapter (P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)
  • 5.Special Feature: Switch Activation Function, ECU Clone(Now only for Volvo/GM/Peugeot/Citroen and we are adding more car models),

$1,399.00
-
+

OBDSTAR X300 DP PLUS IMMO Auto Car Key Program Tool Immobilizer Pin Code Reader Odometer Correction EEPROM OBD2 Key Master DP

OBDSTAR X300 PAD2 X300 DP Plus description :

  • This device is a new Android-based vehicle trouble diagnostic device developed for internet applications.
  • It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result.
  • Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
  • Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 PAD2 X300 DP Plus

A Package Basic Version :

Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+for Toyota smart key Emulator)+others(Ignition coil+Remote tester)

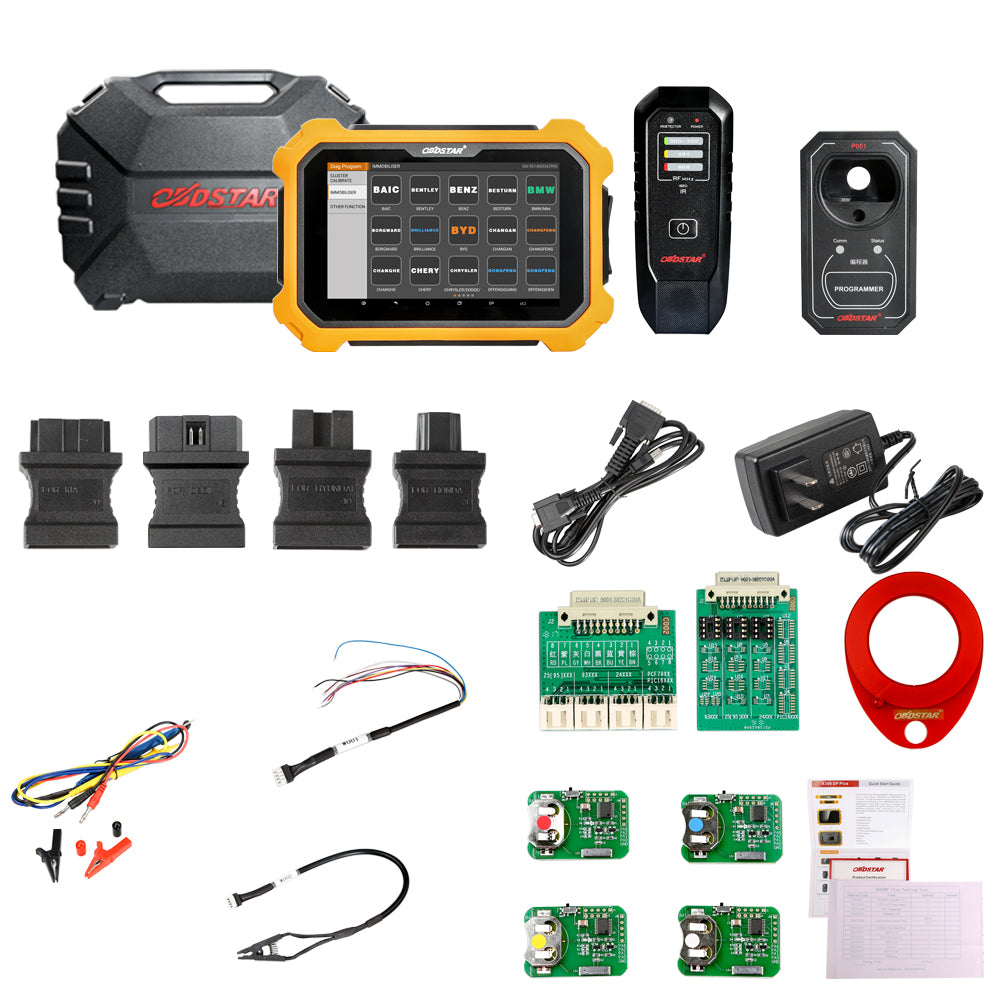

B Package Standard Version :

Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

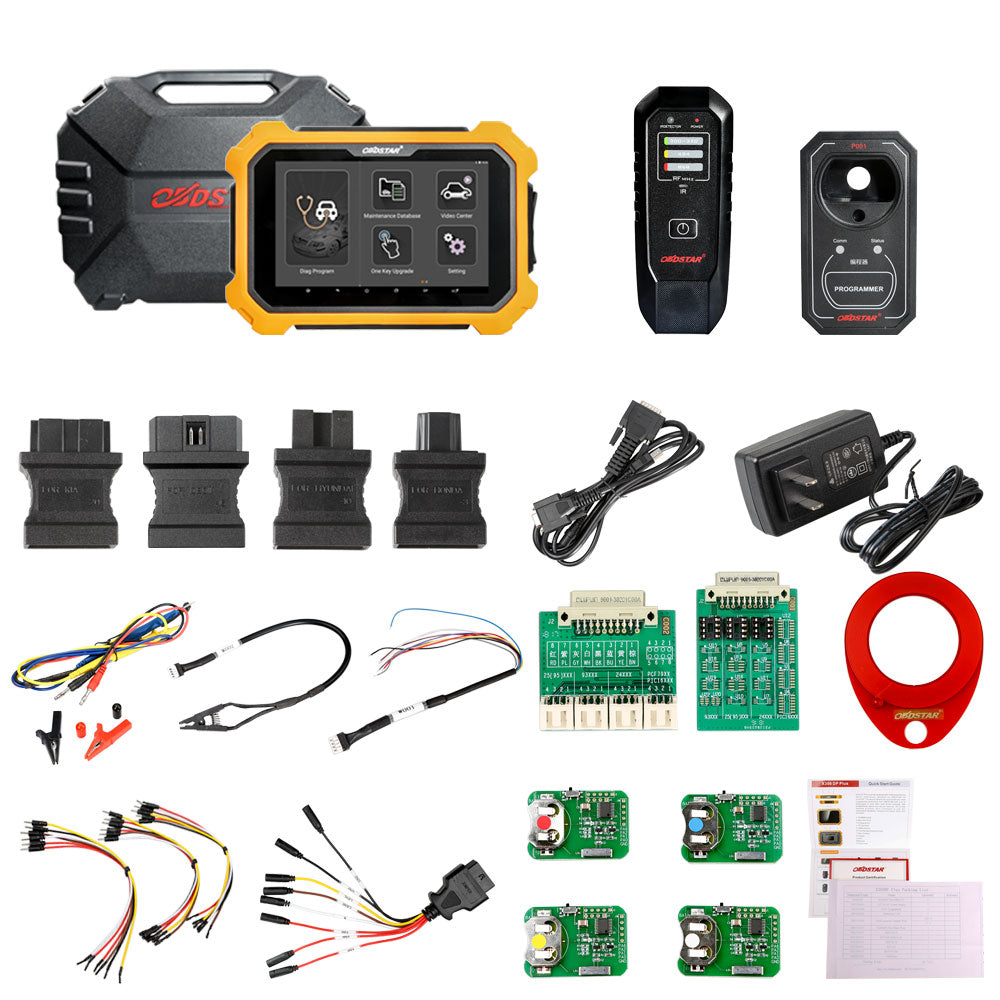

C Package Full Version:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W0a01 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

Pls Choose the correct one you need !!!
Distributor Code: 860755B1

OBDSTAR X300 DP Plus Software Update Instruction:

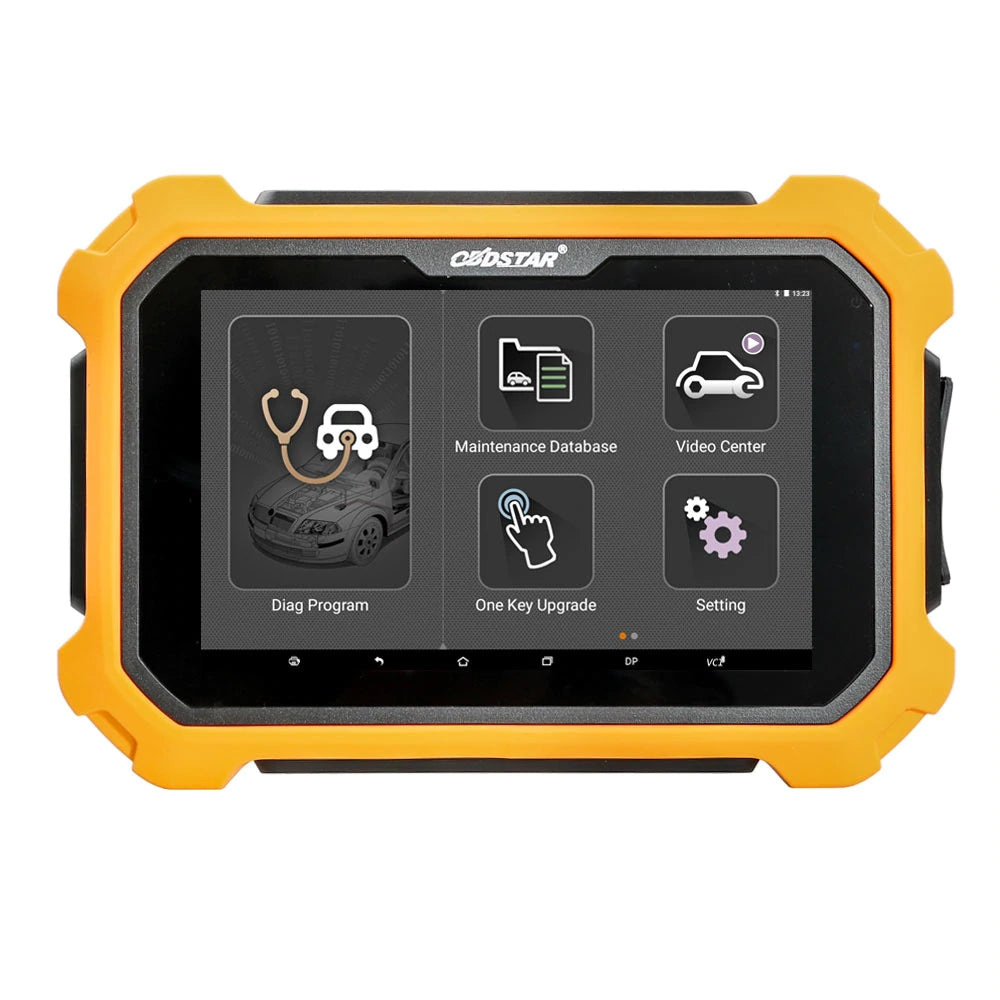

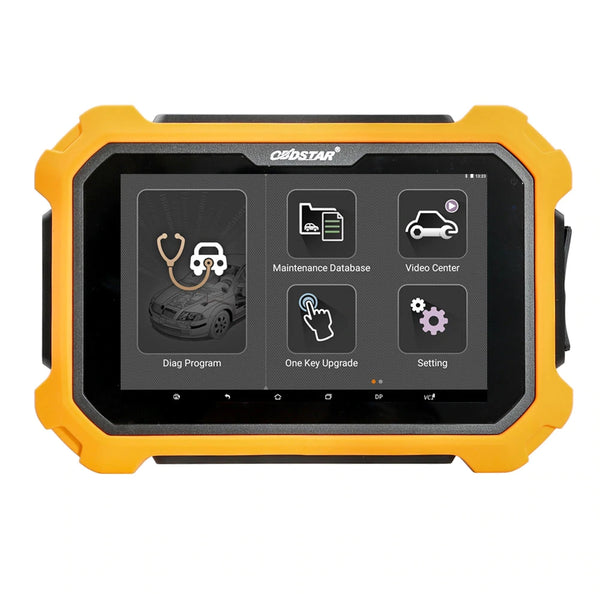

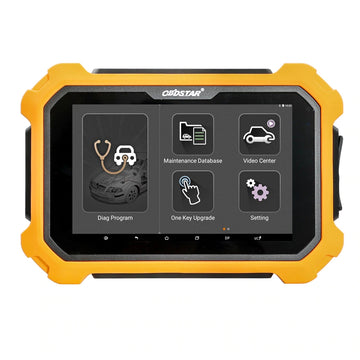

Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:

Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently)

If need to cancel a software, just tap corresponding Check Box as following picture shown:

Hardware Advantages:

  • 1. The built-in VCI box offers more stable communication.
  • 2. The 8" touch screen offers better vision experience.
  • 3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
  • 4. With specialized toolkit, high grade and practical.
  • 5. Industrial -grade design, comes with the silicone sleeve
  • 6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
  • 7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
  • 8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
  • 9. Adds the clip for reading SOP 8PIN EEPROM.
  • 10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

Software Advantages:

IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming

IMMO Support Car List (No all models can work, please ask seller before order)
for Audi, for Baic, for Bentley, for Benz, for Besturn, for BMW, for Borgwarg, for Brilliance, for BYD, for Chery, for Chrysler, for Fiat, for Ford, for Lincoln, for Foton, for Geely, for GM, for Honda, for Hyundai, for Isuzu, for Jaguar, for Kia, for Lamborghini, for Land Rover, for Maserati, for Mazda, for Mitsubishi, for Nissan, for Opel, for Citroen, for Porsche, for Renault, for Skoda, for Smart, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Volvo, for VW


ECU Clone    (for Volvo)

1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!


3. Three features for ECU Clone:

  • A. Free of 4S online programming:
  • break monopoly from 4S, benefiting automobile maintenance industry
  • B. Simplified operation procedures: realize foolproof operation
  • C. Non-dismantling with zero risks: read and write data without dismantling ECU
 ECU Programming  (for BMW, for GM)

Specifications

  • Operation system: Android 5.1.1
  • CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz
  • Battery: 3700mA, rechargeable polymer lithium battery
  • Extension memory card: 32G Micro SD (TF) card supported
  • Memory capacity:1GB
  • Storage capacity: 32GB
  • LCD: 8.0 inch
  • LCD resolution: 1280*800
  • Touch screen: Capacitive touch screen
  • Camera: 5 mega rear view camera
  • Wi-Fi: supported
  • Weight: about 5.5 Kg

OBDSTAR X300 DP Plus CONFIGURATION C Fucntion Coveage:

1.Immobilizer key programming
2.Pin code BSI Service
3.Mileage correction
4.OBD2/EOBD Basic engine Diagnosis
5.Oil Service reset
6.ABS Bleeding Service
7.Battery matching
8.ECU programming
9.EPB Service
10.Throttle programming
11.Airbag rest
12.TPMS
13.SAS Steering angle rest
14.DPF Service Reset
15.Injector coding
16.Supension matching
17.Gear learning
18.CVT learning
19.EEPROM
20.Key renewing
21.ECU cloning
22.Adapter P001 programmer
23.C001/C002  circuit board
24.W001/W002/W003 data cable
25. for Toyota smarkt key emulator
26.Ignition coil test
27.Remote key test



OBDSTAR X300 DP PLUS IMMO Auto Car Key Program Tool Immobilizer Pin Code Reader Odometer Correction EEPROM OBD2 Key Master DP

OBDSTAR X300 PAD2 X300 DP Plus description :

  • This device is a new Android-based vehicle trouble diagnostic device developed for internet applications.
  • It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result.
  • Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
  • Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 PAD2 X300 DP Plus

A Package Basic Version :

Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+for Toyota smart key Emulator)+others(Ignition coil+Remote tester)


B Package Standard Version :

Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)


C Package Full Version:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W0a01 data cable+W002 data cable+W003 data cable+for Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

Pls Choose the correct one you need !!!
Distributor Code: 860755B1

OBDSTAR X300 DP Plus Software Update Instruction:
Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:

Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently)

If need to cancel a software, just tap corresponding Check Box as following picture shown:

Hardware Advantages:

  • 1. The built-in VCI box offers more stable communication.
  • 2. The 8" touch screen offers better vision experience.
  • 3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
  • 4. With specialized toolkit, high grade and practical.
  • 5. Industrial -grade design, comes with the silicone sleeve
  • 6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
  • 7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
  • 8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
  • 9. Adds the clip for reading SOP 8PIN EEPROM.
  • 10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

Software Advantages:

IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming

IMMO Support Car List (No all models can work, please ask seller before order)
for Audi, for Baic, for Bentley, for Benz, for Besturn, for BMW, for Borgwarg, for Brilliance, for BYD, for Chery, for Chrysler, for Fiat, for Ford, for Lincoln, for Foton, for Geely, for GM, for Honda, for Hyundai, for Isuzu, for Jaguar, for Kia, for Lamborghini, for Land Rover, for Maserati, for Mazda, for Mitsubishi, for Nissan, for Opel, for Citroen, for Porsche, for Renault, for Skoda, for Smart, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Volvo, for VW


ECU Clone    (for Volvo)

1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!


3. Three features for ECU Clone:

  • A. Free of 4S online programming:
  • break monopoly from 4S, benefiting automobile maintenance industry
  • B. Simplified operation procedures: realize foolproof operation
  • C. Non-dismantling with zero risks: read and write data without dismantling ECU
 ECU Programming  (for BMW, for GM)

Specifications

  • Operation system: Android 5.1.1
  • CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz
  • Battery: 3700mA, rechargeable polymer lithium battery
  • Extension memory card: 32G Micro SD (TF) card supported
  • Memory capacity:1GB
  • Storage capacity: 32GB
  • LCD: 8.0 inch
  • LCD resolution: 1280*800
  • Touch screen: Capacitive touch screen
  • Camera: 5 mega rear view camera
  • Wi-Fi: supported
  • Weight: about 5.5 Kg

OBDSTAR X300 DP Plus CONFIGURATION C Fucntion Coveage:

1.Immobilizer key programming
2.Pin code BSI Service
3.Mileage correction
4.OBD2/EOBD Basic engine Diagnosis
5.Oil Service reset
6.ABS Bleeding Service
7.Battery matching
8.ECU programming
9.EPB Service
10.Throttle programming
11.Airbag rest
12.TPMS
13.SAS Steering angle rest
14.DPF Service Reset
15.Injector coding
16.Supension matching
17.Gear learning
18.CVT learning
19.EEPROM
20.Key renewing
21.ECU cloning
22.Adapter P001 programmer
23.C001/C002  circuit board
24.W001/W002/W003 data cable
25. for Toyota smarkt key emulator
26.Ignition coil test
27.Remote key test
