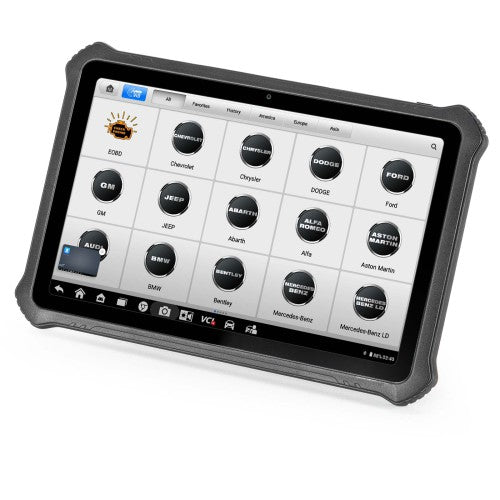

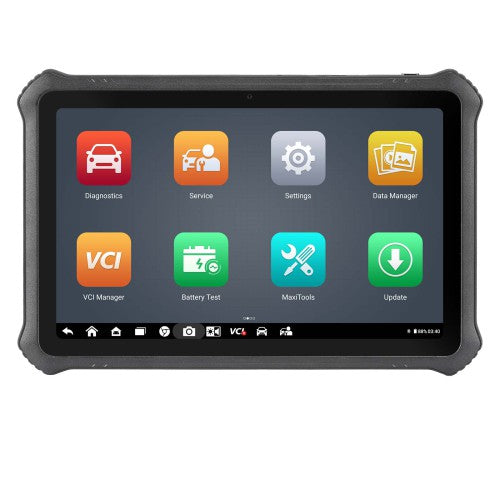

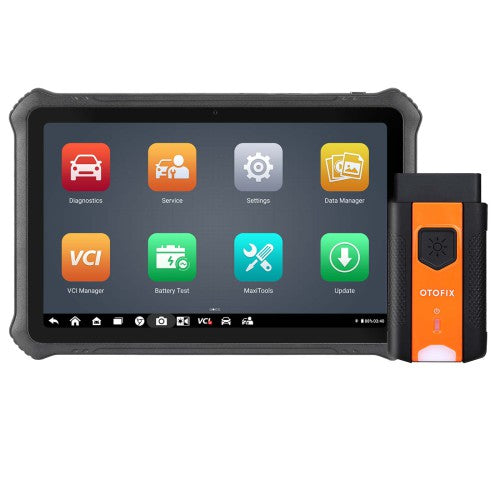

OTOFIX D1 MAX2 Professional Bi-directional Diagnostic Tool Supports CAN FD DoIP
-
Express Estimated Delivery:Dec 10 - Dec 14
-
Free Shipping Method: Estimate dilevery 8-19 business days
Guarantee safe & secure checkout
OTOFIX D1 MAX2 Professional Bi-directional Diagnostic Tool Supports CAN FD DoIP
The OTOFIX D1 Max2 is a professional automotive diagnostic tool. It combines a high-performance Qualcomm SM6225 octa-core processor and a 10.1-inch touchscreen with extensive OE-level diagnostics and the Android OS. This integration allows technicians to perform accurate and rapid fault diagnosis, making it an ideal solution for repair shops.
Why do you need OTOFIX D1 MAX2?
● 2025 New Model: D1 MAX2
1. Enhanced with a larger 11,600 mAh battery and a rear 13-megapixel camera.
2. Built on OE-level all-system diagnostics with active testing capabilities.
3. Features AutoScan 2.0, delivering scanning speeds up to 3x faster than previous versions.
● Comprehensive Diagnostics & Programming
1. Supports CAN FD and DoIP protocols for modern vehicle communication.
2. Enables ECU coding, including VAG online coding, VAG Guided Functions, and offline ECU programming.
3. Performs advanced functions such as Remote Expert, Battery Testing, and Data Management.
● Extensive Vehicle Coverage
1. Compatible with 80+ brands and 10,000+ models, including FCA vehicles.
2. Supports 2018+ FCA Autoauth and Renault Gateway bypass for secure access.
● Professional Service & Maintenance Functions
1. Over 40 reset and service functions, continuously updated (e.g., Oil Reset, TPMS Reset, Injector Coding, Suspension Calibration, Throttle Matching).
2.Facilitates bi-directional control and active tests (e.g., EVAP test, fuel pump control, injector test, A/C clutch cycling, window/door lock, and horn activation).

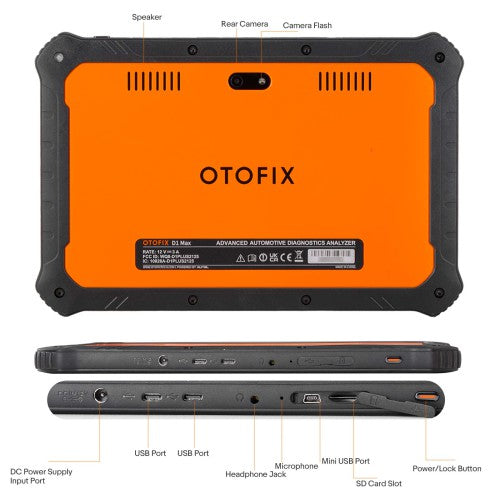

● High-Performance Hardware & OS
1. Powered by a Qualcomm SM6225 octa-core processor, Android 11.0 OS, and 4GB RAM + 128GB storage.
2. 10.4-inch display with 760g lightweight design for portability.
3. Includes 7,250 mAh battery (model-specific) for extended operation.
● User-Oriented Features
1. Auto VIN 2.0 for automatic vehicle identification.
2. One-tap full-system diagnostics with code reading/clearing, live data in graph/text/analog formats, freeze frame data, and ECU info.
3. Stable Bluetooth connectivity up to 10 meters for cable-free diagnostics.
4. WiFi printing and MaxiFix Cloud integration for one-click report uploads and sharing.
● Update & Support Policy
1. Includes 2 years of free software updates; subsequent updates available, contact VXDAS customer service to know the price.
3. Multi-language interface with ongoing feature and compatibility enhancements.
OE-Level Full System Diagnosis & Bi-directional Control / Active Tests
1. OE-Level Full System Diagnosis
Read and Clear Codes : Essential for testing or replacing sensors, the electronic control unit (E-CU), and actuators.
Live Data : Allows you to monitor the real-time working conditions of electronic components and analyze data flow in text or graph format to facilitate troubleshooting.
E-CU Information : Retrieves and displays specific information about the tested control unit, including its type, version numbers, and other specifications.
Freeze Frame : Displays the freeze frame data of the DTCs (Diagnostic Trouble Codes).
Auto VIN & Auto Scan : Automatically identifies the vehicle identification number and runs a comprehensive diagnostic scan of all available systems with a single tap.
2. Bi-directional Control / Active Tests
Including but not limited to:
- Door/Window Lock
- Horn/Light/Headlamp Test
- Injector Kill Test
- EVAP Test / Fuel Pump / Fuel Injector Test
- Cycling A/C Clutch On/Off
OTOFIX D1 MAX2 Maintenance Service Functions
36+ Reset Services :
-
Oil Reset
-
EPB Reset
-
TPMS
-
BMS
-
Brake Bleed
-
Aftertreatment
-
Immo Keys
-
Injector
-
SAS
-
Suspension
-
Throttle
-
WIN DR ROOF
-
Seats
-
Odometer
-
Lang Change
-
Headlamp
-
CHG Tire Size
-
TEC Learn
-
ABSSRS
-
Cylinder
-
VGT Learn
-
Speed & PTO
-
Clutch
-
Trans Adapation
-
Airbag Reset
-
A/F Setting
-
Automatic Start/Stop
-
Electronic Water Pump Start
-
EGR
-
VIN
-
FRM Reset
-
Transport Mode
-
HV Battery
-
ACC
-
AC
-
Rain/Light Sensor
Detailed Descriptions for Selected Reset Services :
-
Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter.
-
ABS Bleeding: Bleed the air of a brake system to restore ABS brake sensitivity.
-
Airbag Reset: Reset the Airbag data and clear the collision data.
-
EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
-
BMS: Battery registration after replacing the new battery.
-
SAS Calibration: Match the steering angle after replacing the steering angle position sensor, restore the current steering wheel position, clear SAS warning light.
-
DPF Regeneration: Perform the regeneration procedure to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
-
Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.
-
Suspension Calibration: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
VAG Guided Functions :
-
Targeted on different car models and configurations, there are related operation guidance that provides corresponding tips, auto log-in, matching, setting and coding. Having guided functions means having the company of an expert who can provide idea, help looking up maintenance manual and test functions while repairing a car.
Online ECU Coding (Subscribe) for Audi & VW :
-
E-CU Coding: Refresh Hidden Features / Recode Change Modules / Personalization / Customize the Daytime Running Lights / Auto Side Mirrors Folding / Auto Engine Start-Stop / More...
-
Recode the adaptive for certain components after making repairs or replacements.
-
Improve fuel efficiency and the durability of mechanical parts, reduce power loss.
-
Change the chimes on your car, set the mirrors automatically folding and unfolding, deactivate the Start/Stop function.
IMMO Keys :
-
Programming key FOB programming on VAG vehicles: Add New Key, Delete The Lost Key, Write Smart Keys, Smart Keys Lost, Remote Learning. (Note: the key programming function is NOT universally compatible, please check compatibility before you get the software).

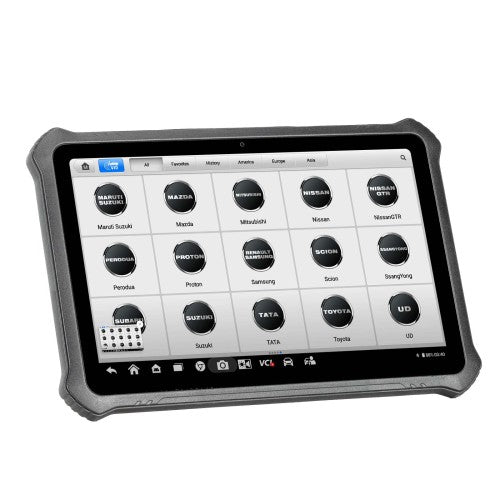

Supported vehicles:
Asian brands: Toyota, Honda, Nissan, Lexus, Infiniti, Acura, Mazda, Mitsubishi, Subaru, Suzuki, Hyundai, Kia, Isuzu, etc.
European brands: Audi, BMW, Mercedes-Benz, Volkswagen, Porsche, Jaguar, Land Rover Rover, Volvo, Peugeot, Citroën, Skoda, SEAT, Mini, Smart, Opel, Saab, Sprinter, etc.
North American and other regional brands: Chevrolet, Ford, Chrysler, Buick, Cadillac, Lincoln, GMC, Hummer, etc.
Chinese domestic brands: Covers models produced by many major domestic manufacturers.
Battery Test
On-Vehicle Battery Test
The on-vehicle test is used to check the battery installed in the vehicle. This test includes comprehensive checks on the battery, starter motor, and generator, assessing the battery's health, the starter motor's operating status, and the generator's power generation performance.
Off-Vehicle Battery Test:
The off-vehicle test is used when the battery is not connected to the vehicle and primarily checks the battery's health. Supported battery types include flooded, AGM flat plate, AGM spiral, EFB, and gel-cell (GEL) batteries. It is compatible with multiple testing standards, including CCA, SAE, CA, EN, IEC, DIN, JIS, and MCA.
Additional Features
-
Cloud-based MaxiFix: An online troubleshooter database that offers comprehensive DTC (Diagnostic Trouble Code) information for most vehicle models. It also enables users to connect and collaborate with other professionals through its networking platform.
-
Remote Desk: A simple, fast, and secure remote control interface. This feature allows OTOFIX support technicians to provide immediate remote assistance by controlling your MaxiPRO tablet via TeamViewer software, ensuring quick and reliable problem-solving.
-
Shop Manager: An application designed to improve daily workshop operations and customer service. It helps manage workshop information, maintain customer records, and handle other essential business data efficiently.
-
Data Manager: Enables users to store, print, and review all saved diagnostic and service files for easy access and reporting.
-
Renault Gateway Unlock Support: Provides compatibility for unlocking Renault gateways on vehicles from 2015 and newer.
-
One-Stop Multitasking: Facilitates seamless management of workshop operations by keeping all data files, customer information, and vehicle records systematically organized.
-
FCA Autoauth Gateway Unlock Support: Includes support for unlocking FCA (Fiat Chrysler Automobiles) Autoauth gateways for 2018 and later models.

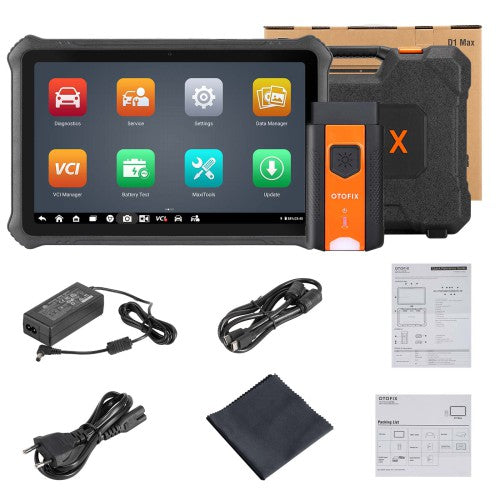

Package list
