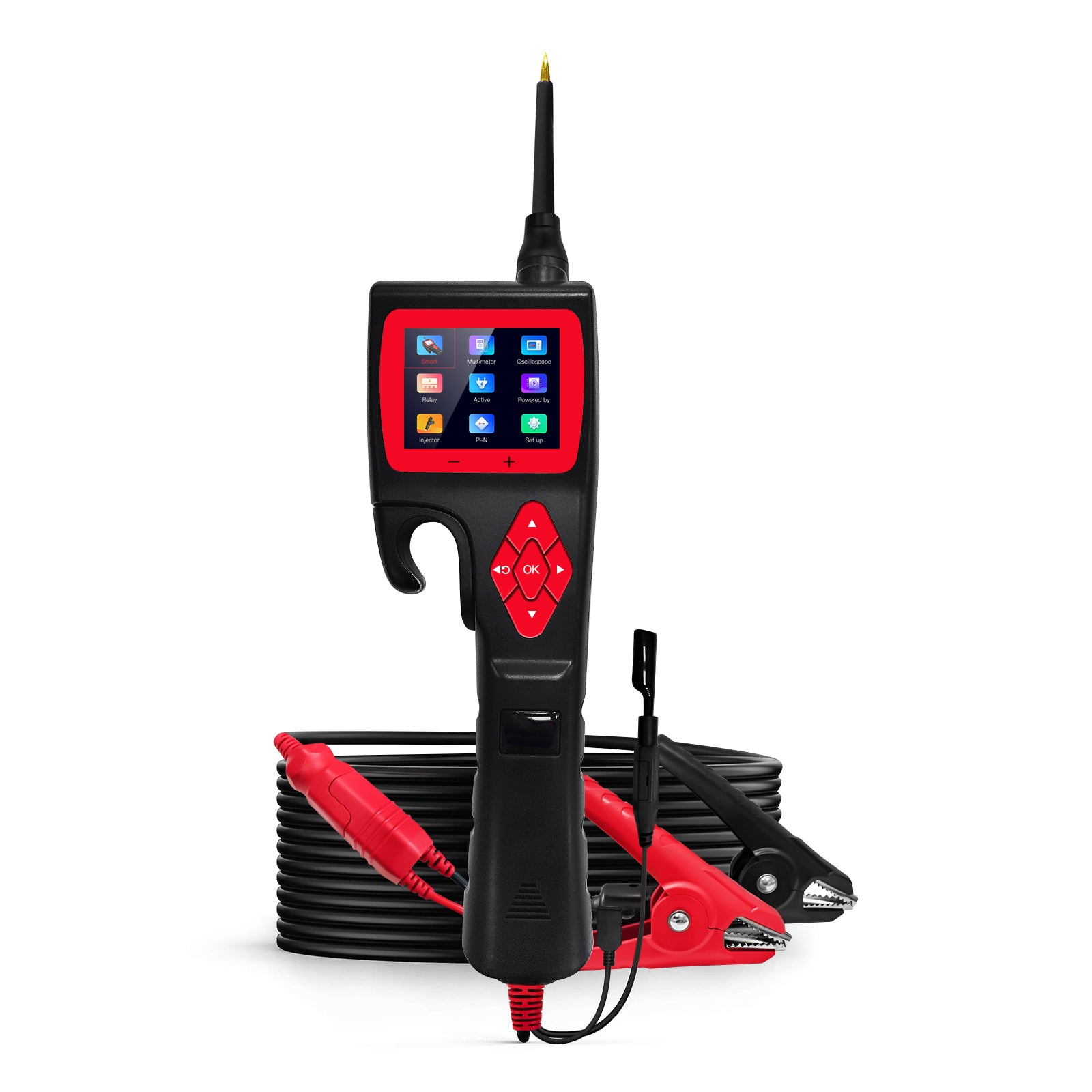

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK

JD019
2.6kg
Automotive Circuit Tester
$269.00 $199.00 26%
-
+

P200 Powerful Probe Hook is new generation of intelligent circuit analyzer is upgradeable circuit tester on the market. P200 is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK

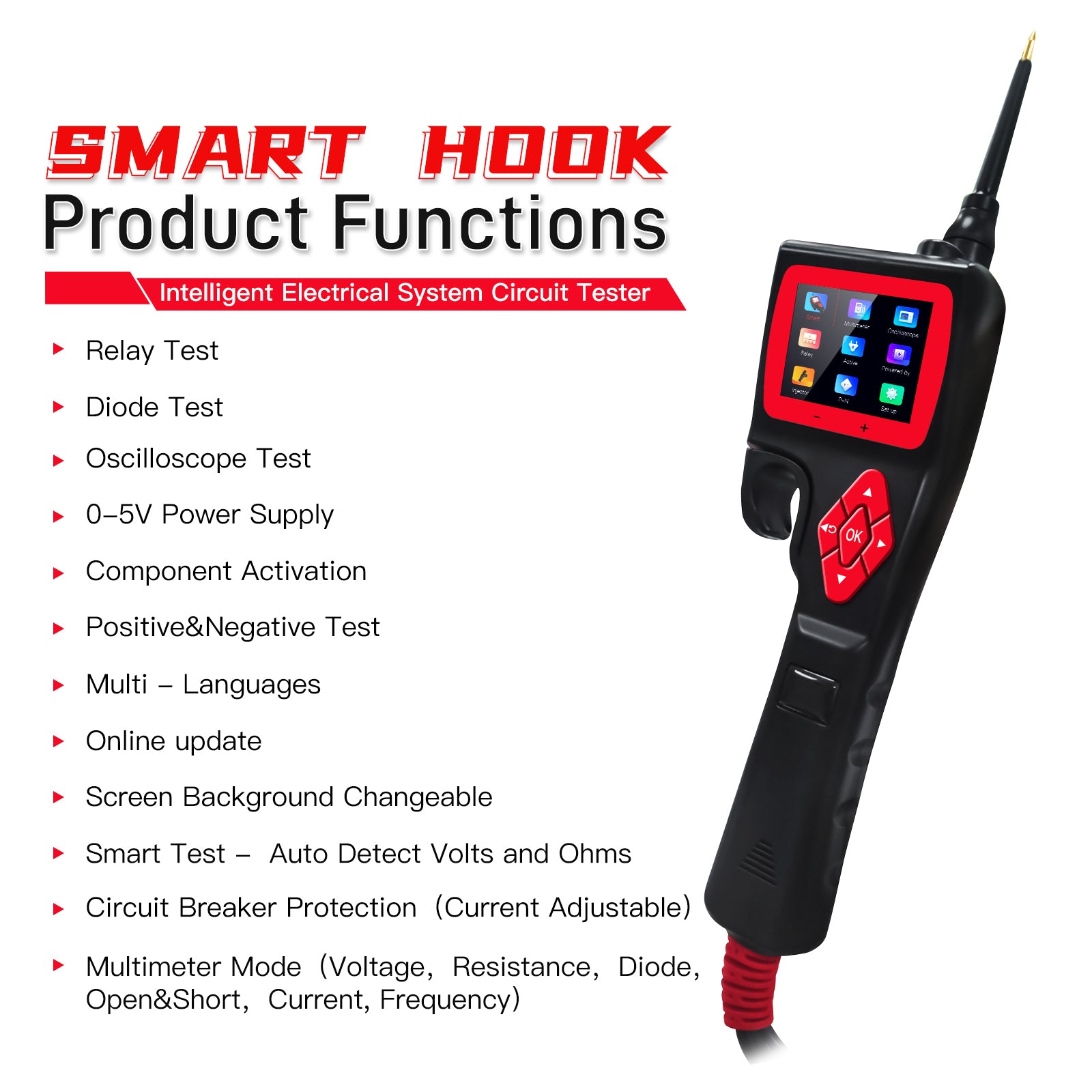

Functions:

1. Intelligent identification of voltage/resistance

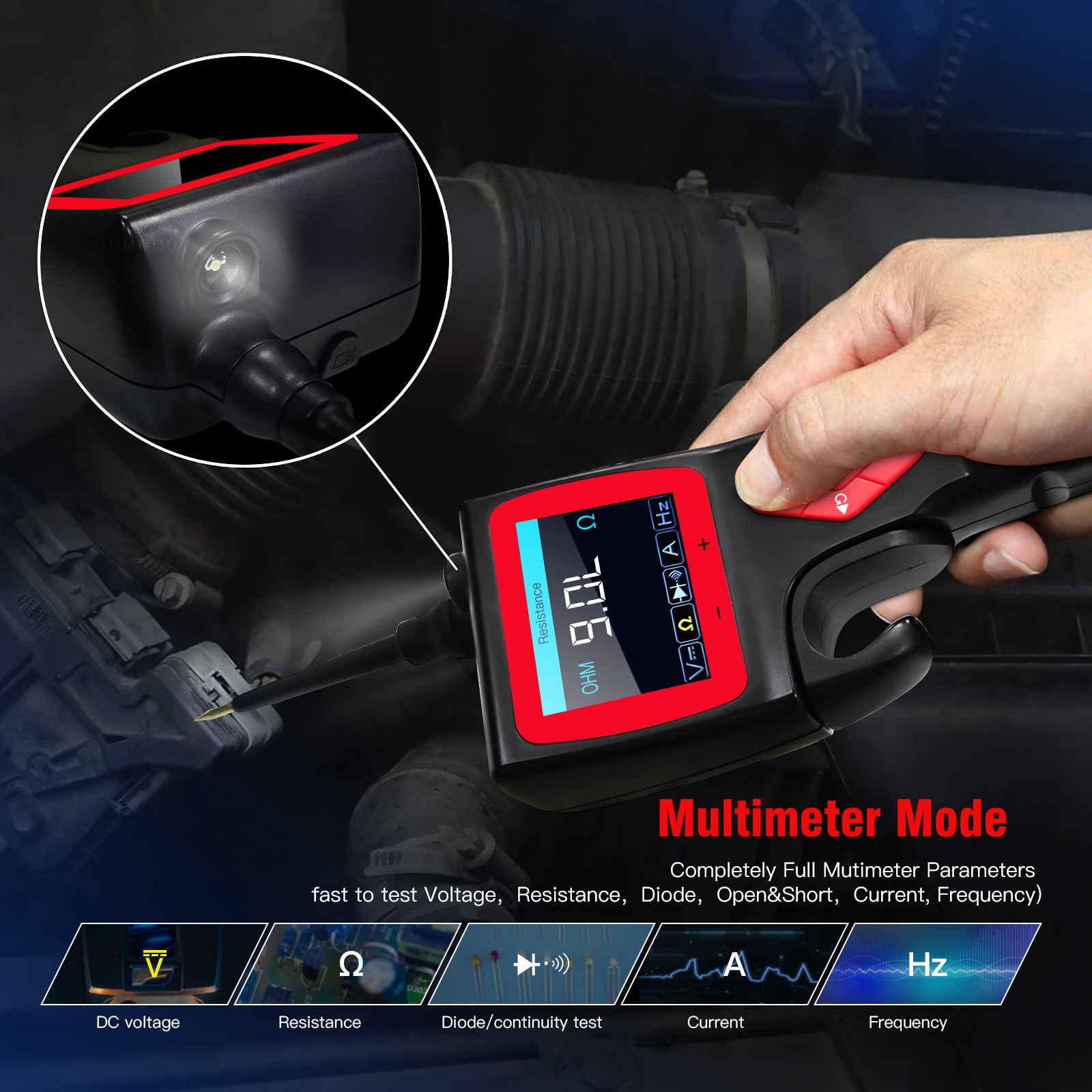

2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply

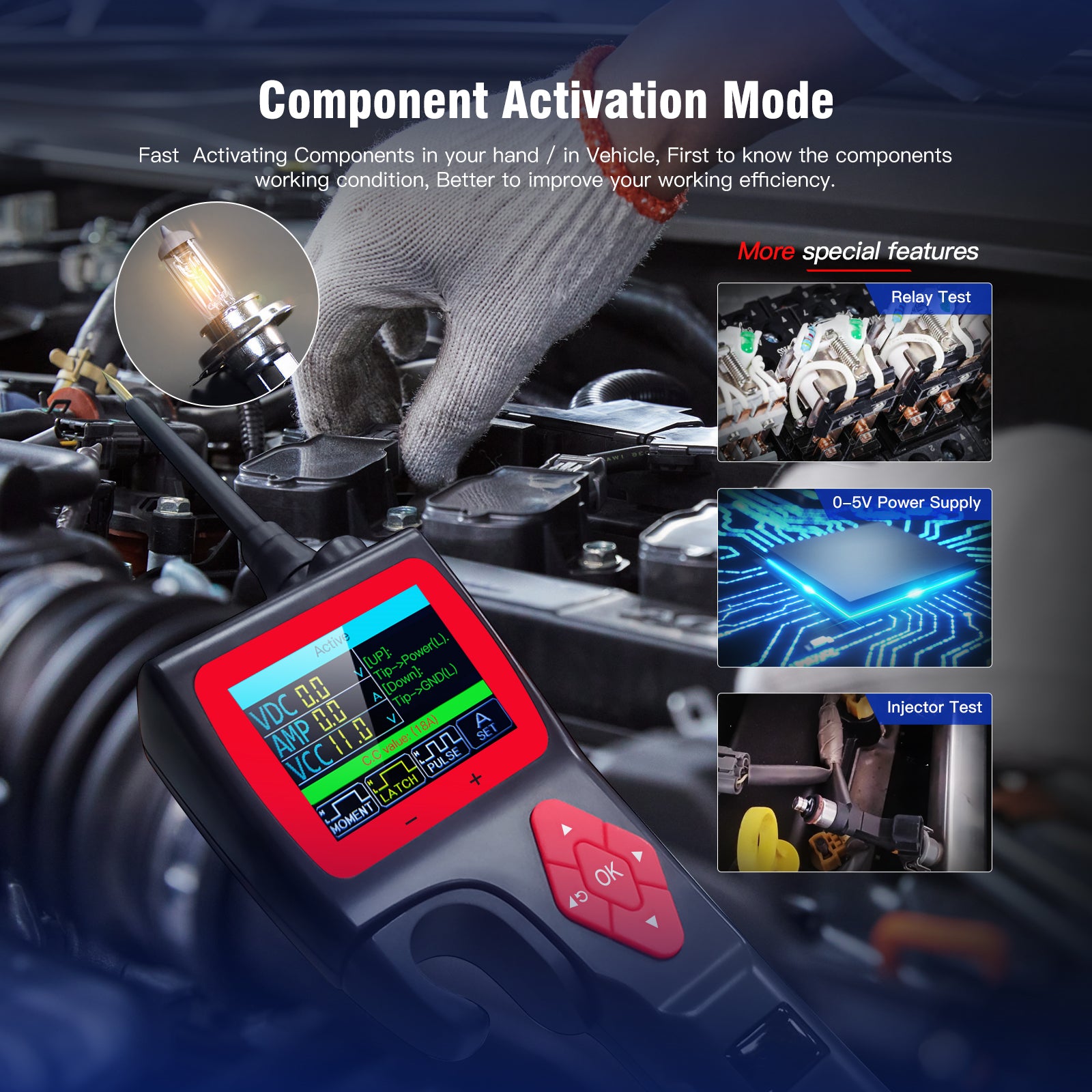

8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network online upgrade
13. Built-in Multi-languages

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



Product Specifications and Parameters

1. Display: (320*240 DPI) TFT true color display
2. Working temperature: 0-60°C (32-140 F°)
3. Storage temperature: 40-70°C (-40-185 F°)
4. External power supply: 12V or 24V powered by battery
5. Minimum working voltage: 9V
6. Maximum working voltage: 30V
7. Maximum measuring voltage: 150V
8. Minimum measuring voltage: 0.1V
9. Resistance measurement range: 1 ohm~200K ohm
10. Current measuring range: 0~18A
11. Maximum continuous current: 18A

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK
P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK
P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK

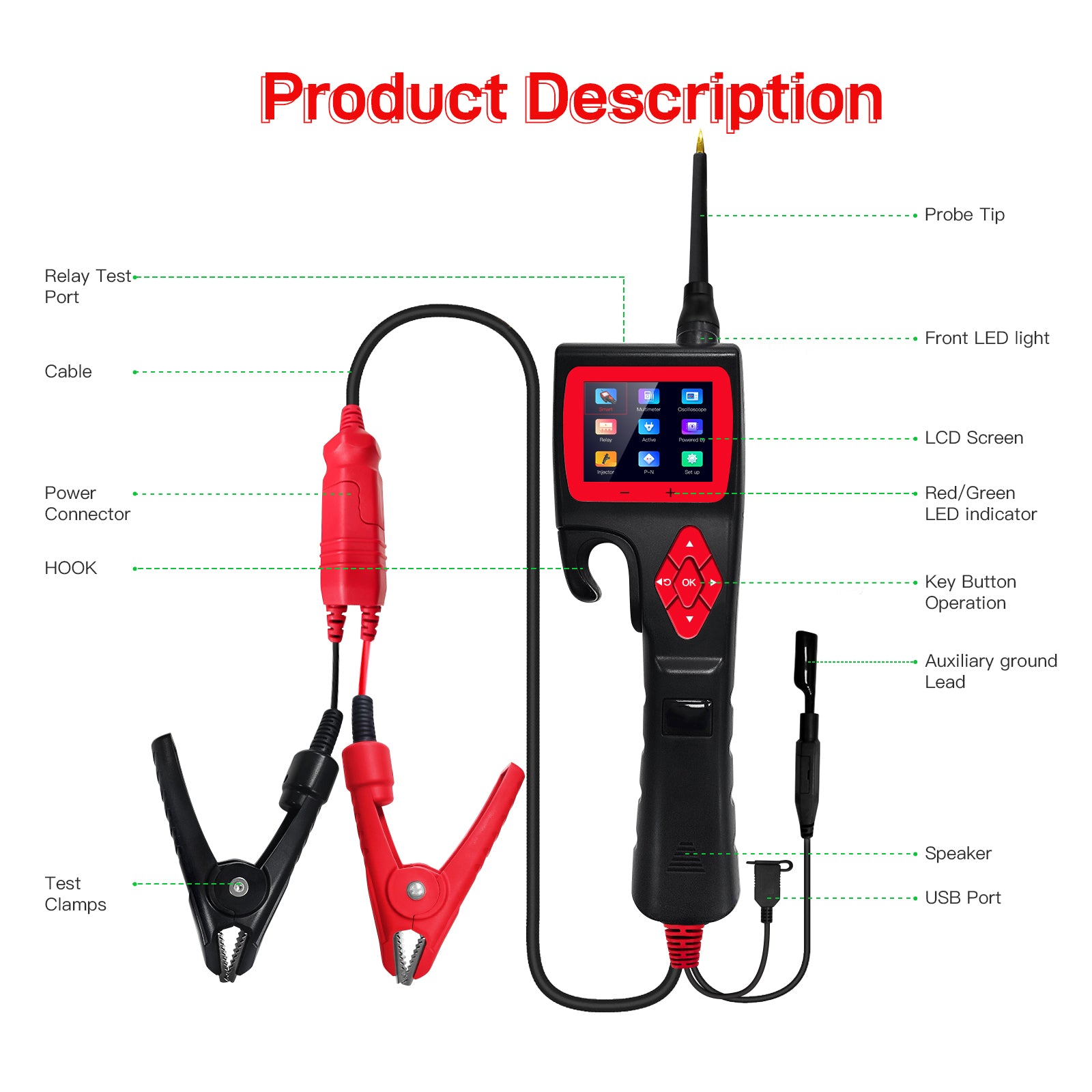

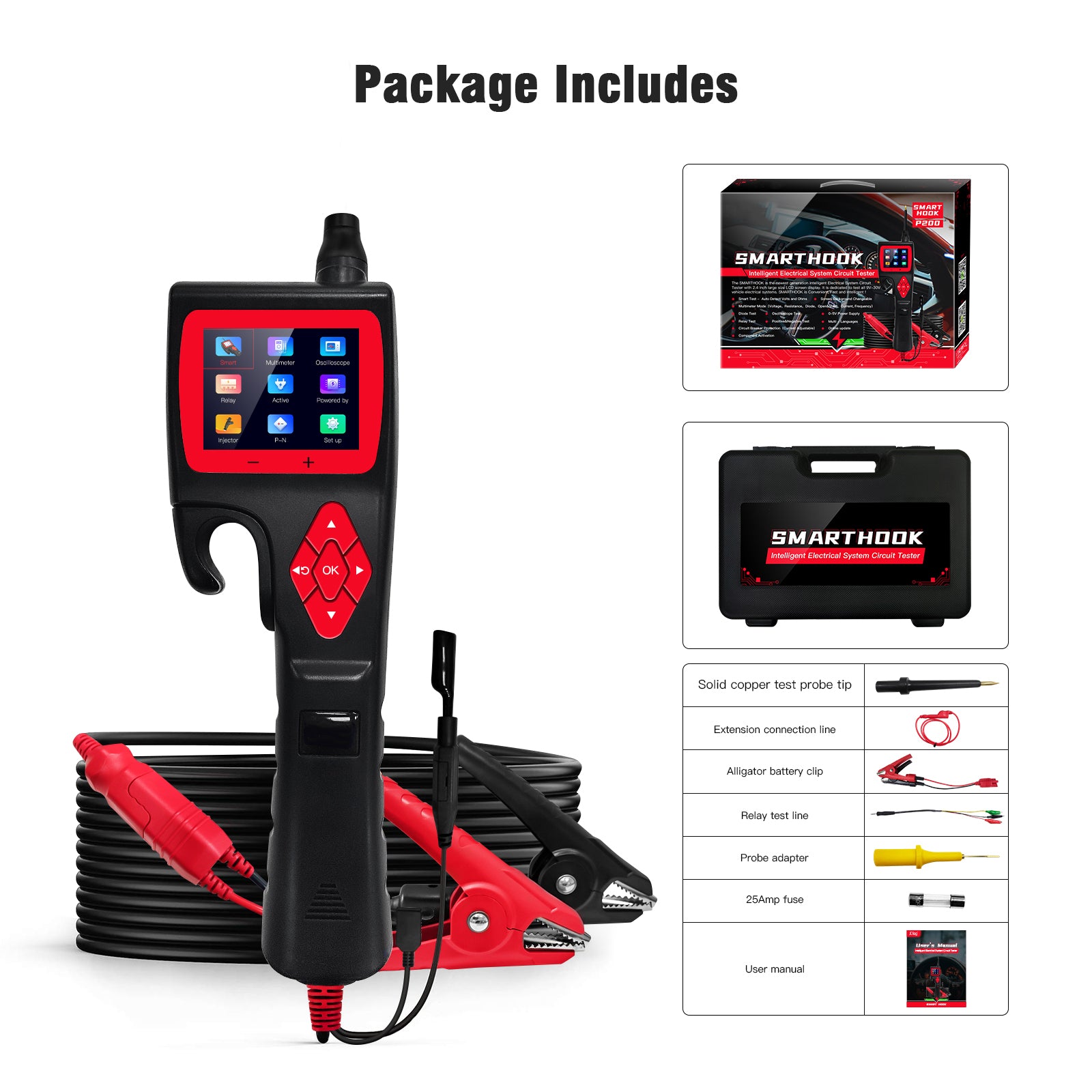

Package list:

1) Main unit
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox

P200 Powerful Probe Hook is new generation of intelligent circuit analyzer is upgradeable circuit tester on the market. P200 is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



Functions:

1. Intelligent identification of voltage/resistance
2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply
8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network online upgrade
13. Built-in Multi-languages

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



Product Specifications and Parameters

1. Display: (320*240 DPI) TFT true color display
2. Working temperature: 0-60°C (32-140 F°)
3. Storage temperature: 40-70°C (-40-185 F°)
4. External power supply: 12V or 24V powered by battery
5. Minimum working voltage: 9V
6. Maximum working voltage: 30V
7. Maximum measuring voltage: 150V
8. Minimum measuring voltage: 0.1V
9. Resistance measurement range: 1 ohm~200K ohm
10. Current measuring range: 0~18A
11. Maximum continuous current: 18A

P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK
P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK
P200 Powerful Probe Hook Intelligent Circuit Analyzer Automotive Electrical System Circuit Tester SMART HOOK



Package list:

1) Main unit
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox
