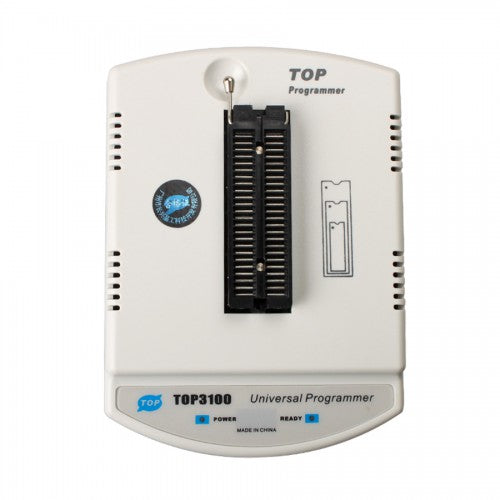

TOP3100 Universal Programmer TOP3100 MCU and EPROMs Programming Tool TOP3100 Universal Programmer TOP3100 MCU and EPROMs Programming Tool

ES079
0.7kg
ECU Chip Tuning
$179.00 $169.00 6%
-
+

TOP3100 programmer is univeral usb programmer for MCU and EPROMs. TOP3100 MCU and EPROMs Programming Tool need to work with PC, and TOP3100 usb programmer software upgrades and flexible.

TOP3100 Universal Programmer TOP3100 MCU and EPROMs Programming Tool
1.has compact size, lowe power comsuption, high reliability.
2.This is an universal equipment especially designed for MCU and EPROMs programming.

TOP3100 Universal Programmer Work On Windows7/Vista/Xp 32bits

Top 3 Reasons To Get TOP3100:

1.Support System: Windows7/Vista/Xp 32bits
2..USB universal serial port is used to connect with the PC, communications, support 2000/xp//Vista/Win7, software upgrades and flexible.
3.Language:English


TOP3100 USB Programmer Features:



1. Full driving with 48 pin(Vpp/Vcc/GND/TTL), good for furture upgrading.
2. Support 2.5V to 6.5V device.

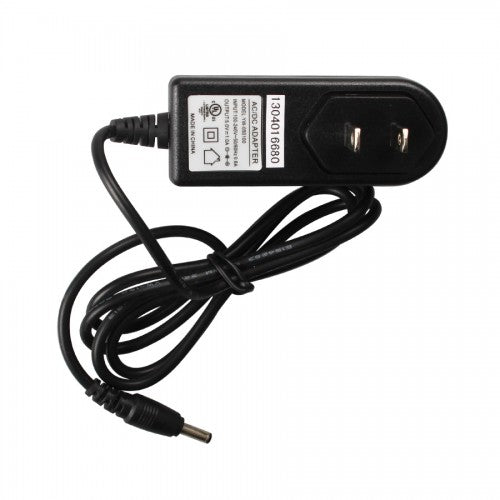

3. Selectable to use USB or extral 5V power supplier to supply power.
4. Transmission speed is 12MHz/s.
5. Suitable to work with Desktop and Laptop.
6. With current protection fuction, effectively protects the programmer and devices.
7. Automatic Pin status detection.
8. 48 pins self-lock sockets.
9. Support operation system: WINDOWS7/vista/2000/2003/XP;
10. Plastic cabinet, small size and light weight.
11. Auto detect company and type of the IC.
12.Software support: TopWin ver6.0 or newer.



TOP3100 Programmer Specifications:



1. Software: Topwin6 (for Windows7/Vista/2003/2000//xp)
2. Actual tested Speed(PIII/800M, Windows98se,USB1.1):
 28F320 write and check 104 seconds,
 29LF320 write and check 112 seconds,
 p89c58 write and check 5 seconds,
3. Size: 155mm*110mm*26mm
4. Weight for the programmer only : 275g
5. Power: < 2.5W (5V/500mA)
6. 48 Pin self-lock socket (Changeable)

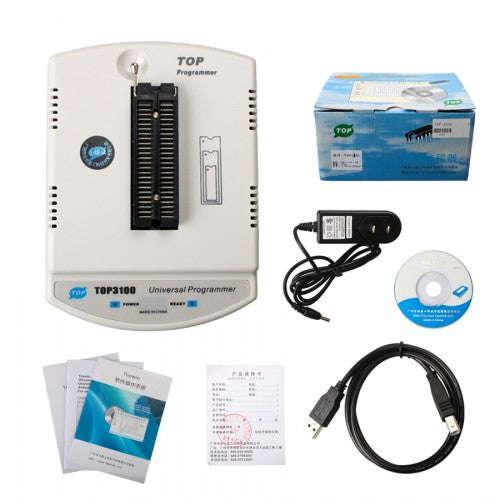

TOP3100 Programmer Includes:



1. New Top3100 USB Universal programmer;
2. Software: TopWin6 (for Windows7/Vista/xp);

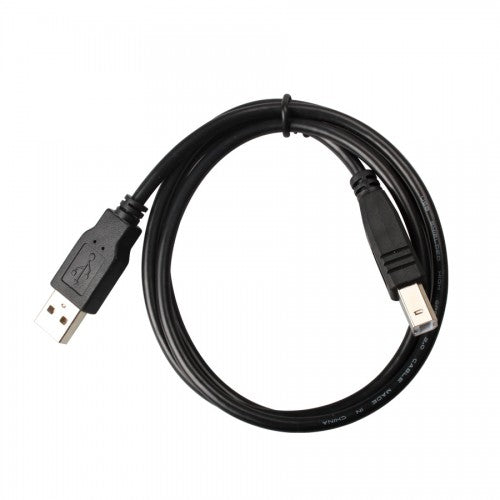

3. USB cable.



TOP3100 programmer is univeral usb programmer for MCU and EPROMs. TOP3100 MCU and EPROMs Programming Tool need to work with PC, and TOP3100 usb programmer software upgrades and flexible.

TOP3100 Universal Programmer TOP3100 MCU and EPROMs Programming Tool
1.has compact size, lowe power comsuption, high reliability.
2.This is an universal equipment especially designed for MCU and EPROMs programming.

TOP3100 Universal Programmer Work On Windows7/Vista/Xp 32bits

Top 3 Reasons To Get TOP3100:

1.Support System: Windows7/Vista/Xp 32bits
2..USB universal serial port is used to connect with the PC, communications, support 2000/xp//Vista/Win7, software upgrades and flexible.
3.Language:English


TOP3100 USB Programmer Features:



1. Full driving with 48 pin(Vpp/Vcc/GND/TTL), good for furture upgrading.
2. Support 2.5V to 6.5V device.
3. Selectable to use USB or extral 5V power supplier to supply power.
4. Transmission speed is 12MHz/s.
5. Suitable to work with Desktop and Laptop.
6. With current protection fuction, effectively protects the programmer and devices.
7. Automatic Pin status detection.
8. 48 pins self-lock sockets.
9. Support operation system: WINDOWS7/vista/2000/2003/XP;
10. Plastic cabinet, small size and light weight.
11. Auto detect company and type of the IC.
12.Software support: TopWin ver6.0 or newer.



TOP3100 Programmer Specifications:



1. Software: Topwin6 (for Windows7/Vista/2003/2000//xp)
2. Actual tested Speed(PIII/800M, Windows98se,USB1.1):
 28F320 write and check 104 seconds,
 29LF320 write and check 112 seconds,
 p89c58 write and check 5 seconds,
3. Size: 155mm*110mm*26mm
4. Weight for the programmer only : 275g
5. Power: < 2.5W (5V/500mA)
6. 48 Pin self-lock socket (Changeable)



TOP3100 Programmer Includes:



1. New Top3100 USB Universal programmer;
2. Software: TopWin6 (for Windows7/Vista/xp);
3. USB cable.
