Tsla Pro Diagnostic Tools V2023.03 For esla Model X/S after 2015 and Tesla Model 3 after 2019
Tsla Pro Diagnostic Tools V2023.03 For esla Model X/S after 2015 and Tesla Model 3 after 2019
Tsla Pro Scanner is a programming tool specially designed for esla Model X/S after 2015 and Tesla Model 3 after 2019. It is the only independent device supporting Tesla Model 3/s/x diagnosis on the market so far.
Notion!!!! The client must be aware that using some TslaPRO features may be prohibited and illegal in some countries.
First of all, what you need to know about the Tsla PRO before work. Tsla PRO: The tool is intended only for qualified personnel! You must be aware of the risk of loss if something went wrong(learn keys or make adaptations to the BMS controller or something else). You must have electronic skills which allow you to make adapters yourself and the connection betweenTslaPRO and the vehicle's CAN interface.
Note: This tool can't support the 2020 Tesla Model 3 Standard Range and 2018 Tesla Model 3 Standard Range.
Tsla Pro T-CAN PRO V2023.03 Diagnostic Tools Functions
T-CAN PRO can work with ECU TESLA Model S,X,3
T-CAN PRO Diagnostic Tools can only support after 2015.09 Model S/Model X and after 2019 year Model 3
Before 2015, you can buy our cables to support the cars.(If you have the need, pls contact us)
2020.11.16 – Beta Battery Energy data reading by can, factory mode (updated).
2020.11.05 – Global DTC decoding codes update.
2020.10.26 – some Lan functions added. (wakeup, pinto drive, park DTC base)
2020.10.23 – CID commands Service and Factory Redeploy,
2020.10.22 – real-time by can level measure of TAS (EAS) Beta. (add some DTC base)
2020.09.25 – BMS contactor replacement procedure reset u019
2020.09.24 – m3 SDM read, erase DTC by can.
2020.09.21 last update. (Diag, Develop, FMODE by IC, Valet by LAN)
2019.05.23 NEW SDM by BOSH Module X and 3 models (read, clear fault codes and R/W EEPROM clear CRASH log.)
ALERTS – Alerts on CAN bus (read alerts codes updated BMS 2018.09.14 BETA STAGE !)
BDY – Body controller on CAN bus
DH – Door Handles – Learn Front Driver Side – CAN BDY -125 kbps (BETA Stage – added 15.07.2019)
SDM – Supplemental Deployment Module S model (read, clear fault codes, clear CRASH log by Boot mode pin.)
SDM by BOSH Module X and 3 models (read, clear fault codes, and R/W EEPROM clear CRASH log.)
SEC – Security controller (Add Keyfob Key)
PARK2 – Parktronic sensors (read and decode fault codes, erase stored fault codes) supported until 06.2016
THC – Thermal controller (Air purge function)
EAS – Electronic Air suspension System (read, decode, erase fault codes, exit service mode ) supported until 06.2016
TAS – Tesla Air suspension System (erase fault codes, clear Crash event, exit service mode ) after 06.2016
BMS – Battery control Module (reset alert warnings w163,w026,w152,w153,w023,read softpack)
TPMS – Tyre Pressure (read sensor ID stored in memory it is useful if you need to make a new non-tesla sensor)
ESP – Electronic stability system (read and decode fault codes, erase stored fault codes)
What is T-CAN?
T-CAN PRO is a solution/diagnostic tool for Tesla cars that only consists of hardware and software.
Hardware

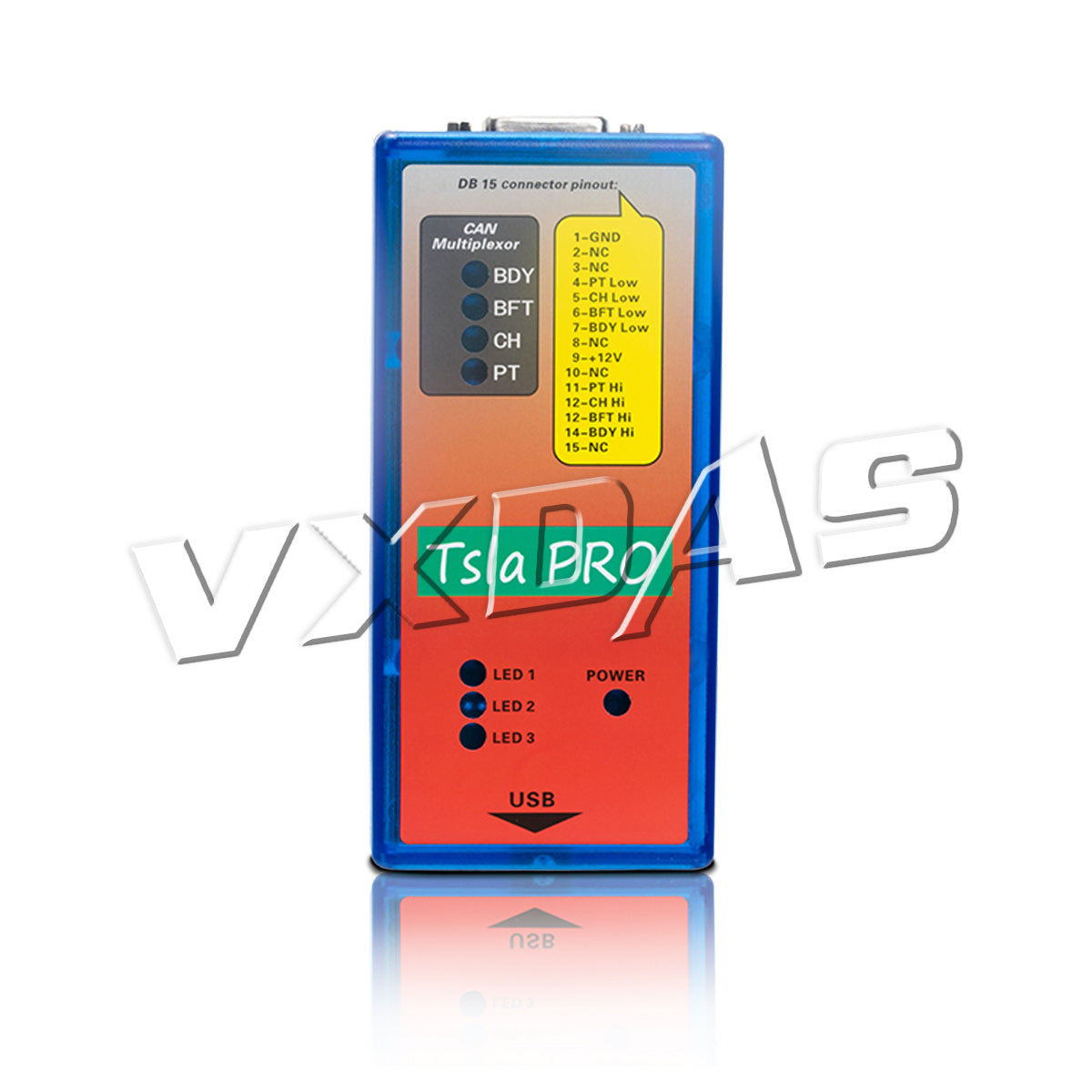

1. Car Programmer – plastic blue box with info label on top, inside is PCB (Printed Circuit Boards with semiconductors and SIM card). The device does not contain batteries
2. 2 Data cables (type: x437 and x437A) - these 2 cables are used to connect the car to the programmer
3. USB cable – this cable is using to connect the programmer to the PC or Laptop
Software
1. The software you need to work with T-CAN PRO programmer.
2. There is no other software.
3. The software is frequently updated, so it is recommended to check from time to time [ T-CAN PRO - DOWNLOAD SECTION ] to see if new software is available.
4. T-CAN PRO software V2023.06 download link:
https://mega.nz/file/FIEhVYYQ#VdUxlO0254c-WBUctICdsfHTPSQOEy89WR_nKiSw250
Tesla after the 2017 year
requires a different connector that this kit does not have
This Tool is designed for absolutely qualified personnel ONLY! For those who know the Tesla car and CAN network well.

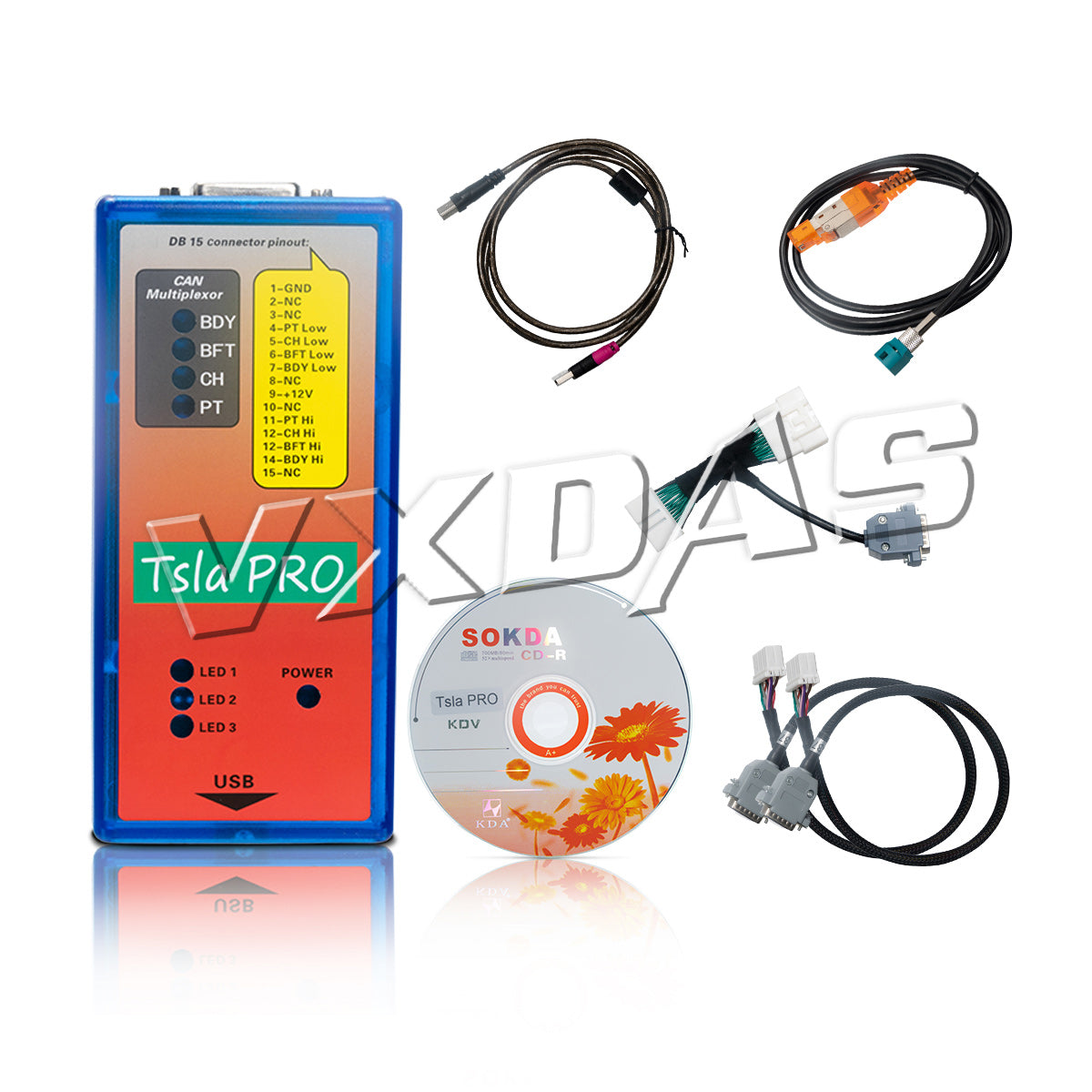

Packing List
1xT-CAN hardware

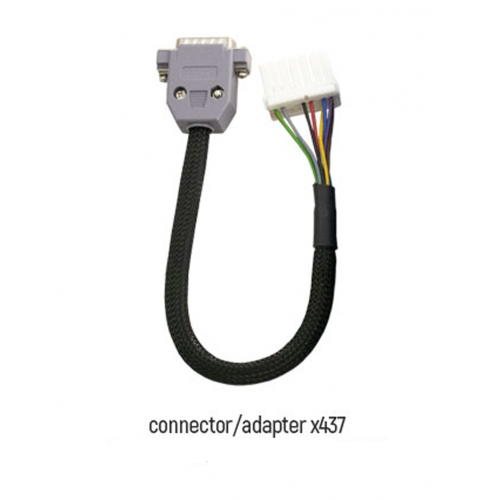

1xconnector/adapter x437

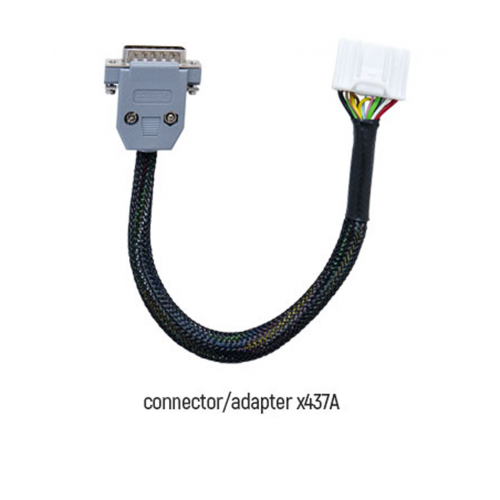

1xconnector/adapter x437A

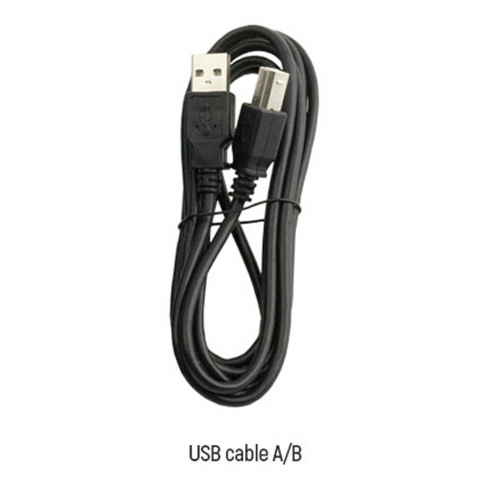

1XUSB cable A/B
