Portable Two-way Rotating Head Industrial Borescope with Waterproof Inspection HD Probe Snake Camera Portable Two-way Rotating Head Industrial Borescope with Waterproof Inspection HD Probe Snake Camera

NKJ007
2.6kg
Automotive Borescope
$399.00 $299.00 25%
Buy it now
Portable Two-way Rotating Head Industrial Borescope with Waterproof Inspection HD Probe Snake Camera
$399.00 $299.00 25%
-
+
Buy it now

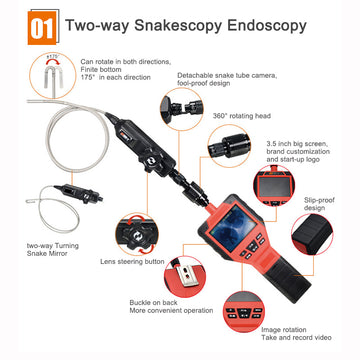

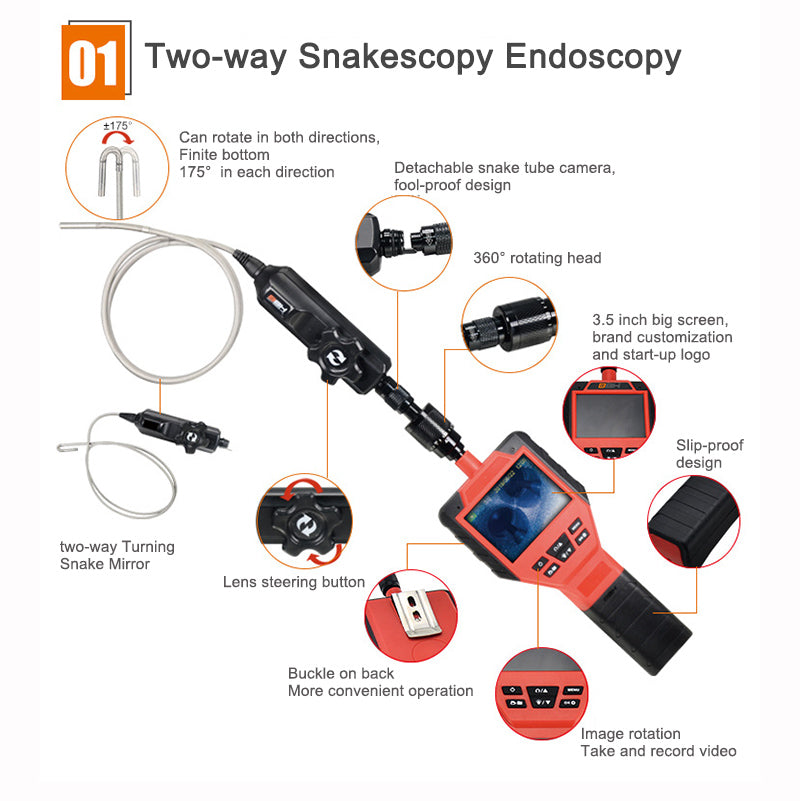

Portable two-way rotating head industrial Borescope with waterproof inspection HD probe snake camera

Portable two-way rotating head industrial borescope is a handheld endoscope device. Through the image and video functions of the endoscope, non-destructive inspection of small parts and places where the human eye cannot directly observe; it is widely used in aviation, automobiles, pipelines, machinery and equipment, Testing areas in the chemical and other industries.

borescopes endoscope

Snake Tube Parameters

Product name : Borescope

Image sensor: CMOS sensor

Effective pixels: 720(H) x 625(V)(P)

Focus distance : 30mm –80mm

View angle: 60 degree

Camera dia: Φ6.0mm

Snake tube length: MD snake tube length: 800mm

Mesh grid tube length: MA mesh grid tube length: 1m

LED adjusting: 6pcs LED, 1 Level

Working Temperature: -10~60℃

waterproof level: IP67

AV output: (NTSC/PAL)

With SD memory card: 8G

PE toolbox

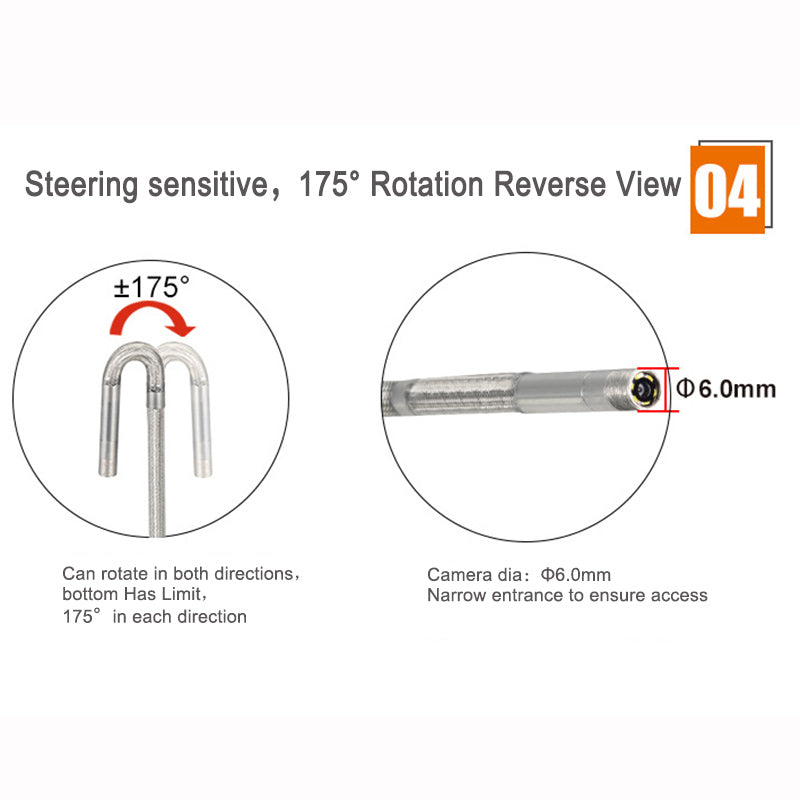

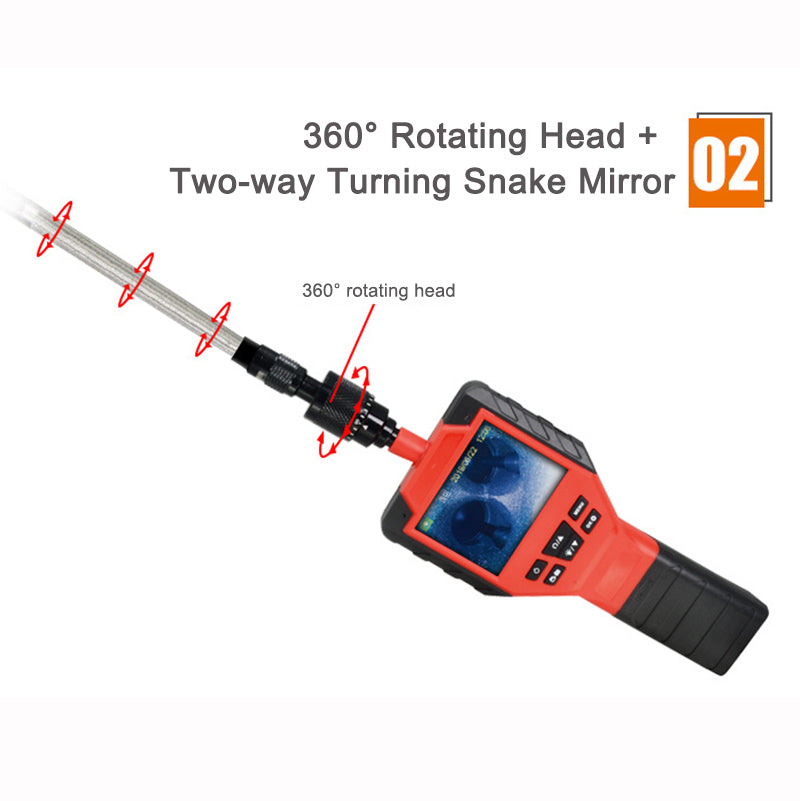

360º Rotating head + Turn in both directions

(HD two-way lens, sensitive steering up to 175 degrees, 360-degree internal space without dead angle inspection)



Handle Borescope Endoscope Parameters

Screen: 320(RGB) x 240 3.5 inch screen, 16M color

Battery: 18650 2000mAh lithium battery

Working current: 250mA

Standby current: less than 40 microamp

Max.power: <2W

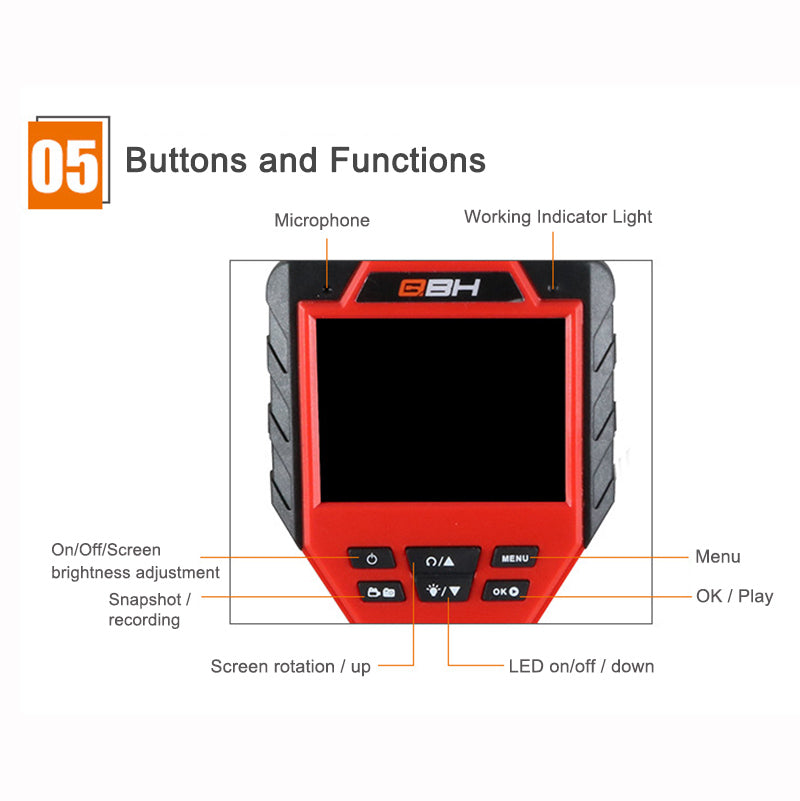

Function

1. Real time clock with photo and video.

2. Time label of document saving.

3. Picture freezing and taking photos in frozen state.

4. Circulate recording

5. To enlarge or reduce the maximum: 8 times

6. Automatic recognition of NTSC/PAL

7. Composite video output

Internal structure of engine combustion chamber



Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope



Portable two-way rotating head industrial Borescope with waterproof inspection HD probe snake camera

Portable two-way rotating head industrial borescope is a handheld endoscope device. Through the image and video functions of the endoscope, non-destructive inspection of small parts and places where the human eye cannot directly observe; it is widely used in aviation, automobiles, pipelines, machinery and equipment, Testing areas in the chemical and other industries.

borescopes endoscope

Snake Tube Parameters

Product name : Borescope

Image sensor: CMOS sensor

Effective pixels: 720(H) x 625(V)(P)

Focus distance : 30mm –80mm

View angle: 60 degree

Camera dia: Φ6.0mm

Snake tube length: MD snake tube length: 800mm

Mesh grid tube length: MA mesh grid tube length: 1m

LED adjusting: 6pcs LED, 1 Level

Working Temperature: -10~60℃

waterproof level: IP67

AV output: (NTSC/PAL)

With SD memory card: 8G

PE toolbox

360º Rotating head + Turn in both directions

(HD two-way lens, sensitive steering up to 175 degrees, 360-degree internal space without dead angle inspection)



Handle Borescope Endoscope Parameters

Screen: 320(RGB) x 240 3.5 inch screen, 16M color

Battery: 18650 2000mAh lithium battery

Working current: 250mA

Standby current: less than 40 microamp

Max.power: <2W



Function

1. Real time clock with photo and video.

2. Time label of document saving.

3. Picture freezing and taking photos in frozen state.

4. Circulate recording

5. To enlarge or reduce the maximum: 8 times

6. Automatic recognition of NTSC/PAL

7. Composite video output

Internal structure of engine combustion chamber



Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope

 Portable Two-way Rotating Head Industrial Borescope
