V-CHECKER T701 Circuit Tester VCHECKER T701 Automotive Multi-meter Oscilloscope Tool

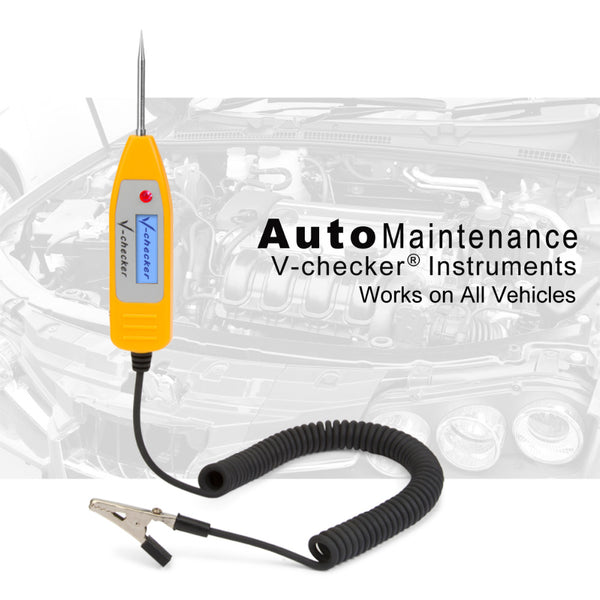

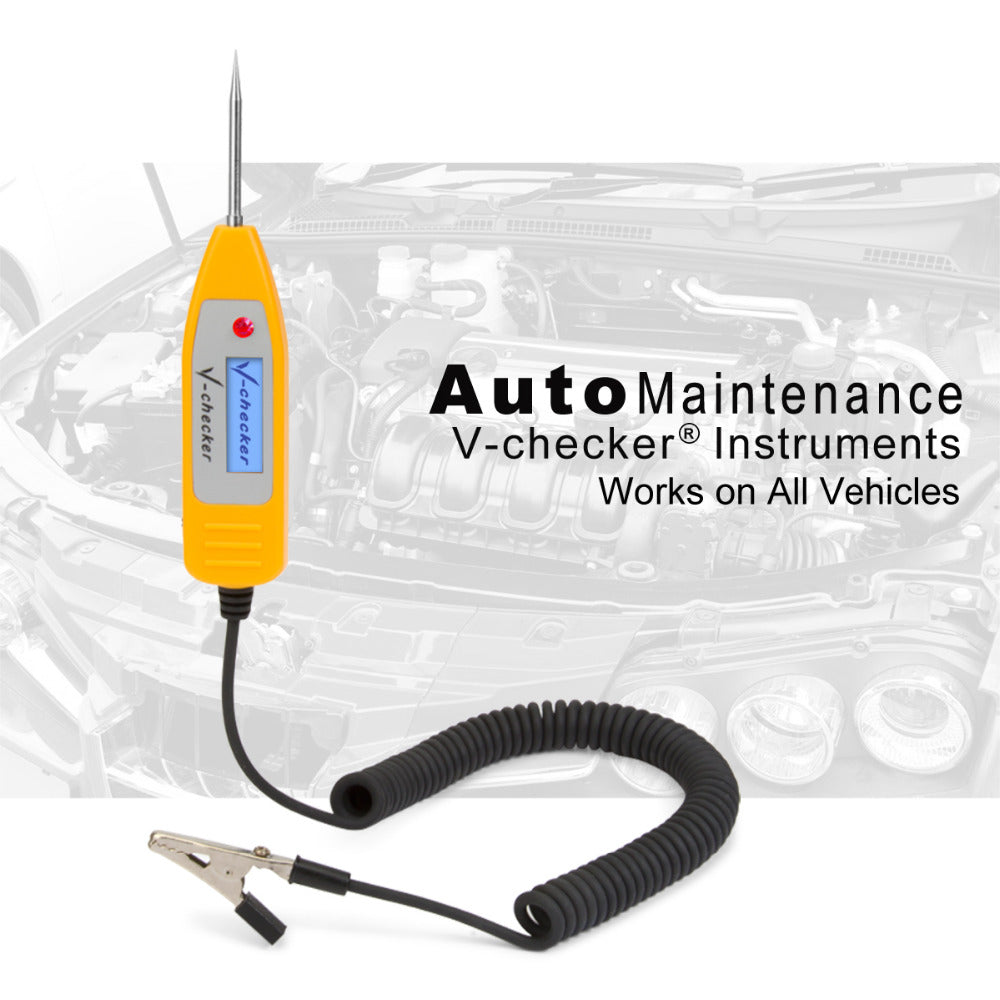

V-checker T701 circuit tester integrates functions of electricity test pencil, automotive multimeter and oscilloscope. The VCHECKER T701 pencil structure, LCD screen and especially the high accuracy greatly help the garage technicians to diagnose vehicle's problem quickly and highly increase their work efficiency.
V-CHECKER T701 Circuit Tester Features:
- Classic design, Integrates functions of electrical test pencil, automotive multi-meter and oscilloscope.
- The pencil structure with LCD display (128 x 32 pixel) and especially the high accuracy greatly help the garage technicians to diagnose the vehicle’s problem quickly and highly increase their work efficiency.

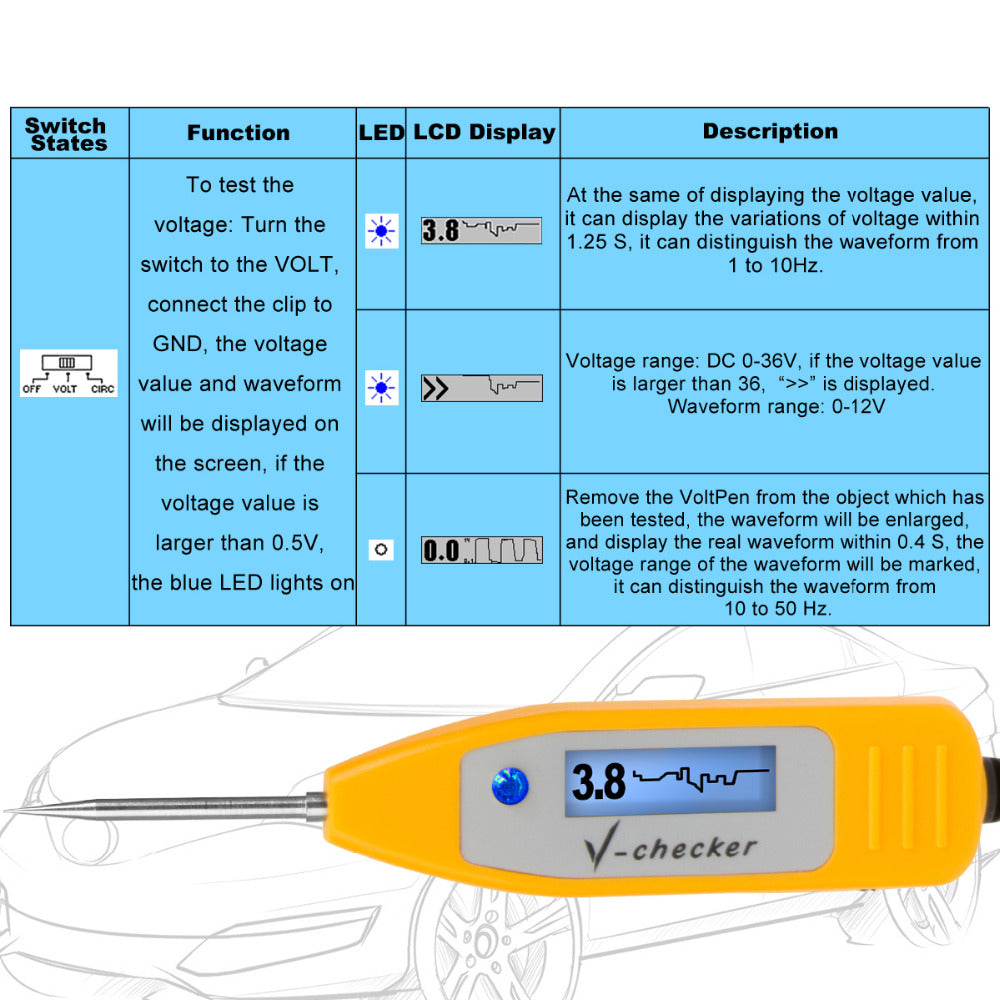

- Can check the cable assembly signal from 0~36V with accuracy 0.1V. When the signal voltage is over 36V, the LCD screen will show icon ">>”. The tester’s waveform range is from 0-12V. When the tester leaves the cable, the waveform will be enlarged and the LCD displays 0.4s actual waveform. Meanwhile, the voltage range is marked and user can define waveform of 10~50Hz. When the cable assembly voltage is over 0.1V, the LCD indicates voltage value and waveform. The blue LED would be shining when voltage is over 0.5V.

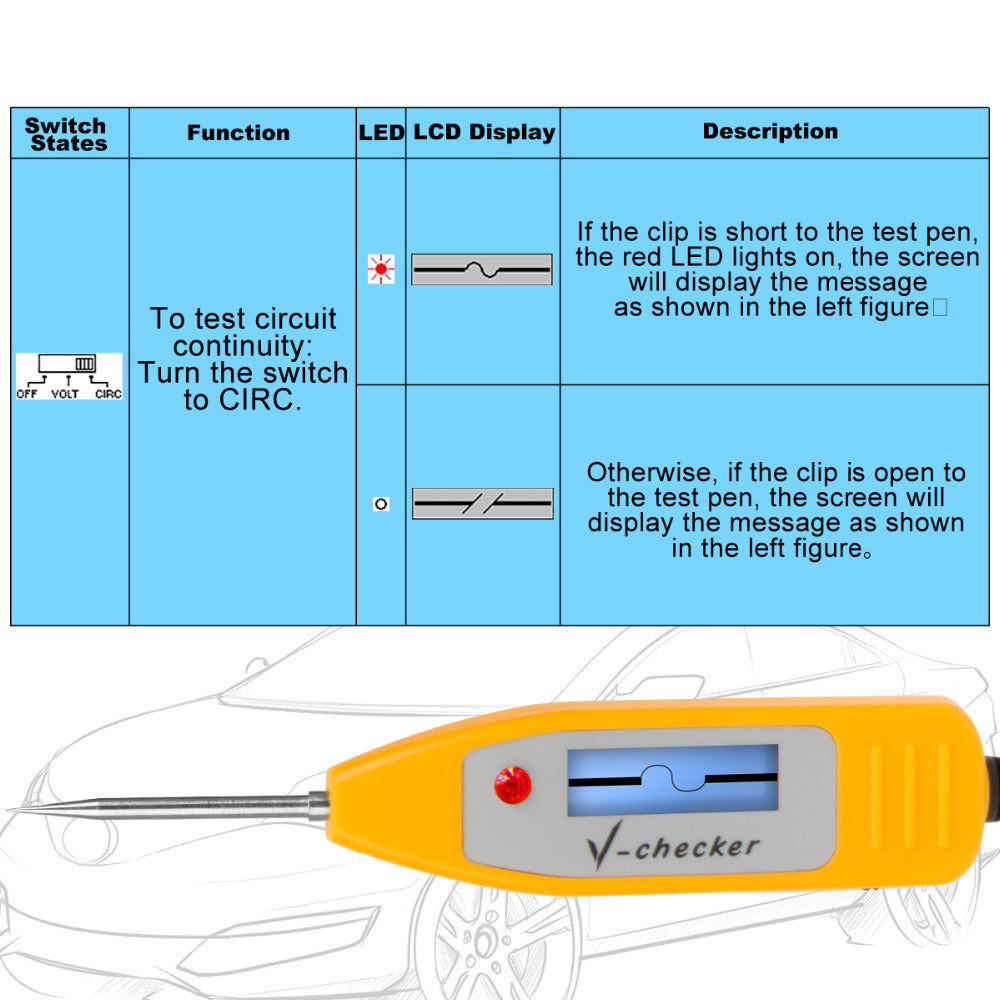

- Can be used to check continuity of cable assembly. It shows test results and graphs through red LED light and LCD screen. When the cable assembly is continuous, the red LED light is on. Verse vase, the red LED light is off.
- Supported all models of vehicles.
The V-checker T701 works on all models of vehicles:
- Electrical test pencil: Detection on or off of the vehicle cable, clearly displayed through the LCD and LED lights.
- Multi-meter and Oscilloscope: Detecting the vehicle cable voltage values, to display the waveform of the voltage.
- Auto power off, low consumption design.
- Special designed for auto diagnosis and service, Easy to use and highly reliable.
The V-checker T701 Specifications:
Dimensions: 256 * 150 * 19 (mm)
Display: Back-light, 128 x 32 pixel display
Operating Voltage: 3.0 to 3.3 V
Working Current: 5mA
Standby Current: 5uA
Operating temperature: -20 to 85 ℃(-4 to 185℉)

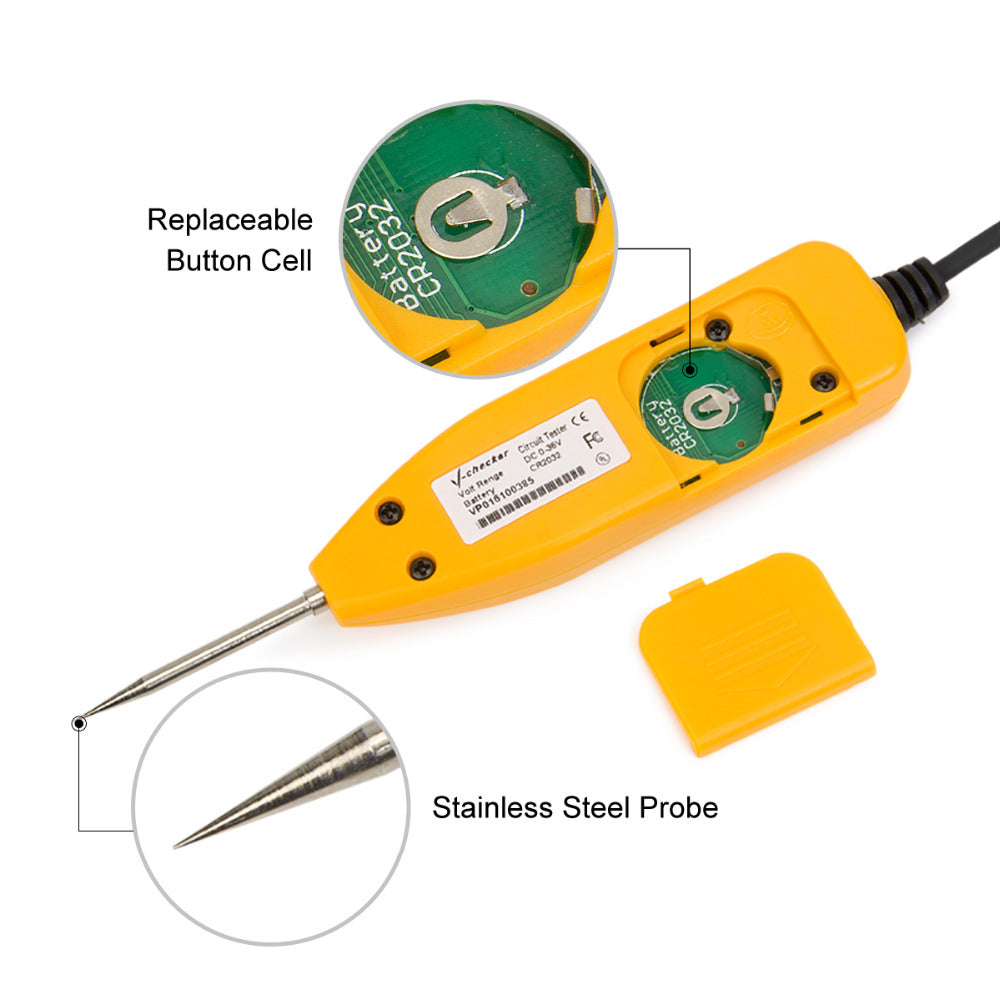

Battery: CR2032 3.0V

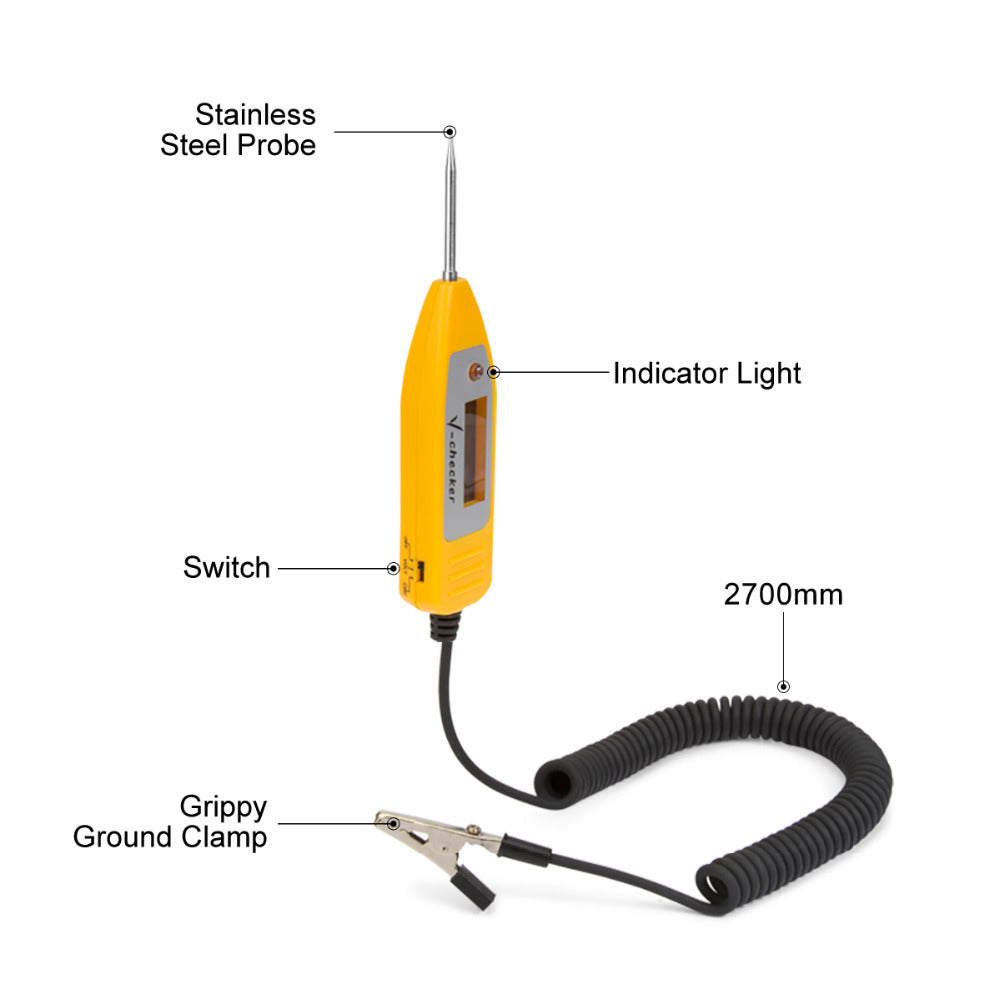

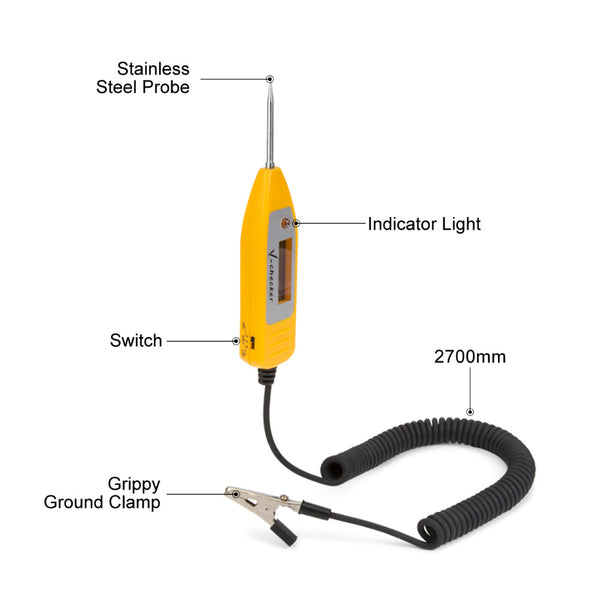

Cable length: 2.7m
The V-checker T701 Package Includes:
1pc x V-CHECKER T701 Circuit Test Pencil
