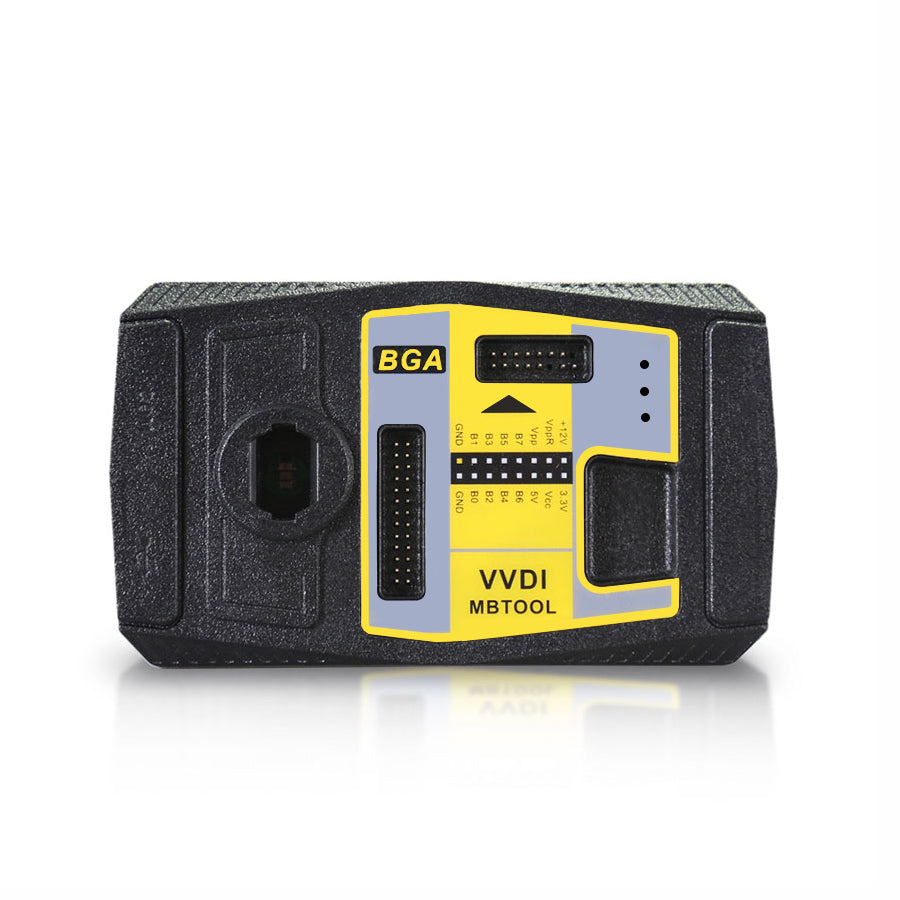

Original Xhorse V4.7.0 VVDI MB BGA TooL For Benz Key Programmer Including BGA Calculator Function Original Xhorse V4.7.0 VVDI MB BGA TooL For Benz Key Programmer Including BGA Calculator Function

ED410
1.6kg
Auto Key Programmer
$1,899.00 $1,839.00 3%
-
+

Xhorse V4.7.0 VVDI MB BGA Tool is the profesional key programmer for Mercedes Benz.VVDI MB BGA Tool  including BGA calculator and software can be update online.

Original Xhorse V4.7.0 VVDI MB BGA TooL For Benz Key Programmer Including BGA Calculator Function



Latest Version:V4.7.0

Support All Key Lost : W204, W207,W166, W246, W212, W212(old), W216, W164 2009-, W210 (newly add) and some others

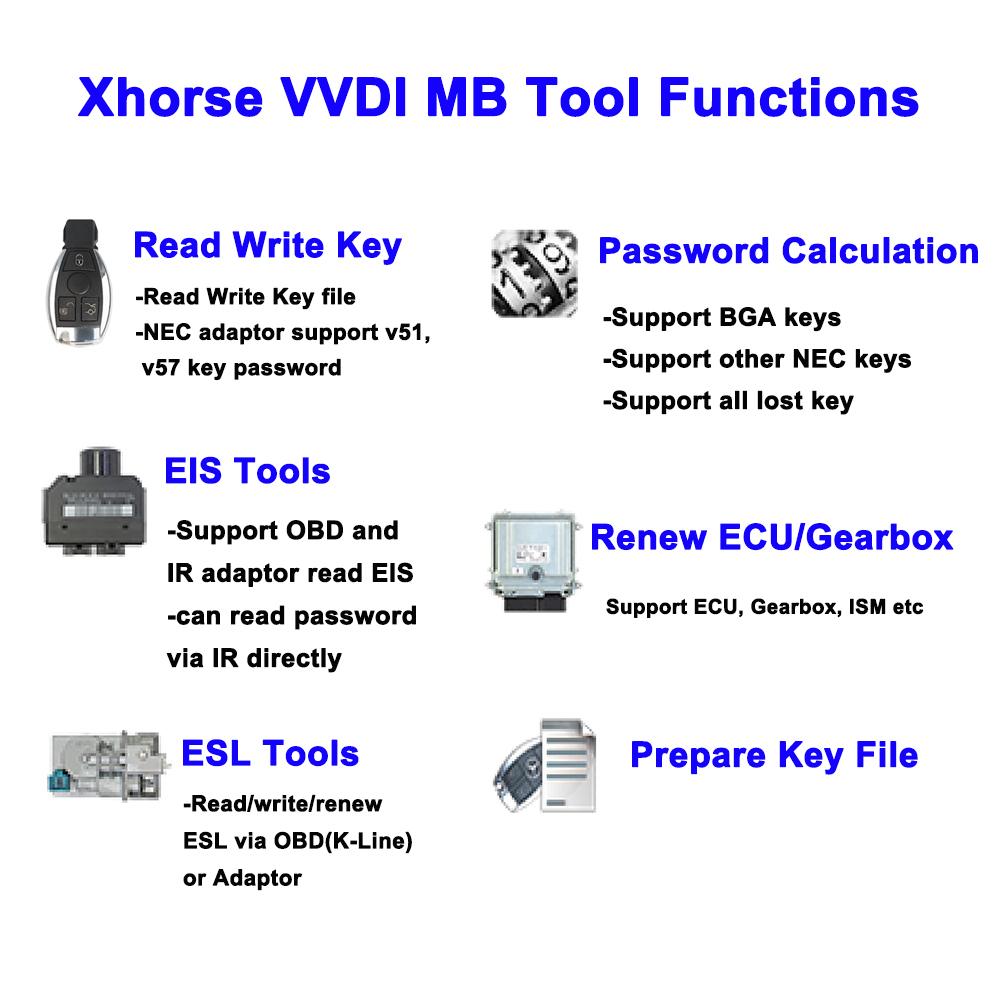

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function will be released soon.
9. Renew other control modules function will support soon

Notice:
1. If you have bought Condor key cutting machine, you can buy VVDI MB BGA at 1200usd Only
2. It Supports Password Calculator Function. Each time will cost 44.99USD. It takes 4 minutes to collect data, and 2 minutes to calculate.

3. Not Support All Key Lost
4. In the future, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).


VVDI for Benz BGA Tool Customer Feedback:

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.





VVDI MB TOOL latest software version V4.7.0 update:2019-01-18

*** Require firmware V4.5.0
===== For BENZ V4.7.0 =====
1. This update no need update the firmware

2. Password calculation for ALL KEY LOST: Support W164/W251(-2009), W221 calculate password when all key lost:
a. Support W164/W251(-2009) get key password with slow method (All KEY LOST, 25minutes-1.5hour)
b. Support W221 get key password with VVDIMB Power Adapter (All KEY LOST, no need re-insert IR, 15minutes)
c. Support W221 get key password with slow method (All KEY LOST, 25minutes-1.5hour)
Until now VVDIMB support all key lost EIS type(FBS3):
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix

VVDI MB TOOL latest software version V4.5.0 update 2018-09-14


*** New VVDI MB software update v4.5.0 ***
*** Attention – Require update firmware V4.5.0 ***
************************************************** **********************
1. Support write old Kline EIS via IR. You can exchange old for motorola EIS without desolder mcu
2. Support activate old Kline EIS via Kline: Menu->Other function->Customer request
3. Bugfix for read old EIS Kline data
4. Password online calculation: Support get password from old Kline and CAN EIS without desolder.
a. Support W202/W208/W210(Kline) get key password with VVDI MB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
b. Support W203/W469/W639(Kline) get key password with VVDIMB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
c. Support W169/W209/W211(Kline) get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
d. Support W639 2009-/W906 get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
e. Support W202/W208/W210(Kline) get key password with slow method (All KEY LOST)
f. Support W203/W469/W639(Kline) get key password with slow method (All KEY LOST)
g. Support W169/W209/W211(Kline) get key password with slow method (All KEY LOST)
h. Support W639 2009-/W906 get key password with slow method (All KEY LOST)

5. Bugfix





VVDI MB TOOL latest software version V4.1.0 update

2018-07-13

*** Require firmware V4.1.0

===== For BENZ V4.1.0 =====

1. This update no need update the firmware

2. Password calculation: Support calculate password for W202/W208/W210(KLine) EIS

a. No more need MCU's de/soldering, very safe and quickly

b. Support add key and lost all key for password calculation

c. The procedure require about 25-30 minutes

d. The procedure need MB Power Adapter support

e. The procedure should work on the bench, not on car

3. Bugfix for load motorola EEPROM dump file in EIS window

4. Bugfix for activate BE key

5. Bugfix for read EIS W209

6. Bugfix



VVDI MB TOOL latest software version V4.0.0 update


2018-03-14 Require firmware V4.0.0
For BENZ V4.0.0
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix



   VVDI MB TOOL latest software version V3.8.0 update 2018-02-26
Require firmware V3.6.0

For BENZ V3.8.0
1. Support spanish language
2. Support load For Motorola EEPROM dump in EIS window and display key information
3. Bugfix for read KM in some W207 EIS
4. Bugfix for old motorola keys show incorrect key password
5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)
6. Bugfix
This version No need to update firmware

   VVDI MB TOOL latest software version V3.7.0 update

2018-01-10

Require firmware V3.6.0
=== For BENZ V3.7.0 =====
1. Bugfix for some countries can't synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix


VVDI MB TOOL latest software version V3.6.0 update-2017-12-23

*** Require firmware V3.6.0

===== For BENZ V3.6.0 =====

1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation

2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit

3. Improve the success rate of BAG key password, erase password and enable key password

1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)

2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation

3) The server have 99% success rate for erase password and enable key password now

4) Add some old version NEC key for password calculation

5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password

4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS

5. Support activate W906(NEC) ELV from OBDII

6. Bugfix


VVDI MB TOOL latest software version V3.5.0 update

VVDI MB TOOL latest software version V3.0.0 update

VVDI MB Tool V3.0.0 Update Feature:


2017-05-02Require firmware V3.0.0

===== For BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower

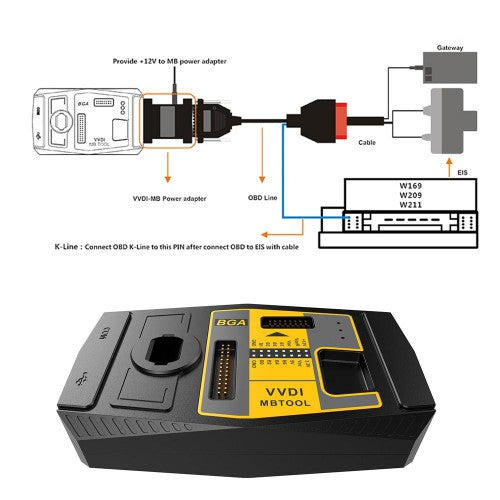

(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old for Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix



2017-01-07    Require firmware V2.1.7

===== For BENZ V2.1.7   =====
1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix


 2016-12-23
Require firmware V2.1.5

===== For BENZ V2.1.5 =====
1. Attention: All user update device to firmware v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key(0CF4)
4. Bugfix for data acquisition in some old key version
5. Language bugfix


VVDI MB Tool Update to V2.14
2016-09-12
Require firmware V2.1.4


=====    For BENZ V2.1.4            =====
1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key

VVDI MB Tool Update to V2.13

2016-09-06
Require firmware V2.1.2


=====    For BENZ V2.1.3            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.3
2. Fix bug for time out when get erase password or key file


2016-09-02
Require firmware V2.1.2


=====    For BENZ V2.1.2            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released

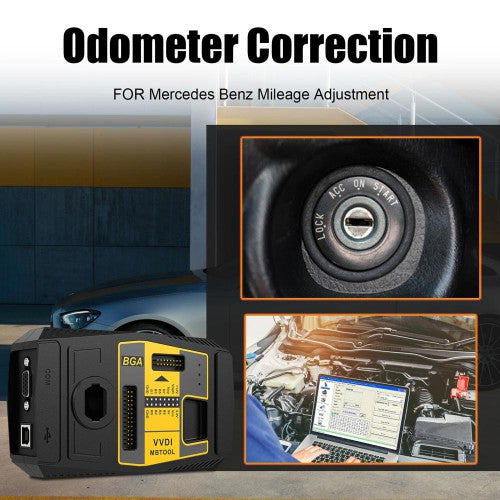

3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental)ISM read/write/erase
9. Bugfix

 2016-06-28
Require firmware V2.1.1


=====    For BENZ V2.1.1            =====
1. Attention: All user update device to firmware v2.1.1, software v2.1.1
2. Add connection diagram for new NEC key adaptor
3. Support repair W204 ESL fatal error and repair old motorola ELV. you need buy an extra adaptor for ESL
4. Bugfix

2016-05-31
Require firmware V2.0.9


=====    For BENZ V2.1.0            =====
1. Fixbug for write original NEC key via IR
2. Fixbug for show finish error information in IR read password

2016-05-29
Require firmware V2.0.9


=====    For BENZ V2.0.9            =====
1. Attention: All user update device to firmware v2.0.9, software v2.0.9
2. User manual v1.5 released, overview v1.5 released
3. Support new sprinter W906 for motorola EEPROM dump prepare key file
4. Support read password via IR for old for motorola EIS (HC05, HC08, K-Line)
5. Support W204 ESL Emulator: only support VVDI W204 emulator, you must renew it before use
6. Support OBD read W164, W211, W209, W169 EIS without gateway, you need buy an extra adaptor
7. Fixbug for make only 1 key file in motorola EEPROM dump
8. Fixbug for read v51 version password from key
9. After read password from v51, v57 key, will fix the key automatically
10. Bugfix


VVDI MB TOOL Latest Version V2.0.7 Update(2016-02-26)

Require firmware V2.0.7
===== for BENZ V2.0.7   =====
1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version dont support password calculation
2. User manual v1.2 released, overview v1.3 released
3. Add support for renew ECU/Gearbox/ISM etc
4. Fix diable key in K-Line protocol
5. Fix clear TP in K-Line protocol
6. Fix read key bug in password calculation
7. Bugfix

VVDI - MB TOOL V2.0.5 Update

1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times
3. Password calculation with working key support: add working key test before data acquisition
4. Add EIS status test, working key test function
5. Fix bug for OBD read W203, W639, W463(K) EIS
6. Autodetect W212 EIS with ELV
7. Fix bug for read v51 key password via NEC adaptor
8. Add IR repair key function
9. Bugfix


Support Key Types Display:

Support Key Types Display



Xhorse VVDI for MB BGA TOOL Function Introduction:


1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function will be released soon.
9. Renew other control modules function will support soon

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

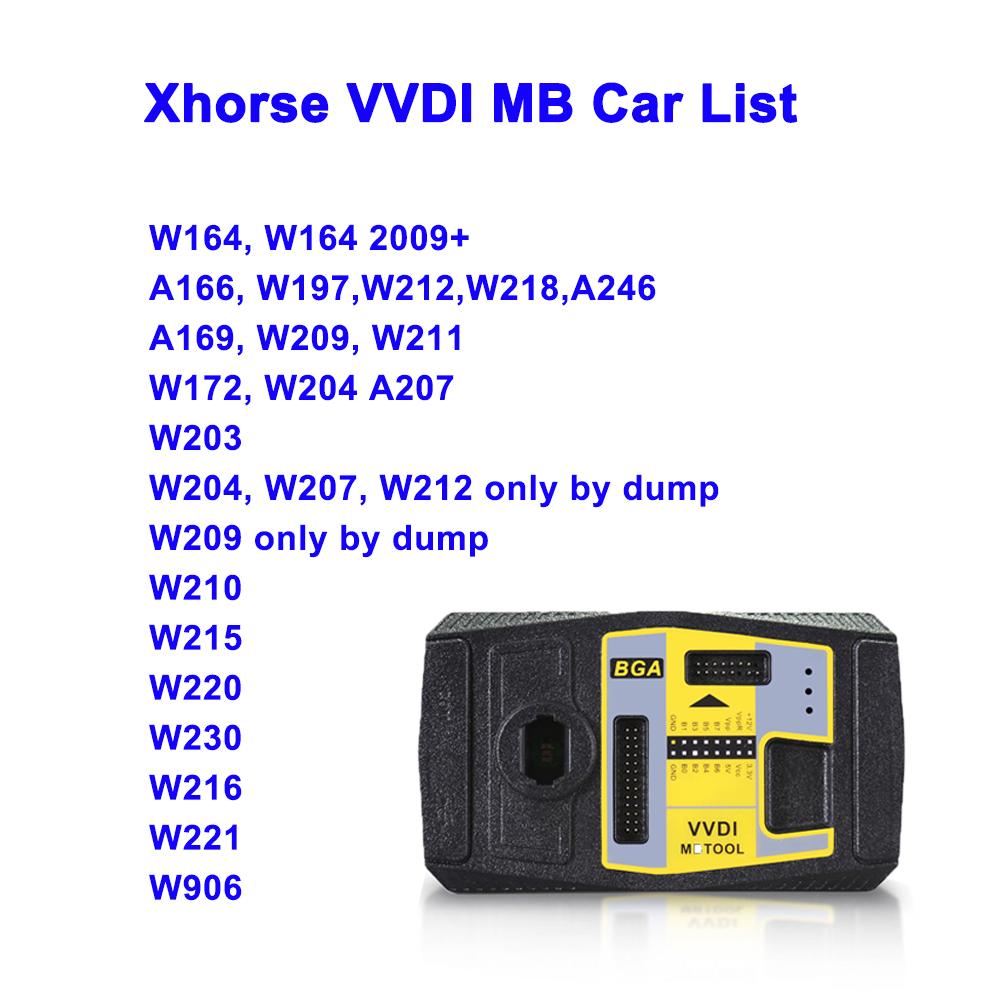

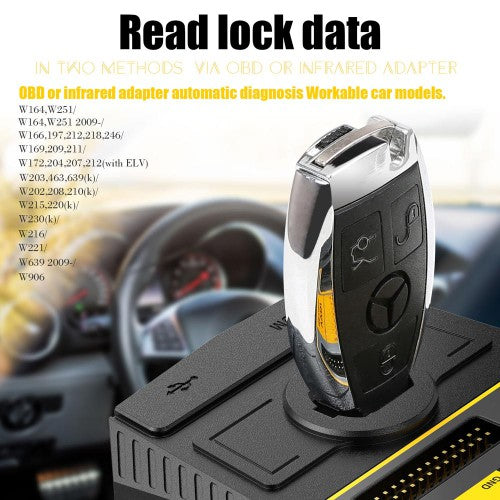

Model Support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906





Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61

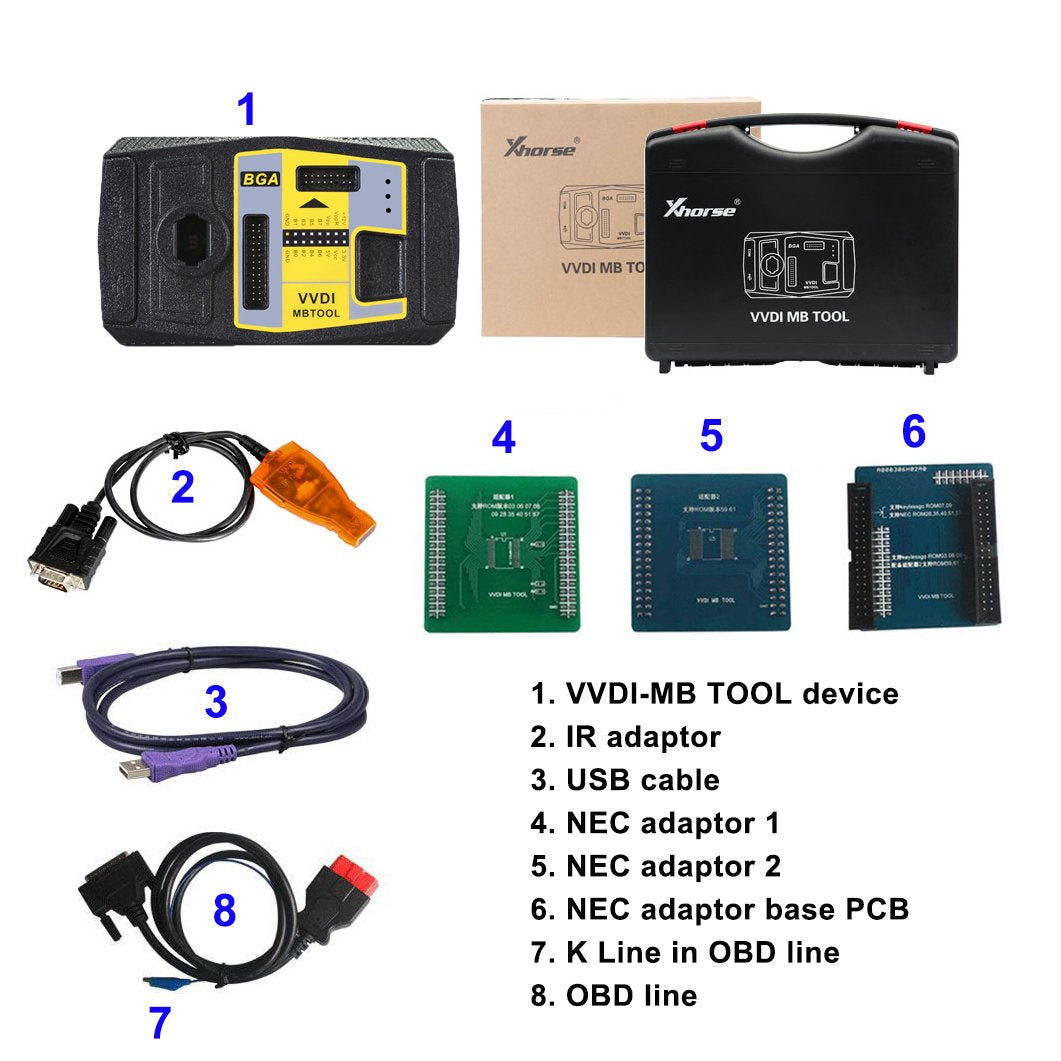

This two adapters are not in the parcel. If you need them, please click here to buy.
Two adapters: one for versions 28, 35, 40, 51, 57, another one for version 59.

Xhorse VVDI MB BAG Tool Adapter









Package List


1 x Xhorse VVDI MB BGA TOOL







Connection Display:


VVDI MB Tool Bag Connection Picture 1

xhorse-vvdi-benz-vvdi-mb-tool-bag-connection-2

xhorse-vvdi-benz-vvdi-mb-tool-bag-connection-3





FAQ:


Q:
I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?

A:Read eis via obd for W164, W169, W211, W209, require gateway connected





Xhorse V4.7.0 VVDI MB BGA Tool is the profesional key programmer for Mercedes Benz.VVDI MB BGA Tool  including BGA calculator and software can be update online.

Original Xhorse V4.7.0 VVDI MB BGA TooL For Benz Key Programmer Including BGA Calculator Function



Latest Version:V4.7.0

Support All Key Lost : W204, W207,W166, W246, W212, W212(old), W216, W164 2009-, W210 (newly add) and some others

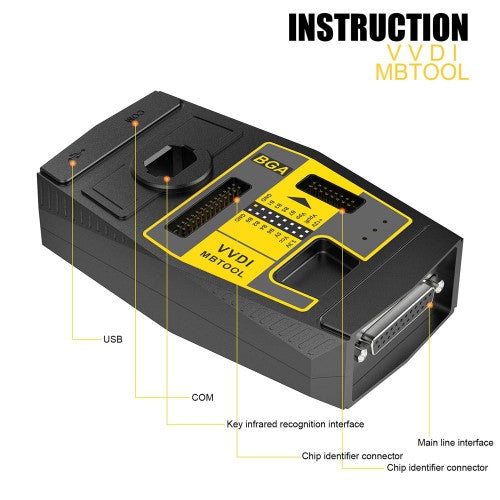

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function will be released soon.
9. Renew other control modules function will support soon

Notice:
1. If you have bought Condor key cutting machine, you can buy VVDI MB BGA at 1200usd Only
2. It Supports Password Calculator Function. Each time will cost 44.99USD. It takes 4 minutes to collect data, and 2 minutes to calculate.

3. Not Support All Key Lost
4. In the future, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).


VVDI for Benz BGA Tool Customer Feedback:

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.





VVDI MB TOOL latest software version V4.7.0 update:2019-01-18

*** Require firmware V4.5.0
===== For BENZ V4.7.0 =====
1. This update no need update the firmware

2. Password calculation for ALL KEY LOST: Support W164/W251(-2009), W221 calculate password when all key lost:
a. Support W164/W251(-2009) get key password with slow method (All KEY LOST, 25minutes-1.5hour)
b. Support W221 get key password with VVDIMB Power Adapter (All KEY LOST, no need re-insert IR, 15minutes)
c. Support W221 get key password with slow method (All KEY LOST, 25minutes-1.5hour)
Until now VVDIMB support all key lost EIS type(FBS3):
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix

VVDI MB TOOL latest software version V4.5.0 update 2018-09-14


*** New VVDI MB software update v4.5.0 ***
*** Attention – Require update firmware V4.5.0 ***
************************************************** **********************
1. Support write old Kline EIS via IR. You can exchange old for motorola EIS without desolder mcu
2. Support activate old Kline EIS via Kline: Menu->Other function->Customer request
3. Bugfix for read old EIS Kline data
4. Password online calculation: Support get password from old Kline and CAN EIS without desolder.
a. Support W202/W208/W210(Kline) get key password with VVDI MB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
b. Support W203/W469/W639(Kline) get key password with VVDIMB Power Adapter (ADD KEY and All KEY LOST, 15-30minutes)
c. Support W169/W209/W211(Kline) get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
d. Support W639 2009-/W906 get key password with VVDIMB Power Adapter (All KEY LOST, 15minutes)
e. Support W202/W208/W210(Kline) get key password with slow method (All KEY LOST)
f. Support W203/W469/W639(Kline) get key password with slow method (All KEY LOST)
g. Support W169/W209/W211(Kline) get key password with slow method (All KEY LOST)
h. Support W639 2009-/W906 get key password with slow method (All KEY LOST)

5. Bugfix





VVDI MB TOOL latest software version V4.1.0 update

2018-07-13

*** Require firmware V4.1.0

===== For BENZ V4.1.0 =====

1. This update no need update the firmware

2. Password calculation: Support calculate password for W202/W208/W210(KLine) EIS

a. No more need MCU's de/soldering, very safe and quickly

b. Support add key and lost all key for password calculation

c. The procedure require about 25-30 minutes

d. The procedure need MB Power Adapter support

e. The procedure should work on the bench, not on car

3. Bugfix for load motorola EEPROM dump file in EIS window

4. Bugfix for activate BE key

5. Bugfix for read EIS W209

6. Bugfix



VVDI MB TOOL latest software version V4.0.0 update


2018-03-14 Require firmware V4.0.0
For BENZ V4.0.0
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix



   VVDI MB TOOL latest software version V3.8.0 update 2018-02-26
Require firmware V3.6.0

For BENZ V3.8.0
1. Support spanish language
2. Support load For Motorola EEPROM dump in EIS window and display key information
3. Bugfix for read KM in some W207 EIS
4. Bugfix for old motorola keys show incorrect key password
5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)
6. Bugfix
This version No need to update firmware

   VVDI MB TOOL latest software version V3.7.0 update

2018-01-10

Require firmware V3.6.0
=== For BENZ V3.7.0 =====
1. Bugfix for some countries can't synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix


VVDI MB TOOL latest software version V3.6.0 update-2017-12-23

*** Require firmware V3.6.0

===== For BENZ V3.6.0 =====

1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation

2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit

3. Improve the success rate of BAG key password, erase password and enable key password

1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)

2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation

3) The server have 99% success rate for erase password and enable key password now

4) Add some old version NEC key for password calculation

5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password

4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS

5. Support activate W906(NEC) ELV from OBDII

6. Bugfix


VVDI MB TOOL latest software version V3.5.0 update

VVDI MB TOOL latest software version V3.0.0 update

VVDI MB Tool V3.0.0 Update Feature:


2017-05-02Require firmware V3.0.0

===== For BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old for Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix



2017-01-07    Require firmware V2.1.7

===== For BENZ V2.1.7   =====
1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix


 2016-12-23
Require firmware V2.1.5

===== For BENZ V2.1.5 =====
1. Attention: All user update device to firmware v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key(0CF4)
4. Bugfix for data acquisition in some old key version
5. Language bugfix


VVDI MB Tool Update to V2.14
2016-09-12
Require firmware V2.1.4


=====    For BENZ V2.1.4            =====
1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key

VVDI MB Tool Update to V2.13

2016-09-06
Require firmware V2.1.2


=====    For BENZ V2.1.3            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.3
2. Fix bug for time out when get erase password or key file


2016-09-02
Require firmware V2.1.2


=====    For BENZ V2.1.2            =====
1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released
3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental)ISM read/write/erase
9. Bugfix

 2016-06-28
Require firmware V2.1.1


=====    For BENZ V2.1.1            =====
1. Attention: All user update device to firmware v2.1.1, software v2.1.1
2. Add connection diagram for new NEC key adaptor
3. Support repair W204 ESL fatal error and repair old motorola ELV. you need buy an extra adaptor for ESL
4. Bugfix

2016-05-31
Require firmware V2.0.9


=====    For BENZ V2.1.0            =====
1. Fixbug for write original NEC key via IR
2. Fixbug for show finish error information in IR read password

2016-05-29
Require firmware V2.0.9


=====    For BENZ V2.0.9            =====
1. Attention: All user update device to firmware v2.0.9, software v2.0.9
2. User manual v1.5 released, overview v1.5 released
3. Support new sprinter W906 for motorola EEPROM dump prepare key file
4. Support read password via IR for old for motorola EIS (HC05, HC08, K-Line)
5. Support W204 ESL Emulator: only support VVDI W204 emulator, you must renew it before use
6. Support OBD read W164, W211, W209, W169 EIS without gateway, you need buy an extra adaptor
7. Fixbug for make only 1 key file in motorola EEPROM dump
8. Fixbug for read v51 version password from key
9. After read password from v51, v57 key, will fix the key automatically
10. Bugfix


VVDI MB TOOL Latest Version V2.0.7 Update(2016-02-26)

Require firmware V2.0.7
===== for BENZ V2.0.7   =====
1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version dont support password calculation
2. User manual v1.2 released, overview v1.3 released
3. Add support for renew ECU/Gearbox/ISM etc
4. Fix diable key in K-Line protocol
5. Fix clear TP in K-Line protocol
6. Fix read key bug in password calculation
7. Bugfix

VVDI - MB TOOL V2.0.5 Update

1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times
3. Password calculation with working key support: add working key test before data acquisition
4. Add EIS status test, working key test function
5. Fix bug for OBD read W203, W639, W463(K) EIS
6. Autodetect W212 EIS with ELV
7. Fix bug for read v51 key password via NEC adaptor
8. Add IR repair key function
9. Bugfix


Support Key Types Display:

Support Key Types Display



Xhorse VVDI for MB BGA TOOL Function Introduction:


1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function will be released soon.
9. Renew other control modules function will support soon

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.




Model Support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906





Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61

This two adapters are not in the parcel. If you need them, please click here to buy.
Two adapters: one for versions 28, 35, 40, 51, 57, another one for version 59.

Xhorse VVDI MB BAG Tool Adapter









Package List


1 x Xhorse VVDI MB BGA TOOL







Connection Display:


VVDI MB Tool Bag Connection Picture 1

xhorse-vvdi-benz-vvdi-mb-tool-bag-connection-2

xhorse-vvdi-benz-vvdi-mb-tool-bag-connection-3





FAQ:


Q:
I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?

A:Read eis via obd for W164, W169, W211, W209, require gateway connected





VXDAS Policy

1.Return Policy

2.Refund Policy

3.Returning for replacement

4.Our product guarantee

5.Repair Policy

Before returning items to us, please read and follow the instructions below. You can also contact our Customer Service, we will be glad to help you.

Please make sure that you understand our return policy and ensure that all criteria are met before physically sending any items back to us.


Return Policy

Mis-Ordered Products: If you order wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.

Quality Issue: our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our return policy will be open for you.

Non Quality Issues: In some particular situation, our return policy can be open for you after our customer service learning your particular problem, and in this condition we will charge you 10% handling fee.

Shipping options for return items: when you confirm to return the items to us, please use simple airmail or EMS to return it, and write shipping address our customer service provides. Please do not use DHL, UPS, FEDEX and TNT or any other courier, because we can not get your return item, we will not responsible for that.


Refund policy

After we get your item return to us and check the item in good condition, we will issue you refund according to our policy within 2 working days through PayPal, please check your PayPal account timely or contact our customer service, and we we will  charge you 10% handling fee.

If you have any doubt, please check with our customer service.


Returning for replacement

When exchange for free: If your products encounter crash in delivery, we will exchange it for free for you and you undertake the shipping cost for your ship item back to us through simple airmail.

Mis-ordered products: If you order a wrong item and plan to exchange for you want, then just contact our customer service for help,if we can exchange for you, you need to pay the shipping cost to us as well as return to you.

Physical Damaged Items: If the item is damaged by yourself, we can not provide exchange service for you. But you can return for repair.

What you do before returning for replacement: you need contact our customer service to tell us your problem. What's wrong with your item and what you want us to do for you.

Returning shipping options: after confirming your items is under our policy of returning, we please you use simple airmail to ship item back to us. NO DHL, UPS, TNT, Fedex or any other express.

How we will do after receiving your return: you need keep touch with us to make sure we get it. After checking the item, we will arrange a replacement for you and we will inform you when everything is done. Please remember to check your email from time to time.


Our product guarantee

1 Year Warranty: the guarantee of our most products is one year.

Before shipping out, all goods have been double verified by vxdas.com. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.  After finish quality check,our QC stuff will carefully do quality check and paste our own QC label in the form of month/date/year on every product.

If you have any using problem of the products which buy from vxdas.com, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.

Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.


Repair Policy

When your product get damaged after using some time and need repair, we provide repair service for you. Please contact with vxdas.com customer service about the repair.

You need use simple airmail to send the item back to us, after we fix it, we will send back to you. We will not charge you for simple airmail ship back, but if you ask for express shipping, you need to pay for this.


Any other questions, please feel free to contact vxdas.com customers service.



VXDAS Policy

1.Return Policy

2.Refund Policy

3.Returning for replacement

4.Our product guarantee

5.Repair Policy

Before returning items to us, please read and follow the instructions below. You can also contact our Customer Service, we will be glad to help you.

Please make sure that you understand our return policy and ensure that all criteria are met before physically sending any items back to us.


Return Policy

Mis-Ordered Products: If you order wrong item by yourself, or you found it is not what you want to order (not quality problem), our return policy is not applied for you, please aware of this.

Quality Issue: our products do not work well once you receive it or it encounters crash in delivery causing customers fail to use it, in this situation, our return policy will be open for you.

Non Quality Issues: In some particular situation, our return policy can be open for you after our customer service learning your particular problem, and in this condition we will charge you 10% handling fee.

Shipping options for return items: when you confirm to return the items to us, please use simple airmail or EMS to return it, and write shipping address our customer service provides. Please do not use DHL, UPS, FEDEX and TNT or any other courier, because we can not get your return item, we will not responsible for that.


Refund policy

After we get your item return to us and check the item in good condition, we will issue you refund according to our policy within 2 working days through PayPal, please check your PayPal account timely or contact our customer service, and we we will  charge you 10% handling fee.

If you have any doubt, please check with our customer service.


Returning for replacement

When exchange for free: If your products encounter crash in delivery, we will exchange it for free for you and you undertake the shipping cost for your ship item back to us through simple airmail.

Mis-ordered products: If you order a wrong item and plan to exchange for you want, then just contact our customer service for help,if we can exchange for you, you need to pay the shipping cost to us as well as return to you.

Physical Damaged Items: If the item is damaged by yourself, we can not provide exchange service for you. But you can return for repair.

What you do before returning for replacement: you need contact our customer service to tell us your problem. What's wrong with your item and what you want us to do for you.

Returning shipping options: after confirming your items is under our policy of returning, we please you use simple airmail to ship item back to us. NO DHL, UPS, TNT, Fedex or any other express.

How we will do after receiving your return: you need keep touch with us to make sure we get it. After checking the item, we will arrange a replacement for you and we will inform you when everything is done. Please remember to check your email from time to time.


Our product guarantee

1 Year Warranty: the guarantee of our most products is one year.

Before shipping out, all goods have been double verified by vxdas.com. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.  After finish quality check,our QC stuff will carefully do quality check and paste our own QC label in the form of month/date/year on every product.

If you have any using problem of the products which buy from vxdas.com, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.

Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.


Repair Policy

When your product get damaged after using some time and need repair, we provide repair service for you. Please contact with vxdas.com customer service about the repair.

You need use simple airmail to send the item back to us, after we fix it, we will send back to you. We will not charge you for simple airmail ship back, but if you ask for express shipping, you need to pay for this.


Any other questions, please feel free to contact vxdas.com customers service.



Recently Viewed Products Recently Viewed Products
