VXDAS Universal Harness Kit Splitter Extension 16Pin OBD T Cable Car/Auto Plastic Flange Mount Brackets/Connector/Adapter Set VXDAS Universal Harness Kit Splitter Extension 16Pin OBD T Cable Car/Auto Plastic Flange Mount Brackets/Connector/Adapter Set

XS001
0.32kg
OBD2 Cable and Connectors
$79.90 $69.90 13%
-
+

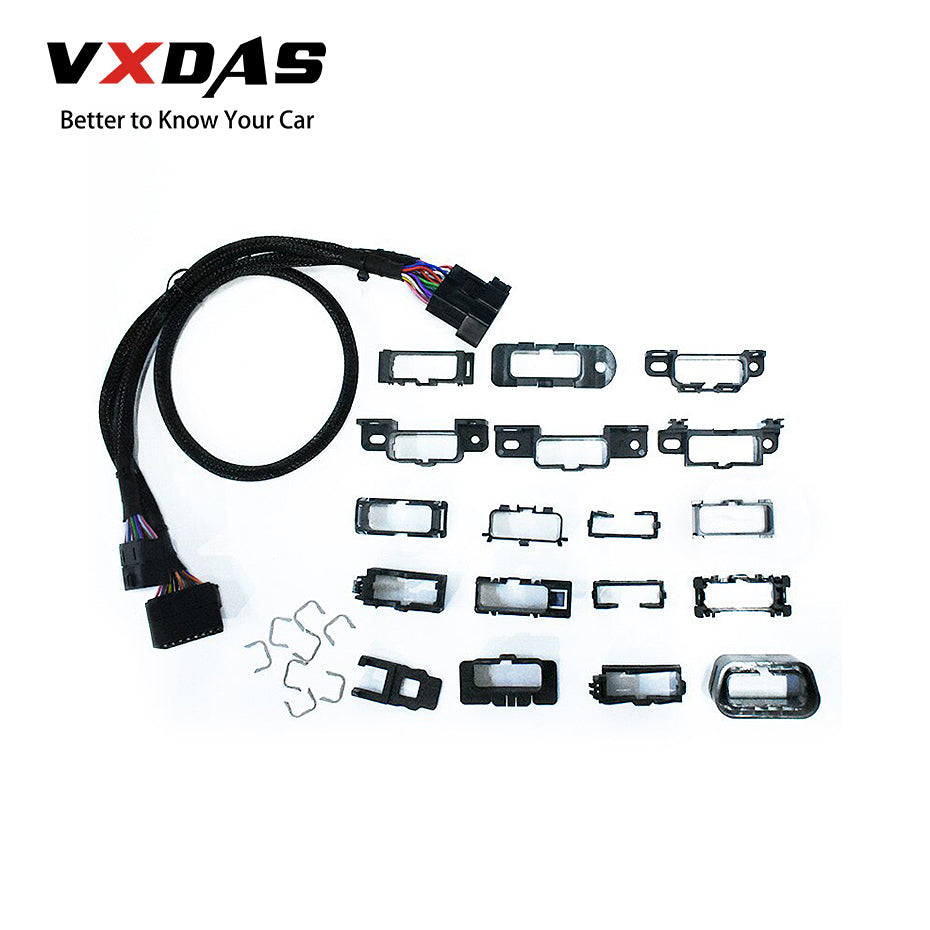

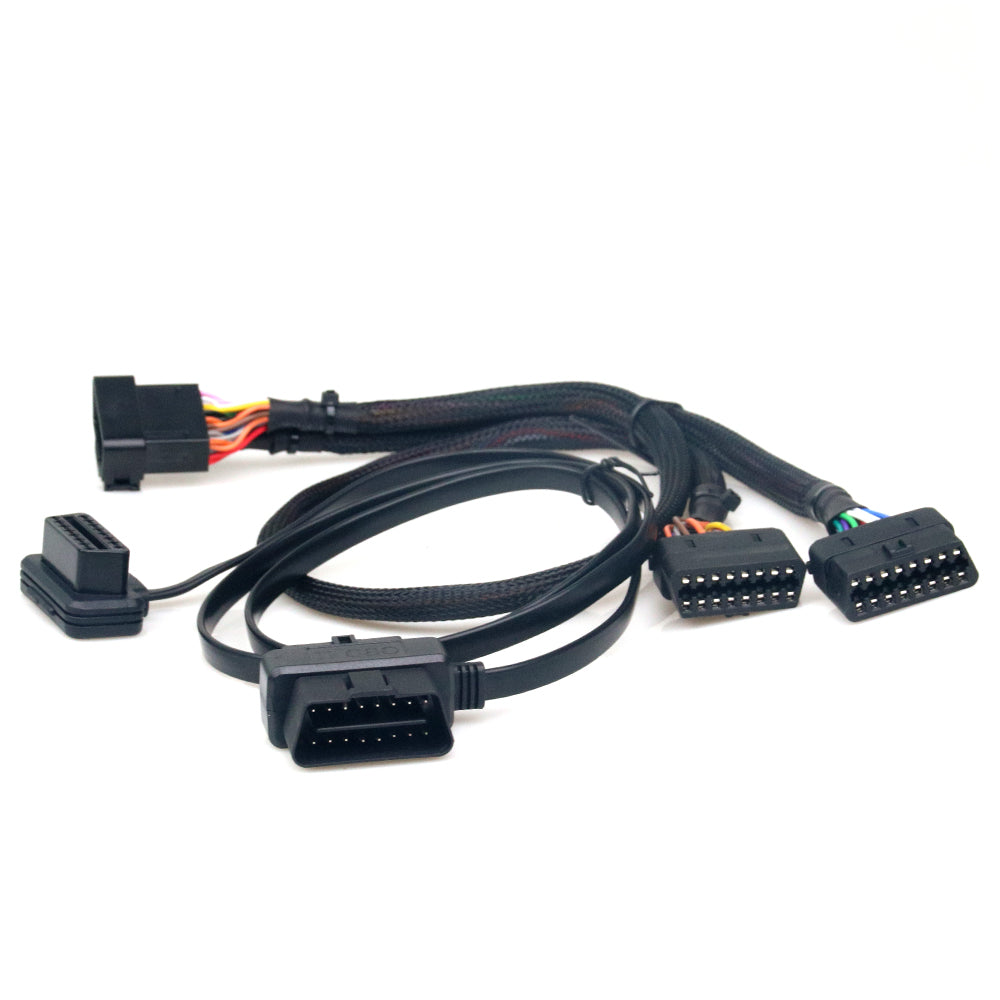

The OBD T CABLE is an OBDII T-harness kit with fifteen mounting brackets for connecting a Geolocation system to most light-duty and medium -duty vehicles internationally.

The OBD T CABLE contains the mounting adapters listed below.

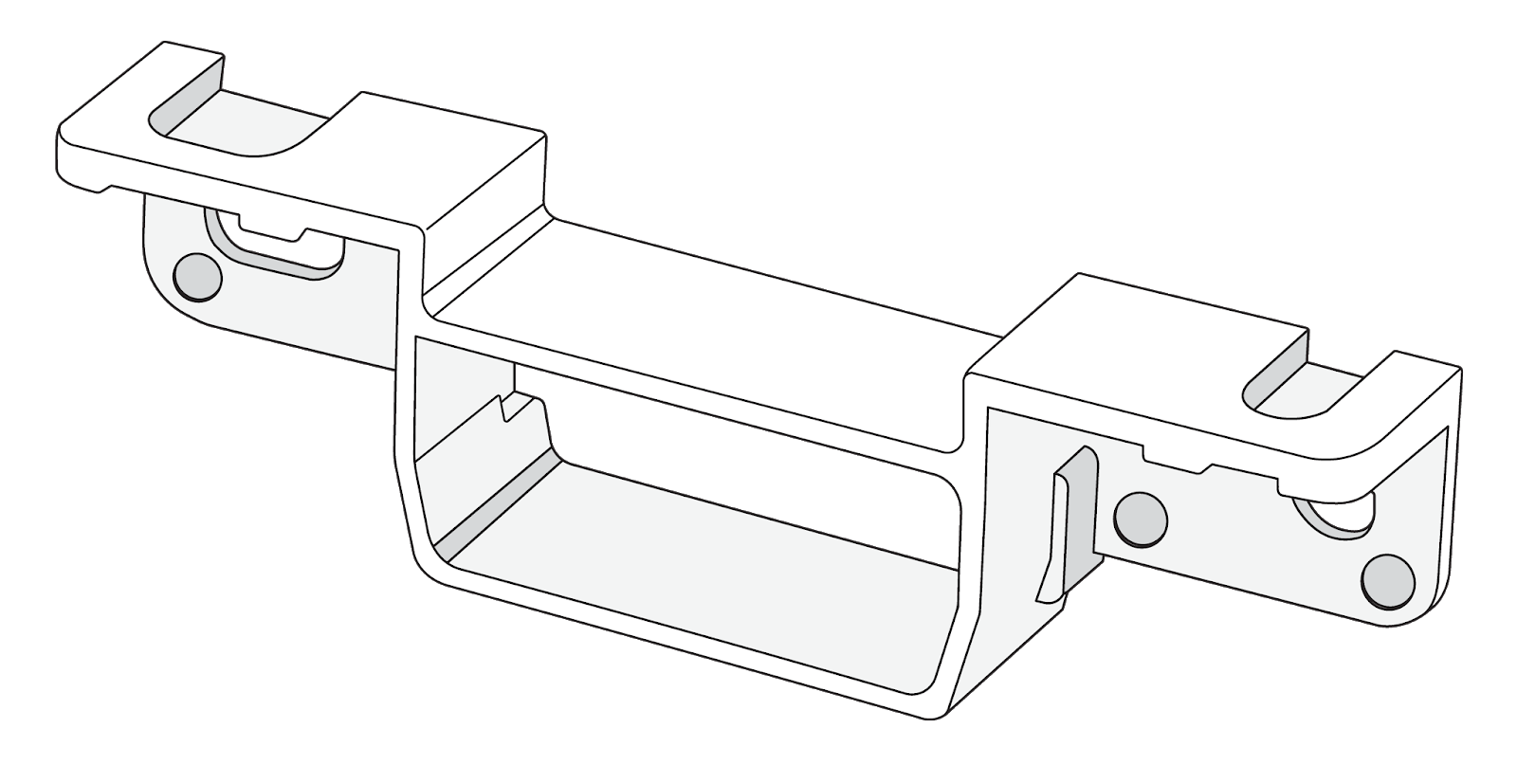

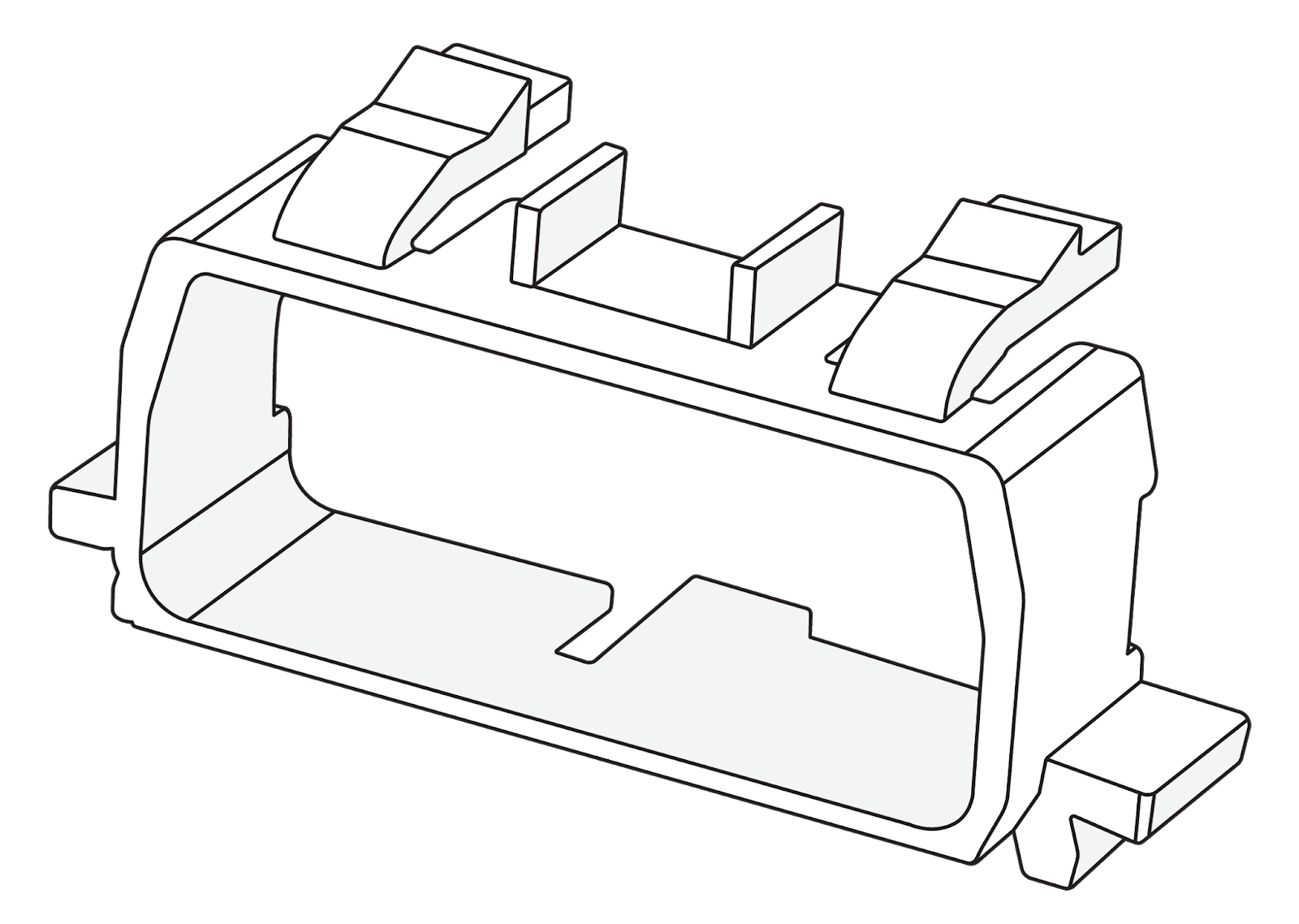

North American Flange Mount                       European Latch &Snap

North American Extended Flange Mount      VW Snap-In

North American Snap-In Mount                     BMW Slide & Lock

North American Slide & Lock Mount             Ford Round Snap-In

European Lock Mount                                     Iveco Slide & Lock

Asian Snap-In                                                  Volvo Slide Mount



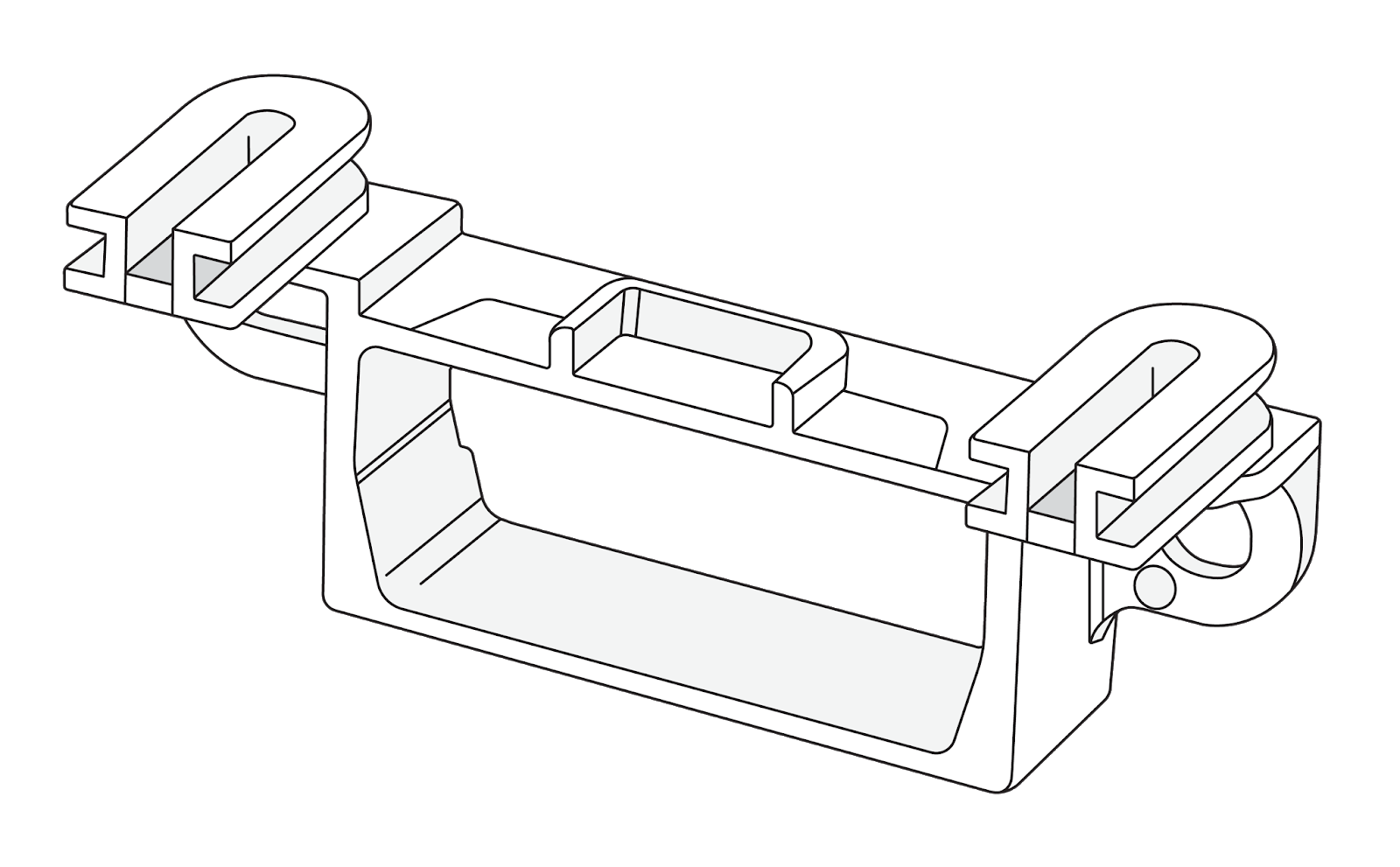

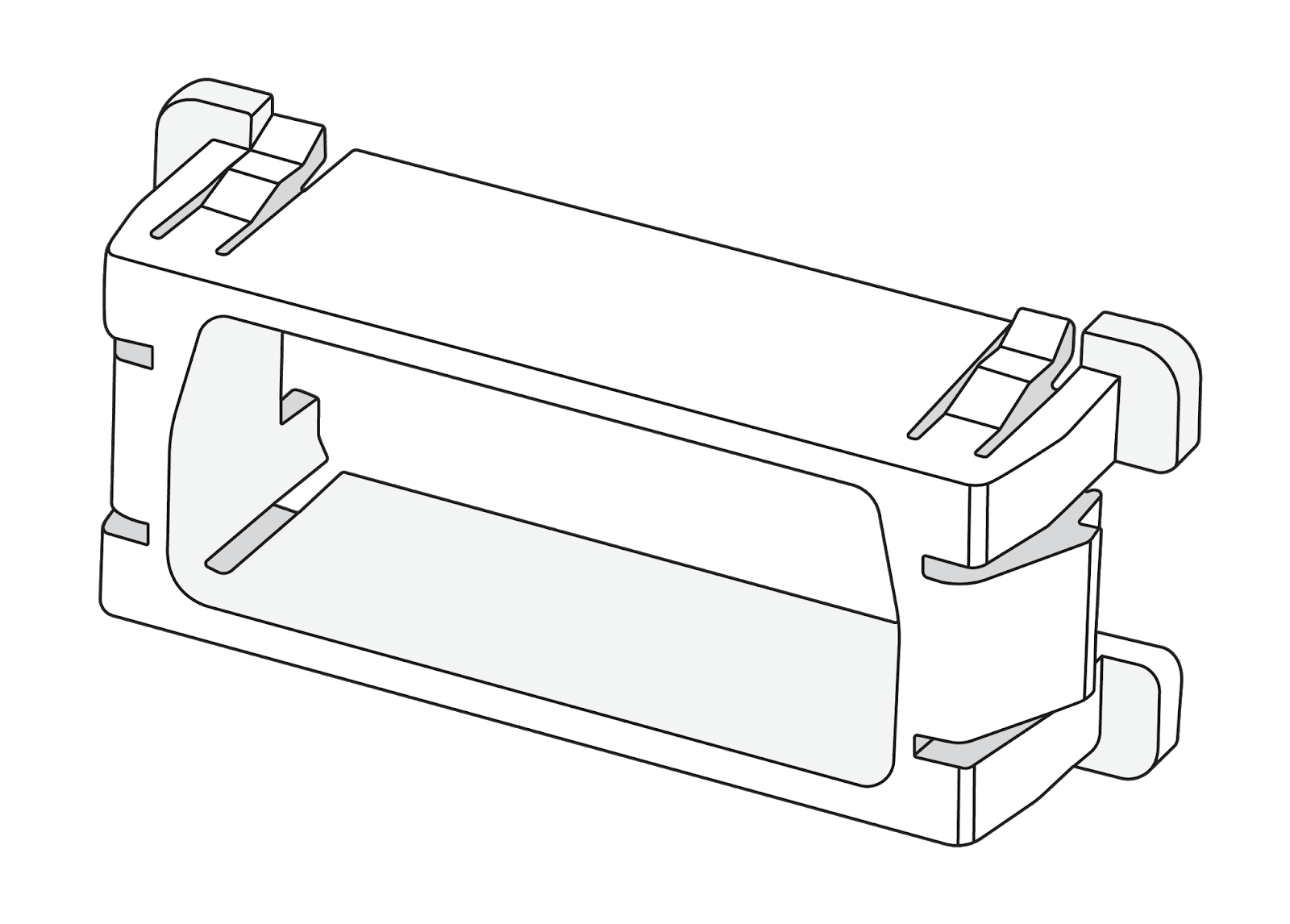

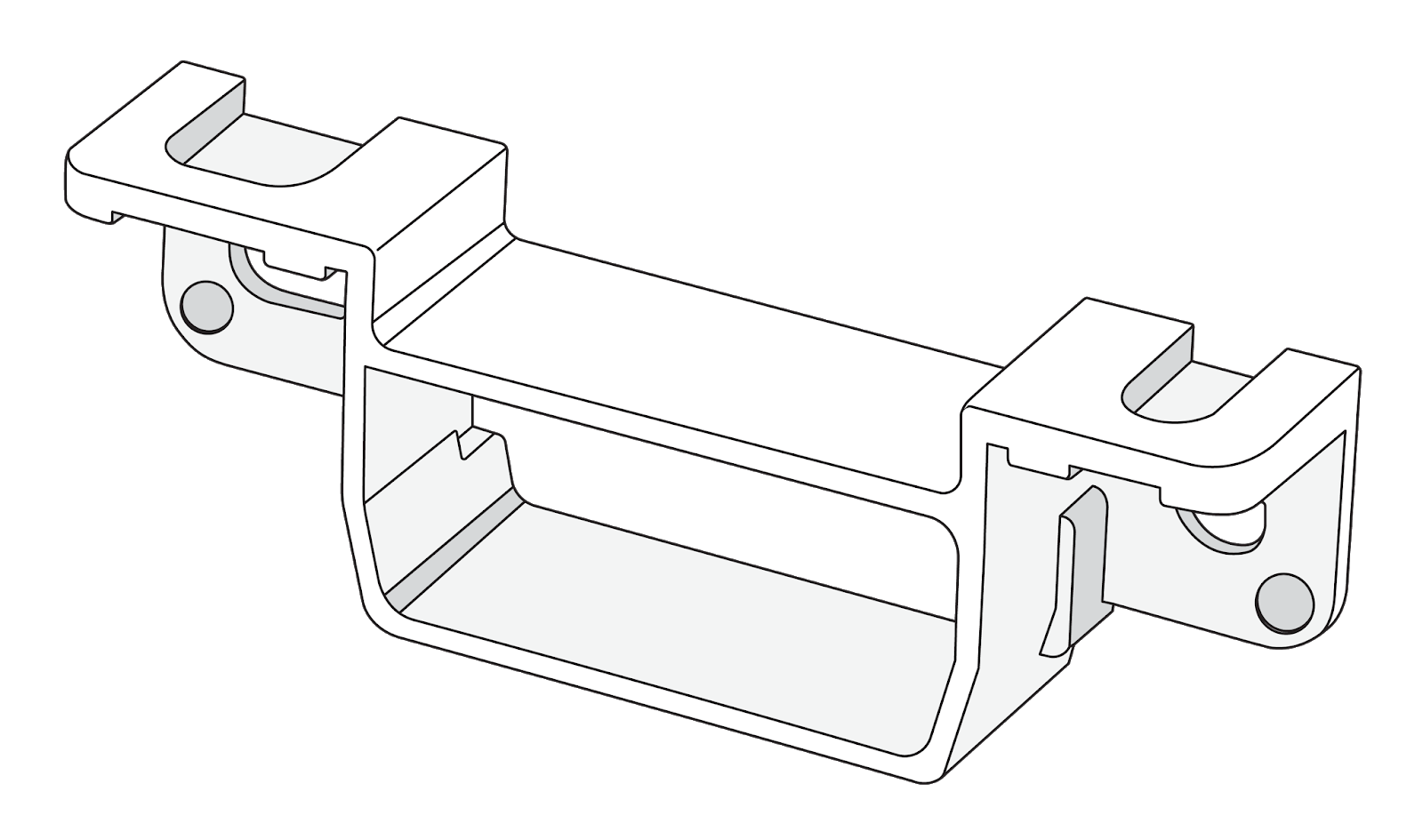

1. Volvo Slide Mount coding is 201-FB000059 for Volvo,1 package list

2.North American Snap-In Mount coding is 201-FB000060 for Chrysler, 1 package list

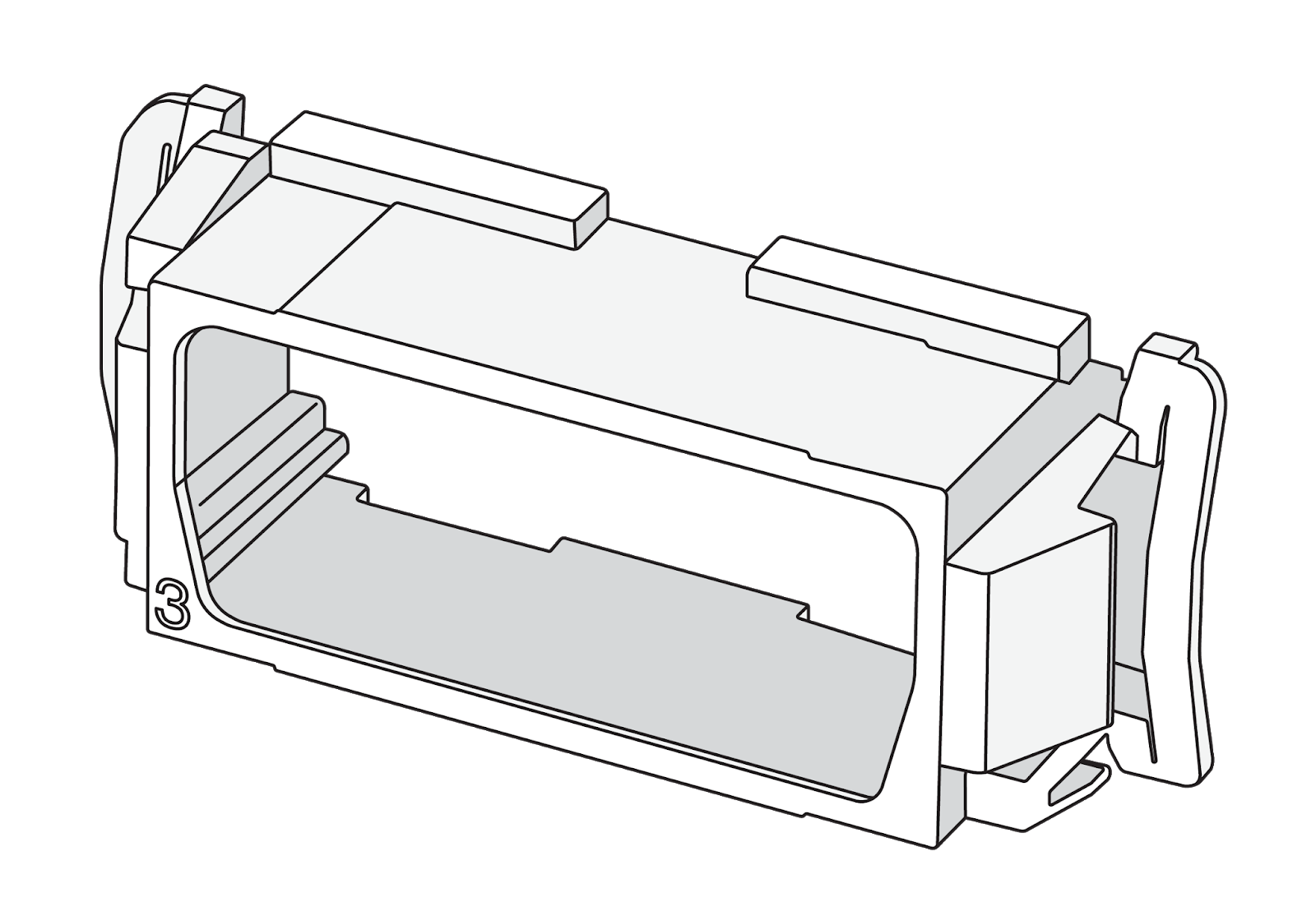

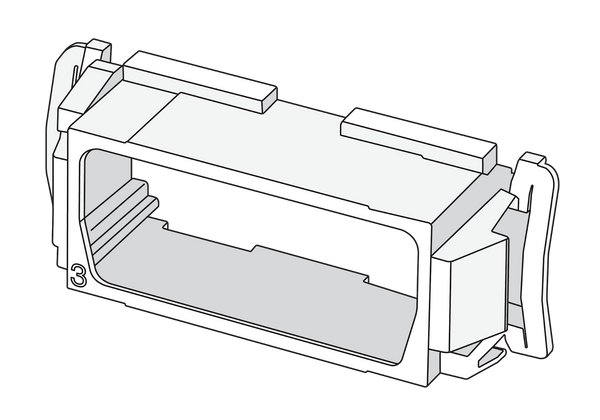

3.BMW coding is 201-FB000061 for BMW,1 package list

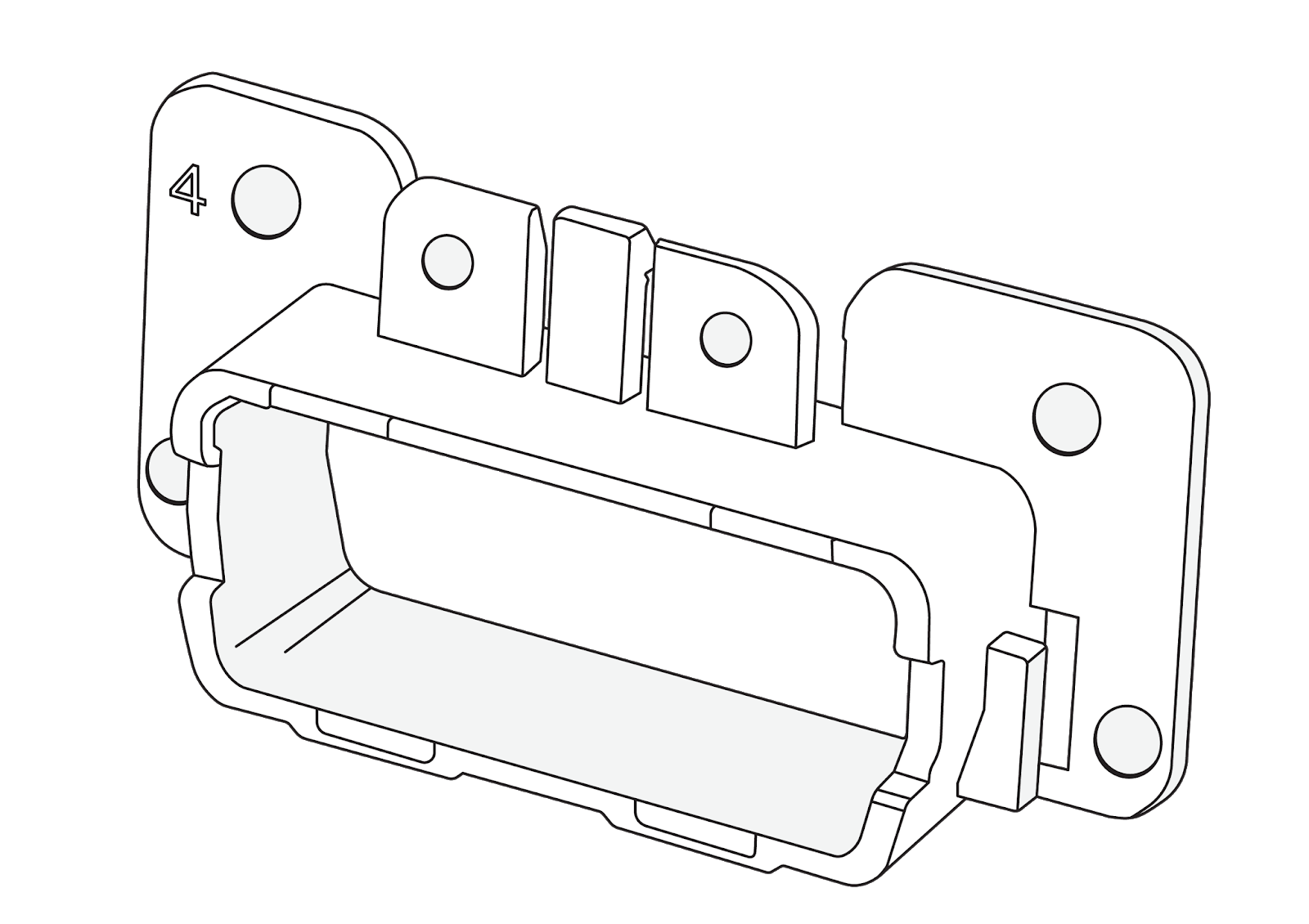

4.European Lock Mount coding is 201-FB000062 for Mercedes,BMW, 1 package list

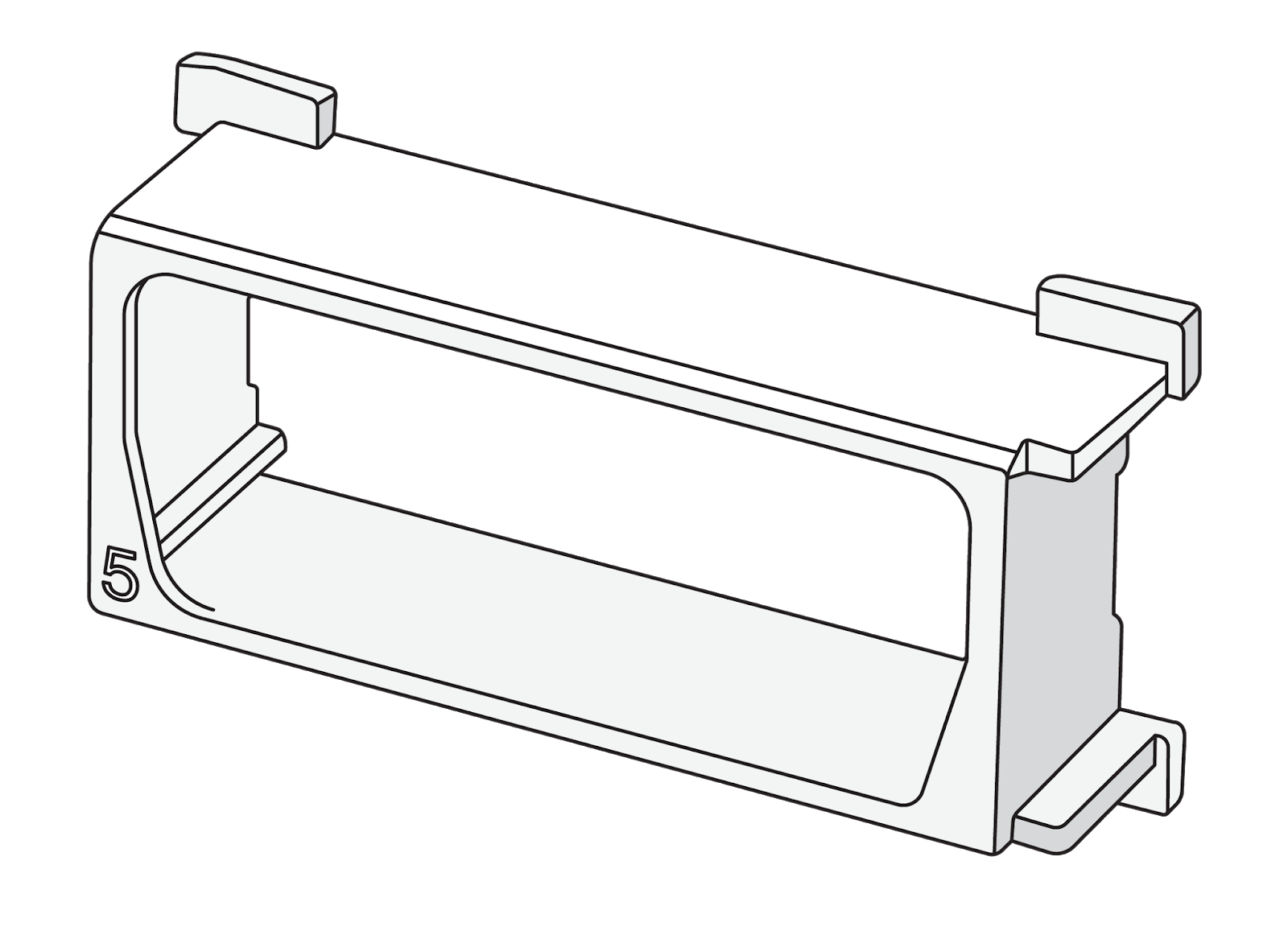

5.European Latch& Snap coding is 201-FB000063 for Fiat, Citröen, Peugeot, 1 package list

6.BMW Slide & Lock coding is 201-FB000064 for BMW,1 package list

7.Honda coding coding is 201-FB000065 for Honda,1 package list

8.Ford Round Snap-In coding is 201-FB000066 for Ford,1 package list

9.Citröen,Renault S.A coding is 201-FB000067 for Citröen,Renault S.A,  1 package list

10.North American Slide & Lock Mount coding is 201-FB000068 for Ford, GM,  1 package list

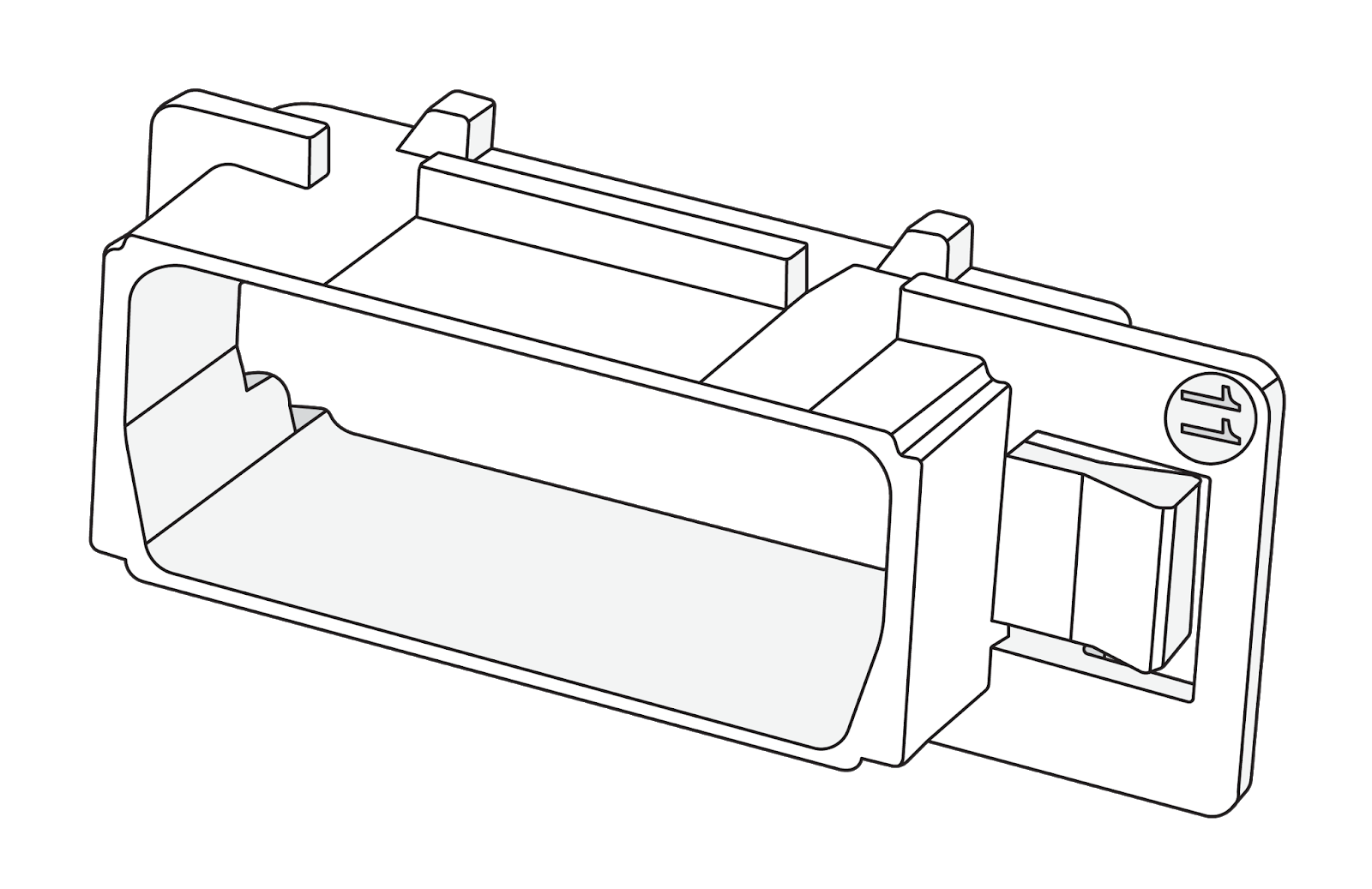

11.North American Flange Mount coding is 201-FB000069 for Ford, GM, Chrysler,1 package list

12.Asian Snap-In coding is 201-FB000070 for Toyota, Hyundai, Kia, Ford, 1 package list

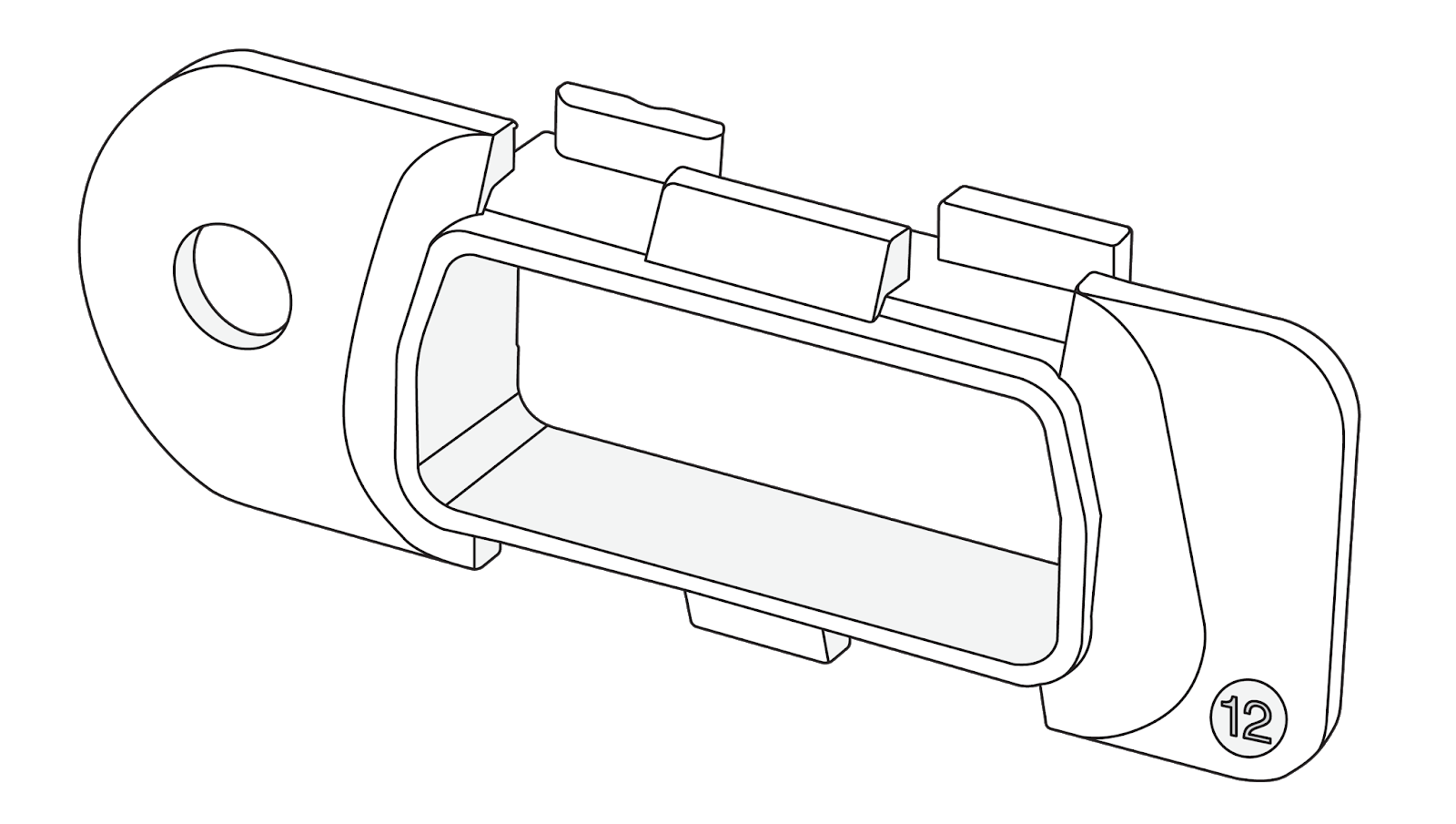

13.North American Extended Flange Mount coding is 201-FB000071 for Ford, 1 package list

14.Iveco Slide & Lock  coding is 201-FB000072 for Iveco,1 package list

15.5 and 9 accessories  coding is 201-FB000073, 2 package lists

16. VW Snap-In coding is 201-FB000074 for Volkswagen, Audi,1 package list

17.Remove the piece coding is 201-FB000075,1 package list

18.Hardness care tools coding is 304-OBD00007,8 package lists

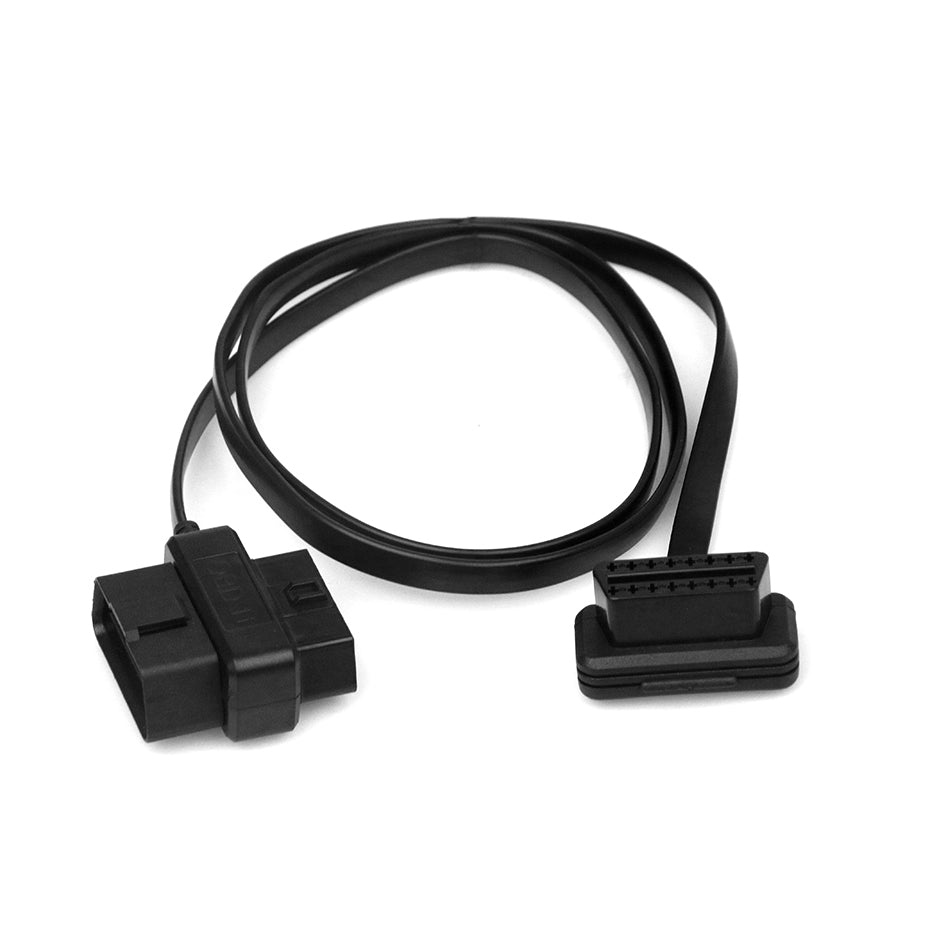

Harness Technical Specifications

Weight: 156 g

Size: Max Length:770mm,Max Width:83mm

Material:Universal Core Connector:Nylon       Wire Jacker:Mesh Sheathing

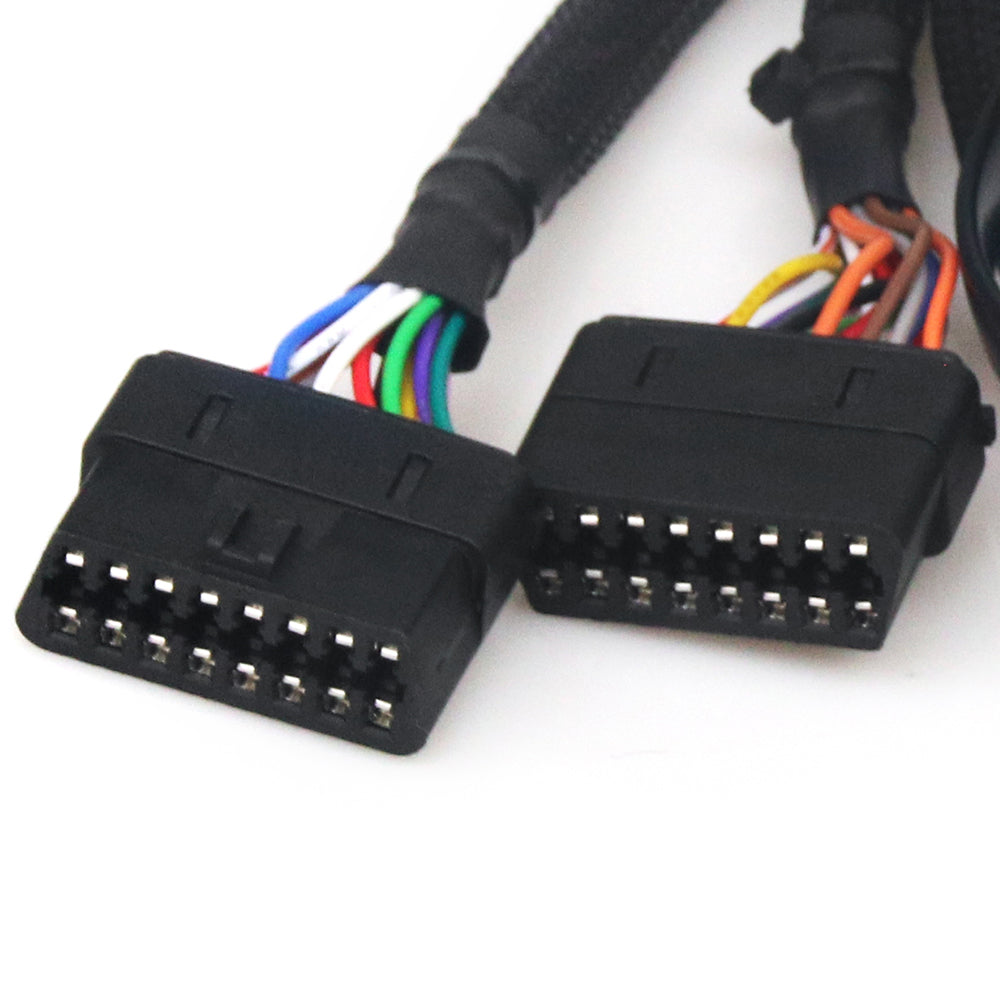

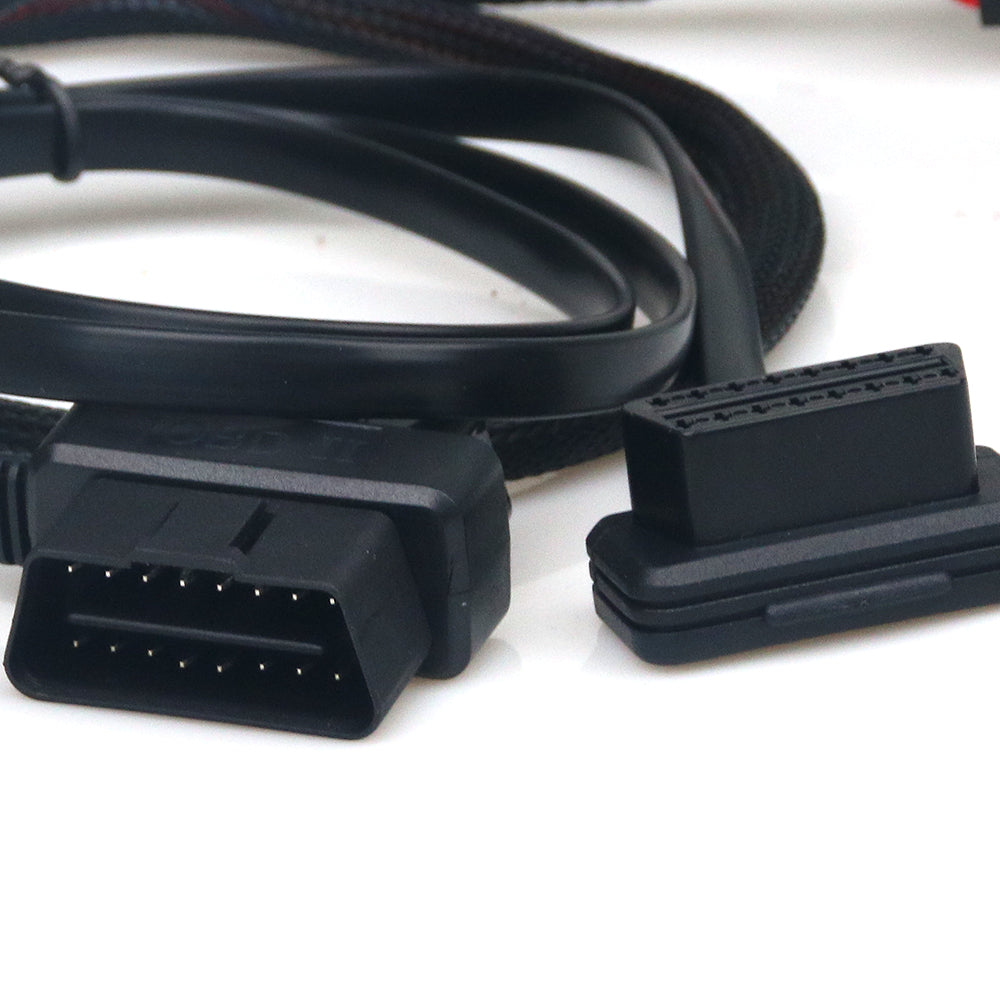

Connectors: 2 x universal Core Connector     1 x 24V Compatible ALDL Connector

Power Output: 8 V to 36 V

Current Rating: 5 A

Temperature Rating: -40 to +85°C

Hardness Installation Instructions

1. Start with the Geolocation system unplugged from the vehicles.Remove the in-vehicles OBDII connector from its slot.

2. Attach the female universal core connector (short end) of the hardness to the appropriate adapter (see Adapters section on page2) matching the required installation.

3. Secure the adapter in place using the provided metal clips and ensure that they latch in

4.Fasten the female universal core connector (short end) of the hardness the vehicle’s OBDII slot and secure in place using either screws or the plastic clips on the adapters.

5.Connect the device to the female universal core connector (long end) of the hardness.

6.Connect the male OBDII hardness connector to the vehicle’s OBDII connector removed in Step1.



Completed Setup

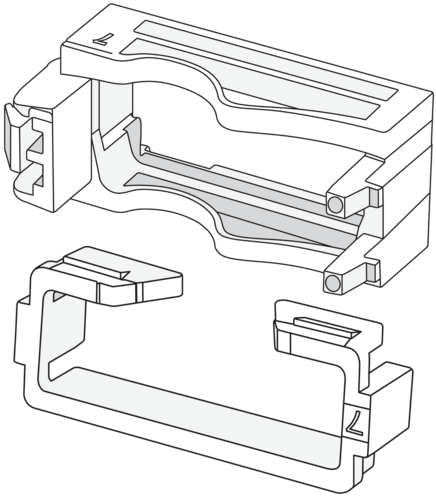

European Latch and Snap

Note:replace Step 2 of the standard installation instructions with the following steps for Fiat ,Citröen or Peugeot vehicles using the European Latch and Snap adapter.

1.Slide the European Latch and Snap all the way to the back of the core connector.



2.Insert the small snap adapter onto the wire behind the core connector.

3.Slide the small snap adapter from the back of the hardness.Ensure that the European Latch and Snap is securely interlocked.

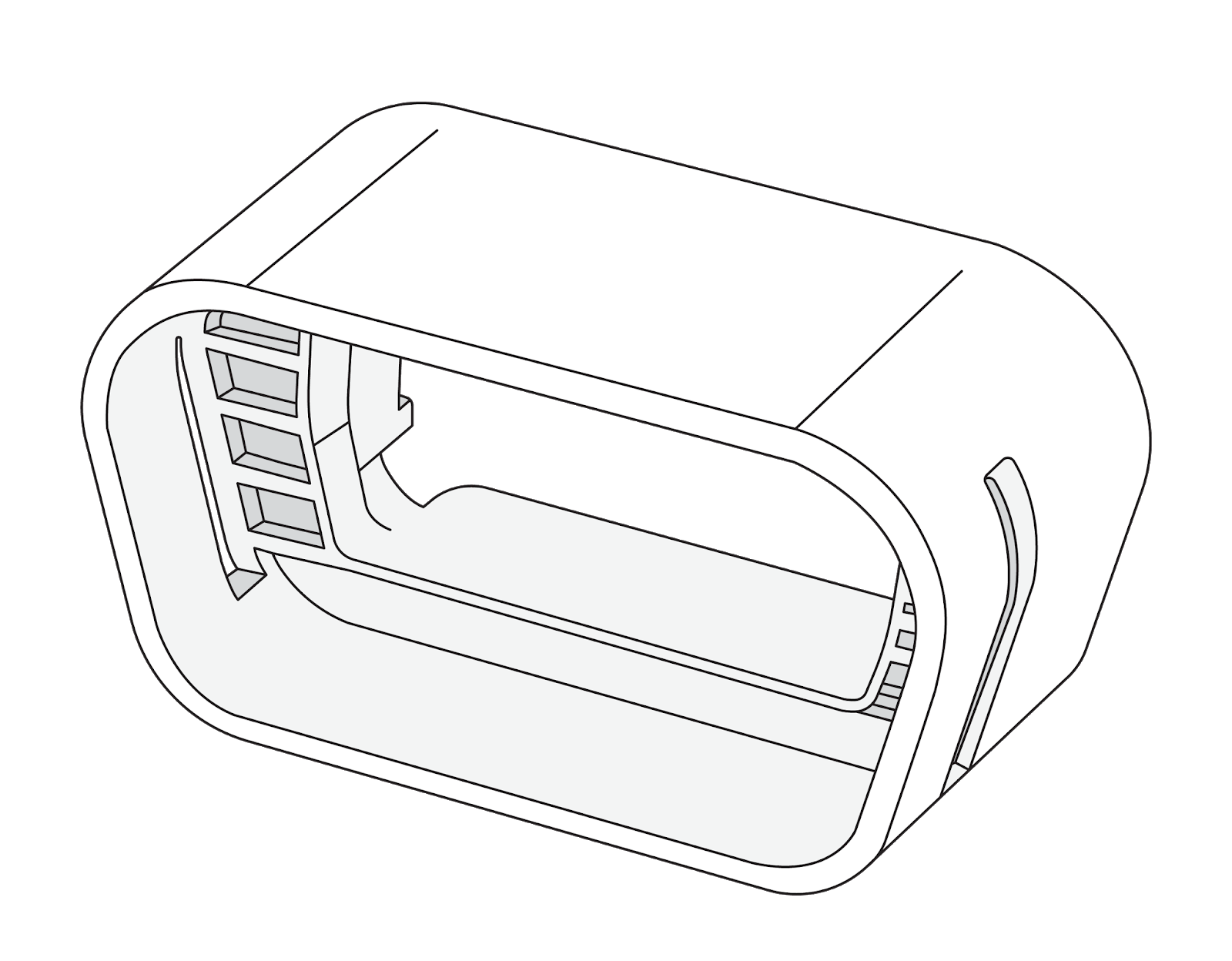

Ford Round Snap-In

Note:Replace Step 2 of the standard installation instructions with the following steps for Ford vehicles using the Ford Round Snap-In adapter.

1.Slide the Ford Round Snap-In all the way to the back of the core connector.

2.Using the insert/removal tool,secure the adapter in place using the provided metal clips and ensure that they latch in.

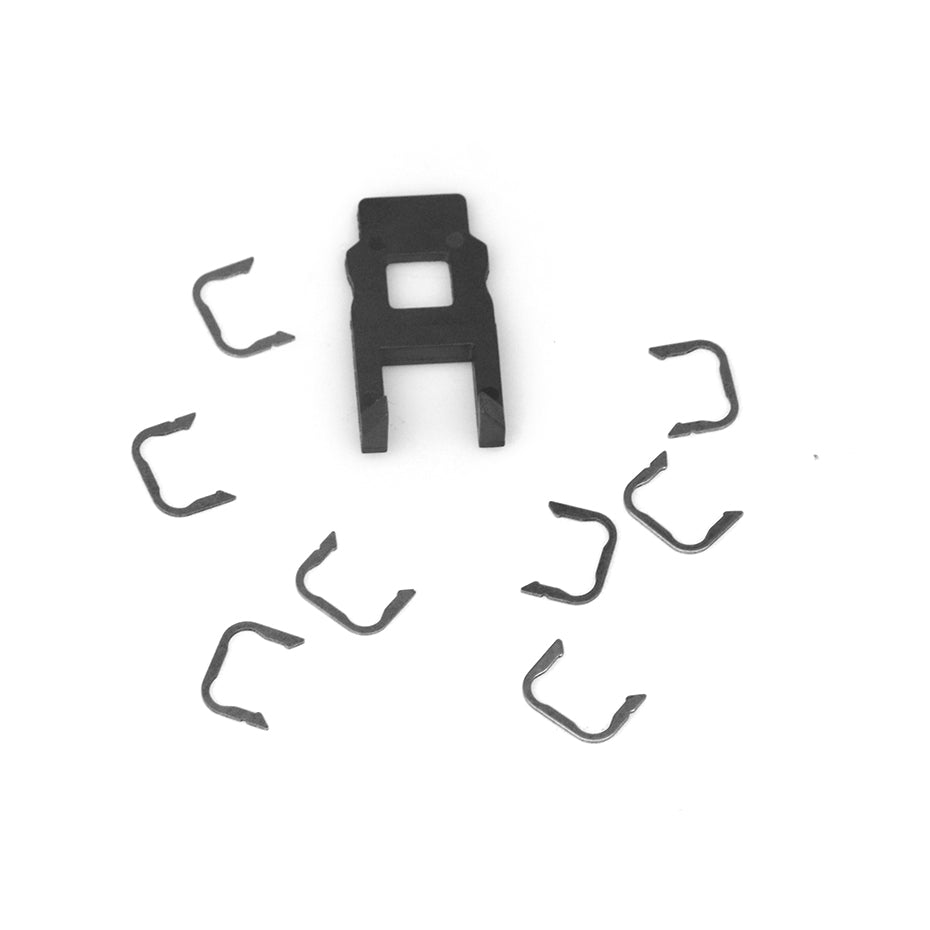

Insertion and Removal of Mental Clips

The metal clips used to secure the adapters can be inserted by hand—with the exception of Ford Round Snap-In (#10) adapter,which requires the use of the insertion end of the insert/removal tool include with the hardness kit.The removal of clips requires the use of the removal end of the insert/removal tool.

Insert

Attach the required adapter to the core connector of the hardness and secure the metal clips in place with your hands.



Remove

Remove the metal clips from the adapter by pulling them off using the removal end of the insertion/removal tool.

Important Safety Information and Limitation of Use

Do not attempt to install,configure or remove any product from any vehicles while the vehicles is in motion or otherwise in operation.All installation,configuration or removal must be done only in stationary vehicles which are securely parked.Attempting to service units while being operated could result in malfunctions or accidents,leading to death or serious personal injury.

All in-vehicles devices and related cabling must be securely fastened and kept clear of all vehicle controls,including gas,brake and clutch pedals.You must inspect devices and cabling on a regular basis to ensure all devices and cabling continue to be securely attached.Loose cabling or devices may impede the use of vehicle controls,resulting in unanticipated acceleration,braking or other loss of vehicle control,which could lead to death or serious personal injury.Improperly fastened in-vehicle devices may detach and impact operators upon sudden acceleration or deceleration,which may  cause injury.

If at any point after an in-vehicles device is installed a warning lights up on the vehicle dash or the vehicles stalls or has a marked drop in performance,shut off the engine,remove the device,and contact your reseller.Continuing to operate a vehicle with these symptoms can cause loss of vehicles control,and serious injury.

Your in-vehicle devices must be kept clear of debris,water and other environmental contaminants.Failure to do so many result in units malfunctioning or short-circuiting that can lead to a fire hazard or vehicles damage or serious injury.

Do not attempt to remove the devices from the vehicles in which they are originally installed for installation in another vehicle.Not all vehicles share compatibility,and doing so may result in unexpected interactions with your vehicles,including sudden loss of of power or shutdown of the vehicle’s engine while in operation or cause your vehicle to operate poorly erratically and cause death or serious injury and /or vehicle damage.

Notice-This product does not contain any user-serviceable parts.

Configuration,servicing,and repairs must only be made by an authorized reseller or installer.Unauthorized servicing of these products will void your product warranty.
