VXDAS UPA USB Programmer Full Set With Adapters V1.3 ECU Programmer ECU Scanner ECU Diagnostic Tool
VXDAS UPA USB Programmer Full Set With Adapters V1.3 ECU Programmer ECU Scanner ECU Diagnostic Tool

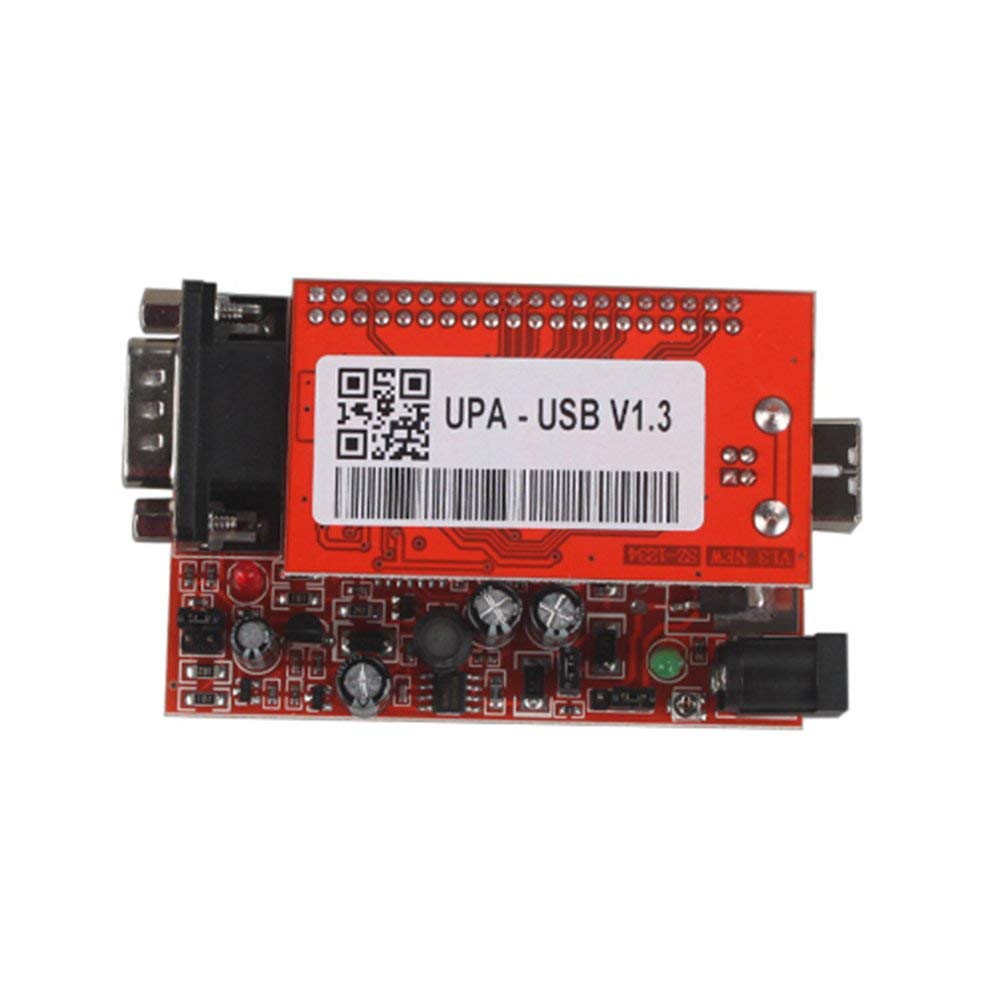

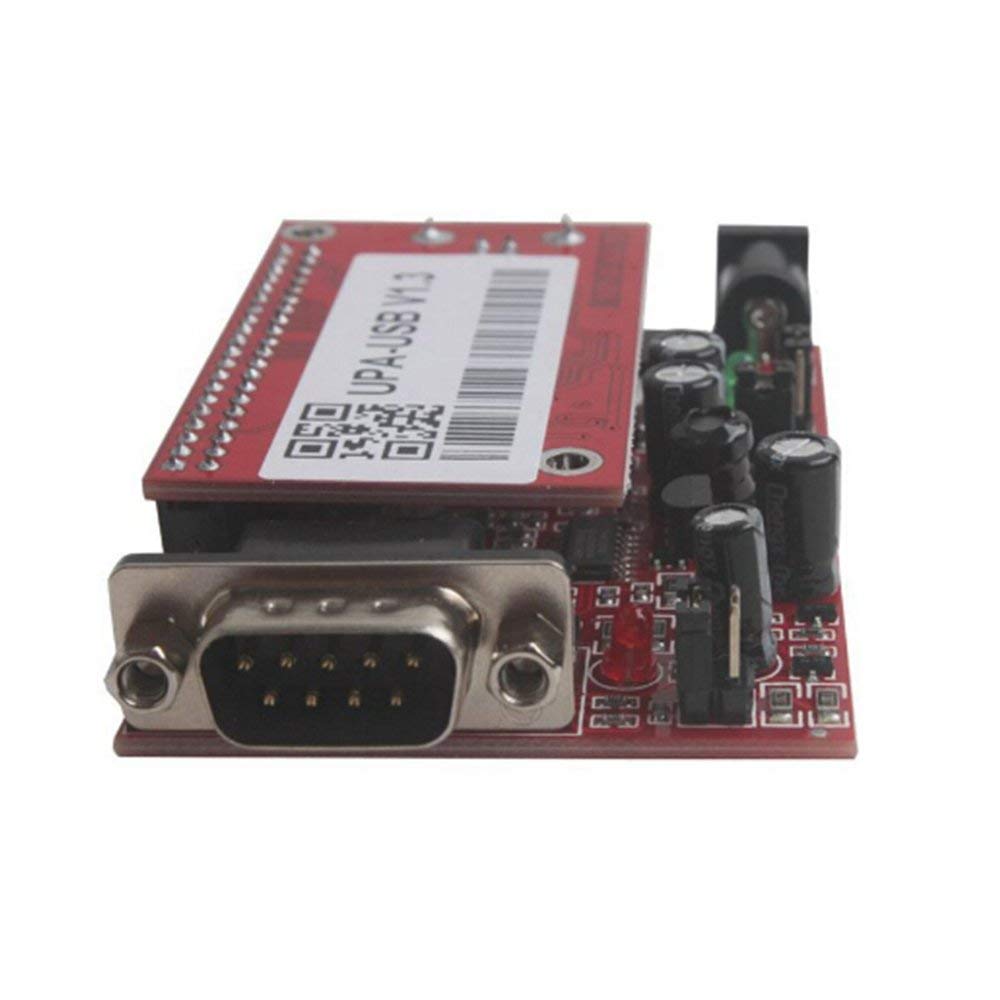

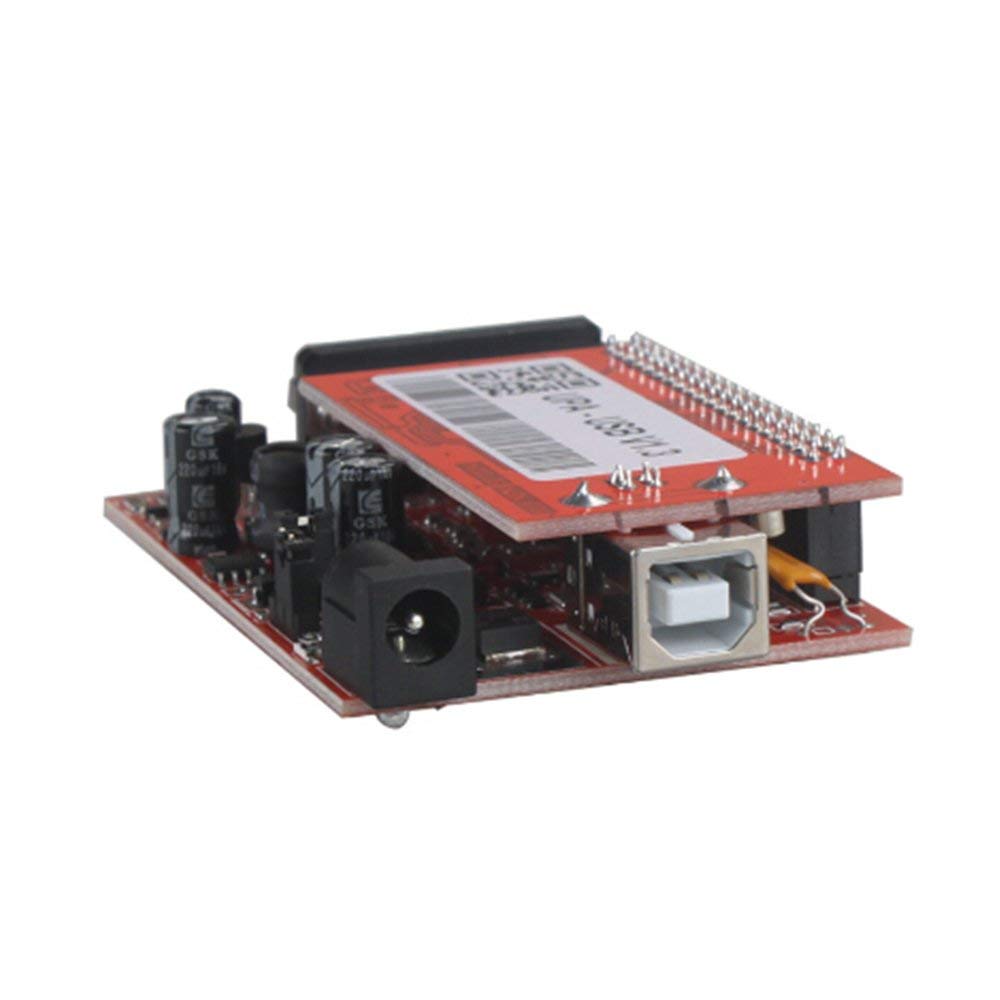

- VXDAS UPA USB is the full set with all adapters. The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.
- UPA USB Programmer Language: English.
- UPA-USB Full Set Software Version: V1.3
- ECU Programmer UPA USB Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
- ECU Scanner UPA USB V1.3 Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket
UPA USB Programmer software link:
https://mega.nz/file/ofciTYSD#zQwP8rhSdZzIu-CTx_1I_bS0HUxSfx4L3l_EA9QCGEM

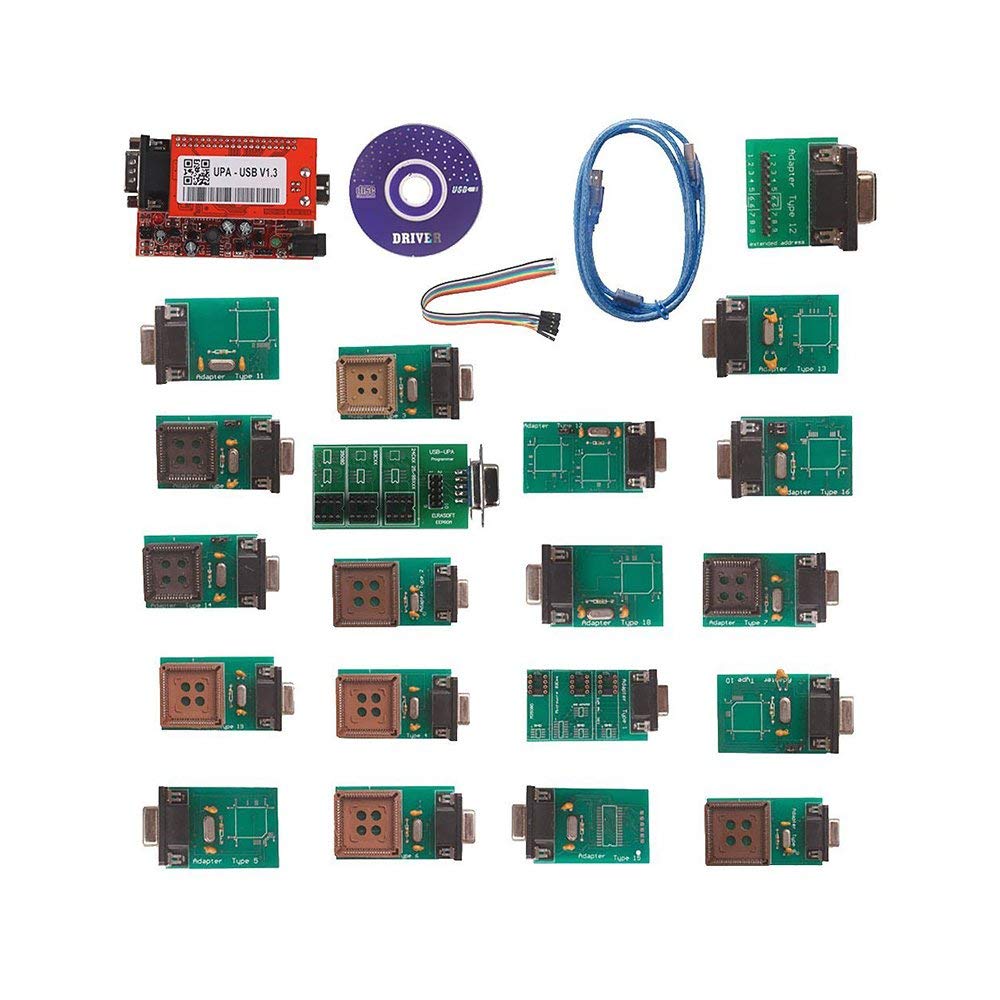

Packing List:
1x Main unit
1x USB cable
1x CD
1x 5pin cable
1x Adapter Type1 Per eprom I2C,SPI, Microware e M35080
1x Adapter Type2 for Motorola MC68HC11P2+MC68HC11PH8-PLCC84
1x Adapter Type3 for Motorola MC68HC08AS-PLCC52
1x Adapter Type4 for Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68
1x Adapter Type5 for Motorola MC68HC(9)08-QFP64
1x Adapter Type6 for Motorola MC68HC11F1-PLCC68
1x Adapter Type7 for Motorola MC68HC05H12-PLCC52
1x Adapter Type8 for Motorola MC68HC11K-PLCC84
1x Adapter Type9 for Motorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52
1x Adapter Type10 for Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64
1x Adapter Type11 for Motorola MC68HC11K-QFP80
1x Adapter Type12 Extended address
1x Adapter Type13 for Motorola MC68HC11A8/E1/E9/E20-QFP64
1x Adapter Type14 for Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
1x Adapter Type15 for Motorola MC68HC(7)05E6-SOIC28
1x Adapter Type16 for Motorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
1x Adapter Type17 for Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
1x Adapter Type18 for Motorola MC68HC11F1-QFP80

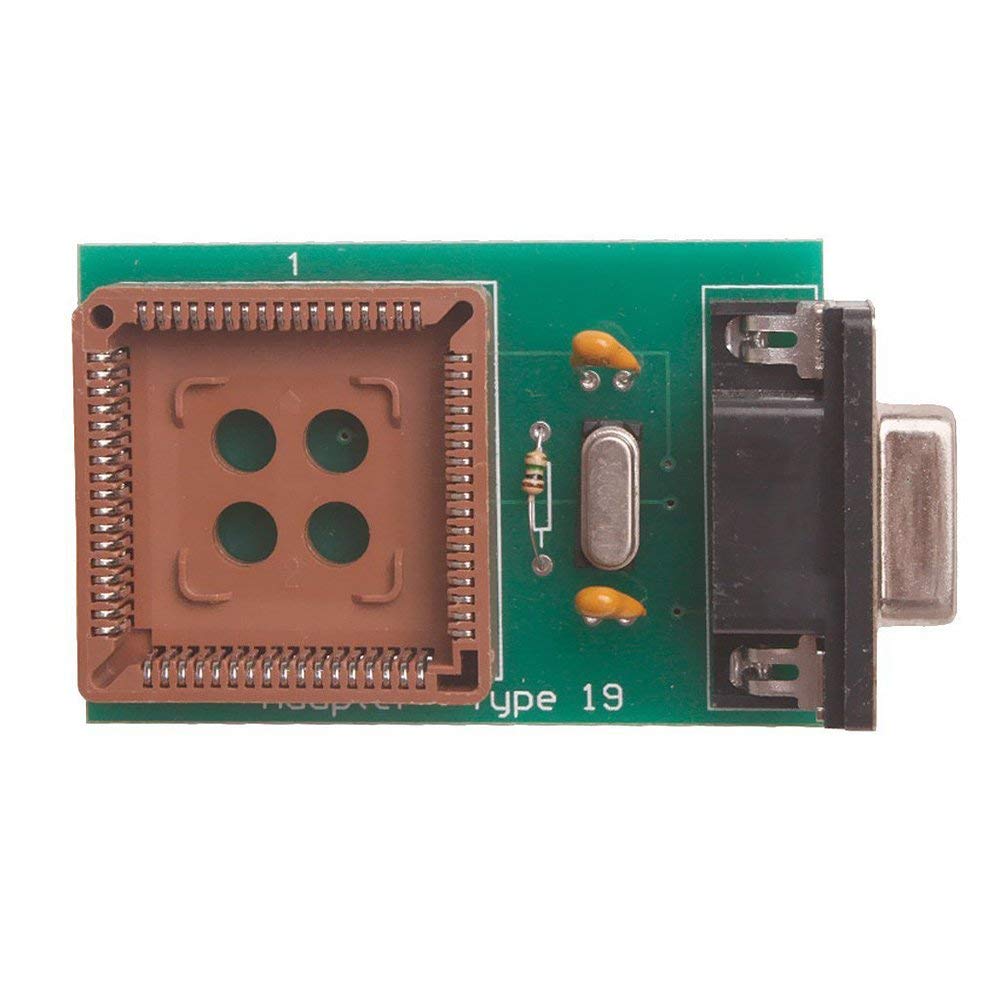

1x Adapter Type19 for Motorola MC68HC11L6-PLCC68
