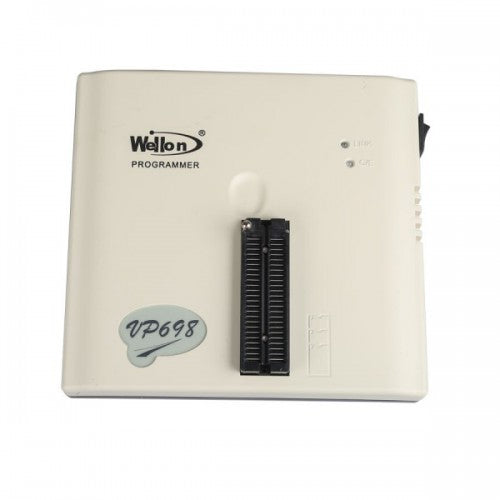

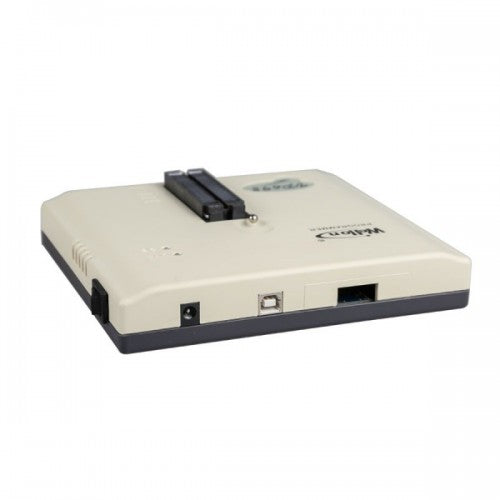

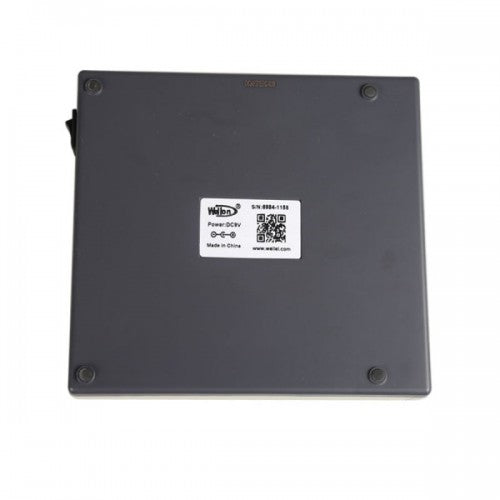

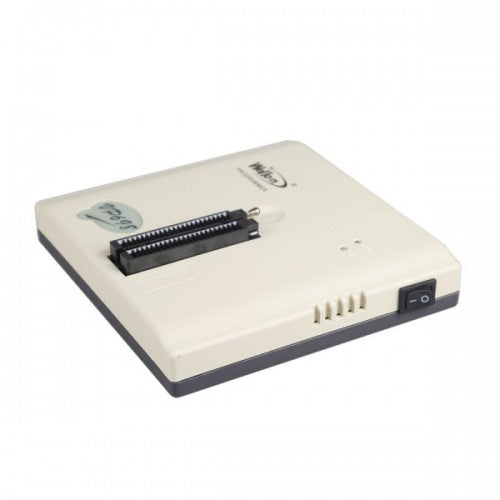

VP-698 Universal Programmer is replacement and upgrade version of VP-498. Original Wellon programmer comes with high quality, and support online support. VP 698 Programmer support multi-language.


Original Wellon VP-698 Universal Programmer Multi-language VP 698 Programmer Update Online

VP-698 Universal Programmer Features:

Dimension:168*180*32mm, weight:450g.

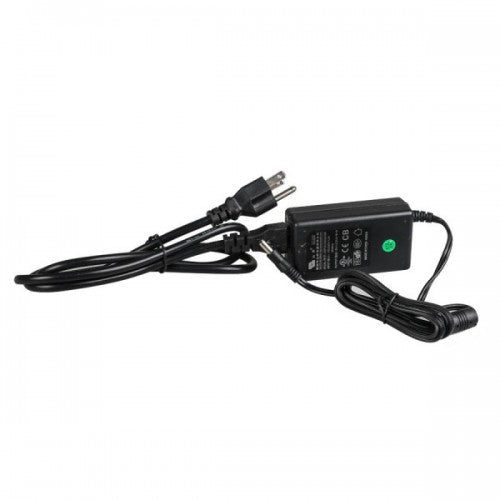

Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W
48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7/8/10
Supports eight languages, such as Chinese(Simplified), Chinese(Traditional), English, Korean, Poland, Italian, Portuguese, Dutch, Turkish and Hungary.

DEVICE SUPPORT: VIEW

PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC Test :

TTL (74 series), CMOS (40/45 series) Logic IC
SRAM (2114, 6116 ...) memory device

Device Updates:

WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through internet

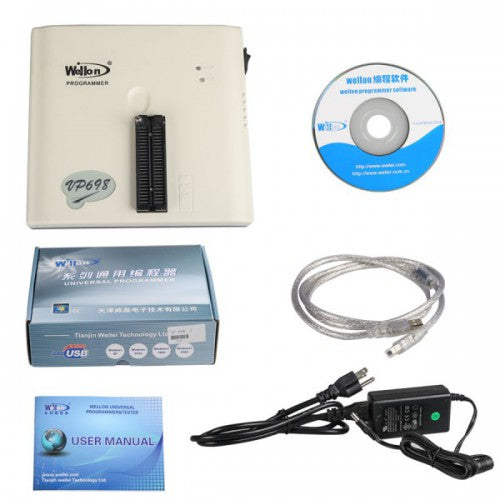

Package Including:

1pc x Original Wellon VP-698 Universal Programmer
