ELM327 WIFI OBD2 EOBD Scan Tool Support Android and iPhone/iPad Software V2.1 ELM327 WIFI OBD2 EOBD Scan Tool Support Android and iPhone/iPad Software V2.1

EL028
0.1kg
OBD2 Scanner
$19.99 $12.99 35%
-
+

WIFI ELM327 OBD2 Scanner. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB cable. It is easy to use and very useful to diagnose cars. It use ELM327 software.

ELM 327 WIFI V1.5 OBD2 Interface for PC IOS Android

ELM327 Wifi Scanner for Multi-brands CAN-BUS, Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Notice: elm327 wifi with box, but without CD, scan to download software.



Top 5 Reasons To Get elm327 Wifi Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (WIFI)

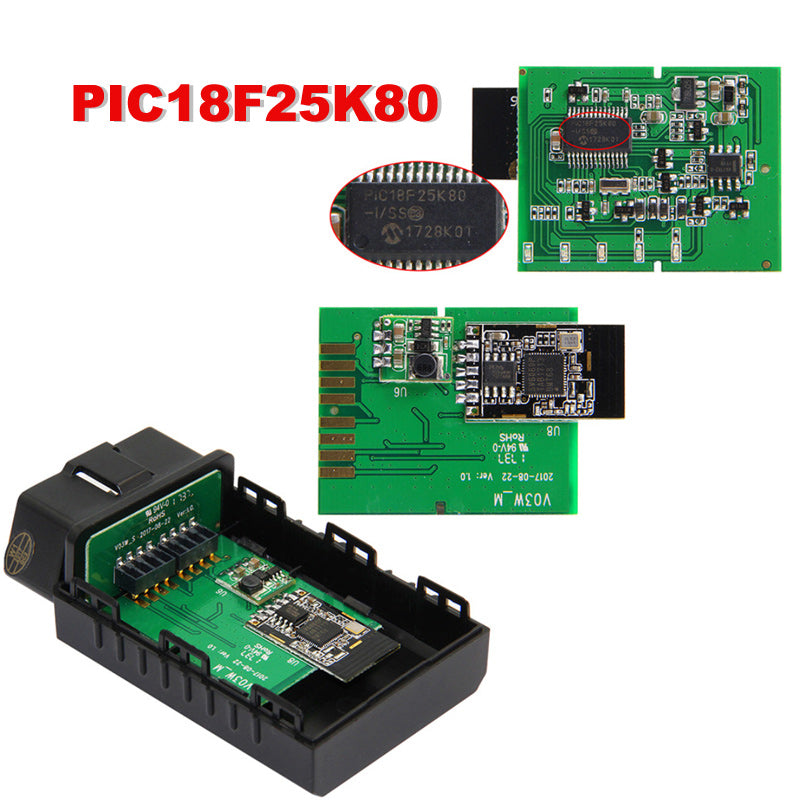

5.with PICI8F25K80

6. Support Four operating platforms (IOS, Android, Symbian, Windows)



Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3Display current sensor data, including:
4Engine RPM
5Calculated Load Value
6Coolant Temperature
7Fuel System Status
8Vehicle Speed
9Short Term Fuel Trim
10Long Term Fuel Trim
11Intake Manifold Pressure
12Timing Advance
13Intake Air Temperature
14Air Flow Rate
15Absolute Throttle Position
16Oxygen sensor voltages / associated short term fuel trims
17Fuel System status
18Fuel Pressure
19Many others



Specifications:

SSID: WiFi_OBDII
IP: 192.168.0.10
Port: 35000
Communication: WIFI
Master Chip: PICI8F25K80 (optioinal)
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 65mA
Standby Current: 45mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm



Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.



Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope



Package List:

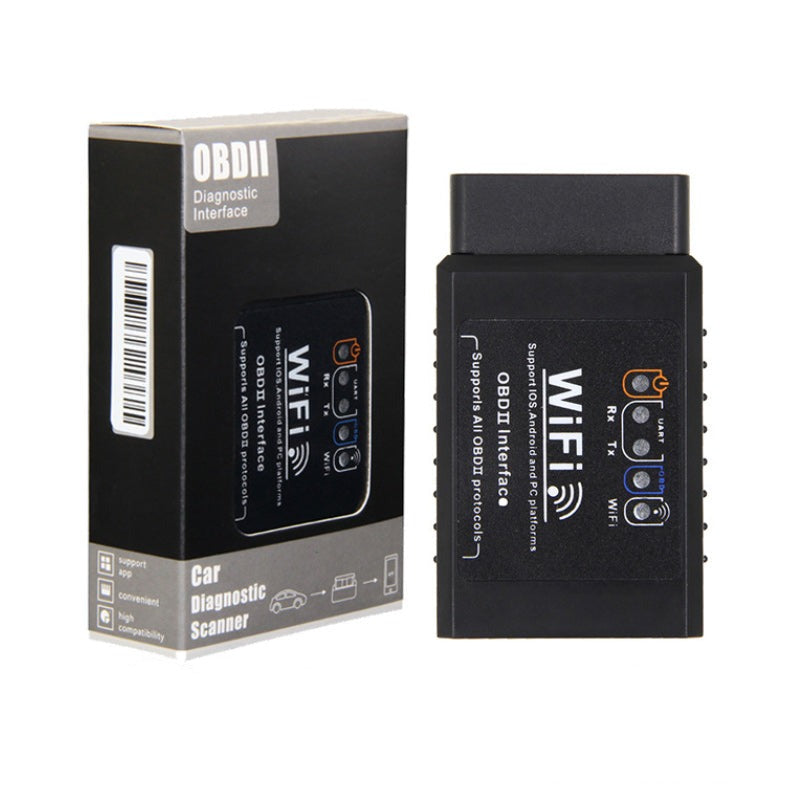

1pc x Mini OBD2 Wifi Scanner

WIFI ELM327 OBD2 Scanner. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB cable. It is easy to use and very useful to diagnose cars. It use ELM327 software.

ELM 327 WIFI V1.5 OBD2 Interface for PC IOS Android

ELM327 Wifi Scanner for Multi-brands CAN-BUS, Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Notice: elm327 wifi with box, but without CD, scan to download software.



Top 5 Reasons To Get elm327 Wifi Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (WIFI)

5.with PICI8F25K80

6. Support Four operating platforms (IOS, Android, Symbian, Windows)



Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3Display current sensor data, including:
4Engine RPM
5Calculated Load Value
6Coolant Temperature
7Fuel System Status
8Vehicle Speed
9Short Term Fuel Trim
10Long Term Fuel Trim
11Intake Manifold Pressure
12Timing Advance
13Intake Air Temperature
14Air Flow Rate
15Absolute Throttle Position
16Oxygen sensor voltages / associated short term fuel trims
17Fuel System status
18Fuel Pressure
19Many others



Specifications:

SSID: WiFi_OBDII
IP: 192.168.0.10
Port: 35000
Communication: WIFI
Master Chip: PICI8F25K80 (optioinal)
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 65mA
Standby Current: 45mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm



Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.



Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope



Package List:

1pc x Mini OBD2 Wifi Scanner
